General Compact Host
C010
Allwinner A40i

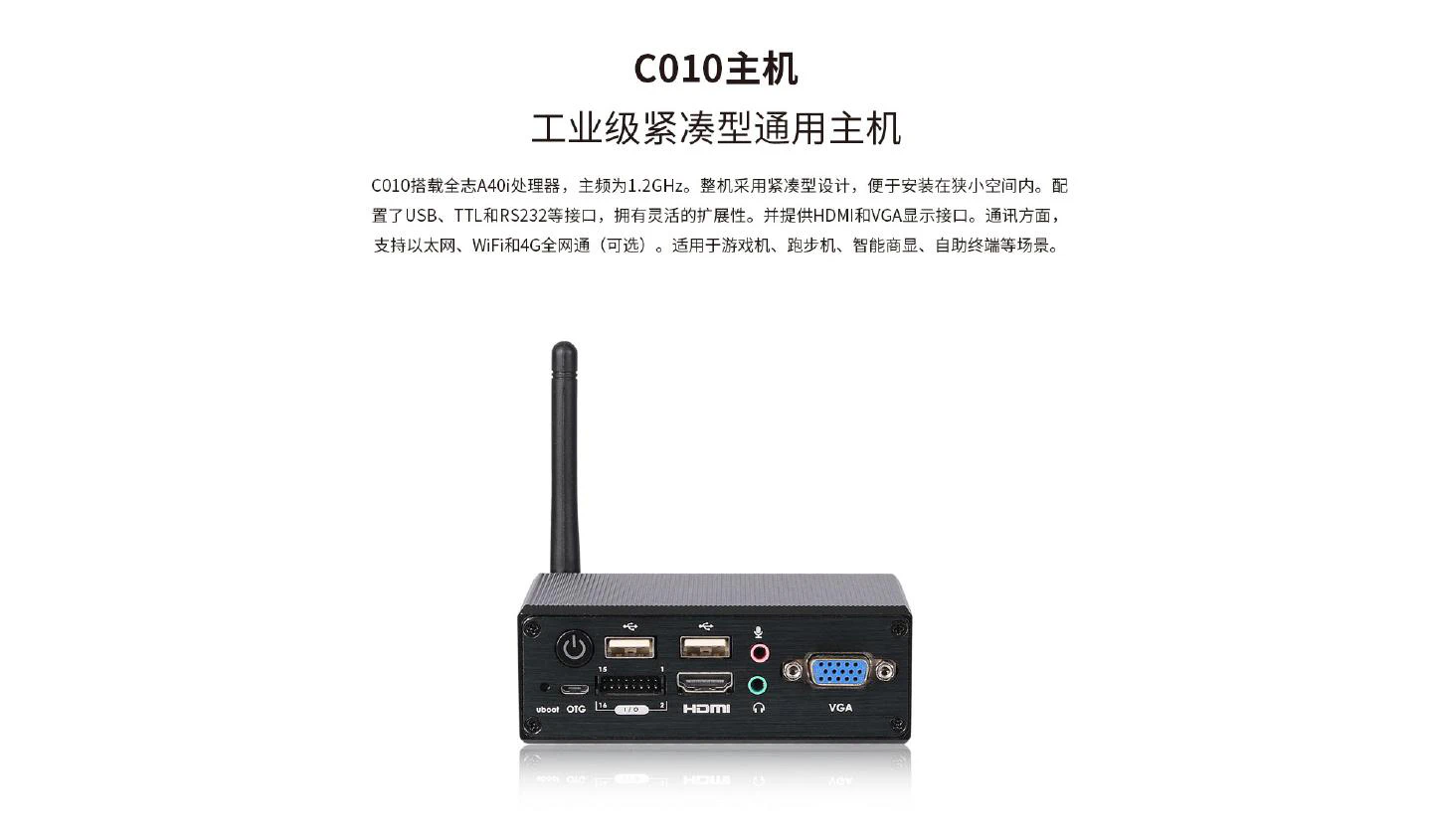

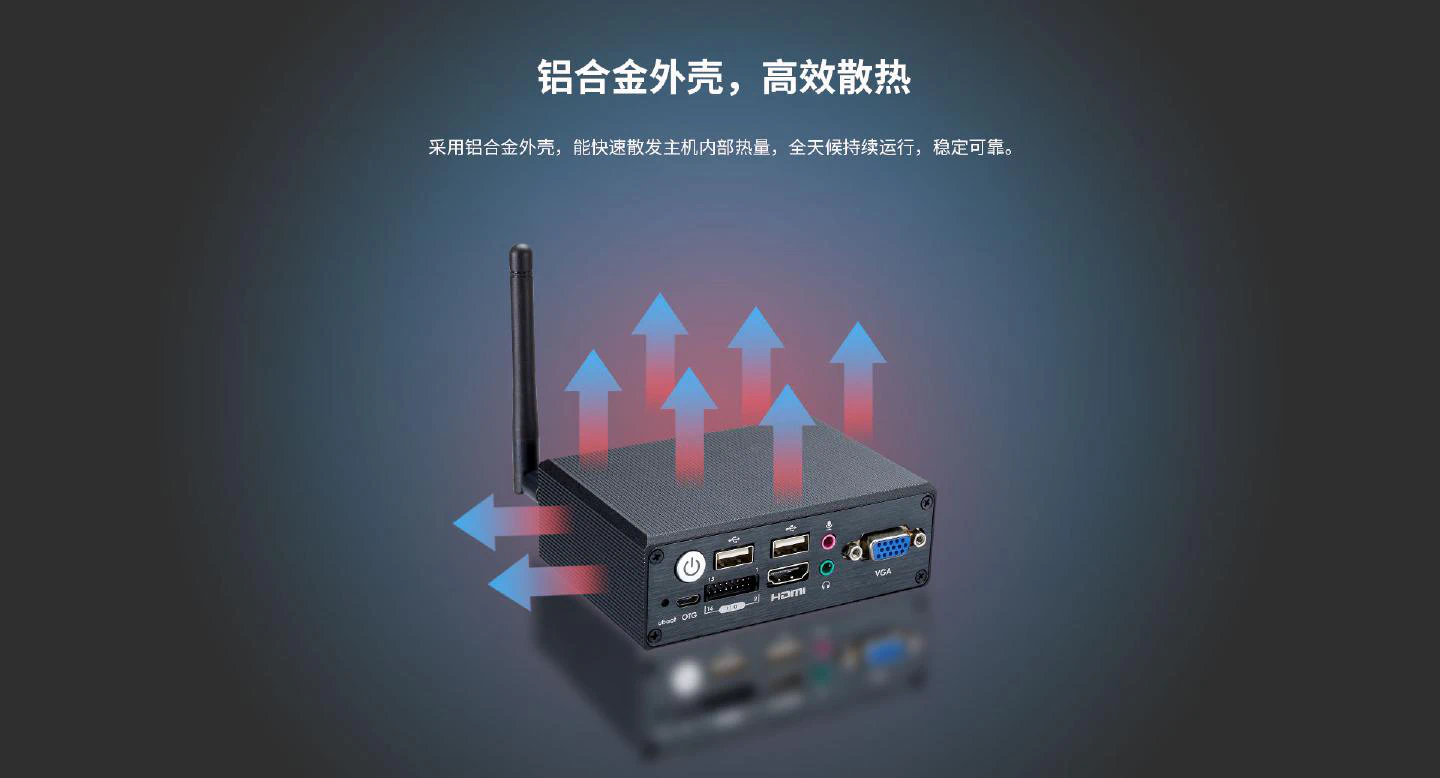

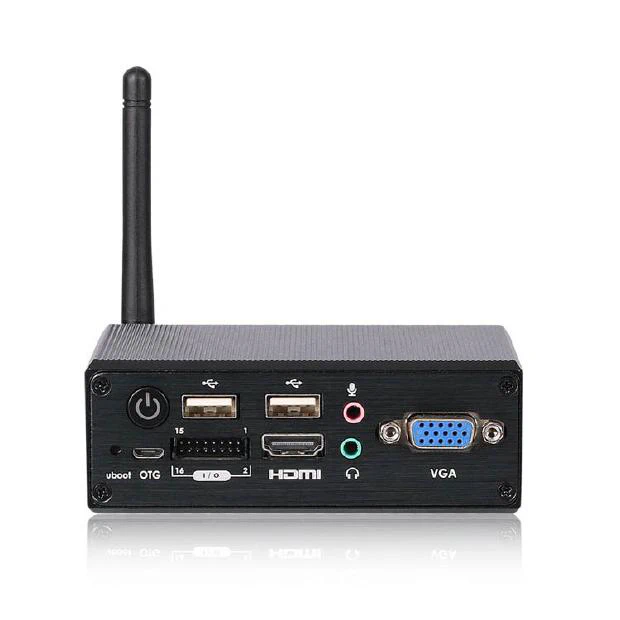

C010 adopts Allwinner A40i, a Cortex-A7 quad-core CPU with Android 7.1 system, with a maximum frequency of 1.2GHz. It features a Mali-400MP2 GPU with 1080P decoding. Rich interfaces, integrating Ethernet, HDMI, VGA, WiFi, 4G (optional), and RS-232 serial port. This product features a fanless design with built-in high-quality heat sink, making it very suitable for industrial and commercial application requirements.
Processor
Allwinner A40i
Memory
1GB DDR3
Storage
8GB eMMC
OS Support

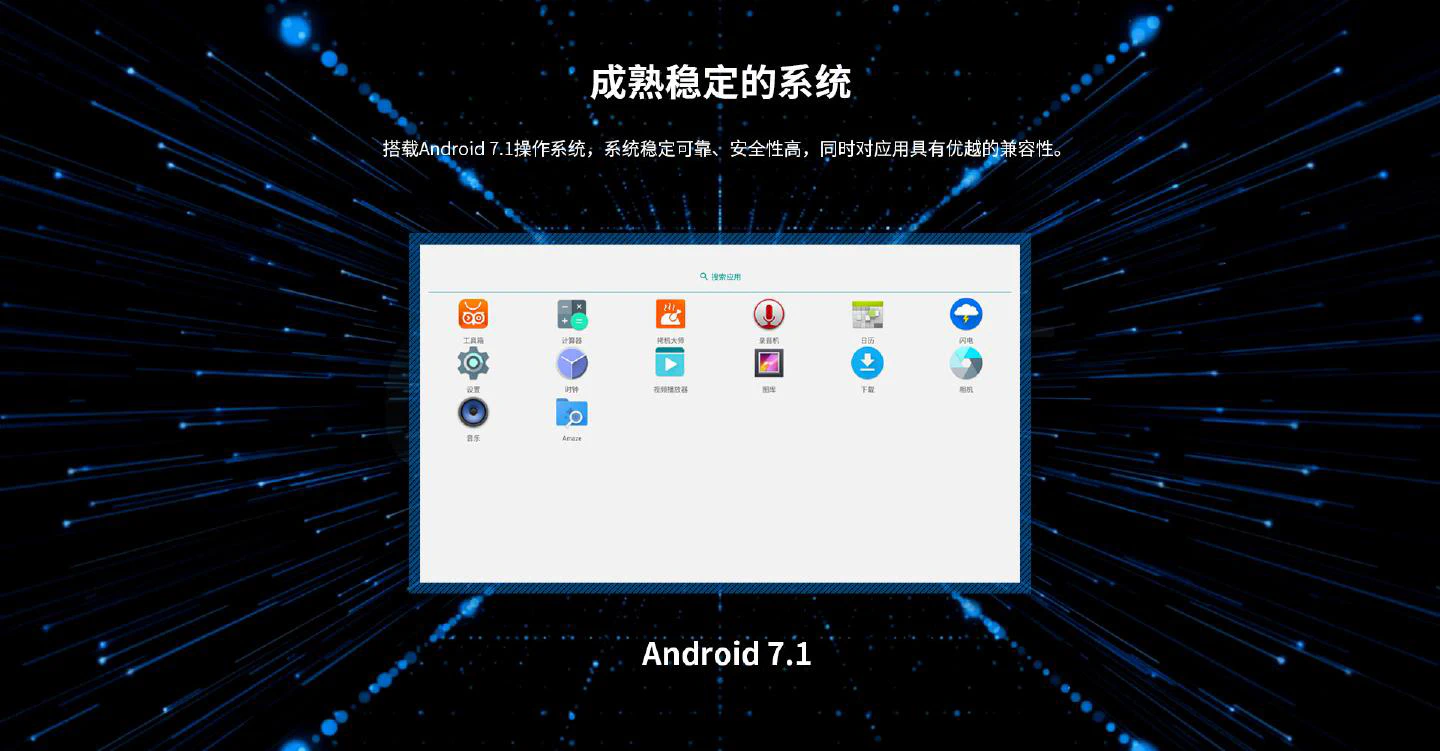

Android 7.1
Network
1× 10/100M
Video Output
HDMI 1.4

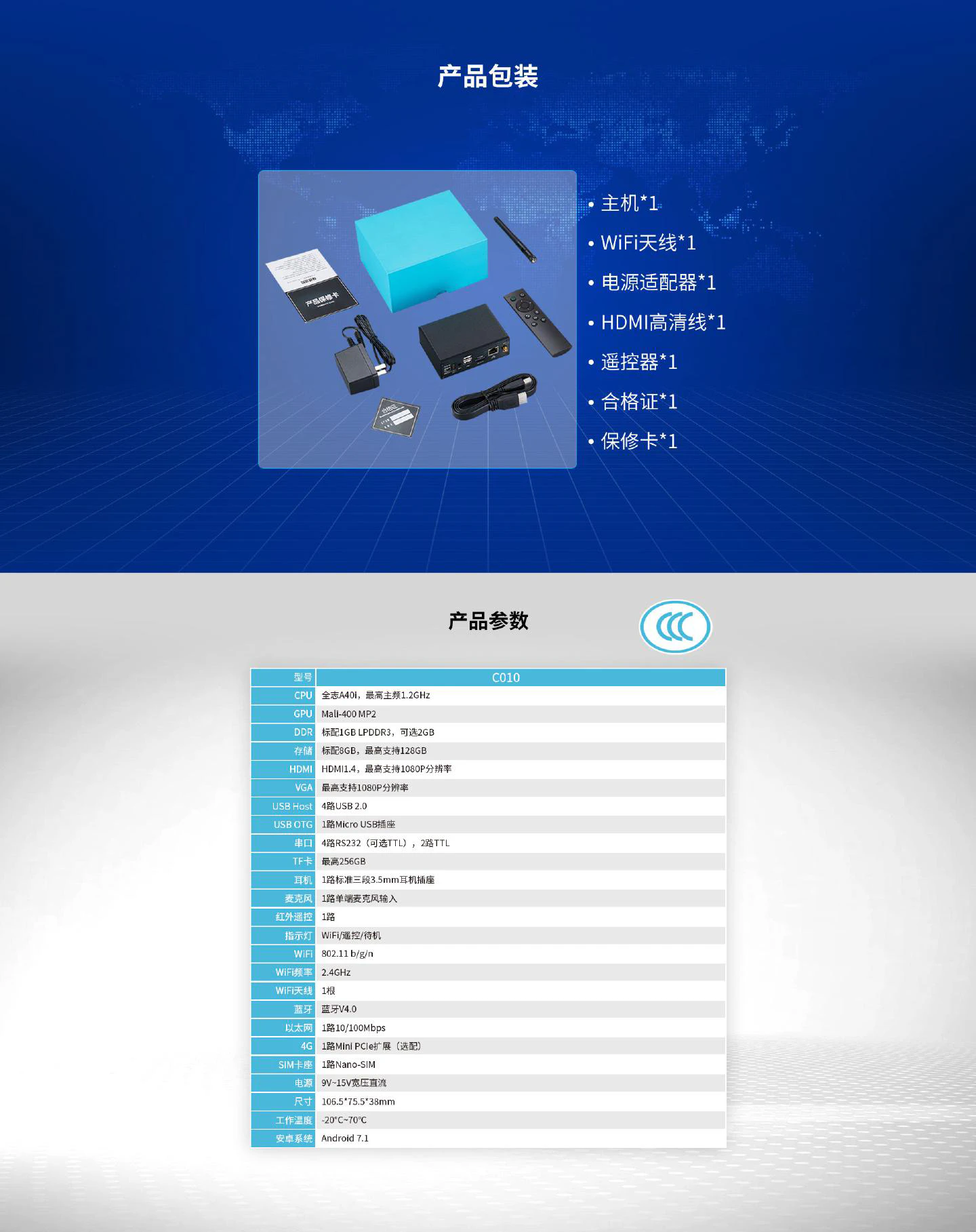

Technical Specifications
| Processor | Allwinner A40i，Quad-core Cortex-A7，Frequency1.2GHz |
| GPU | Mali-400MP2，Supports 1080P decoding |
| NPU | |
| Memory | Standard 1GB DDR3，Max 2GB |
| Storage | Standard 8GB eMMC，Max 128GB |

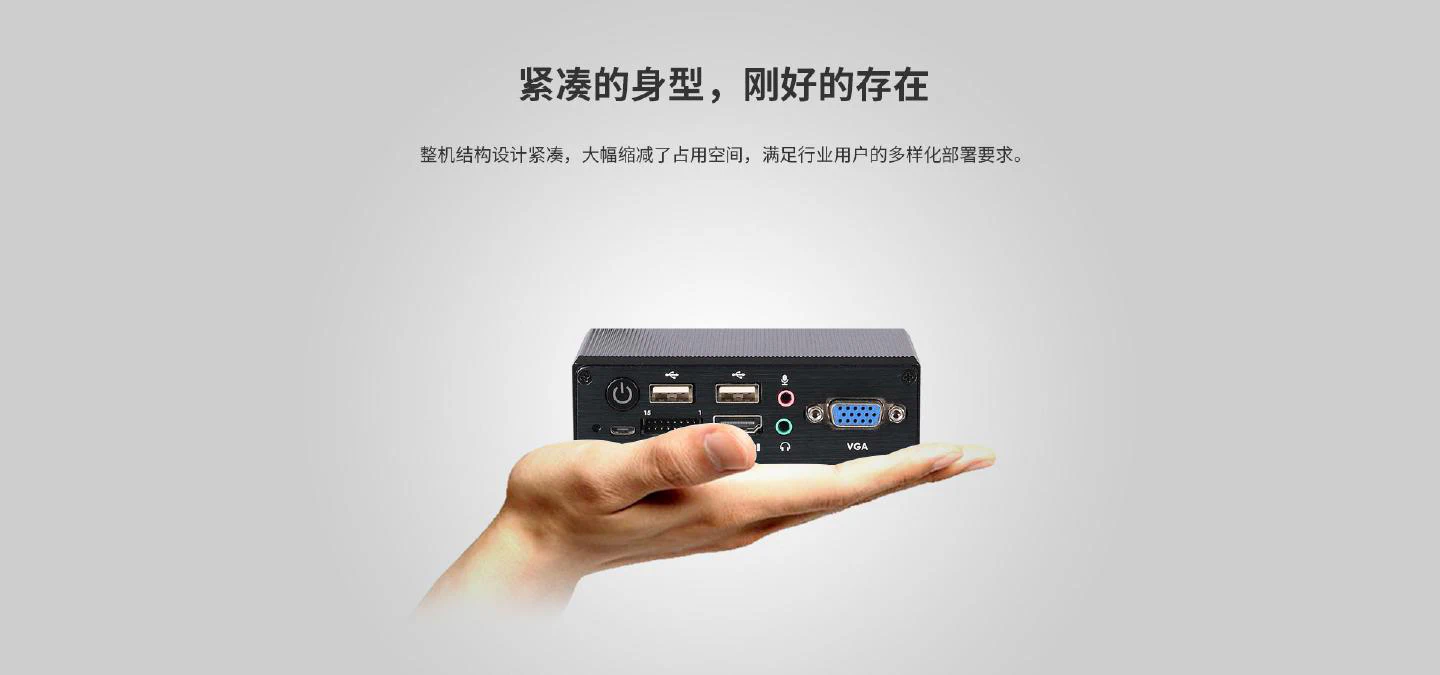

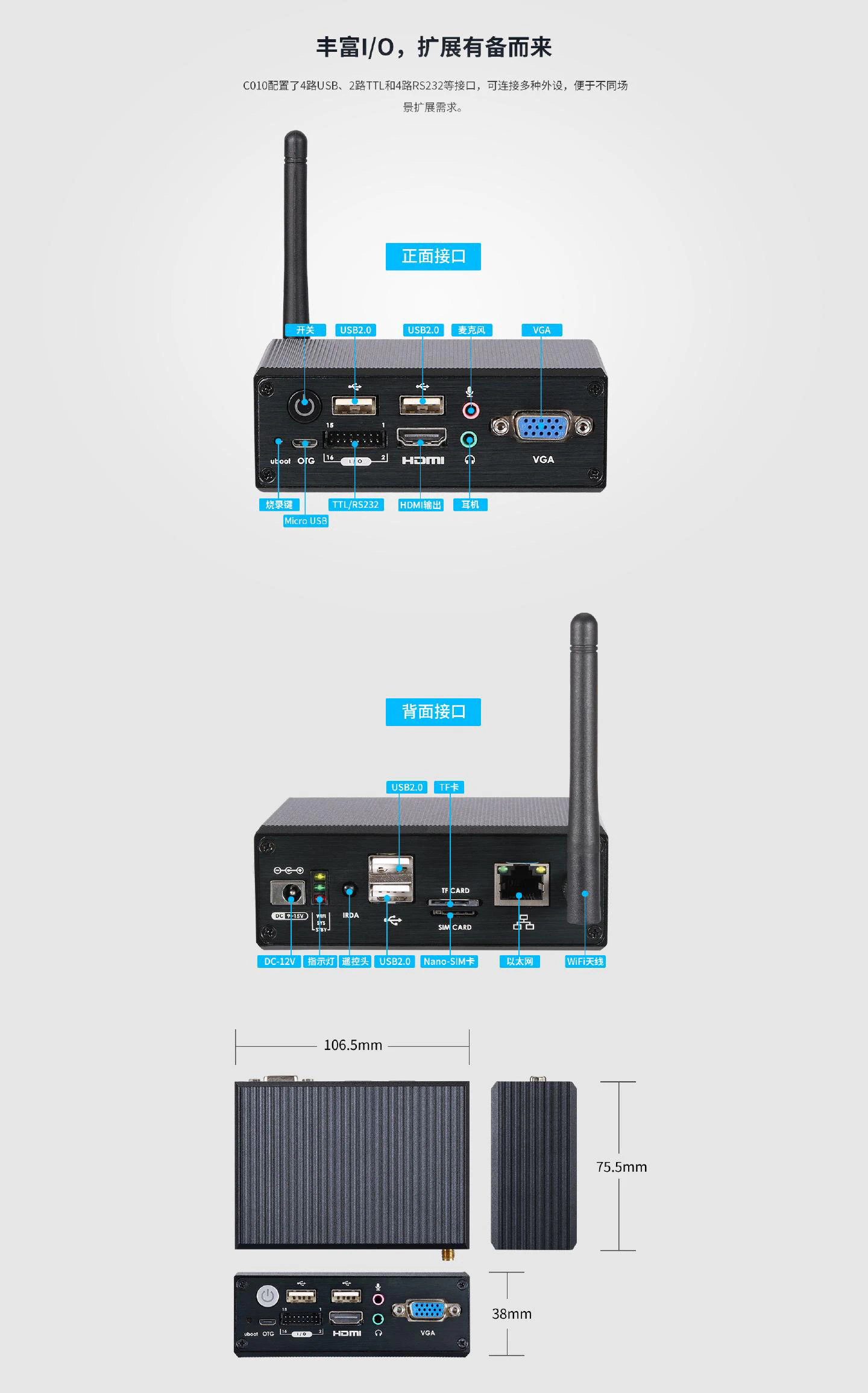

| Dimensions | 106.5*75.5*38mm |
| Weight | 350g |
| Appearance | Color: Black，Material: Aluminum alloy |
| Power Consumption | Typical 5W，Max 10W |
