DEC-3568

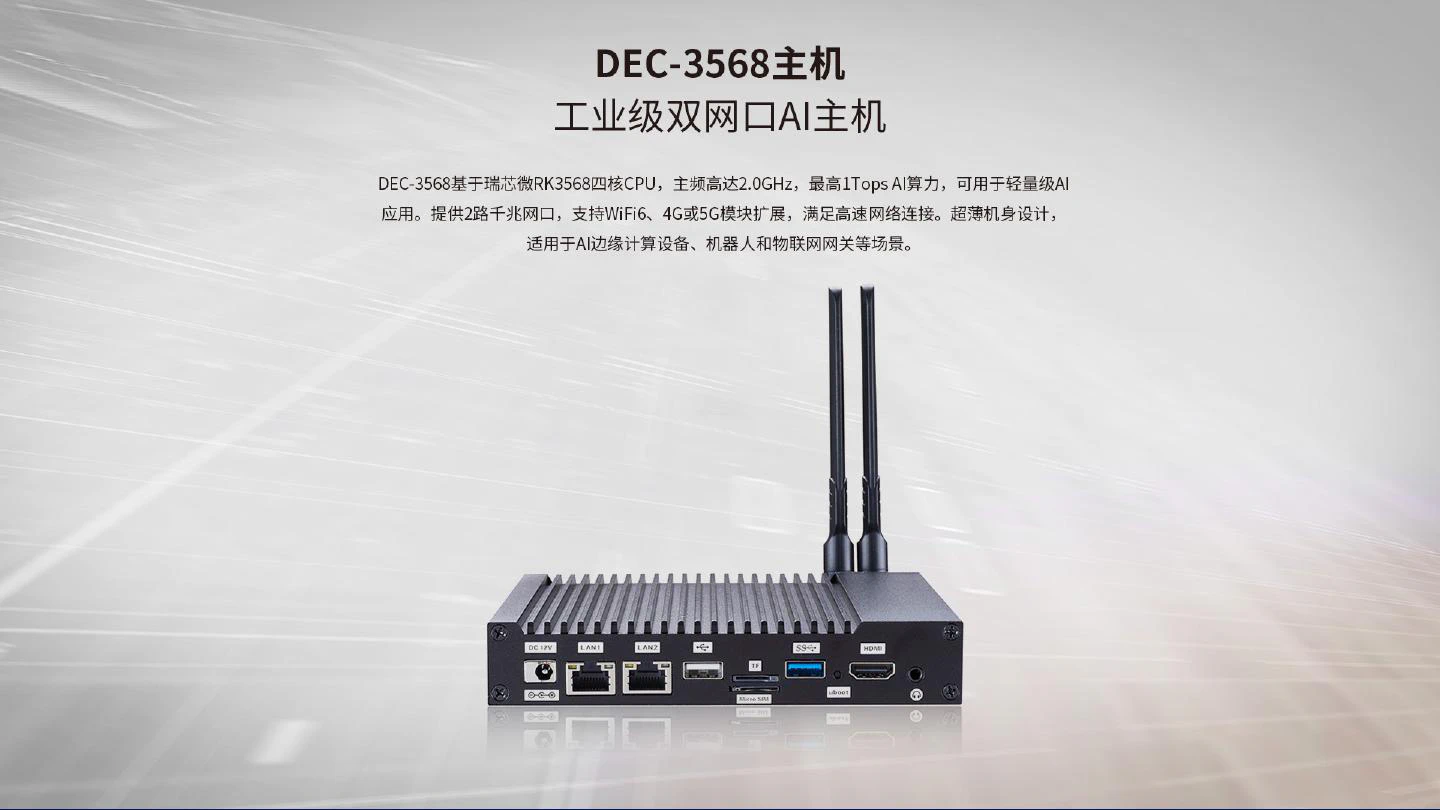

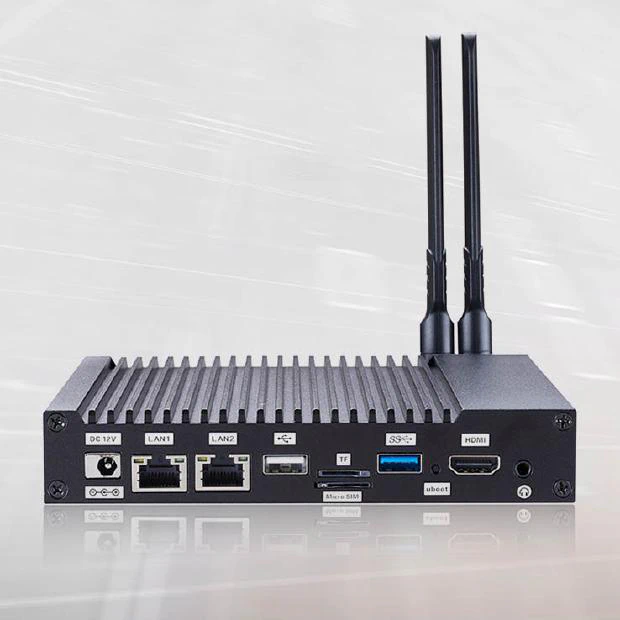

Name: DEC-3568 - High-Performance AI Edge Computing Host
Brand: 奥宇智能科技

Rockchip RK3568

DEC-3568 adopts Rockchip RK3568 quad-core A55 CPU with a maximum frequency of 2.0GHz, using a 22nm advanced process, featuring low power consumption and high performance. It integrates Mail-G52 high-performance GPU, supporting up to 4K display. Interface-wise, it integrates dual Gigabit Ethernet, RS232, HDMI output, WiFi, and 4G, supporting various peripheral expansions, making it your best choice for industrial control projects.

Processor RK3568

Memory 2GB LPDDR4

Storage 16GB eMMC

OS Support Android 11 / Buildroot

Network 2× 10/100/1000M

Video Output HDMI 2.0

Request Quote View Specifications

Product Downloads

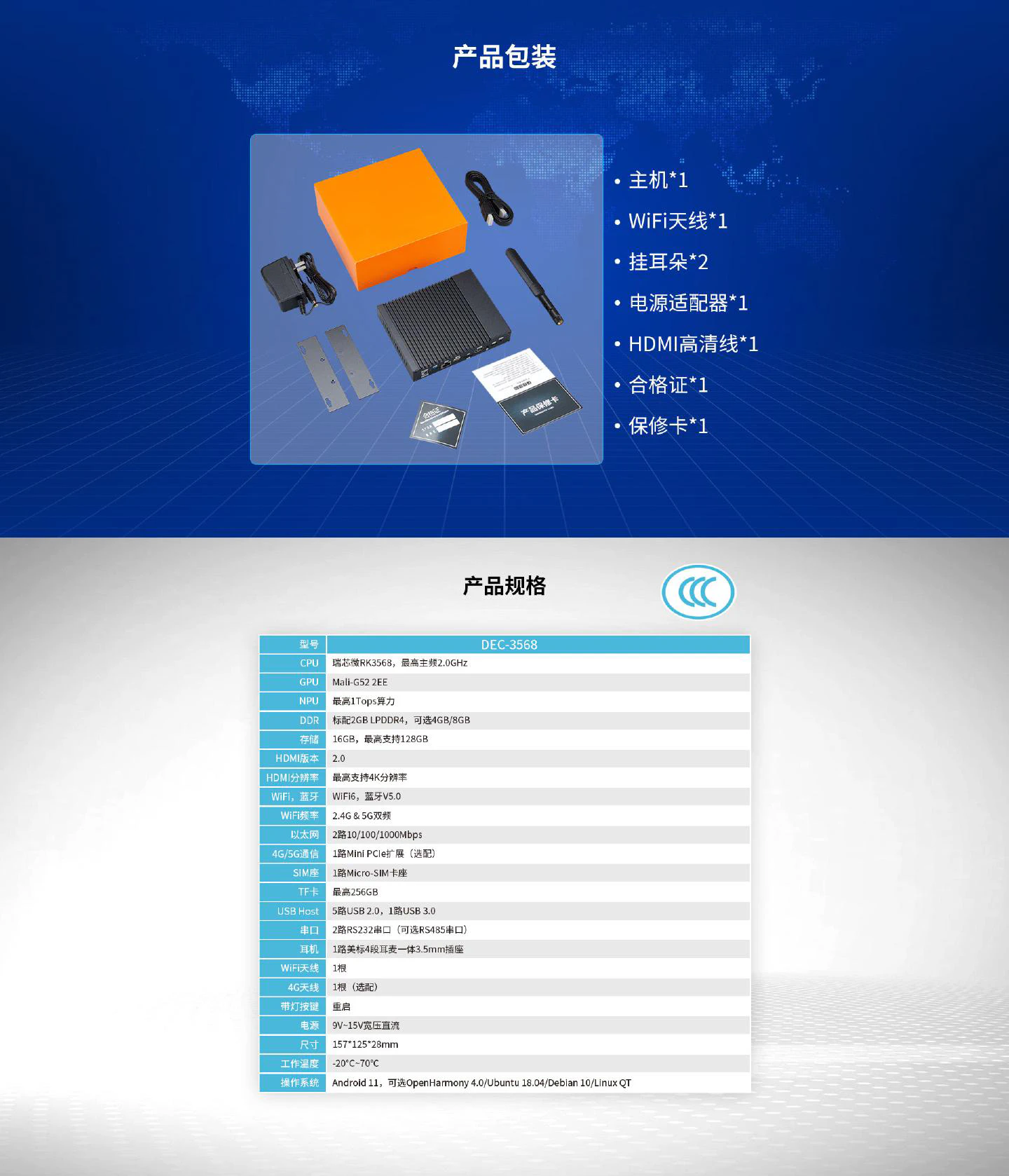

Technical Specifications

Processor	RK3568，Quad-core Cortex-A55，Frequency2.0GHz
GPU	Mali-G52，Supports 4K display
NPU	1.0 TOPS
Memory	Standard 2GB LPDDR4，Max 8GB
Storage	Standard 16GB eMMC，Max 128GB

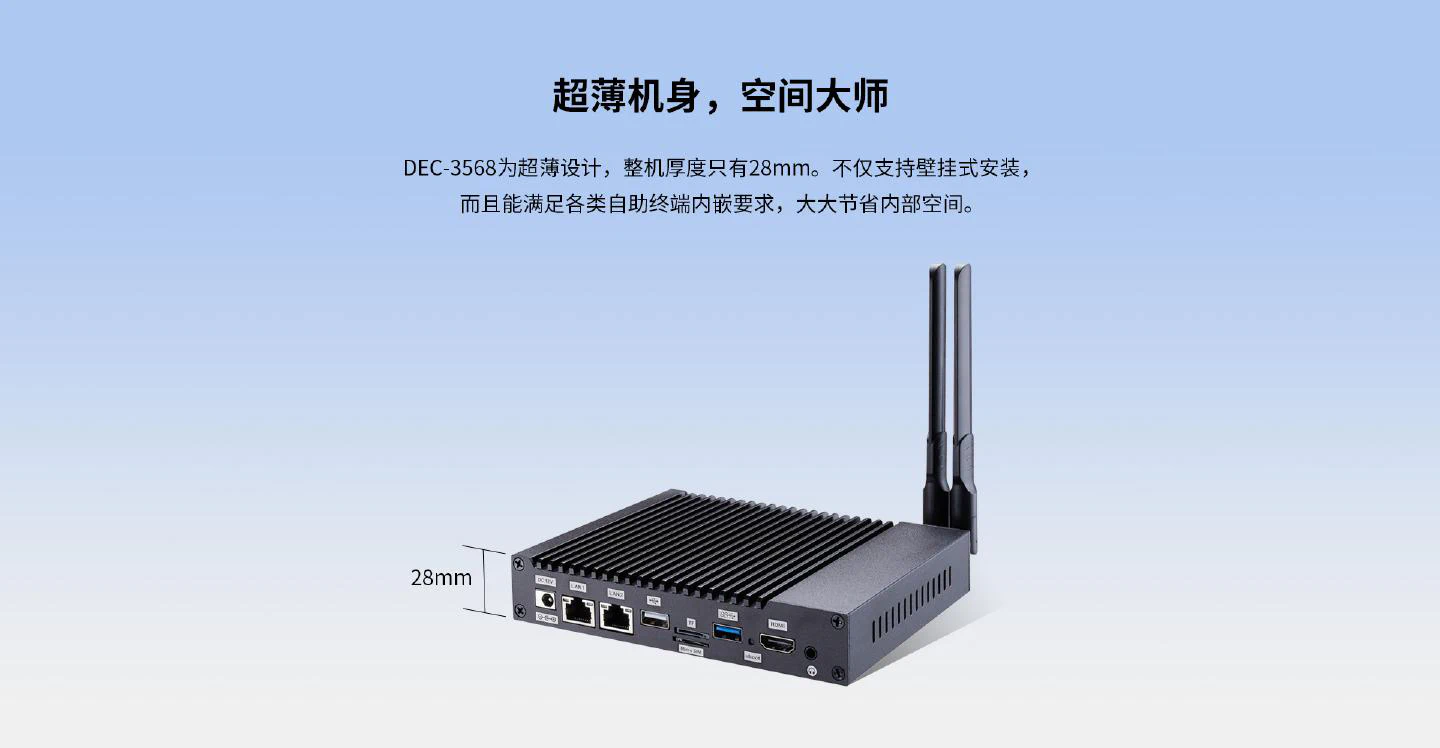

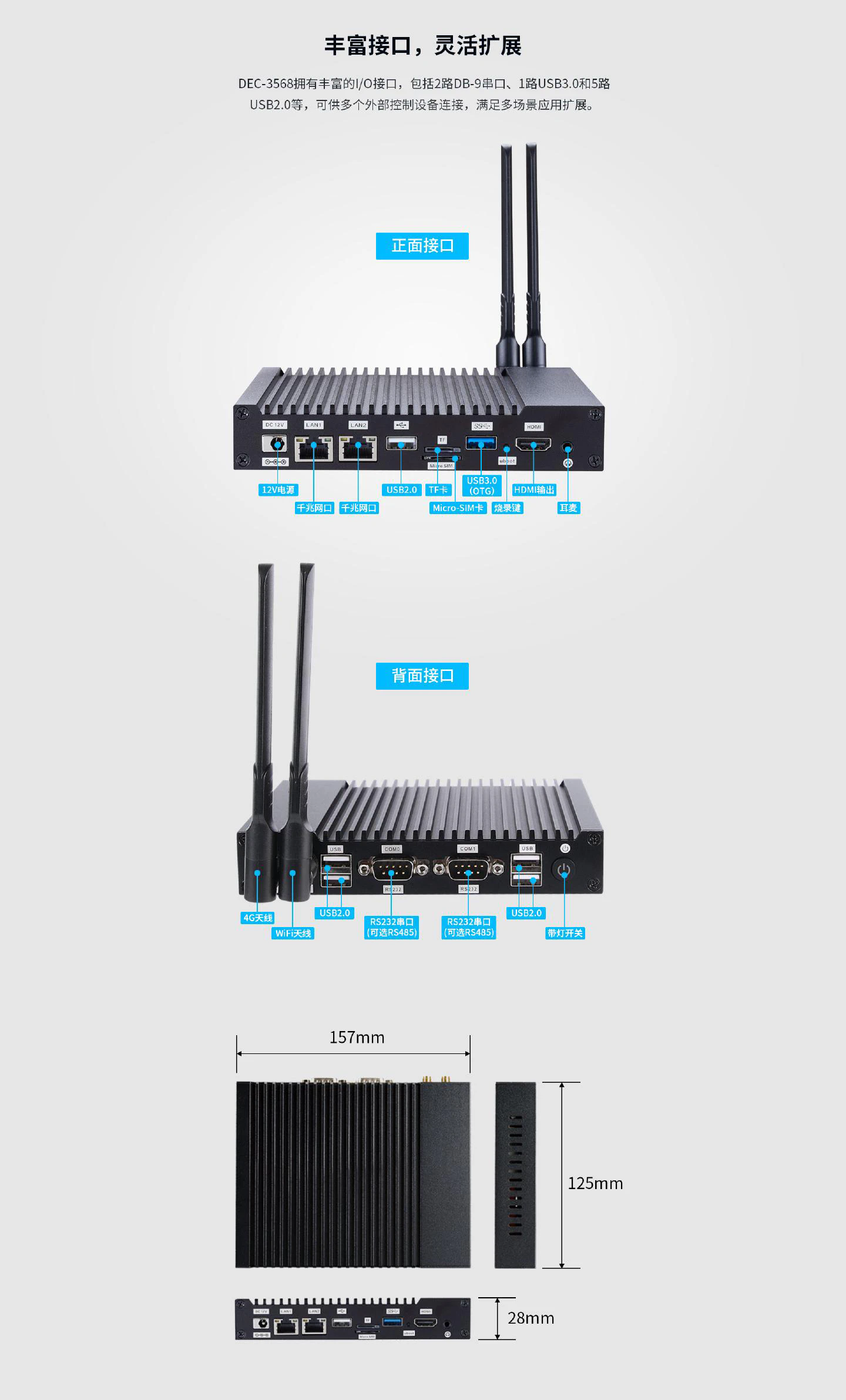

Dimensions	15712528mm
Weight	580g

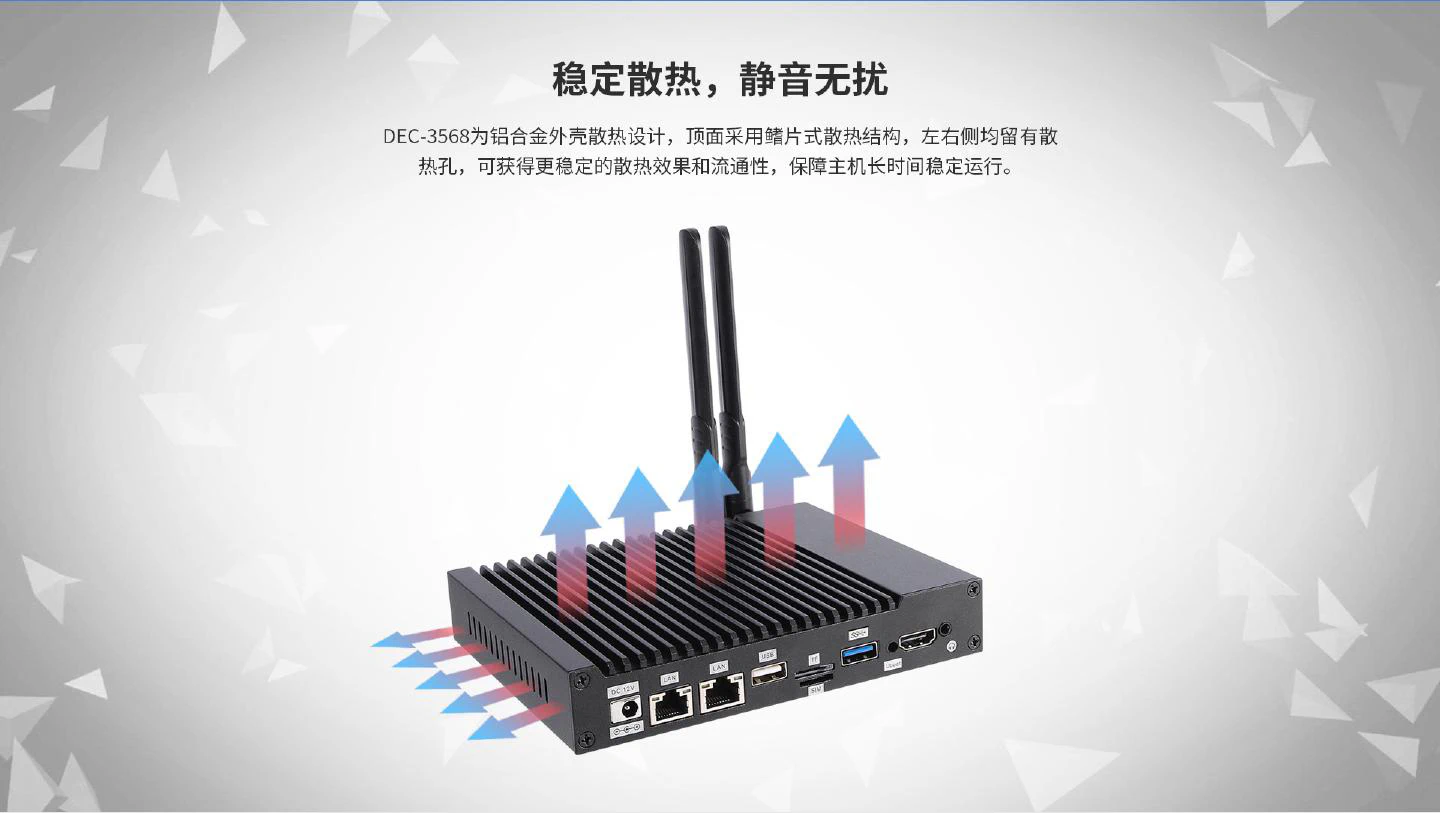

Appearance	Color: Black，Material: Aluminum alloy
Power Consumption	Typical 2.35W，Max 10W

Display Output	1× HDMI 2.0，4K

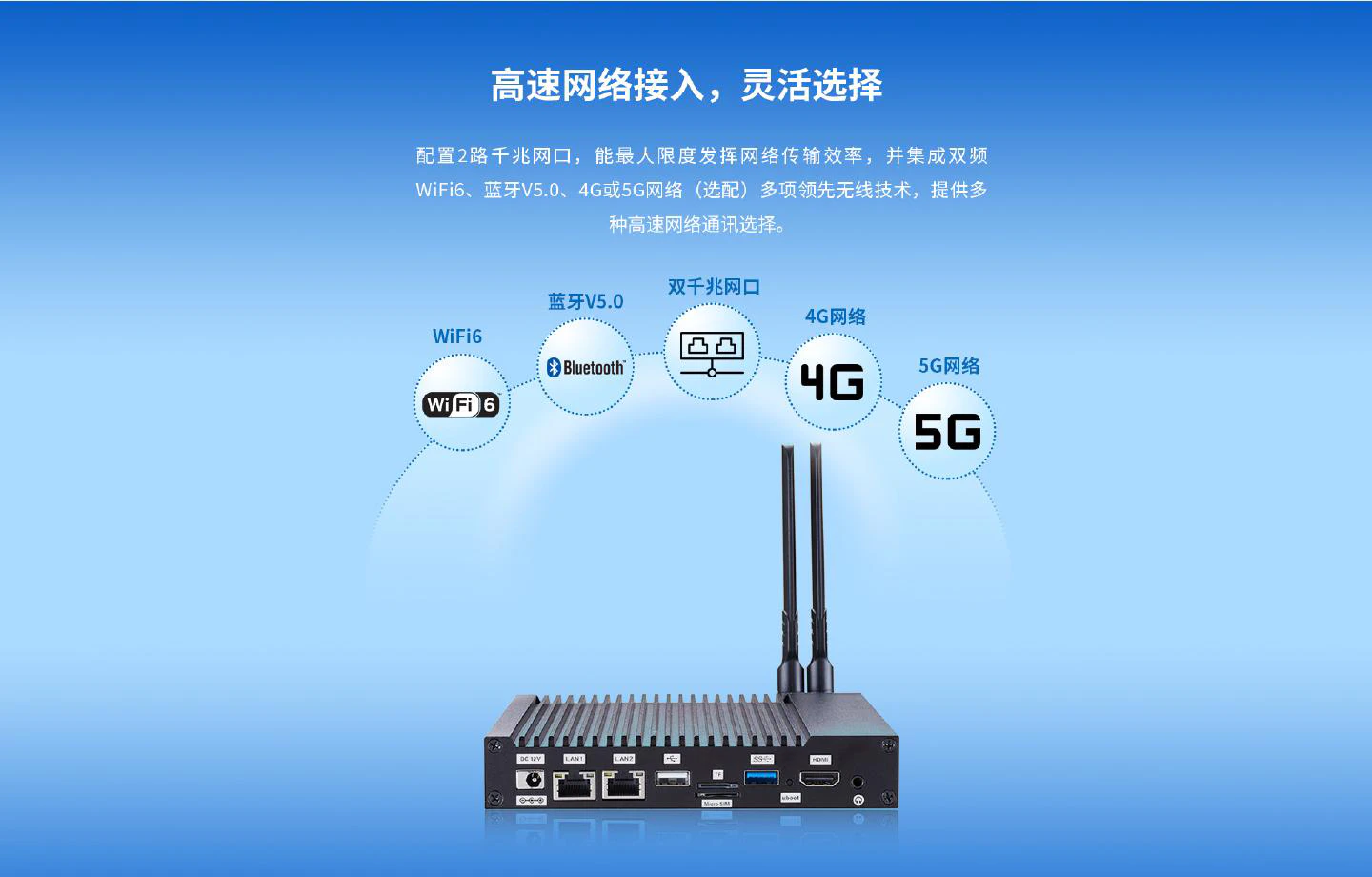

Network	2× 10/100/1000M Ethernet Interface
Wi-Fi	WiFi6 (2.4G/5G)
Bluetooth	5.0
Cellular	4G (PCIe 4G (optional))
USB	5× USB 2.0 ，1× USB 3.0 ，1× USB OTG ，0× USB Type-C
Serial Port	2× RS232（Optional RS485）
Power Input	9V~15V DC
Audio	Output: 3.5mm headphone jack ，Input: Headset interface

Android	11
Linux	Buildroot, Debian 10, Ubuntu 18.04
Special Features	RTC, Watchdog
Power Management	Scheduled Power , Wake on LAN
System Upgrade	Local upgrade, USB upgrade, Network upgrade

Operating Temperature	-20~70℃
Storage Temperature	-40~70℃
Operating Humidity	0~90%RH (non-condensing)
Storage Humidity	0~95%RH (non-condensing)
