DEC-3588

Name: DEC-3588 - High-Performance Octa-Core AI Computing Host
Brand: 奥宇智能科技

Rockchip RK3588

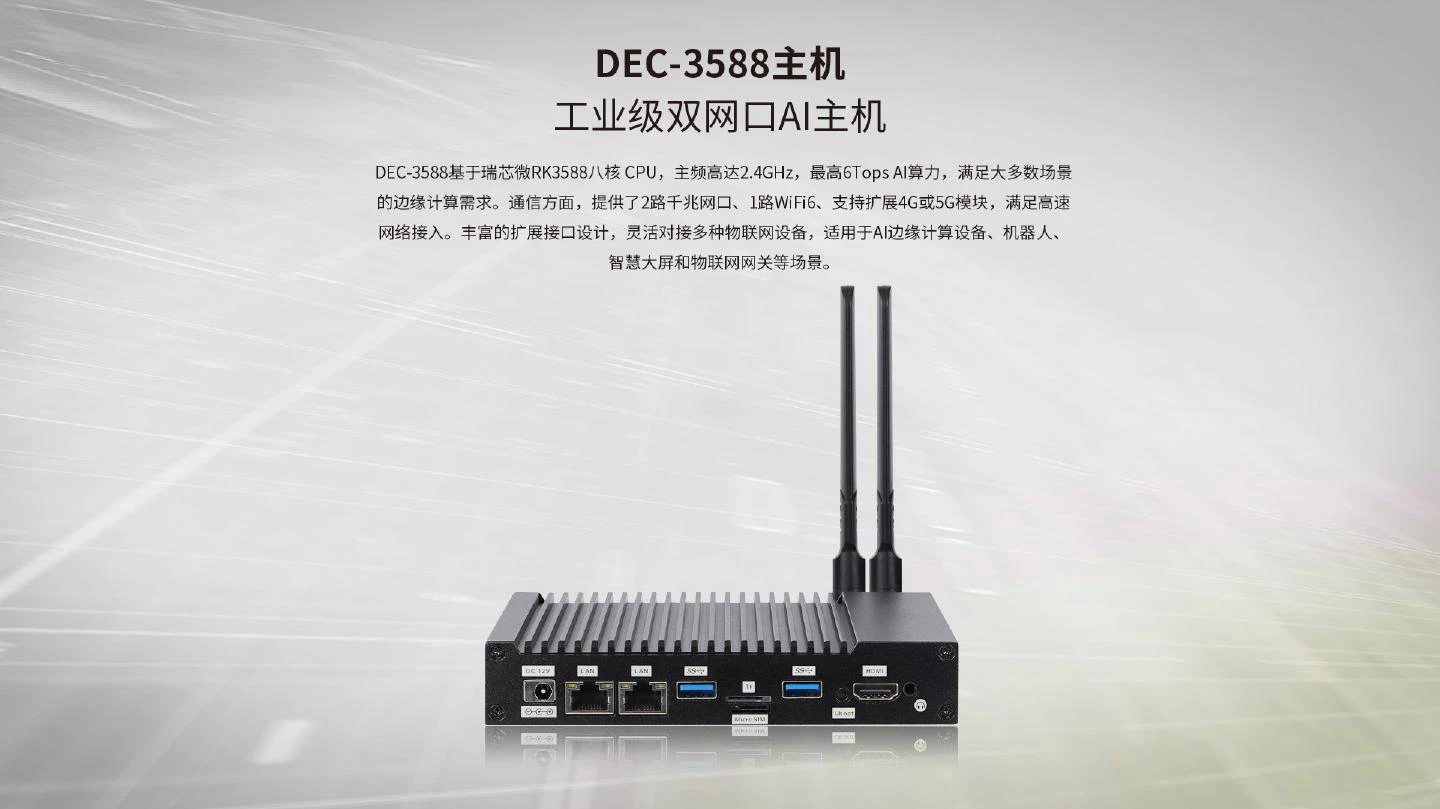

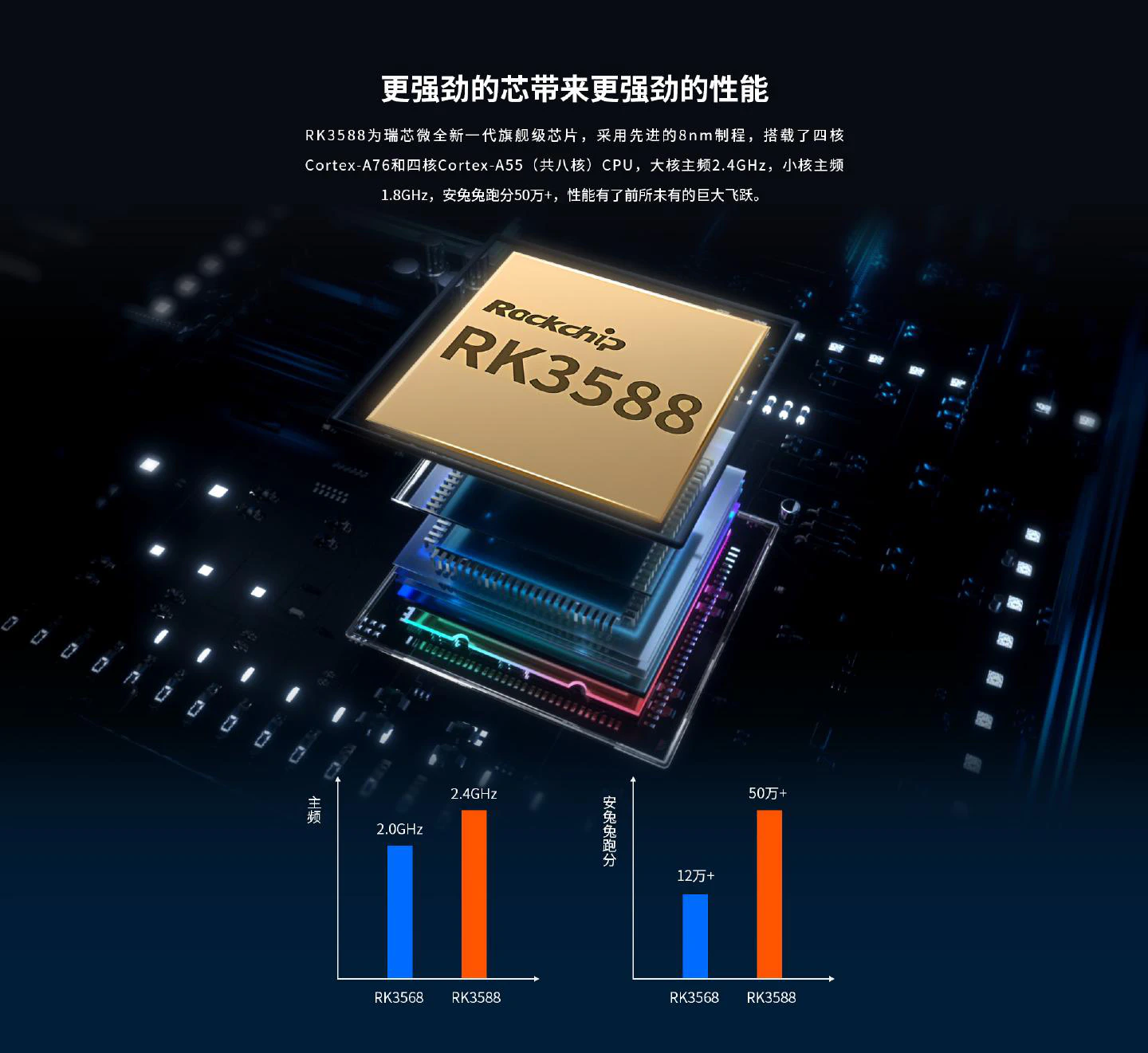

DEC-3588 adopts Rockchip RK3588 octa-core (four Cortex-A76 + four Cortex-A55) processor, with a built-in independent NPU, computing power up to 6.0 Tops, based on high-end 8nm process, with a maximum frequency of 2.4GHz. It integrates Mail-G610MC4 GPU, supporting up to 8K video decoding. It features dual Gigabit Ethernet, RS232, RS485 (optional), HDMI output and other interfaces, supporting various peripheral expansions, making it your best choice for industrial control projects.

Processor RK3588

Memory 2GB LPDDR4

Storage 16GB eMMC

OS Support Android 12.0 / Buildroot

Network 2× 10/100/1000M

Video Output HDMI 2.1

Request Quote View Specifications

Product Downloads

Technical Specifications

Processor	RK3588，Four Cortex-A76 + four Cortex-A55，Frequency2.4GHz
GPU	Mali-G610MC4，Supports 8K display
NPU	6.0 TOPS
Memory	Standard 2GB LPDDR4，Max 32GB
Storage	Standard 16GB eMMC，Max 128GB

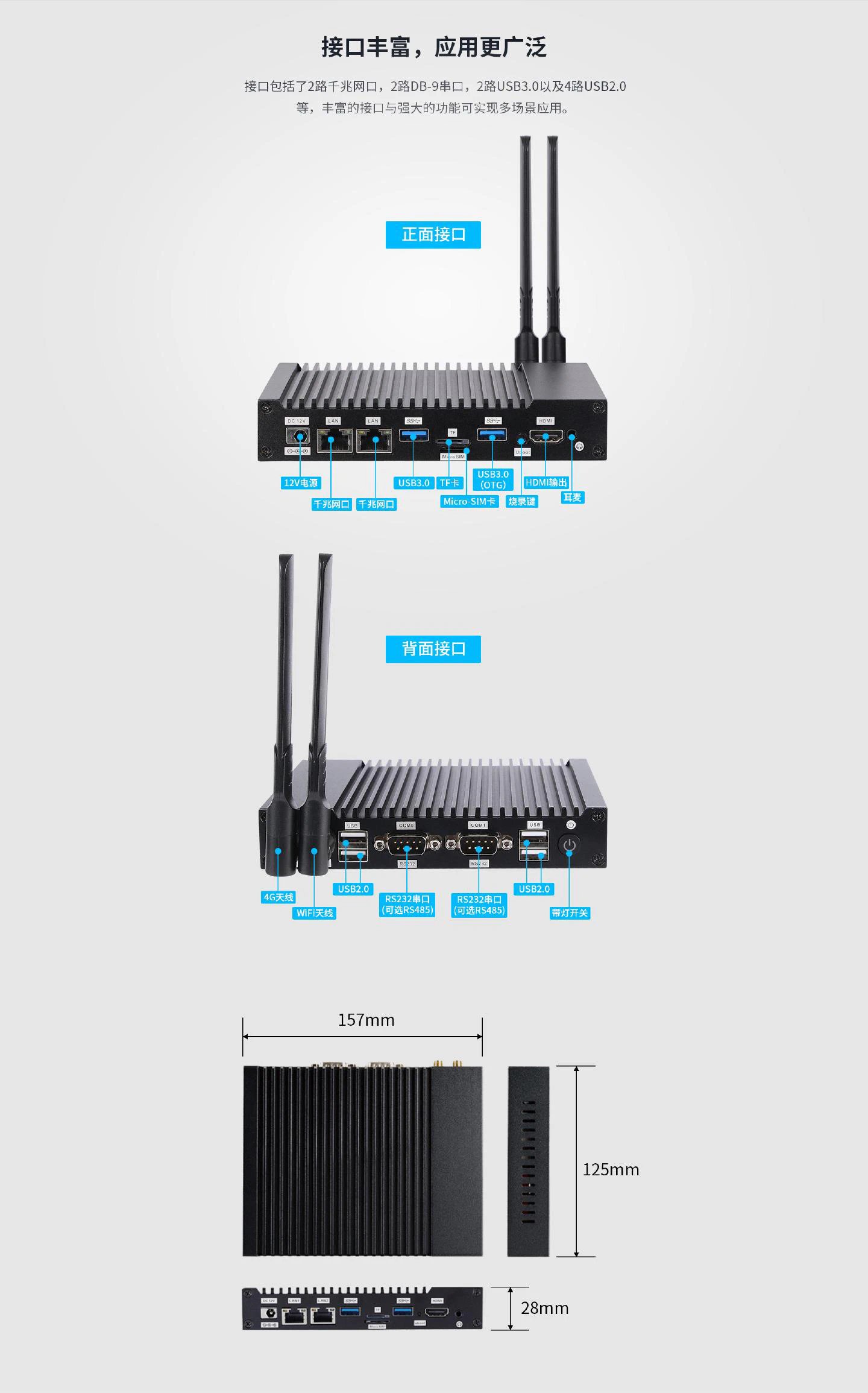

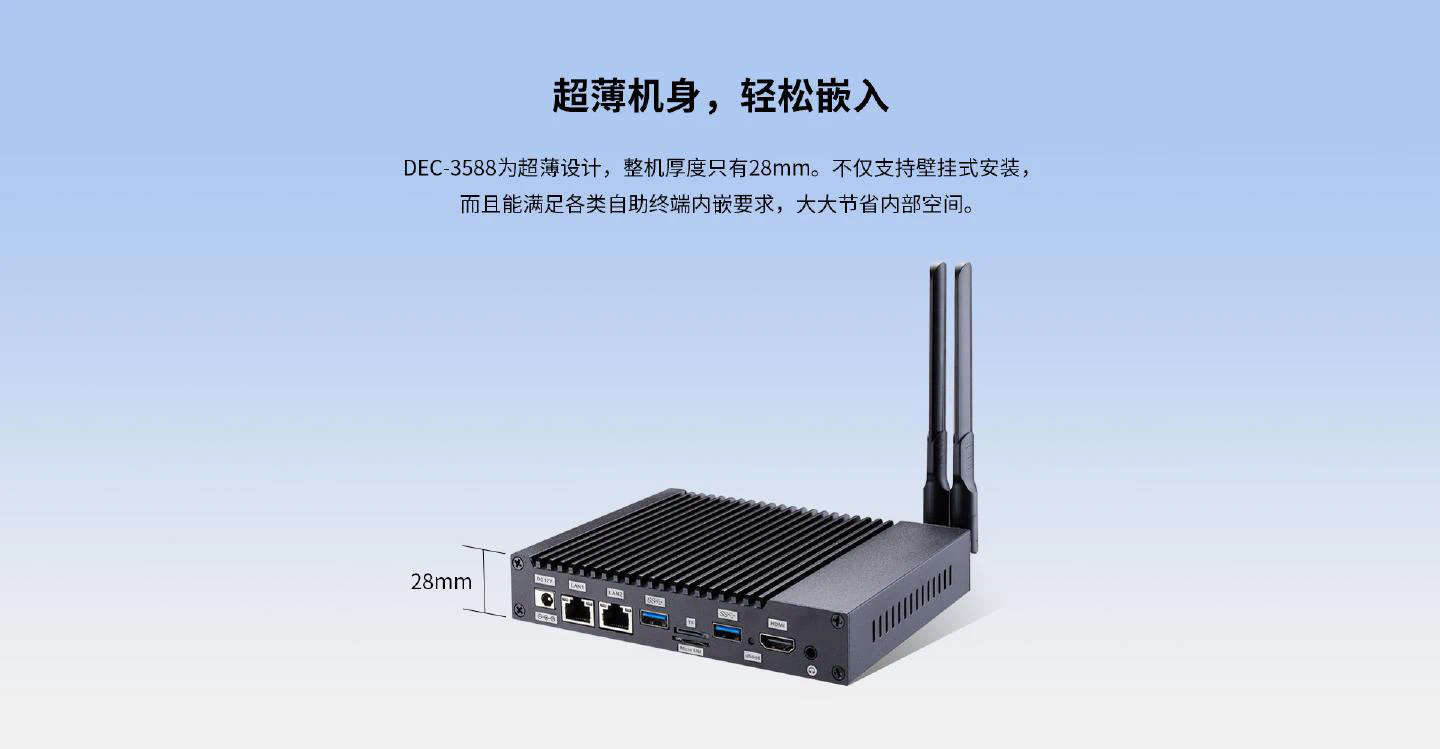

Dimensions	15712528mm
Weight	580g

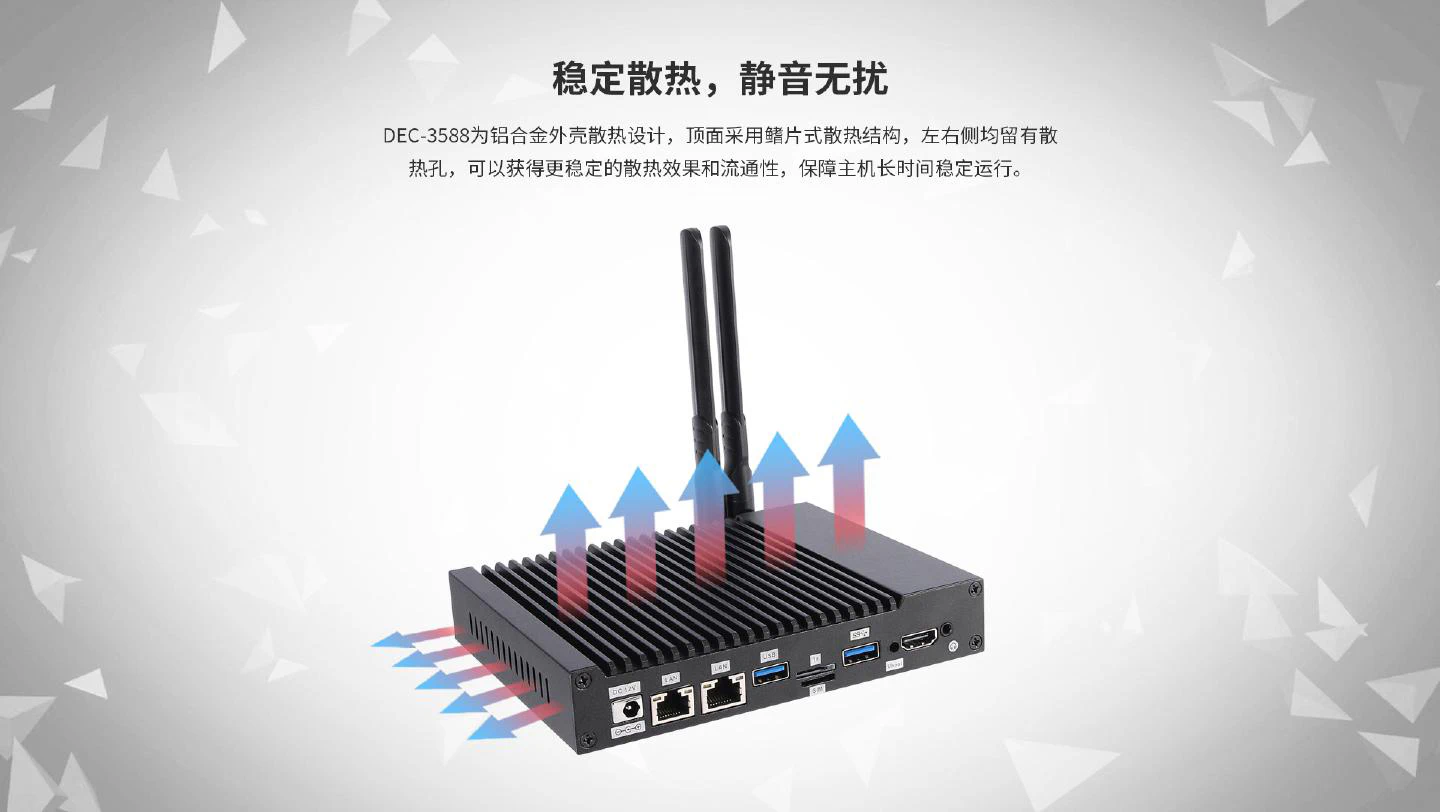

Appearance	Color: Black，Material: Aluminum alloy
Power Consumption	Typical 15W，Max 30W

Display Output	1× HDMI 2.1，8K

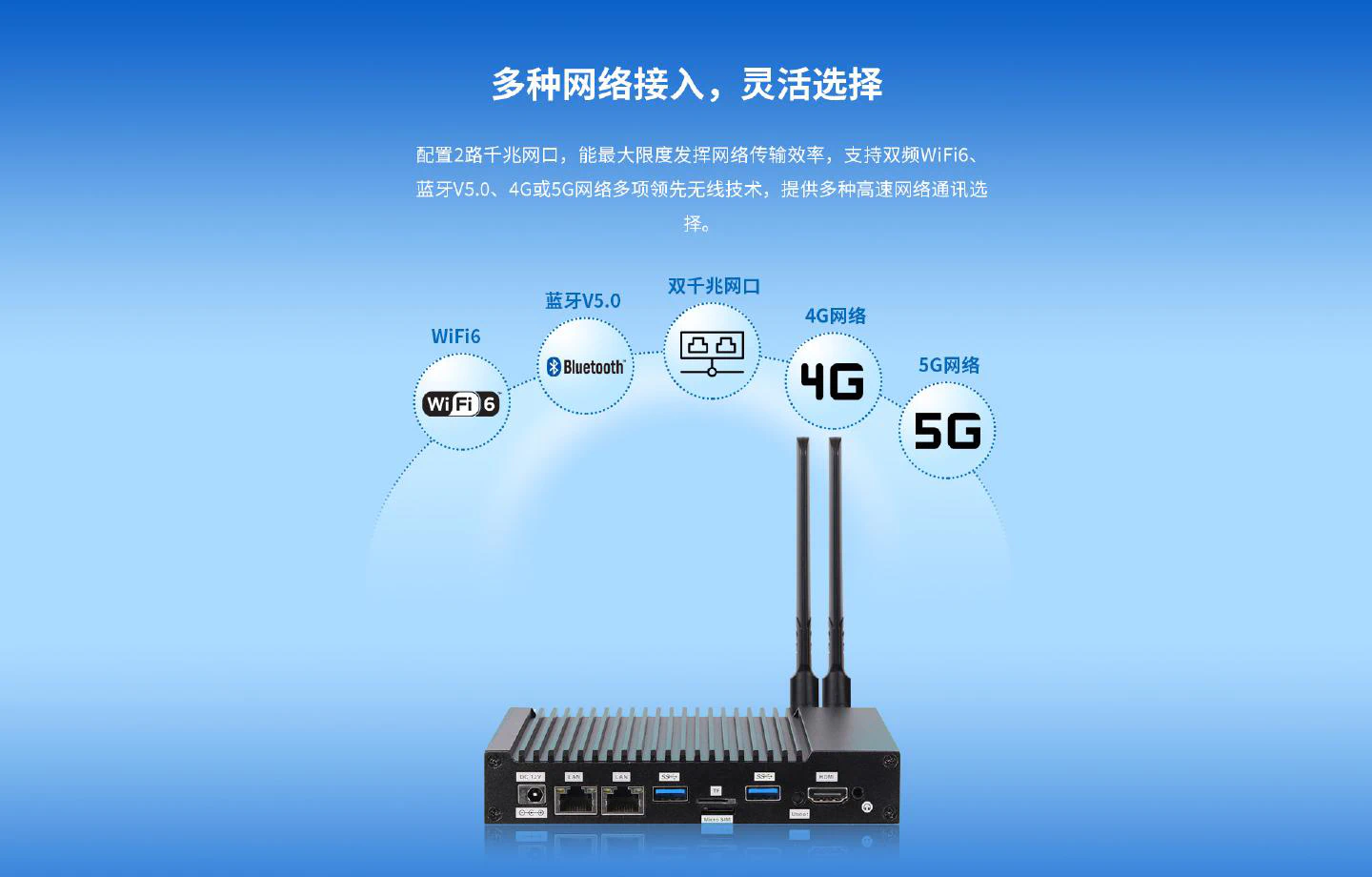

Network	2× 10/100/1000M Ethernet Interface
Wi-Fi	WiFi6 (2.4G/5G)
Bluetooth	5.0
Cellular	4G (PCIe 4G (optional))
USB	4× USB 2.0 ，2× USB 3.0 ，1× USB OTG ，0× USB Type-C
Serial Port	2× RS232（Optional RS485）
Power Input	9V~15V DC
Audio	Output: 3.5mm American standard 4-segment headset combo socket ，Input: 3.5mm American standard 4-segment headset combo socket

Android	12.0
Linux	Buildroot, Debian 11, Ubuntu 20.04
Special Features	RTC, Watchdog
Power Management	Scheduled Power , Wake on LAN
System Upgrade	Local upgrade, USB upgrade, Network upgrade

Operating Temperature	-20~70℃
Storage Temperature	-40~70℃
Operating Humidity	0~95%RH (non-condensing)
Storage Humidity	0~95%RH (non-condensing)
