KEC-3288
Edge Computing Host

KEC-3288

Rockchip RK3288

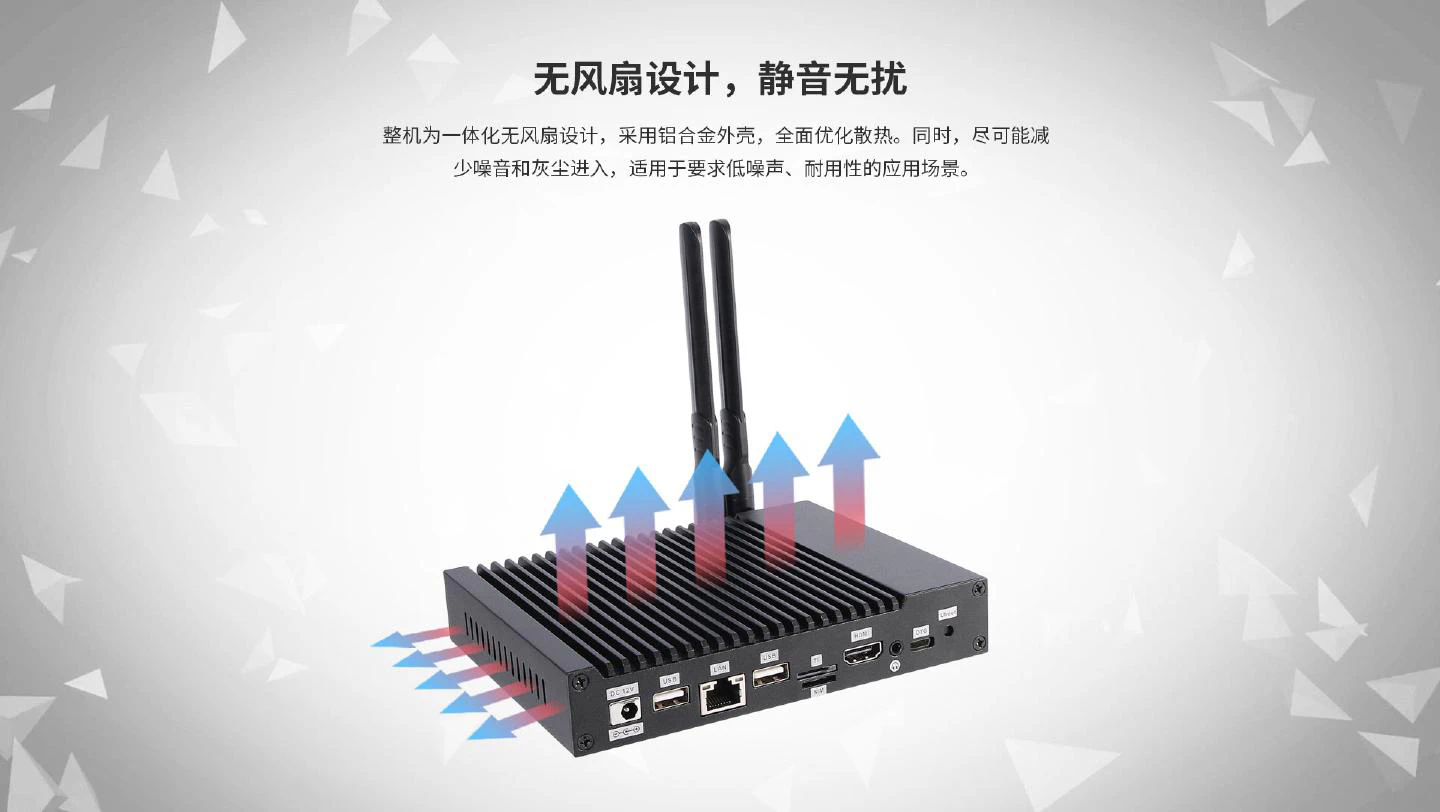

KEC-3288 adopts Rockchip RK3288, a quad-core Cortex-A17 CPU with Android 5.1 system, with a maximum frequency of 1.8GHz. It features a Mali-T764 GPU, supporting HDMI 4K display. With rich interfaces supporting multiple peripheral expansions, it integrates Ethernet, HDMI, WiFi, Bluetooth, serial port, and 4G (optional). This product features a fanless design with built-in high-quality heat sink, making it very suitable for industrial and commercial application requirements, and is your best choice for human-machine interaction and industrial control projects.

Processor RK3288
Memory 2GB DDR3
Storage 16GB eMMC
OS Support Android 5.1 / Ubuntu 18.04
Network 1× 10/100M
Video Output HDMI 1.4

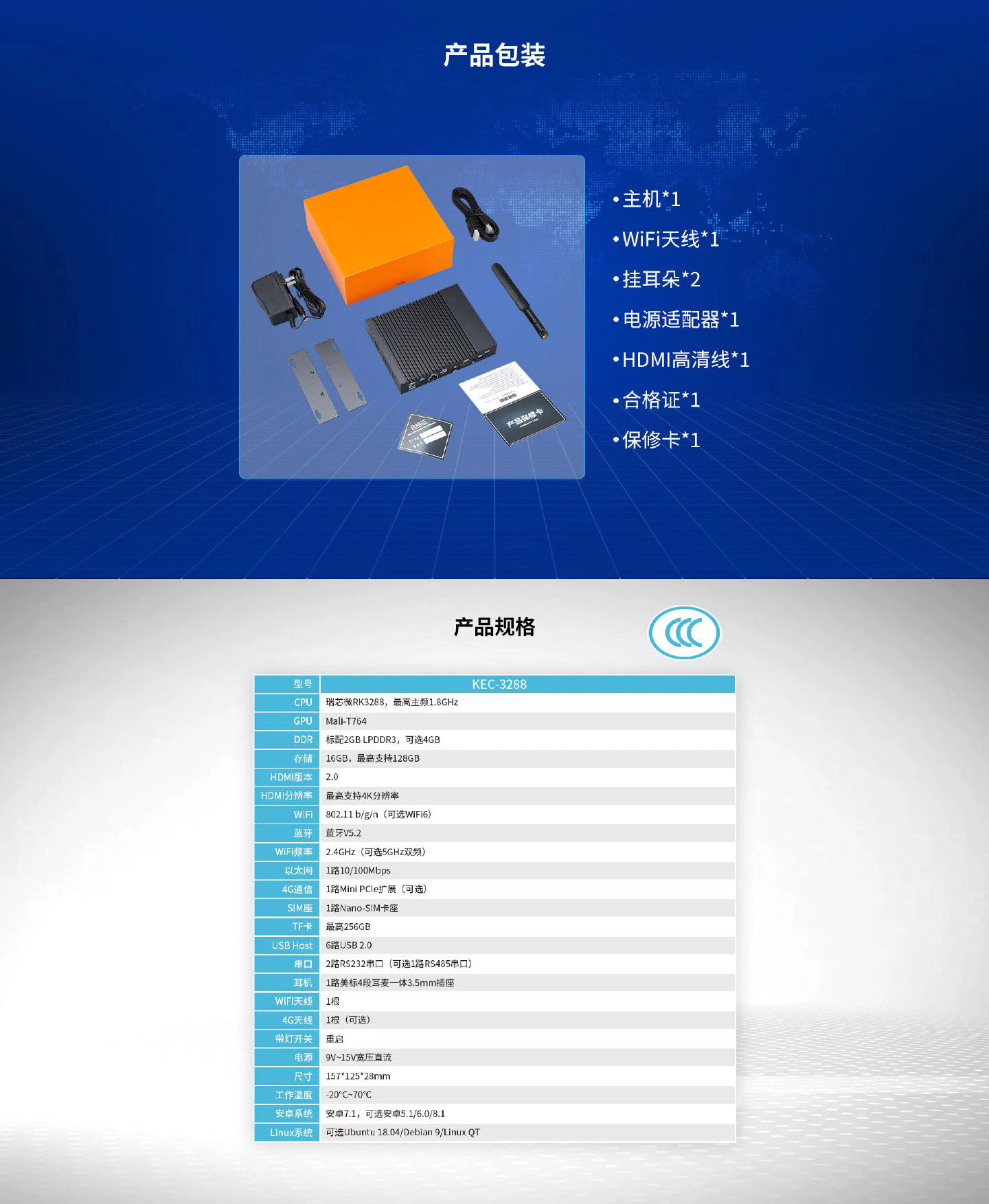

Technical Specifications

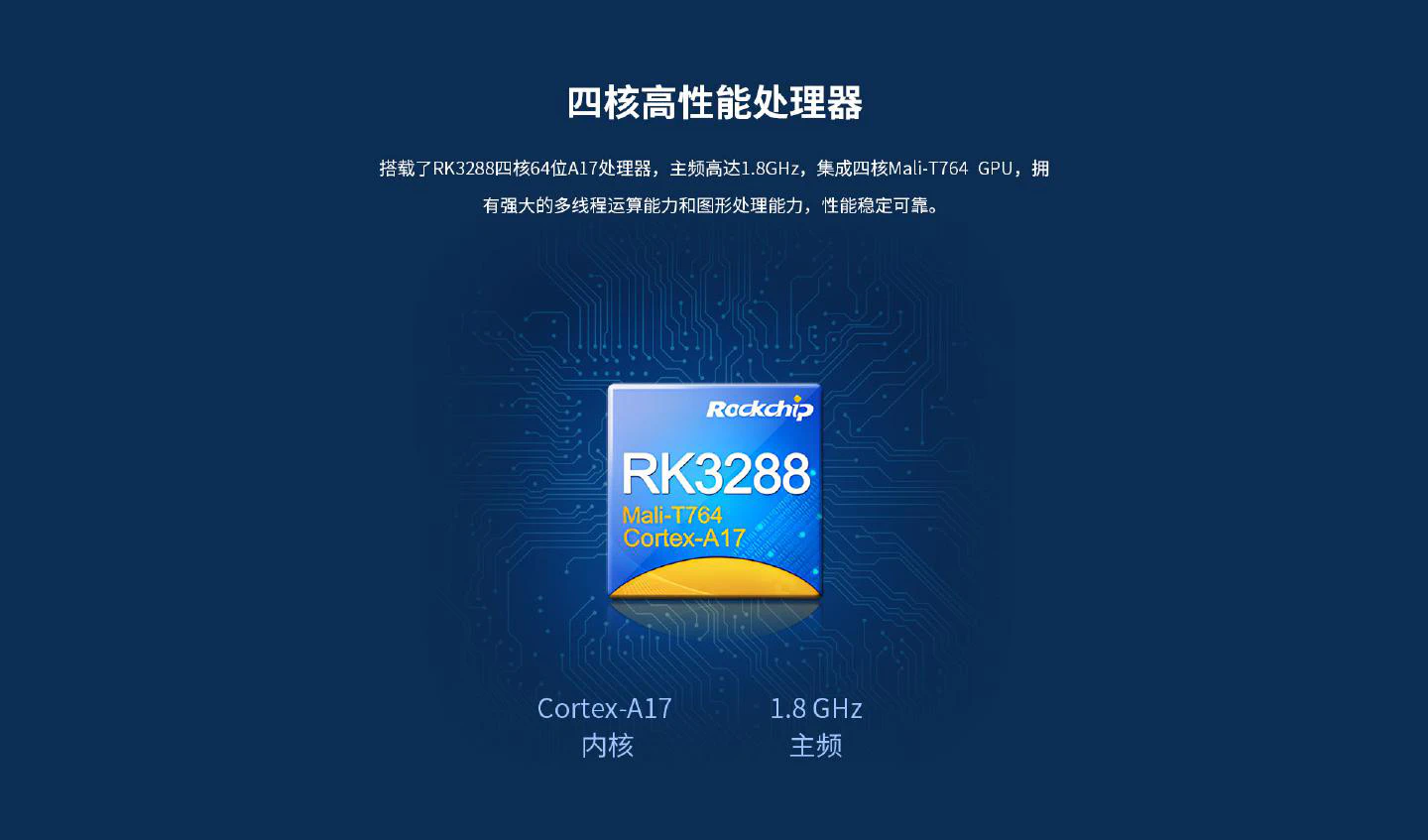

ProcessorRK3288,Quad-core Cortex-A17,Frequency1.8GHz
GPUMali-T764,Supports 4K display
NPU
MemoryStandard 2GB DDR3,Max 4GB
StorageStandard 16GB eMMC,Max 128GB

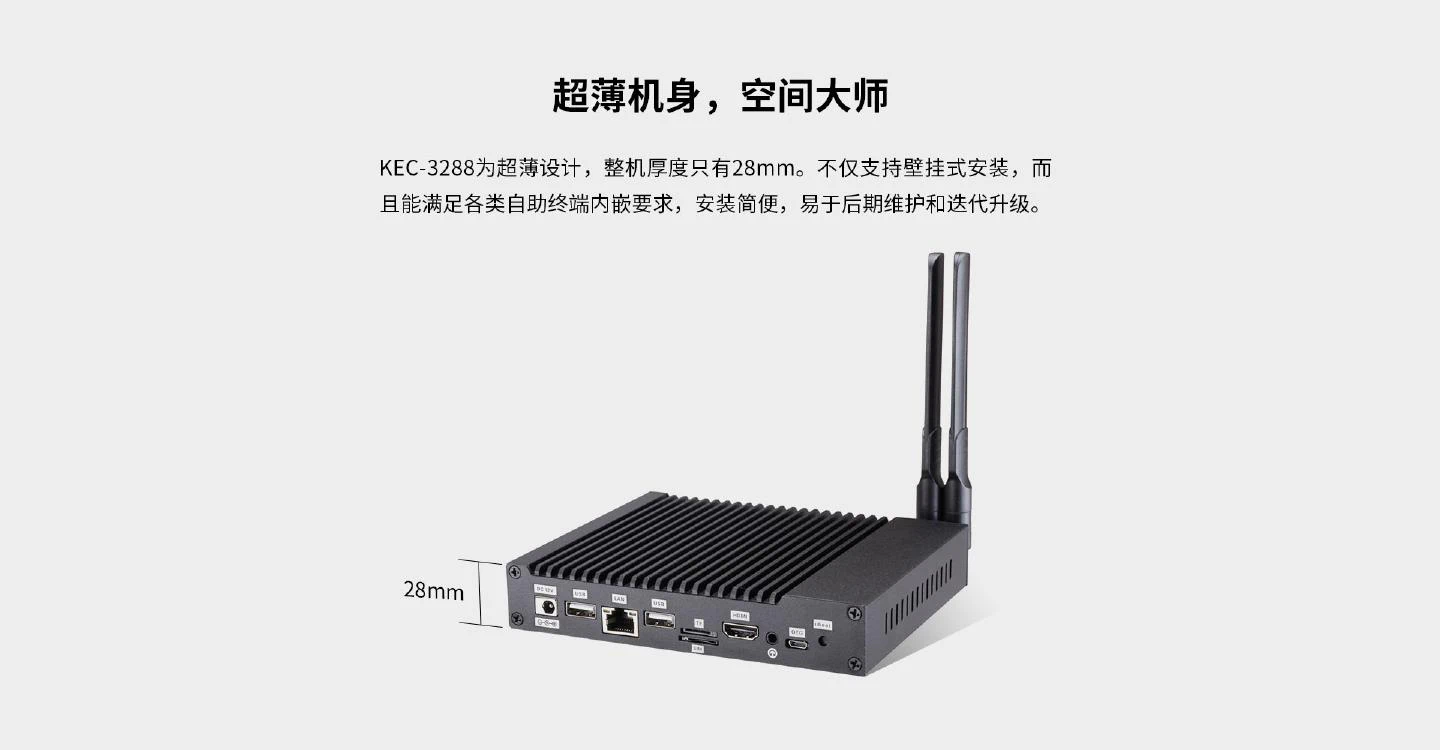

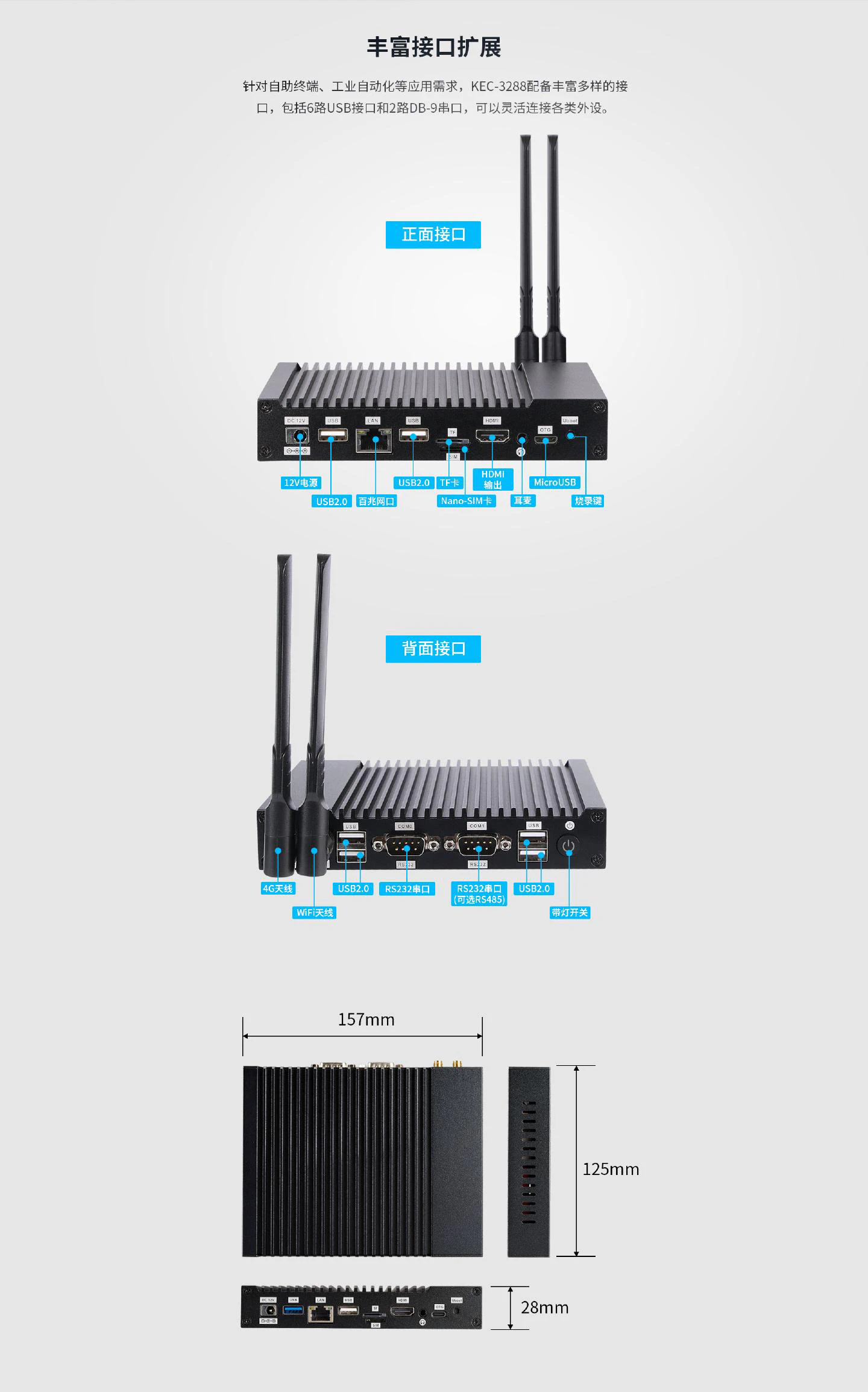

Dimensions157*125*28mm
Weight580g
AppearanceColor: Black,Material: Aluminum alloy
Power ConsumptionTypical 12W,Max 24W
