Home / Products / Edge Computing Host / KEC-3399 - High-Performance Edge Computing Host

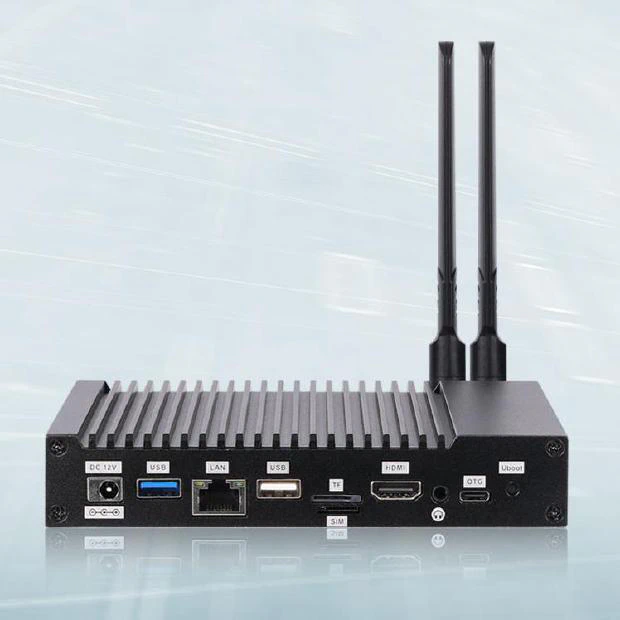

KEC-3399
Edge Computing Host

KEC-3399

Rockchip RK3399

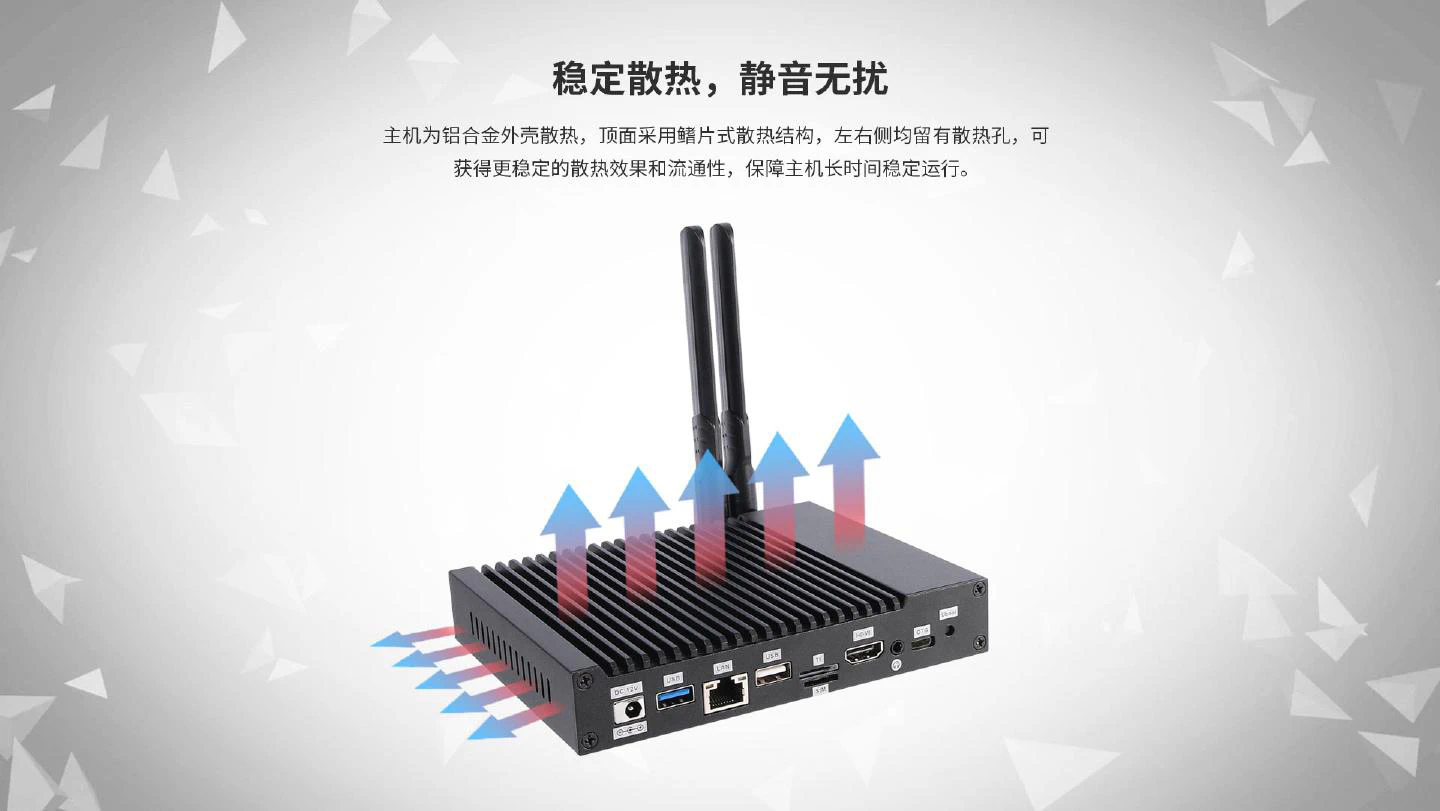

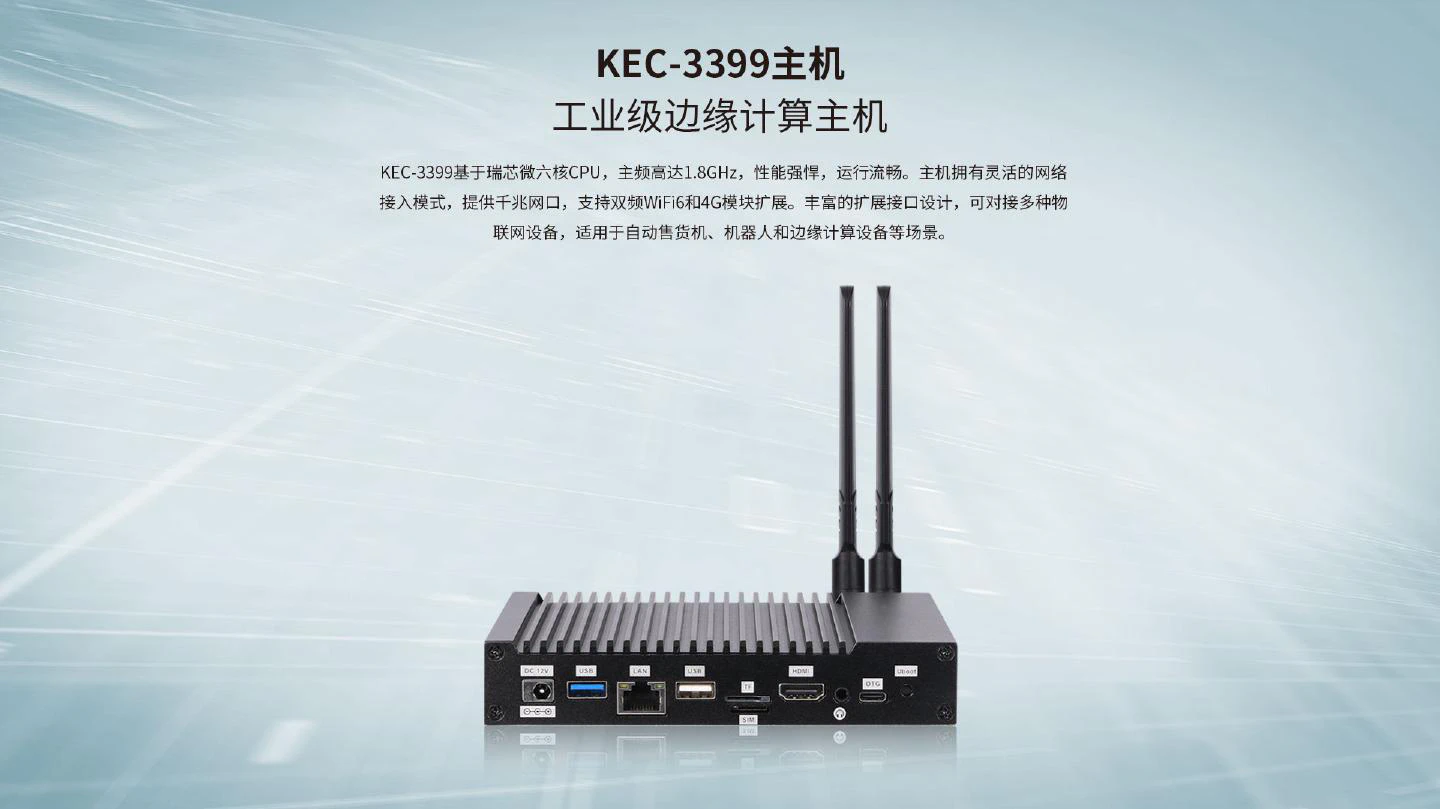

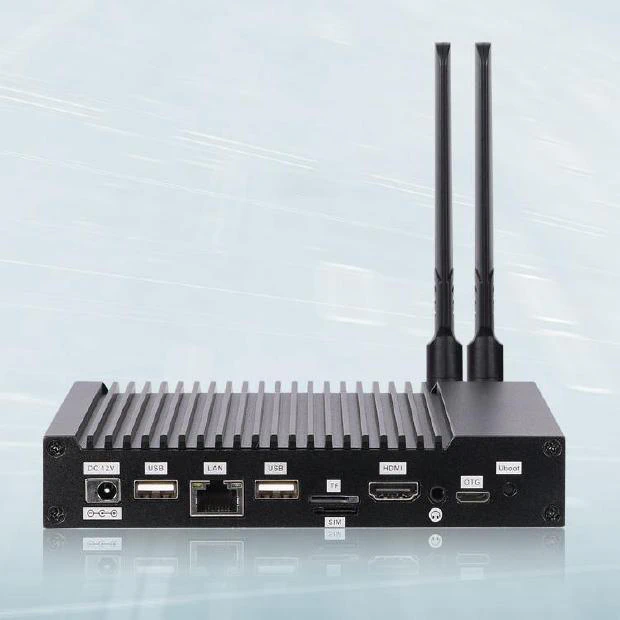

KEC-3399 adopts Rockchip RK3399 (dual-core Cortex-A72 + quad-core Cortex-A53) CPU with Android 7.1 system, with a maximum frequency of 1.8GHz. It features a Mali-T860MP4 GPU, supporting 1080p@60fps and 4K decoding. Interface-wise, it integrates Ethernet, HDMI, WiFi, Bluetooth, serial port, and 4G (optional). This product features a fanless design with built-in high-quality heat sink, making it very suitable for industrial and commercial application requirements, and is your best choice for human-machine interaction and industrial control projects.

Processor RK3399
Memory 2GB LPDDR4
Storage 16GB eMMC
OS Support Android 7.1 / Ubuntu 18.04
Network 1× 10/100/1000M
Video Output HDMI 2.0

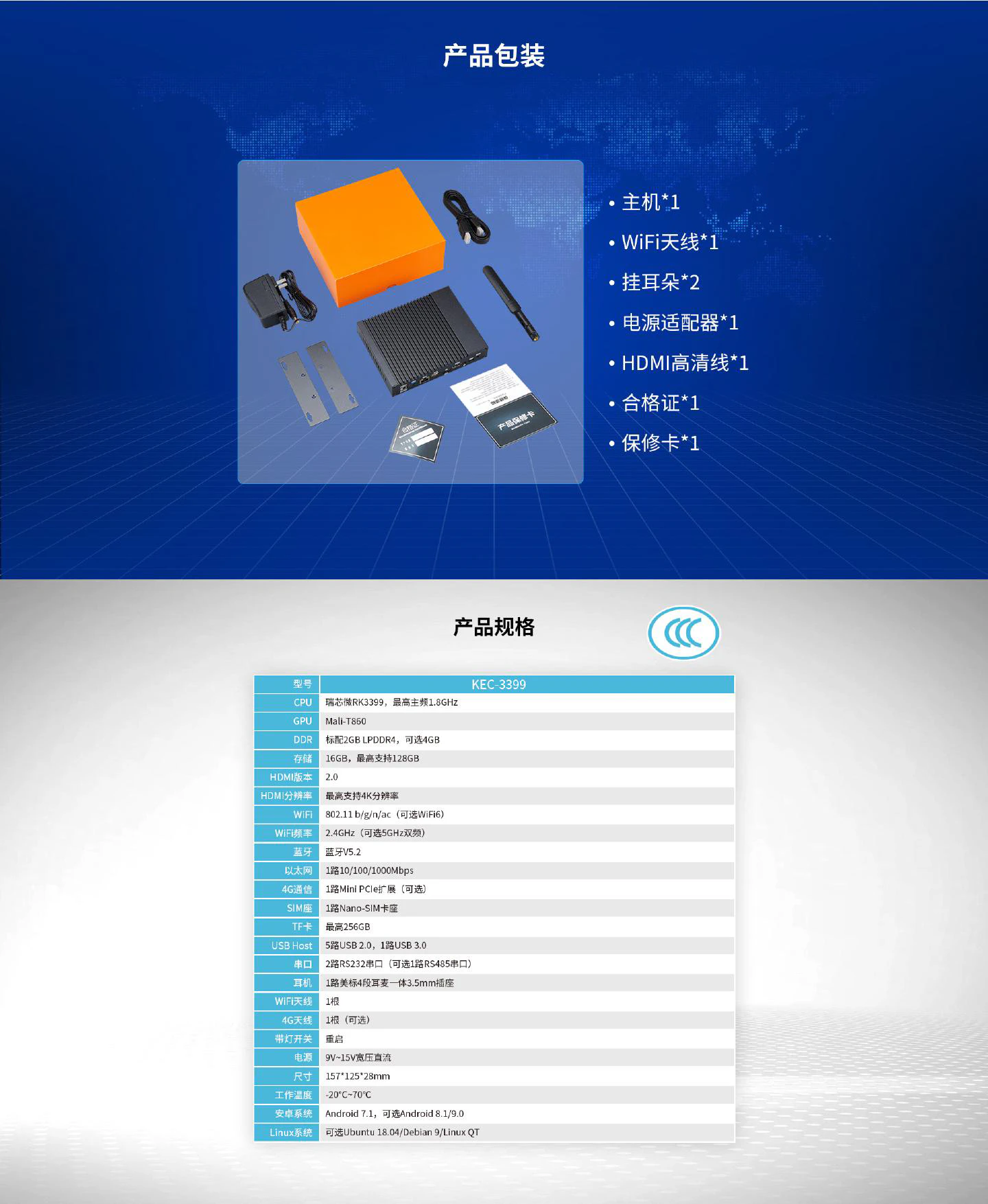

Technical Specifications

ProcessorRK3399,Dual-core Cortex-A72 + quad-core Cortex-A53,Frequency1.8GHz
GPUMali-T860 MP4,Supports 1080P@60fps and 4K decoding
NPU
MemoryStandard 2GB LPDDR4,Max 4GB
StorageStandard 16GB eMMC,Max 128GB

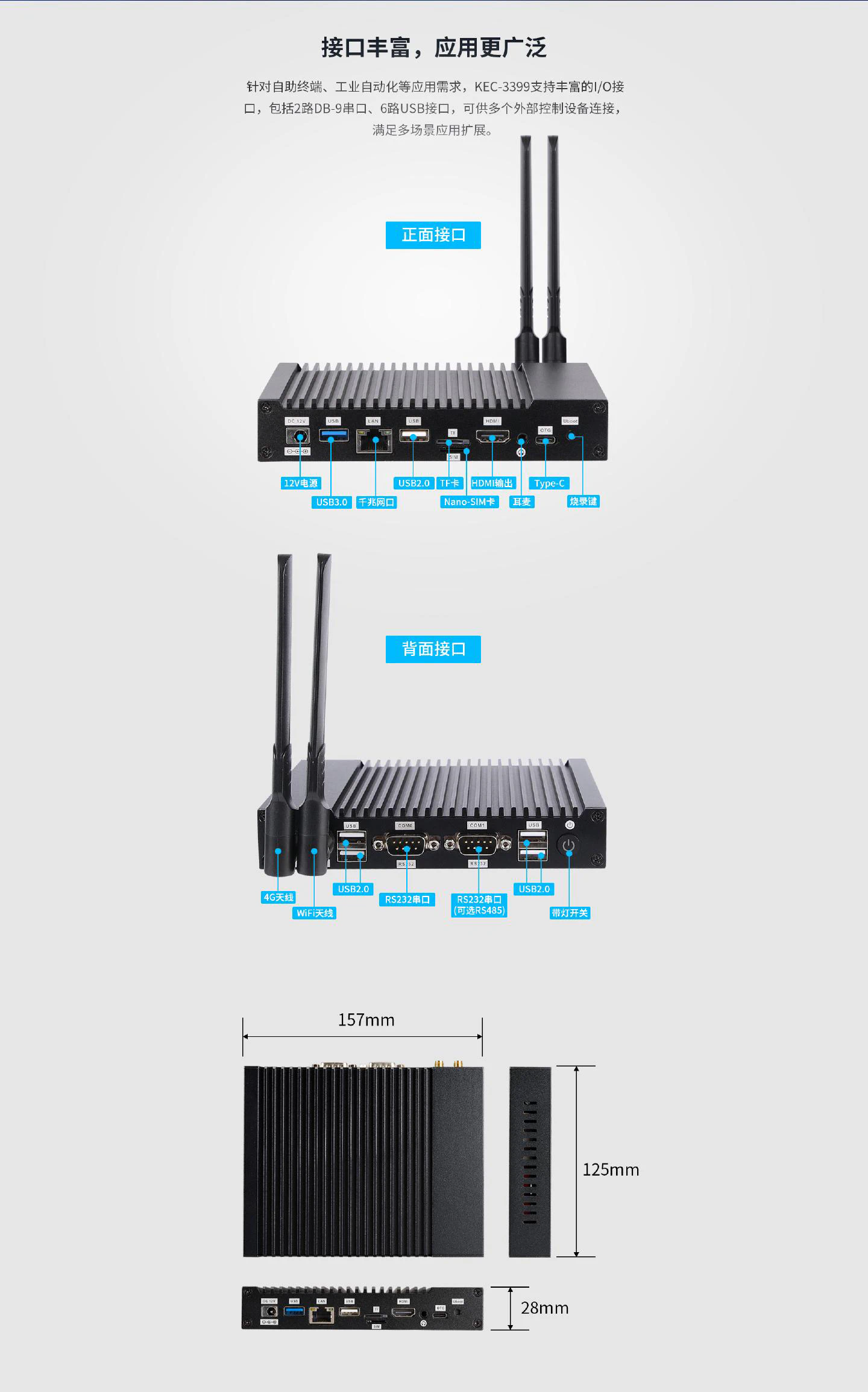

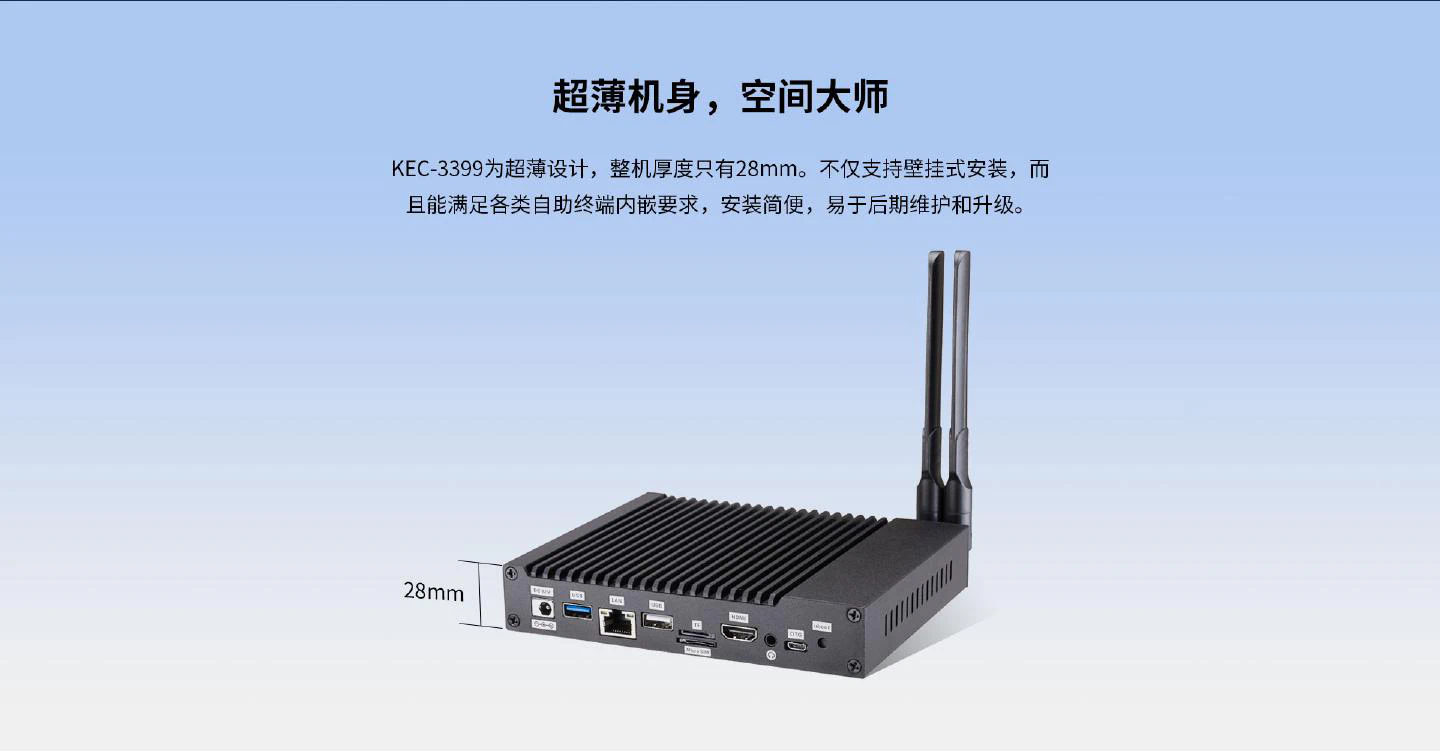

Dimensions157*125*28mm
Weight580g
AppearanceColor: Black,Material: Aluminum alloy
Power ConsumptionTypical 12W,Max 24W
