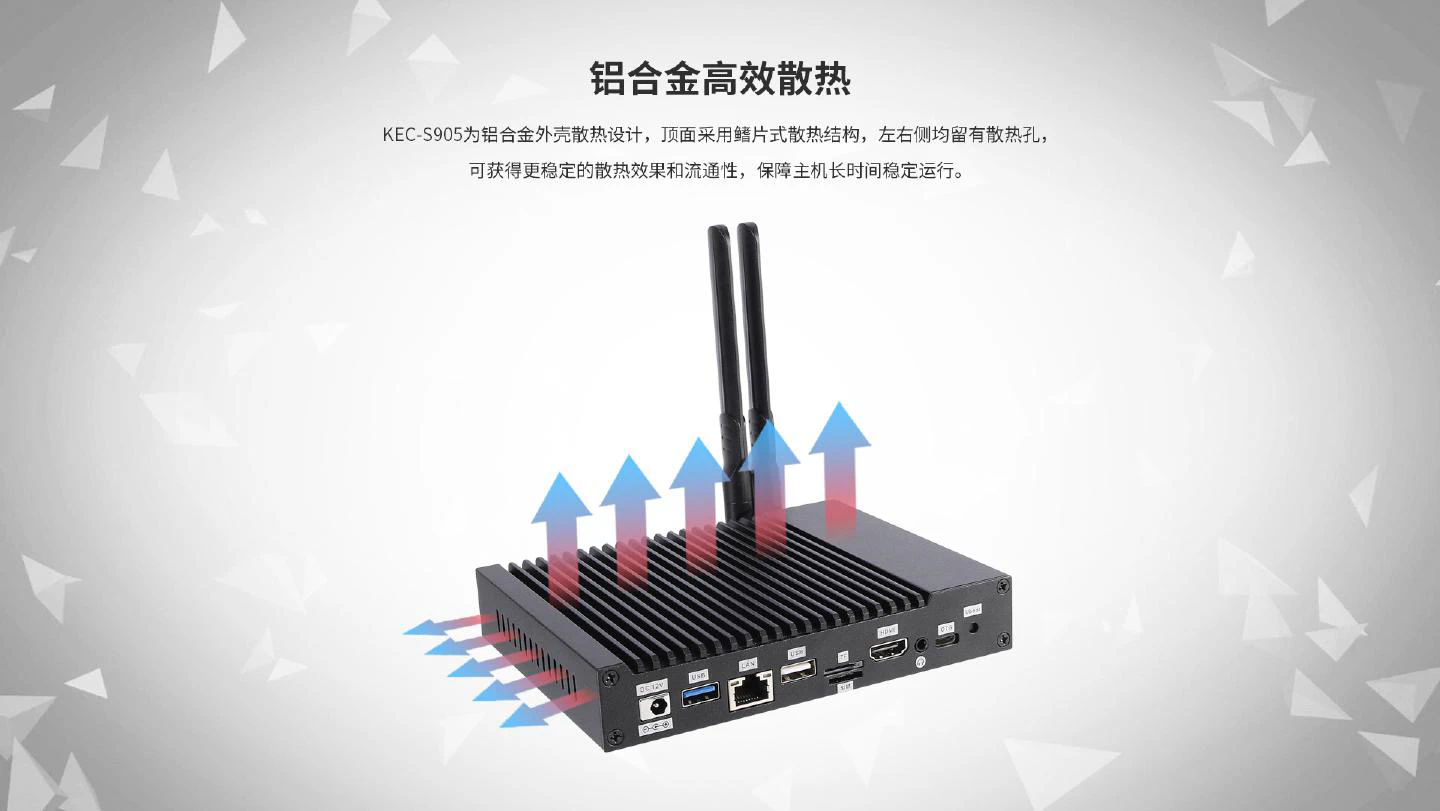

KEC-S905
Edge Computing Host

KEC-S905

Amlogic S905D3

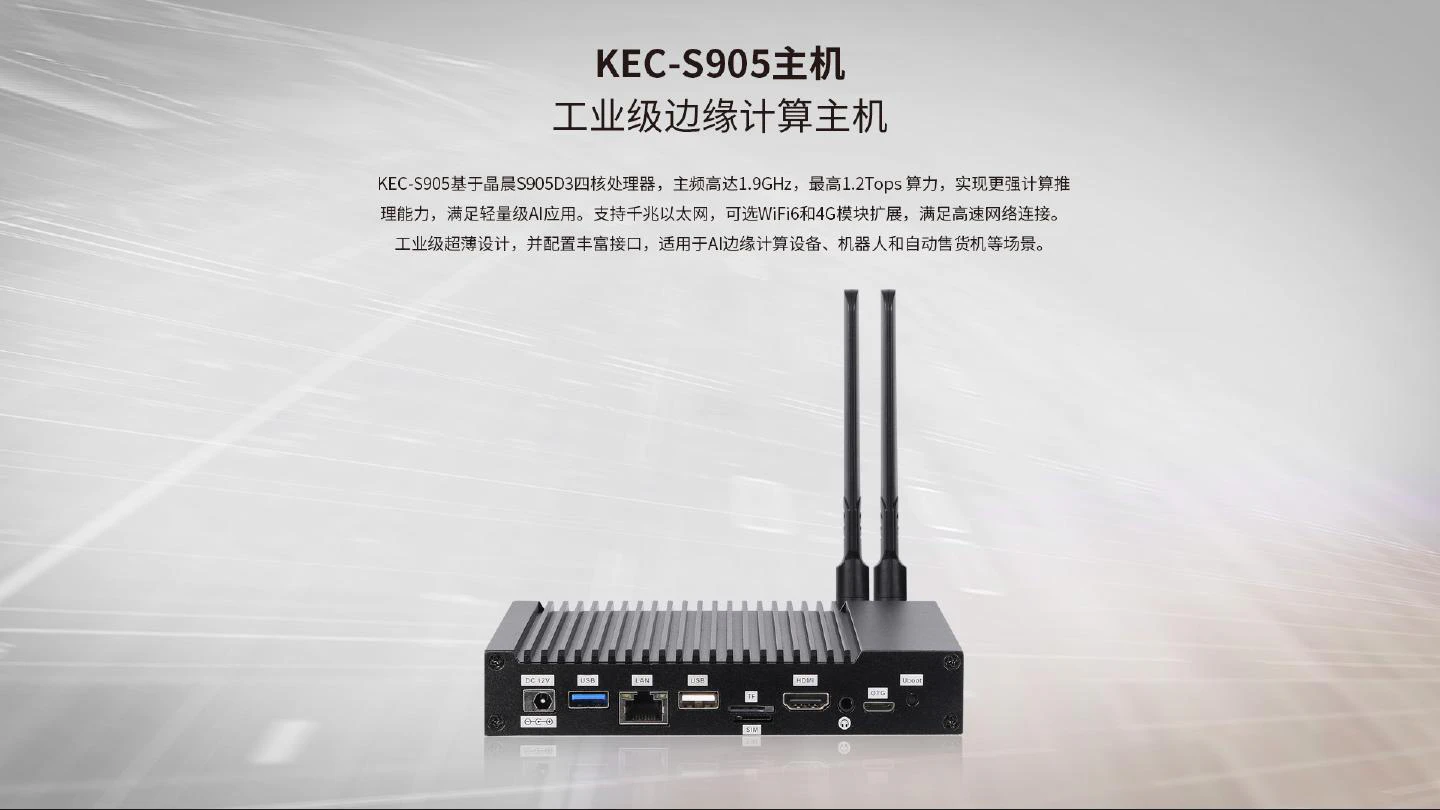

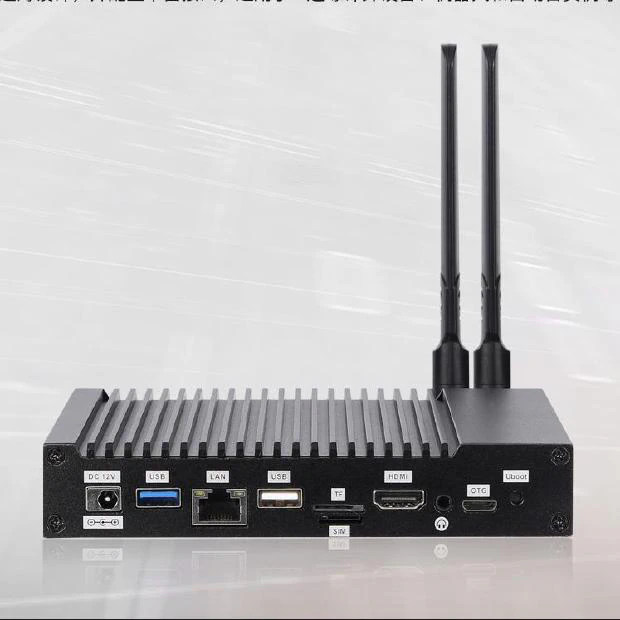

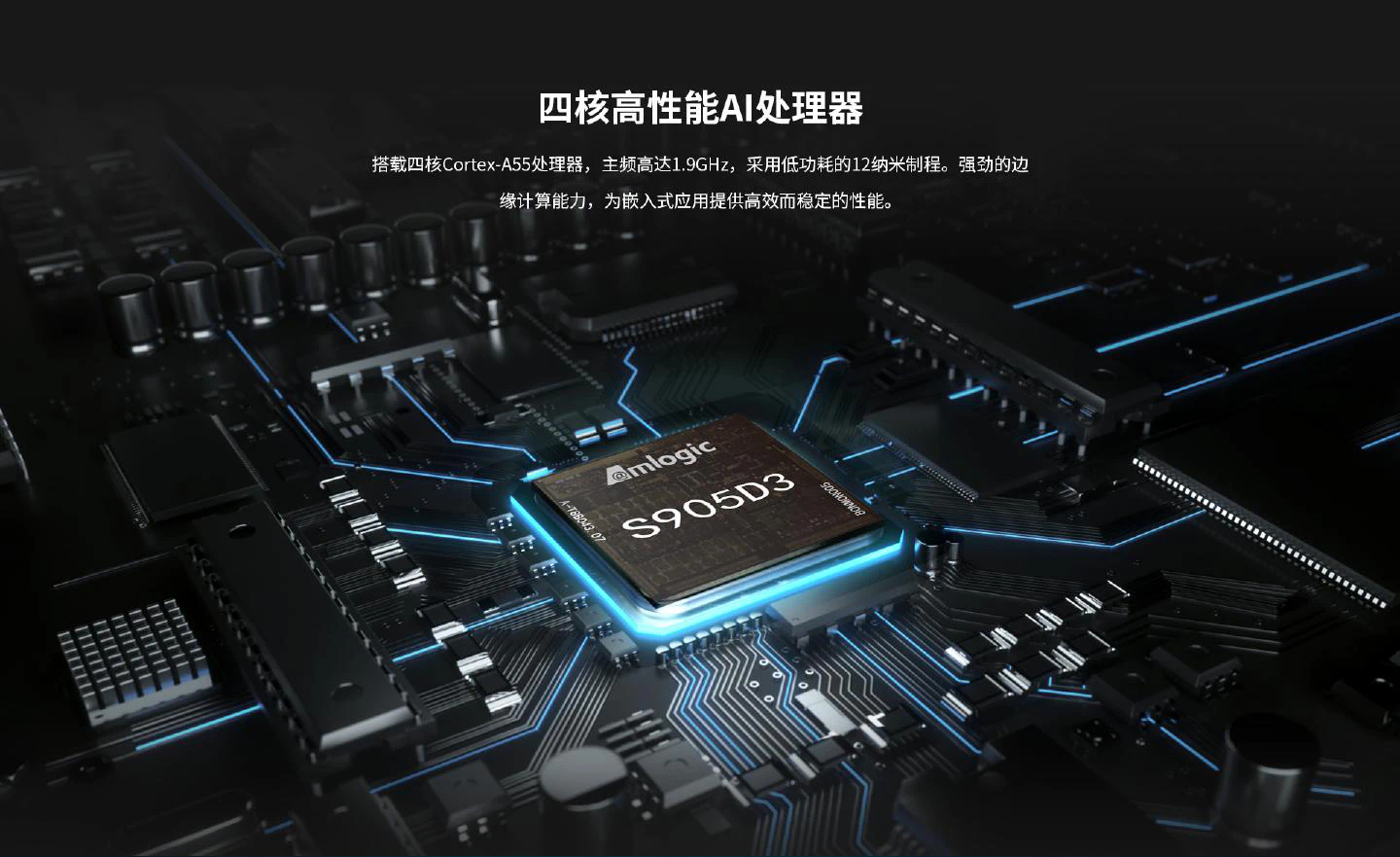

KEC-S905 adopts Amlogic S905D3 quad-core Cortex-A55 processor with a maximum frequency of 1.9GHz, using a 12nm advanced process, featuring low power consumption and high performance. It has a built-in independent NPU with computing power up to 1.2 Tops, supporting up to 4K output. Interface-wise, it's equipped with 1000M Ethernet, RS232, USB 3.0, PCI-E, etc., supporting multiple peripheral expansions, making it your best choice for industrial control projects.

Processor Amlogic S905D3
Memory 1GB LPDDR4
Storage 8GB Flash

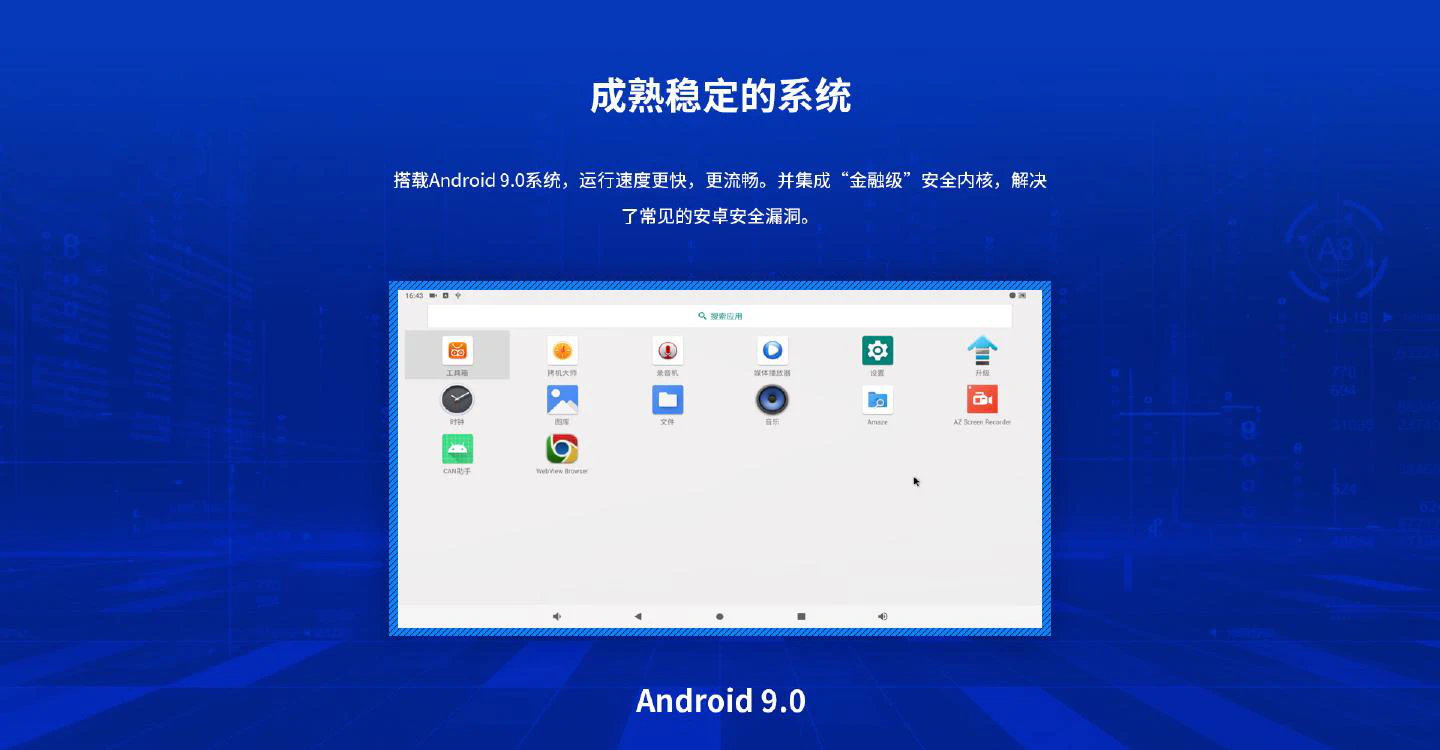

OS Support Android 9.0
Network 1× 10/100/1000M adaptive
Video Output HDMI HDMI 2.1

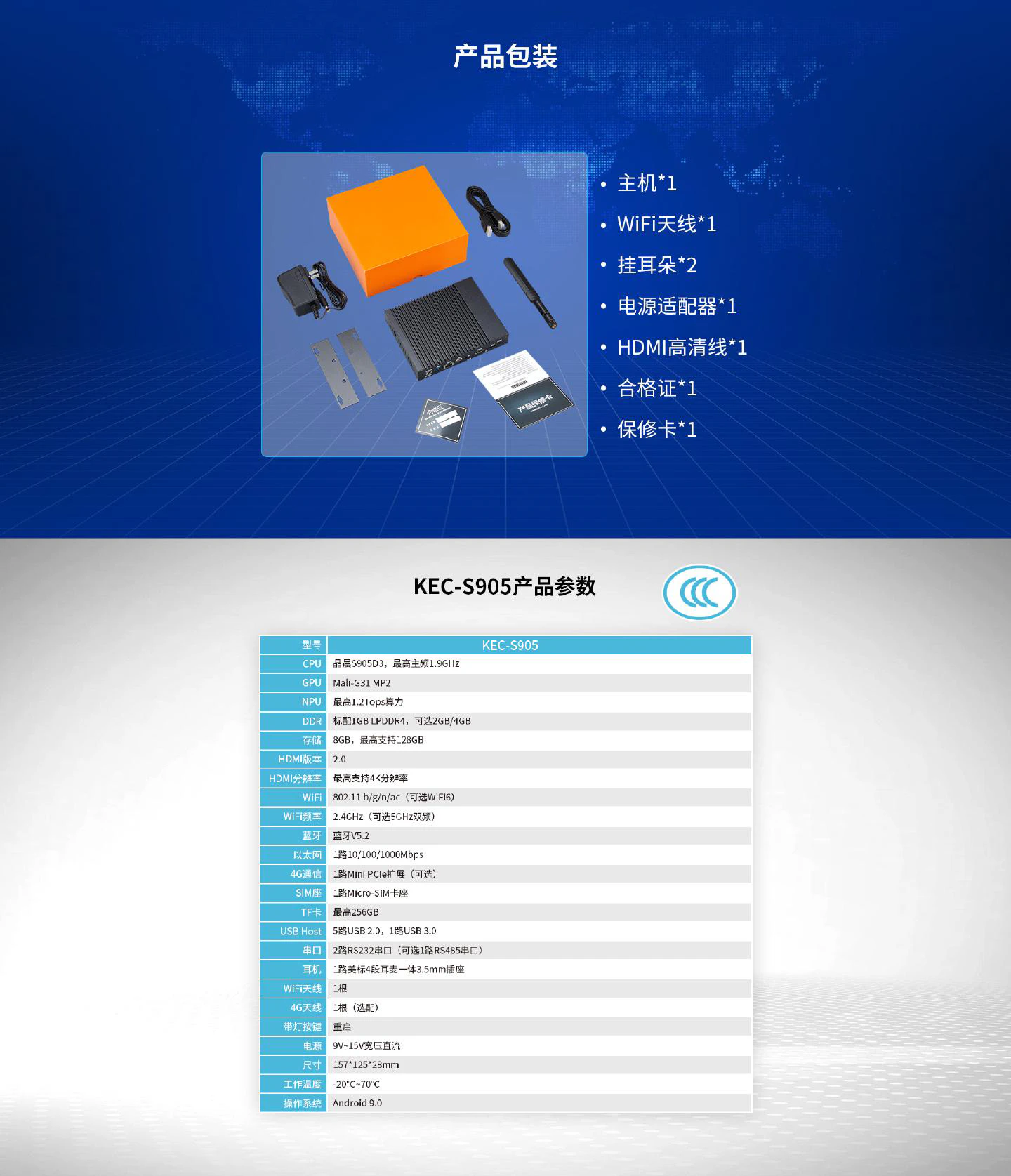

Technical Specifications

ProcessorAmlogic S905D3,Quad-core Cortex-A55,FrequencyUp to 1.9GHz
GPUMali-G31MP2,
NPUUp to 1.2 Tops computing power
MemoryStandard 1GB LPDDR4,Max 4GB
StorageStandard 8GB Flash,Max 128GB

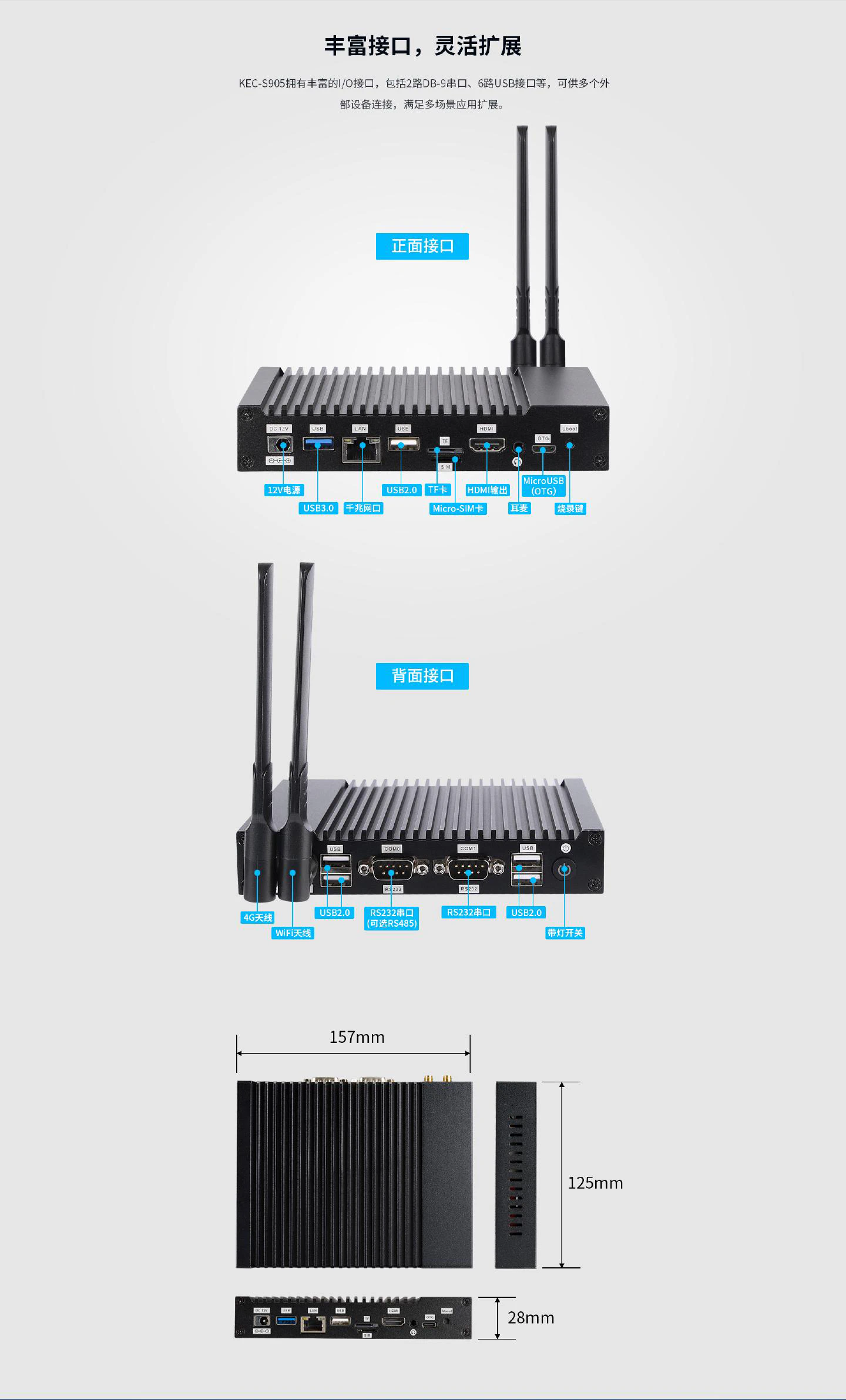

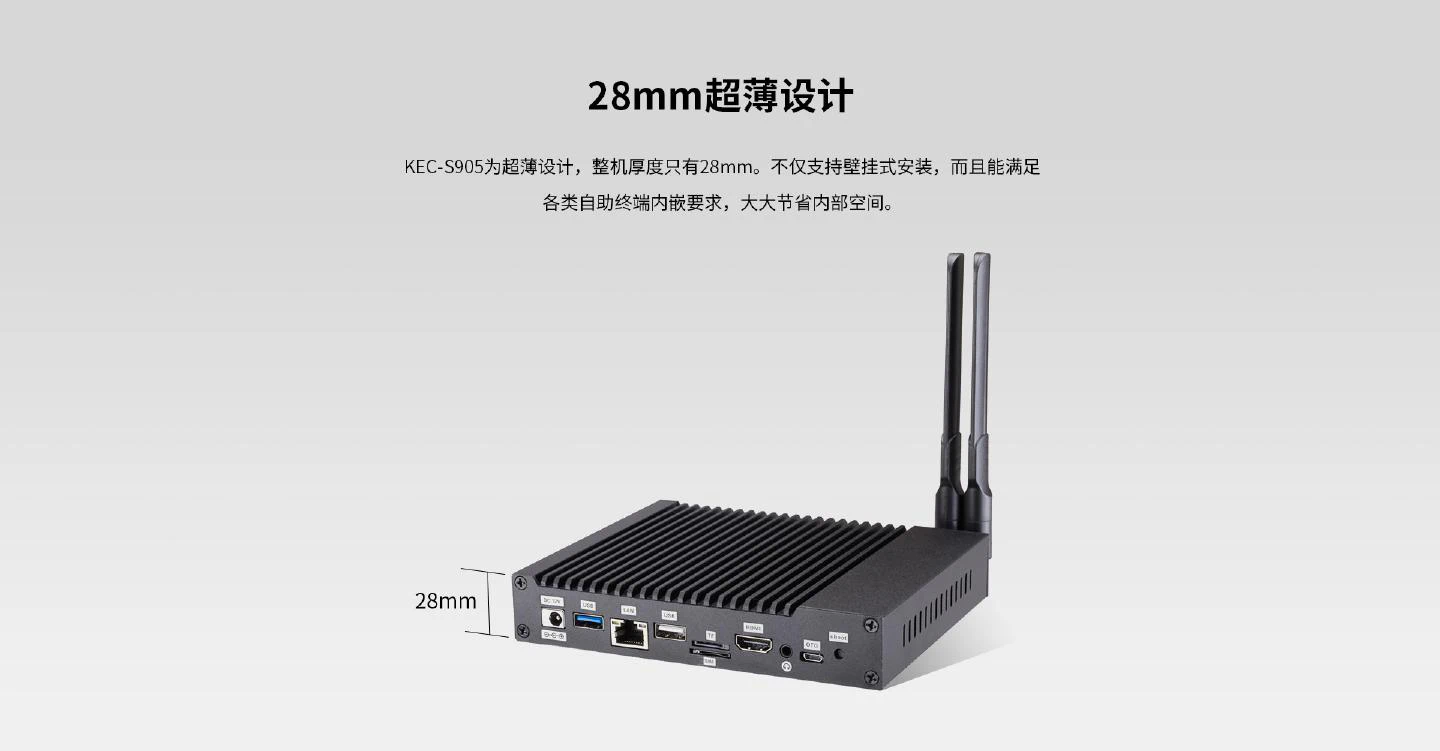

Dimensions157*125*28mmmm
Weightg
AppearanceColor: ,Material:
Power ConsumptionTypical ,Max
