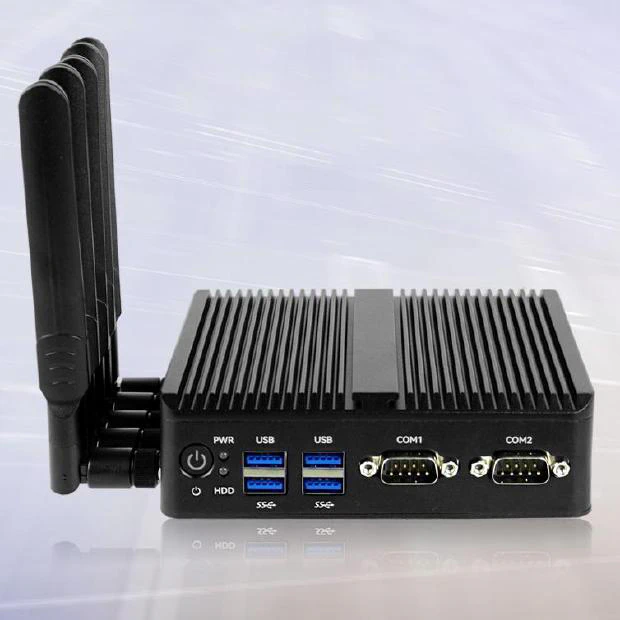

Industrial Computer Host
UEC-3568
Rockchip RK3568

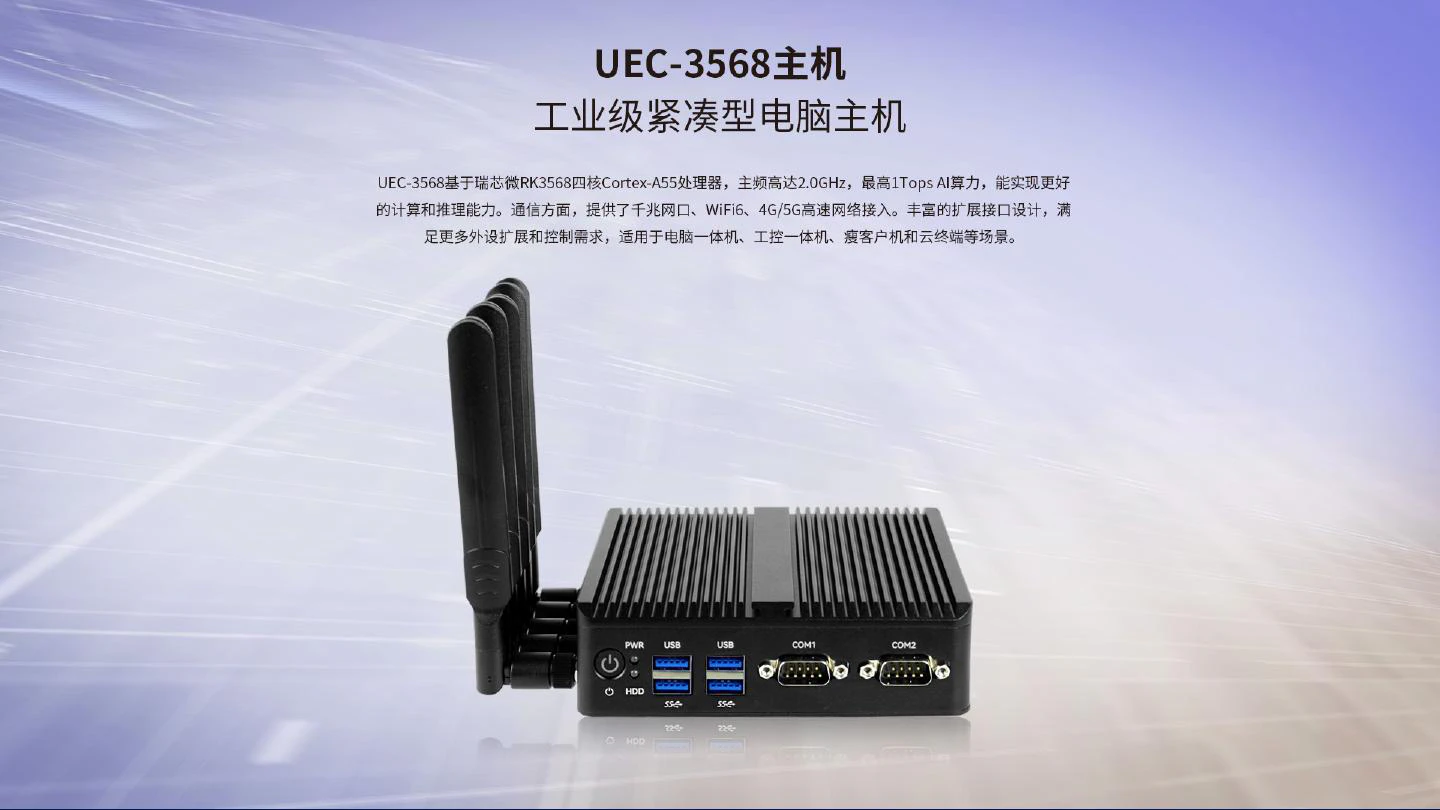

UEC-3568 adopts Rockchip RK3568, a quad-core Cortex-A55 processor with a maximum frequency of 2.0GHz, offering exceptional general computing performance. It features a built-in independent NPU with computing power up to 1 Tops, and supports 4K display. Interface-wise, it's equipped with Gigabit Ethernet, USB 3.0, and DB-9, etc., supporting multiple peripheral expansions, making it your best choice for industrial control projects.
Processor
RK3568
Memory
2GB LPDDR4
Storage
16GB eMMC
OS Support
Android 11.0
/
Ubuntu 18.04

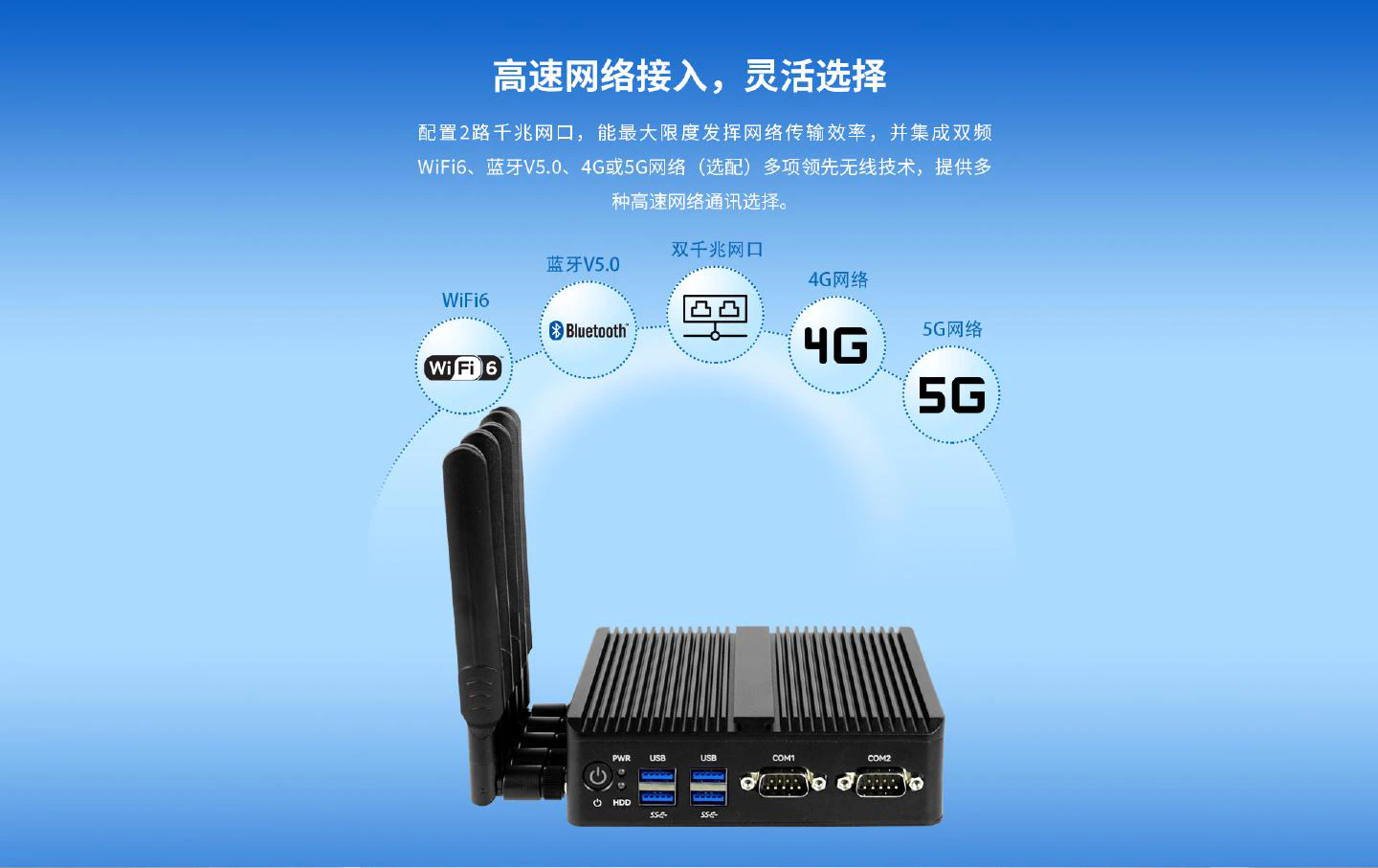

Network
2× 10/100/1000M
Video Output
HDMI 2.0
Product Downloads

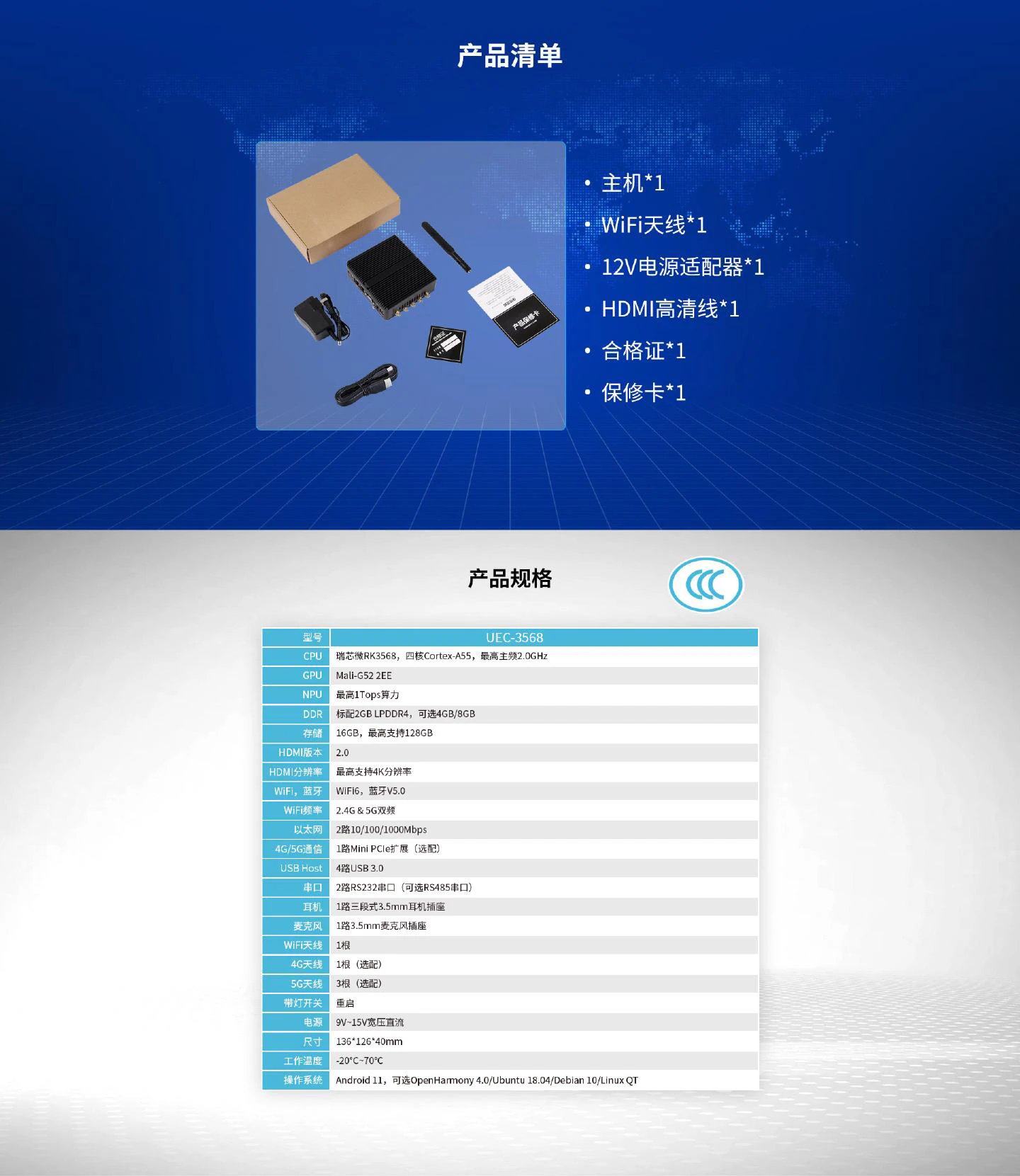

Technical Specifications
| Processor | RK3568，Quad-core Cortex-A55，Frequency2.0GHz |
| GPU | Mali-G522EE，Supports 4K display |
| NPU | 1.0 TOPS |
| Memory | Standard 2GB LPDDR4，Max 8GB |
| Storage | Standard 16GB eMMC，Max 128GB |

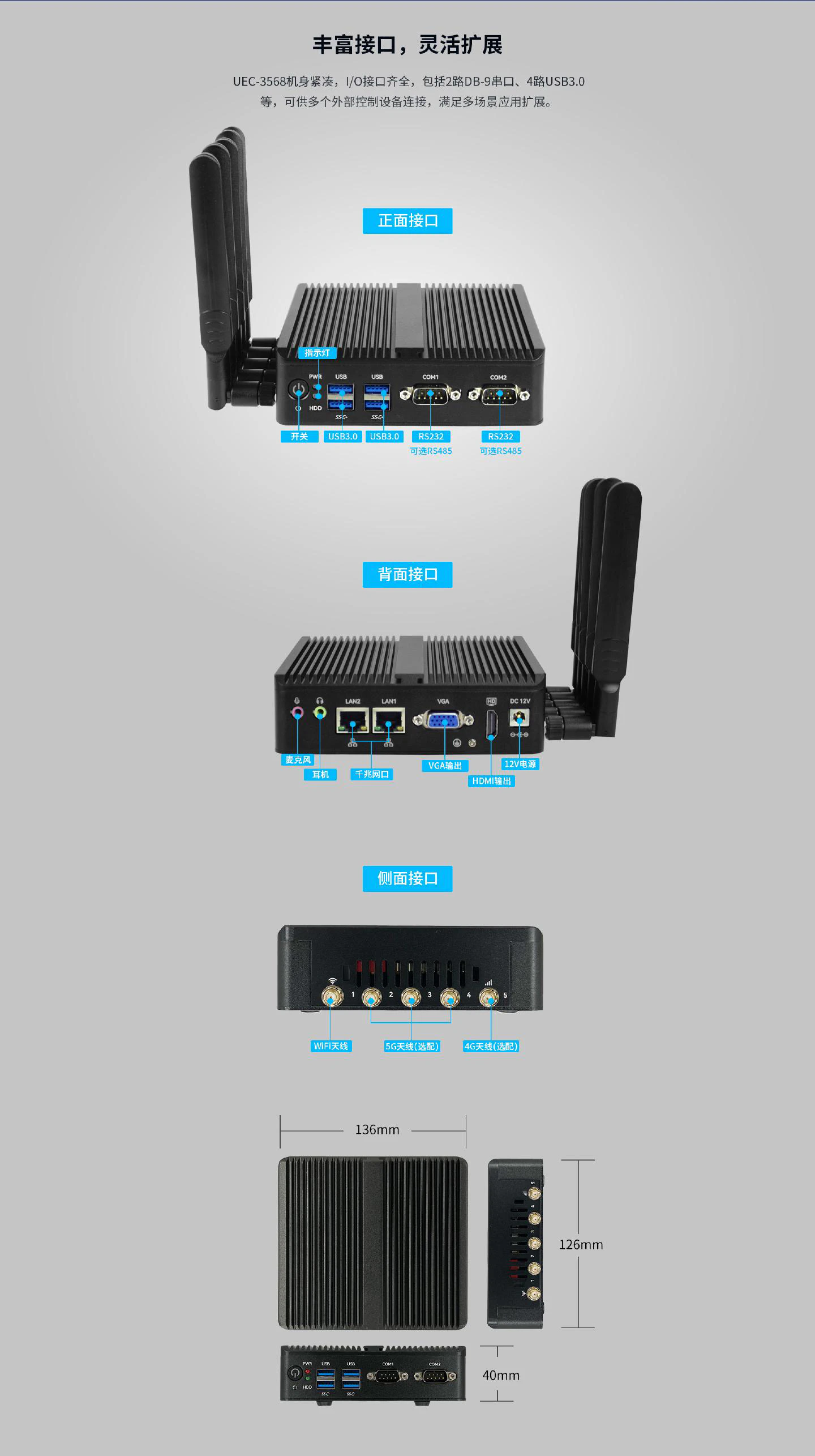

| Dimensions | 136*126*40mmmm |
| Weight | To be supplementedg |

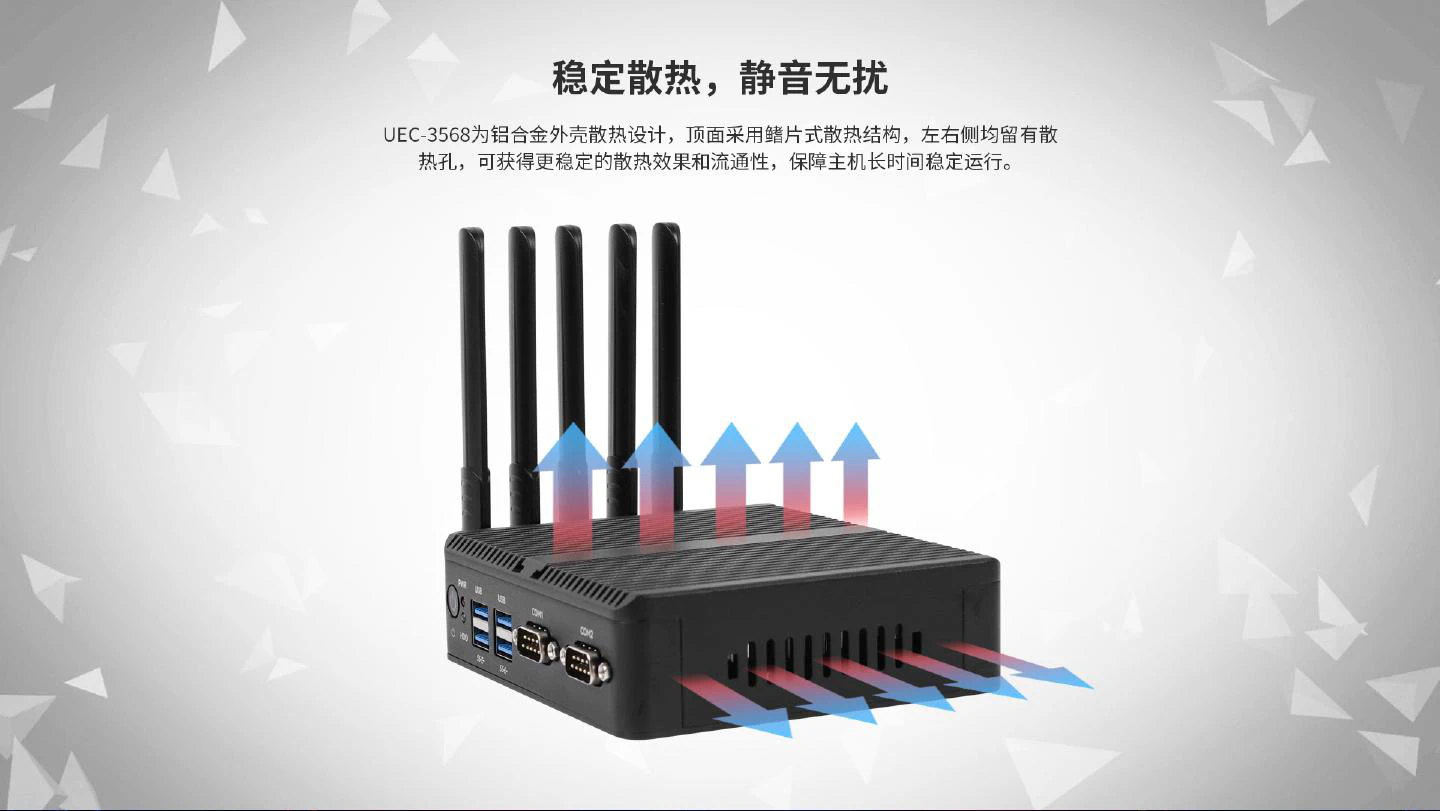

| Appearance | Color: Black，Material: Aluminum alloy |
| Power Consumption | Typical To be supplemented，Max To be supplemented |
