IC-D3568

Name: IC-D3568 - IoT Controller
Brand: 奥宇智能科技

Rockchip RK3568

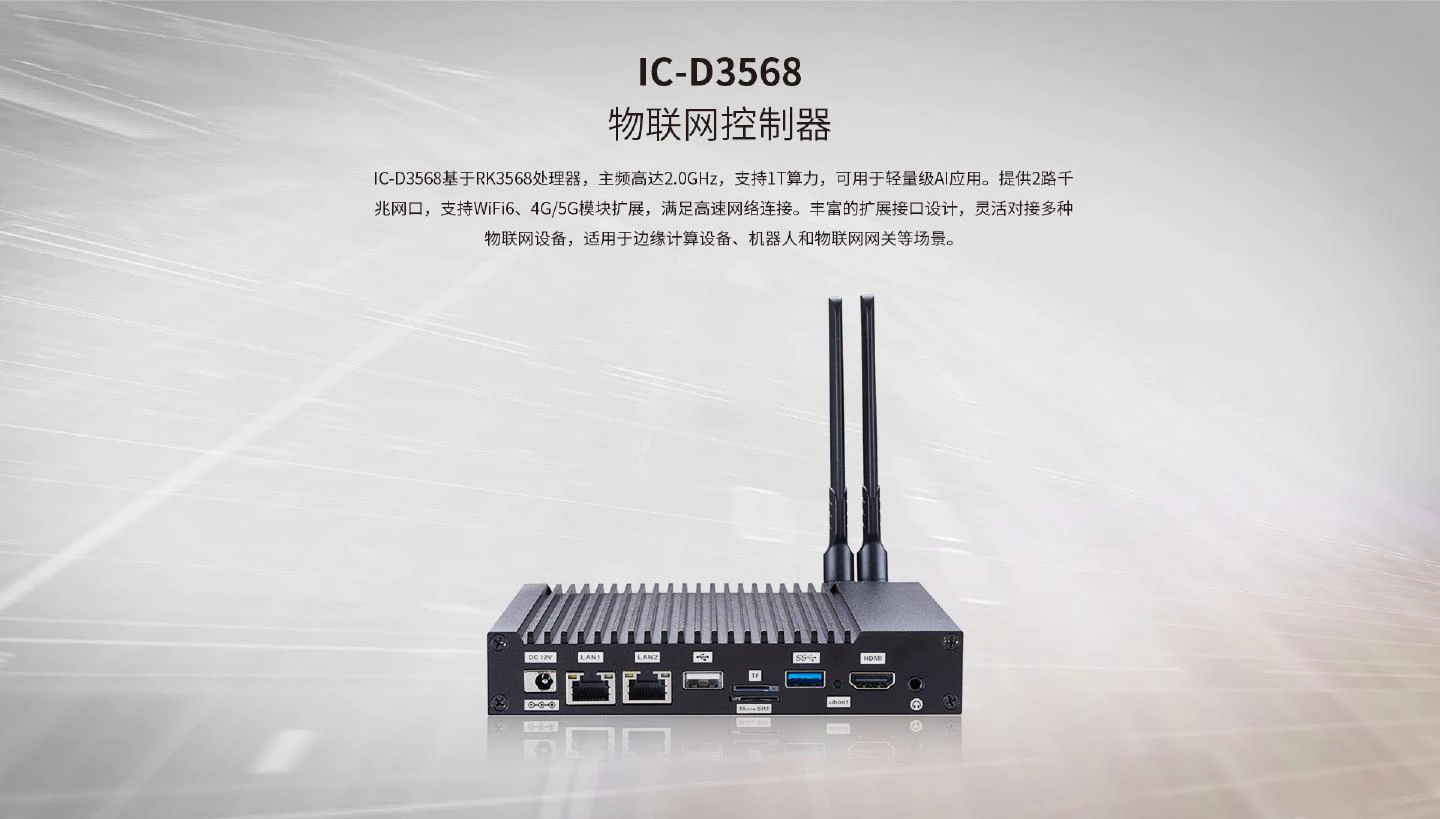

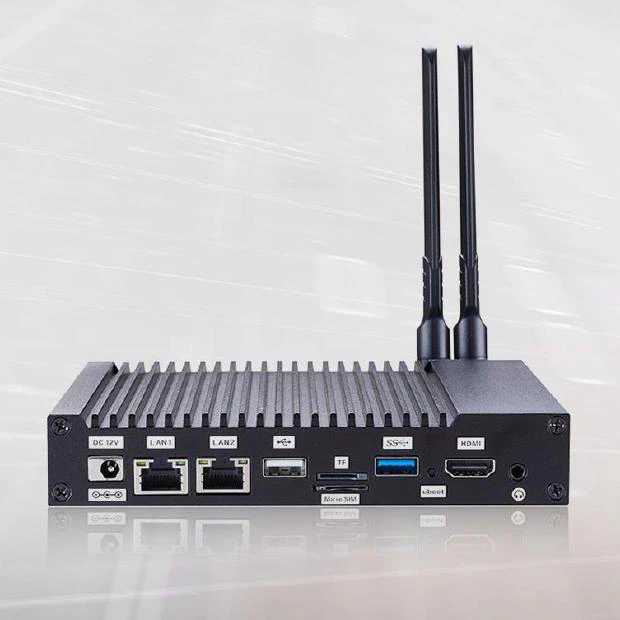

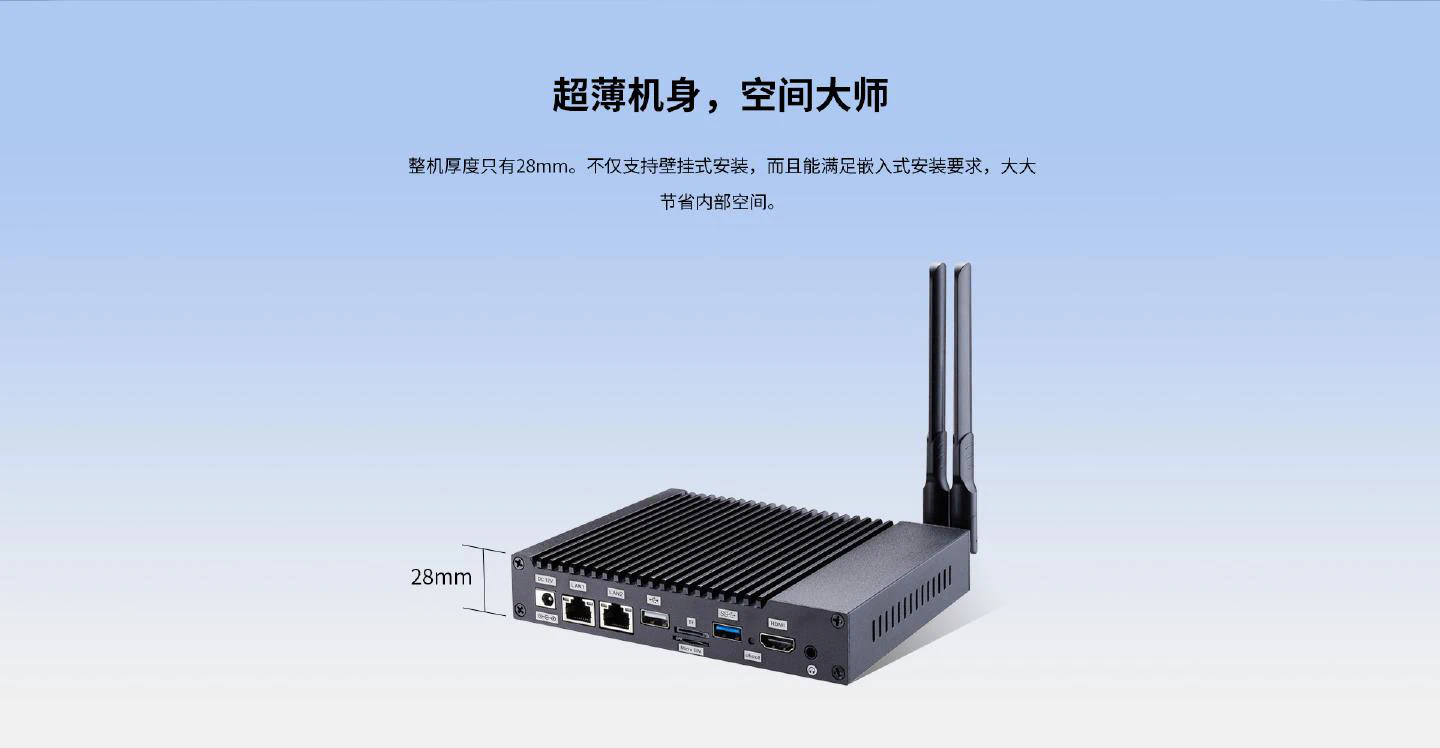

IC-D3568 is equipped with Rockchip RK3568 quad-core processor with a maximum frequency of 2.0GHz and a built-in independent NPU with computing power up to 1 Tops. It features a rich array of expansion interfaces for flexible connection to various peripherals. The device has an ultra-thin design to meet diverse deployment scenario requirements.

Processor Rockchip RK3568

Memory 2GB

Storage 16GB

OS Support Android 11 / Ubuntu 20.04

Network 2× 10/100/1000Mbps

Video Output HDMI

Request Quote View Specifications

Product Downloads

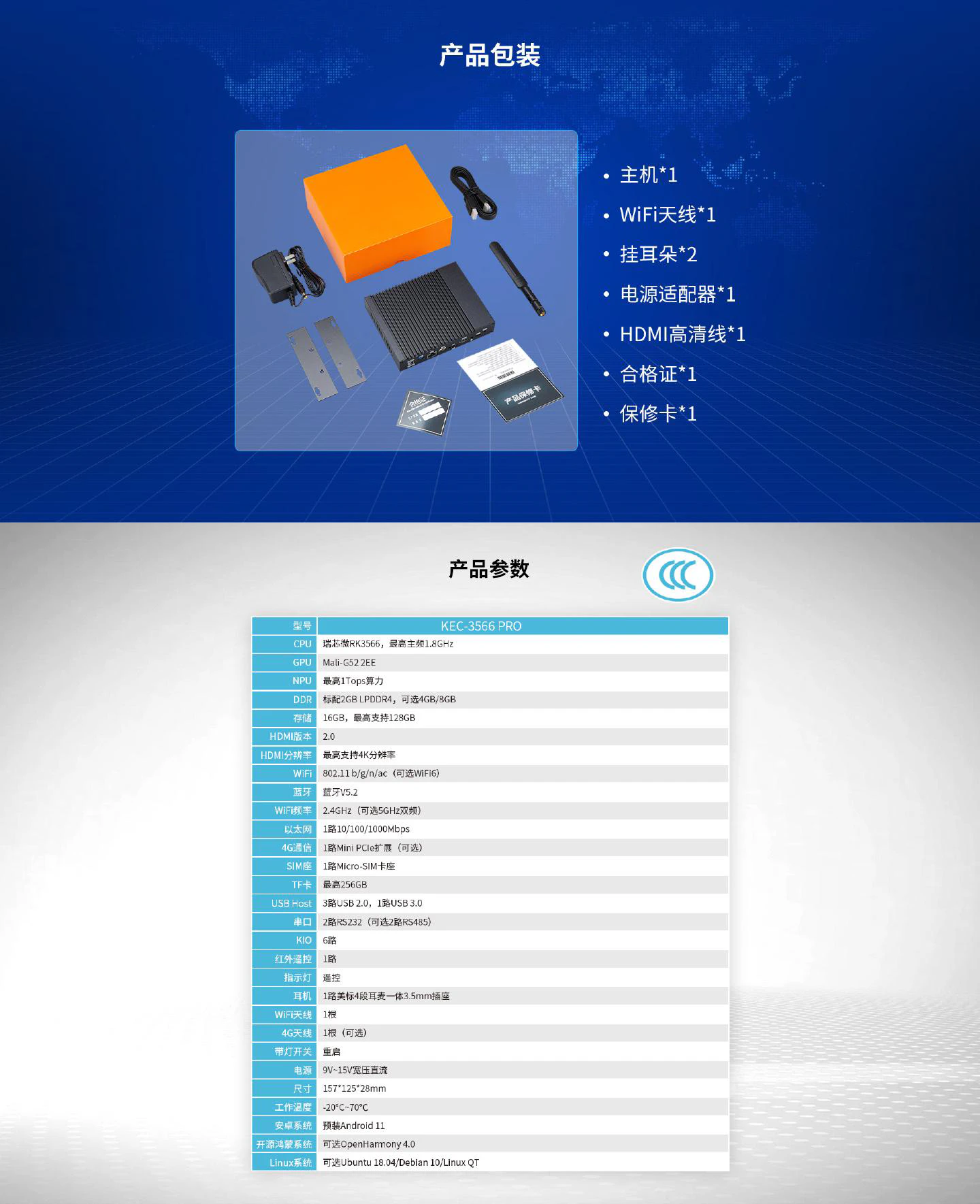

Technical Specifications

Processor	Rockchip RK3568，Quad-core Cortex-A55，FrequencyUp to 2.0GHz
GPU	Mali-G522EE，
NPU	Supports 1 Tops computing power
Memory	Standard 2GB ，Max 8GB
Storage	Standard 16GB ，Max 128GB

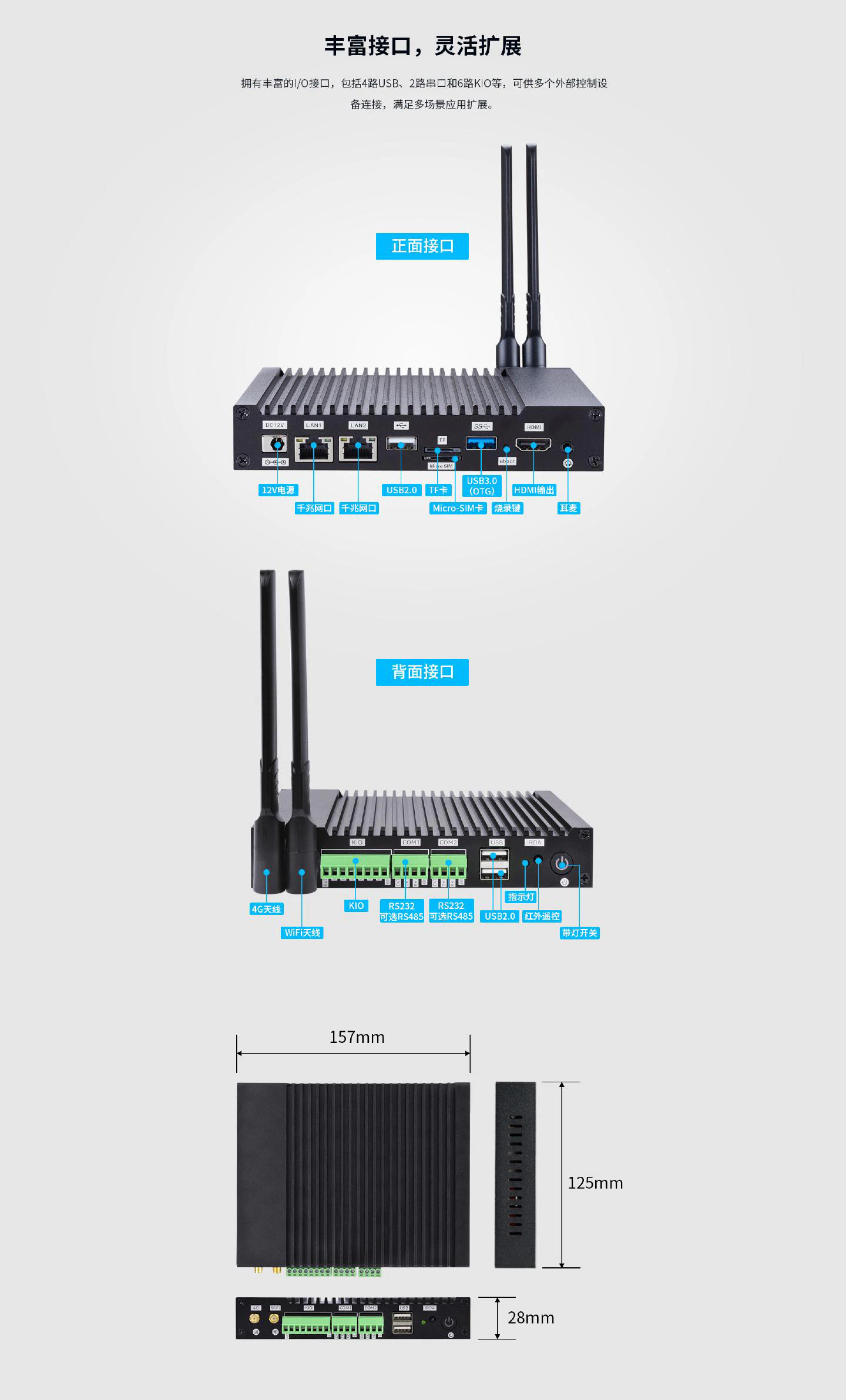

Dimensions	15712528mmmm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI ，4K
Network	2× 10/100/1000Mbps Ethernet Interface
Wi-Fi	WiFi6
Bluetooth	5.0
Cellular	4G (1 MiniPCIe expansion slot (optional))
USB	3× USB 2.0 ，1× USB 3.0 ，1× USB OTG ，0× USB Type-C
Serial Port	2× RS232
Power Input	9V~15V wide voltage DC
Audio	Output: 1 American standard 4-segment headset integrated 3.5mm socket ，Input: 1 American standard 4-segment headset integrated 3.5mm socket

Android	11
Linux	Ubuntu 20.04, Linux Buildroot, Debian 10
Special Features	RTC,
Power Management
System Upgrade

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
