IC-K3288

Name: IC-K3288 - IoT Controller
Brand: 奥宇智能科技

Rockchip RK3288

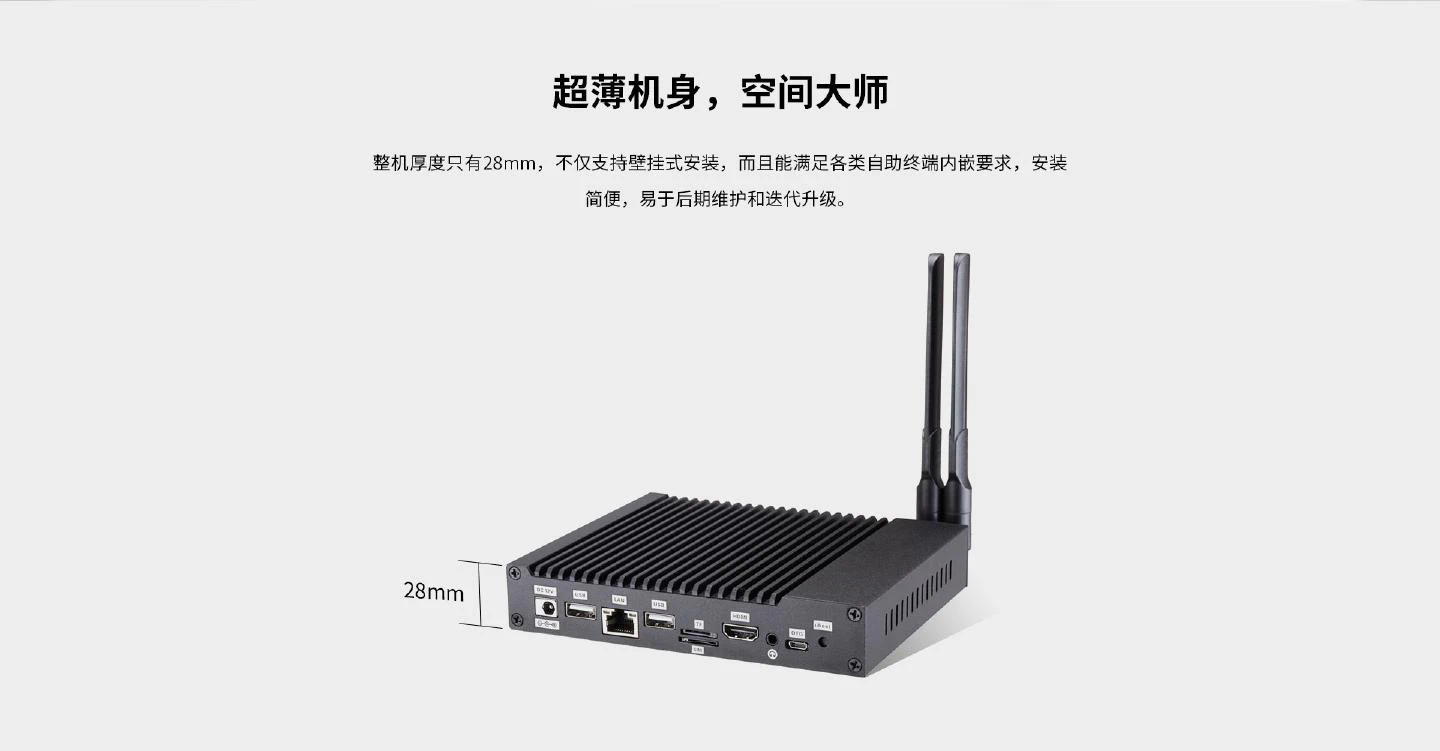

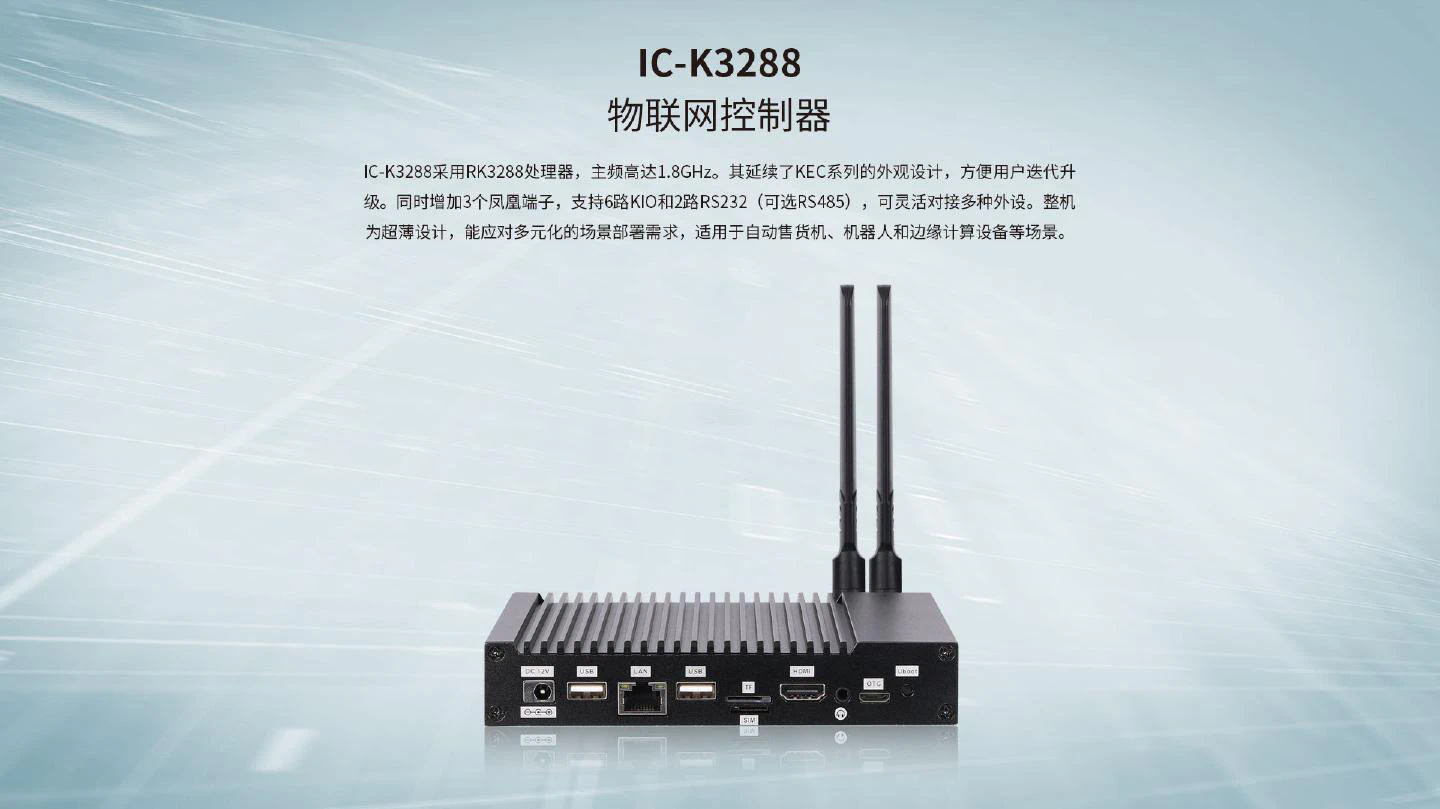

IC-K3288 is equipped with Rockchip RK3288 quad-core processor with a maximum frequency of 1.8GHz, pre-installed with Android 7.1 system. It features a rich array of expansion interfaces for flexible connection to various peripherals. The device has an ultra-thin design to meet diverse deployment scenario requirements.

Processor Rockchip RK3288

Memory 2GB

Storage 16GB

OS Support Android 7.1 / Ubuntu 18.04

Network 1× 10/100Mbps

Video Output HDMI

Request Quote View Specifications

Product Downloads

Specifications

Case Drawing

Base & Ears Drawing

Technical Specifications

Processor	Rockchip RK3288，Quad-core Cortex-A17，FrequencyUp to 1.8GHz
GPU	Mali-T764，
NPU
Memory	Standard 2GB ，Max 4GB
Storage	Standard 16GB ，Max 128GB

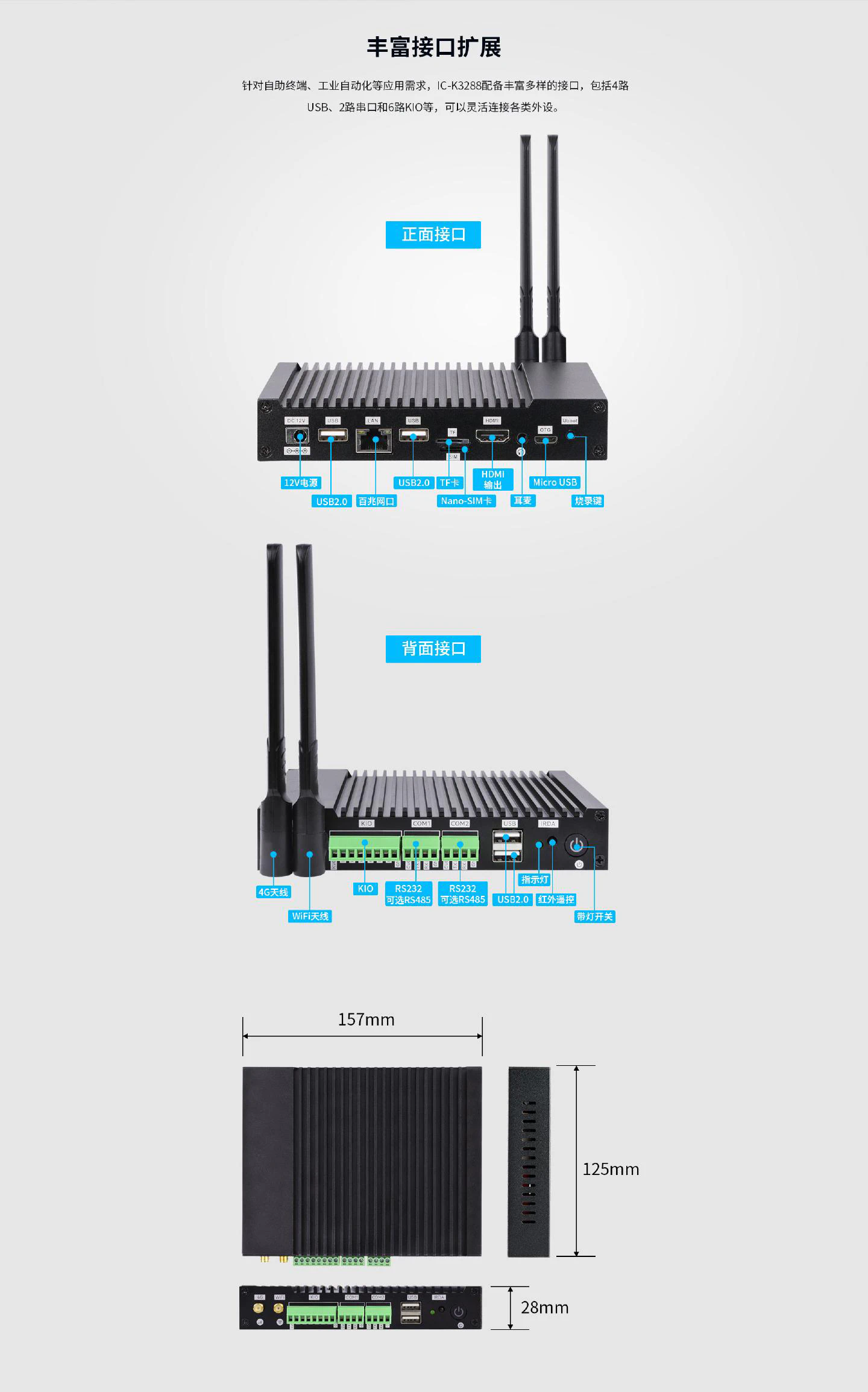

Dimensions	15712528mmmm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI ，4K
Network	1× 10/100Mbps Ethernet Interface
Wi-Fi	802.11b/g/n
Bluetooth	5.2
Cellular	4G (1 MiniPCIe expansion slot (optional))
USB	4× USB 2.0 ，0× USB 3.0 ，1× USB OTG ，0× USB Type-C
Serial Port	2× RS232
Power Input	9V~15V wide voltage DC
Audio	Output: 1 American standard 4-segment headset integrated 3.5mm socket ，Input: 1 American standard 4-segment headset integrated 3.5mm socket

Android	7.1, 5.1, 6.0, 8.1
Linux	Ubuntu 18.04, Linux Buildroot, Debian 9
Special Features	RTC,
Power Management
System Upgrade

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
