IC-K3399

Name: IC-K3399 - High-Performance IoT Controller
Brand: 奥宇智能科技

Rockchip RK3399

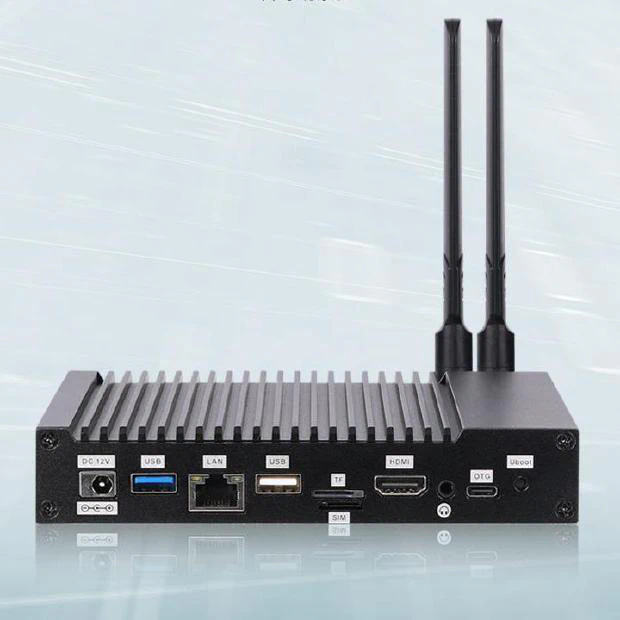

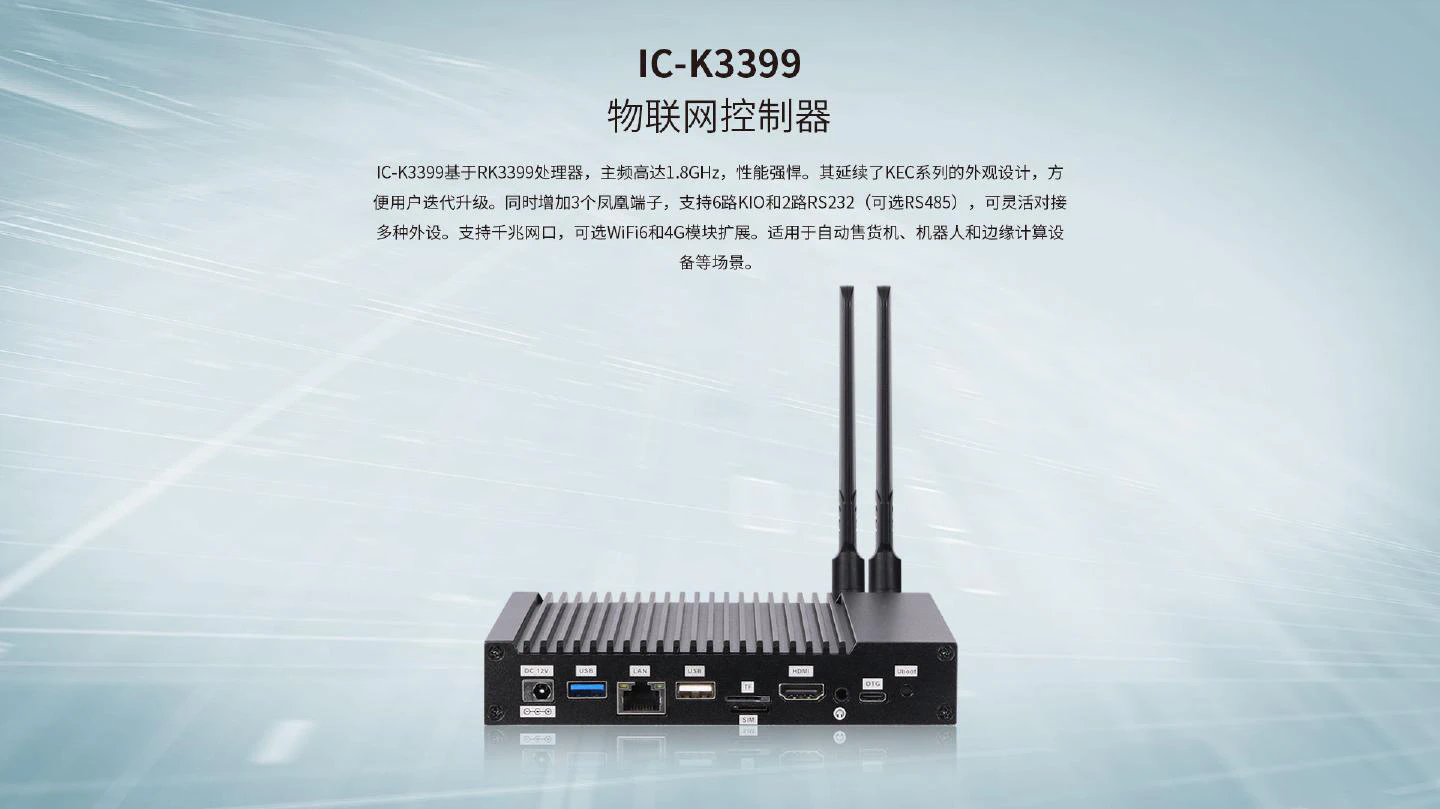

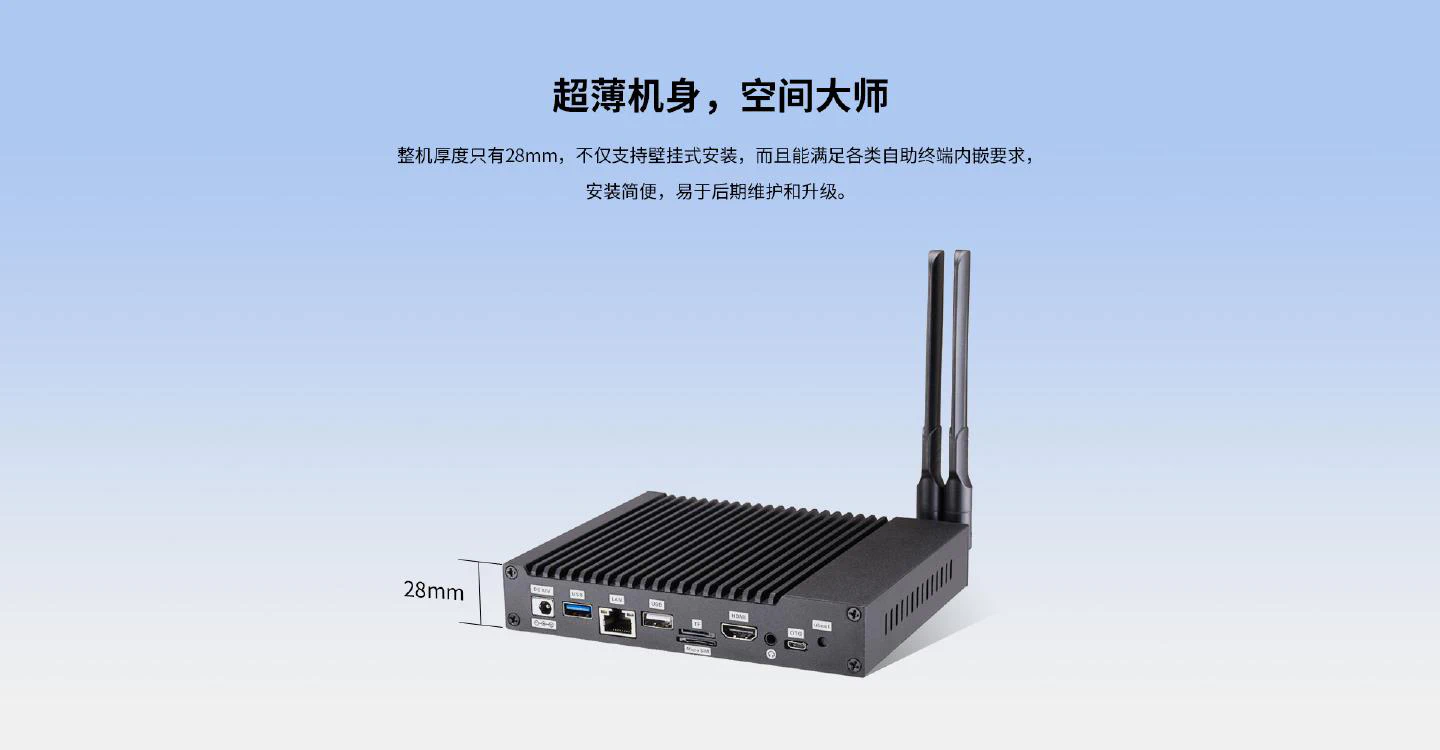

IC-K3399 is equipped with Rockchip RK3399 six-core processor with a maximum frequency of 1.8GHz, pre-installed with Android 7.1 system. It features a rich array of expansion interfaces for flexible connection to various peripherals. The device has an ultra-thin design to meet diverse deployment scenario requirements.

Processor Rockchip RK3399

Memory 2GB

Storage 16GB

OS Support Android 7.1 / Ubuntu 18.04

Network 1× 10/100/1000Mbps

Video Output HDMI

Request Quote View Specifications

Product Downloads

Specifications

Case Drawing

Base & Ears Drawing

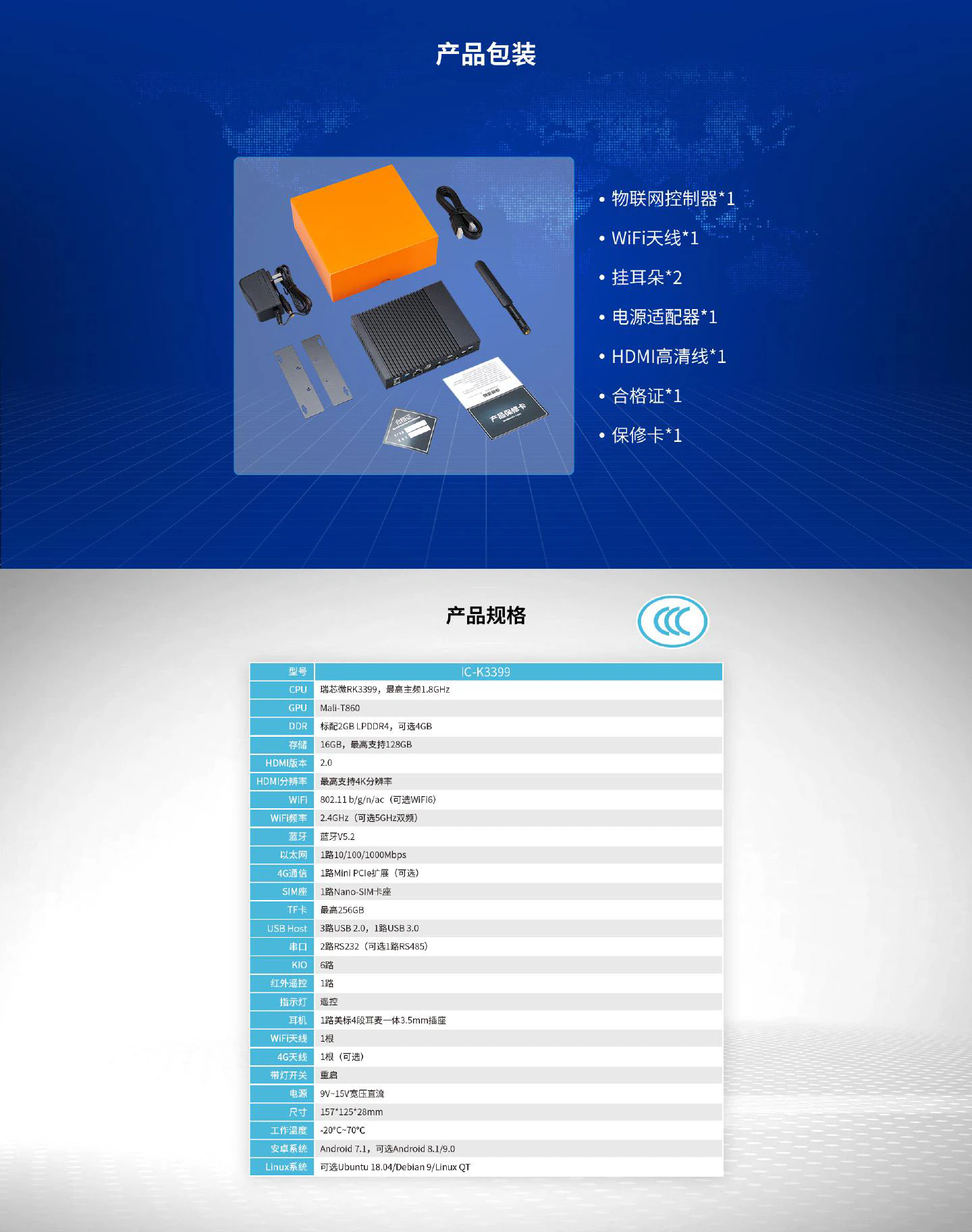

Technical Specifications

Processor	Rockchip RK3399，Dual-core Cortex-A72 + quad-core Cortex-A53，FrequencyUp to 1.8GHz
GPU	Mali-T860，
NPU
Memory	Standard 2GB ，Max 4GB
Storage	Standard 16GB ，Max 128GB

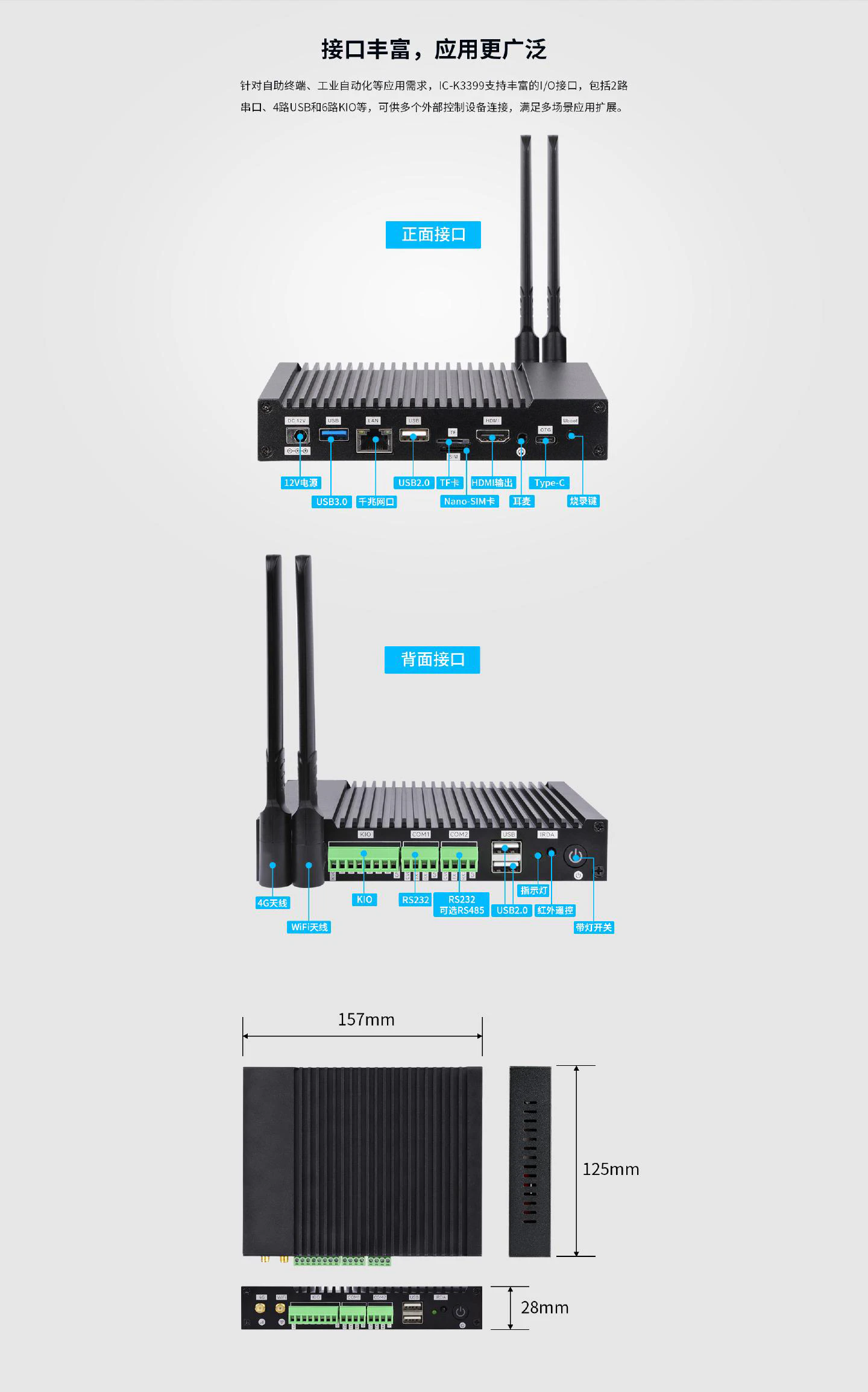

Dimensions	15712528mmmm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI ，4K
Network	1× 10/100/1000Mbps Ethernet Interface
Wi-Fi	802.11b/g/n/ac
Bluetooth	5.2
Cellular	4G (1 MiniPCIe expansion slot (optional))
USB	3× USB 2.0 ，1× USB 3.0 ，1× USB OTG ，1× USB Type-C

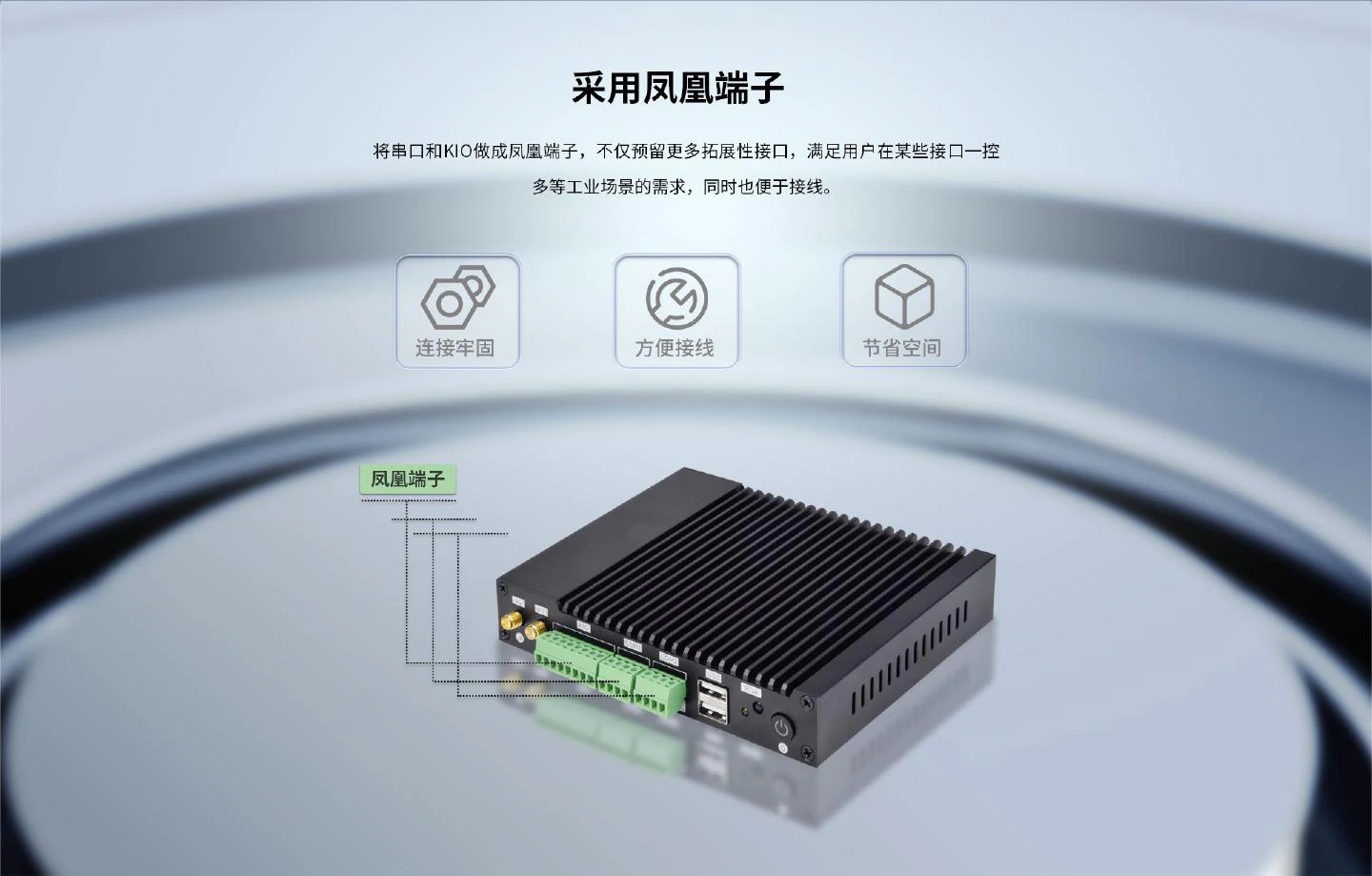

Serial Port	2× RS232
Power Input	9V~15V wide voltage DC
Audio	Output: 1 American standard 4-segment headset integrated 3.5mm socket ，Input: 1 American standard 4-segment headset integrated 3.5mm socket

Android	7.1, 8.1, 9.0
Linux	Ubuntu 18.04, Linux Buildroot, Debian 9
Special Features	RTC,
Power Management
System Upgrade

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
