Multi-Industry Host
B500
Rockchip RK3399Pro

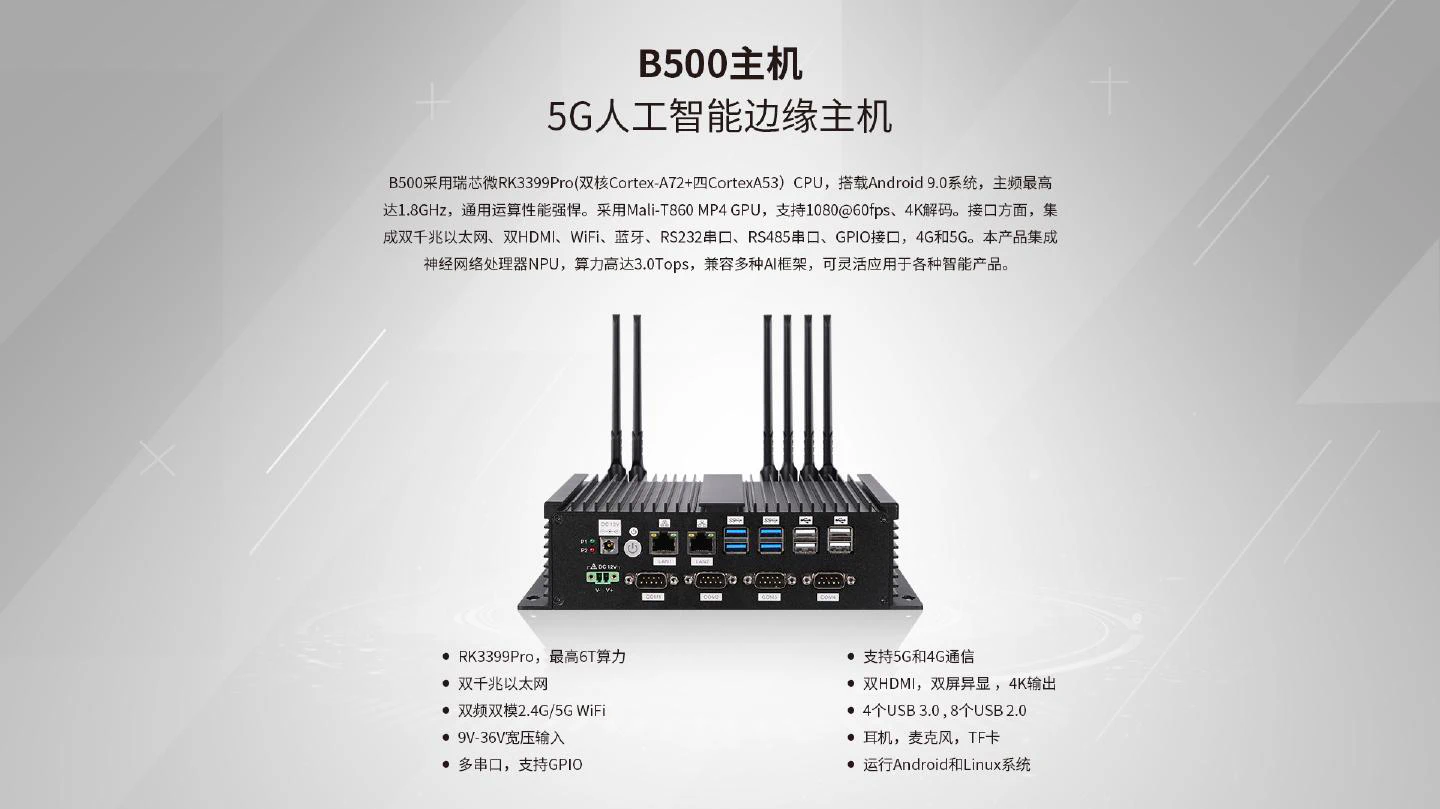

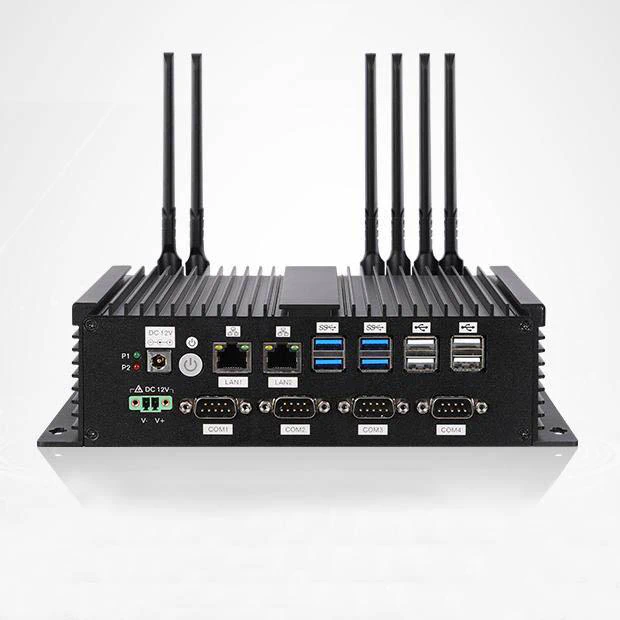

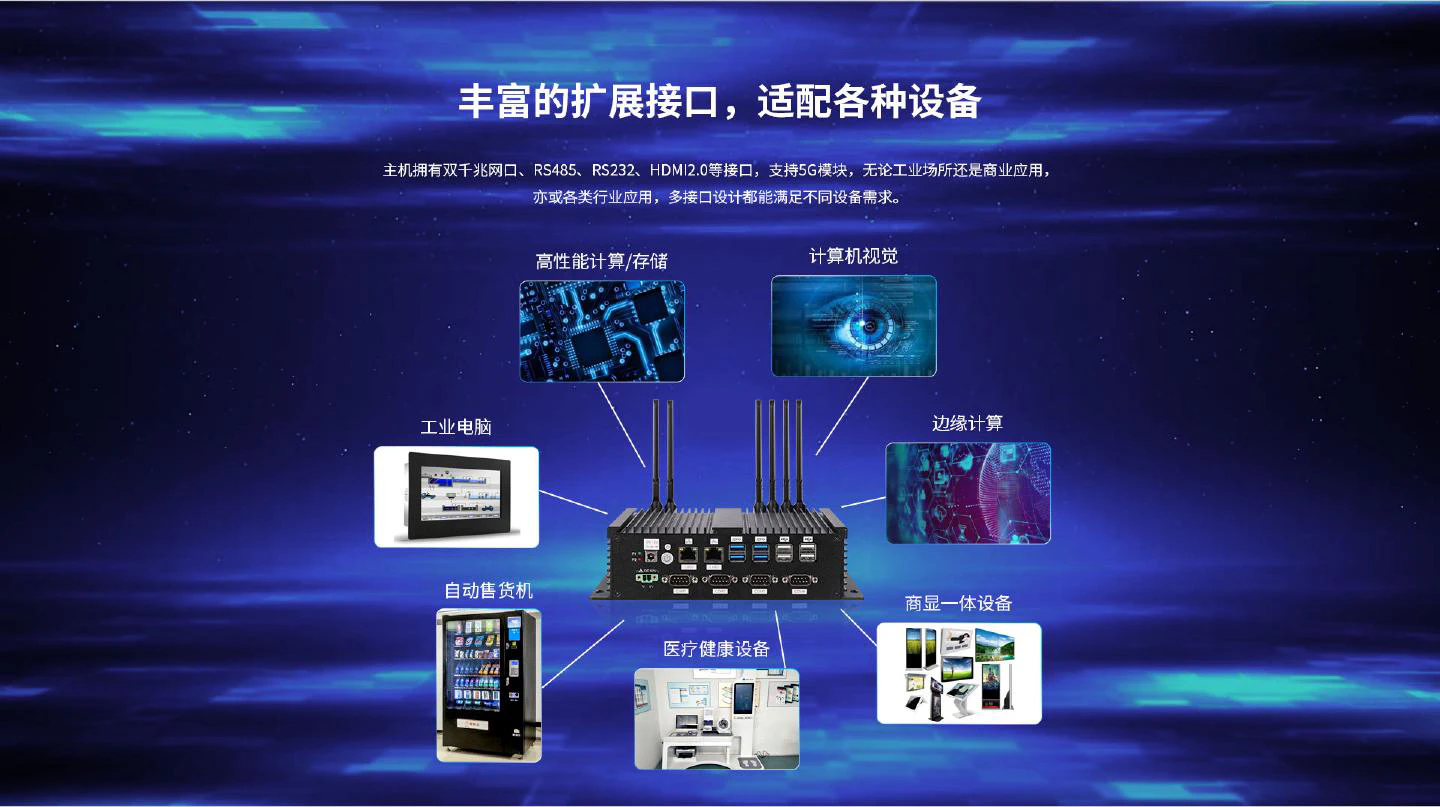

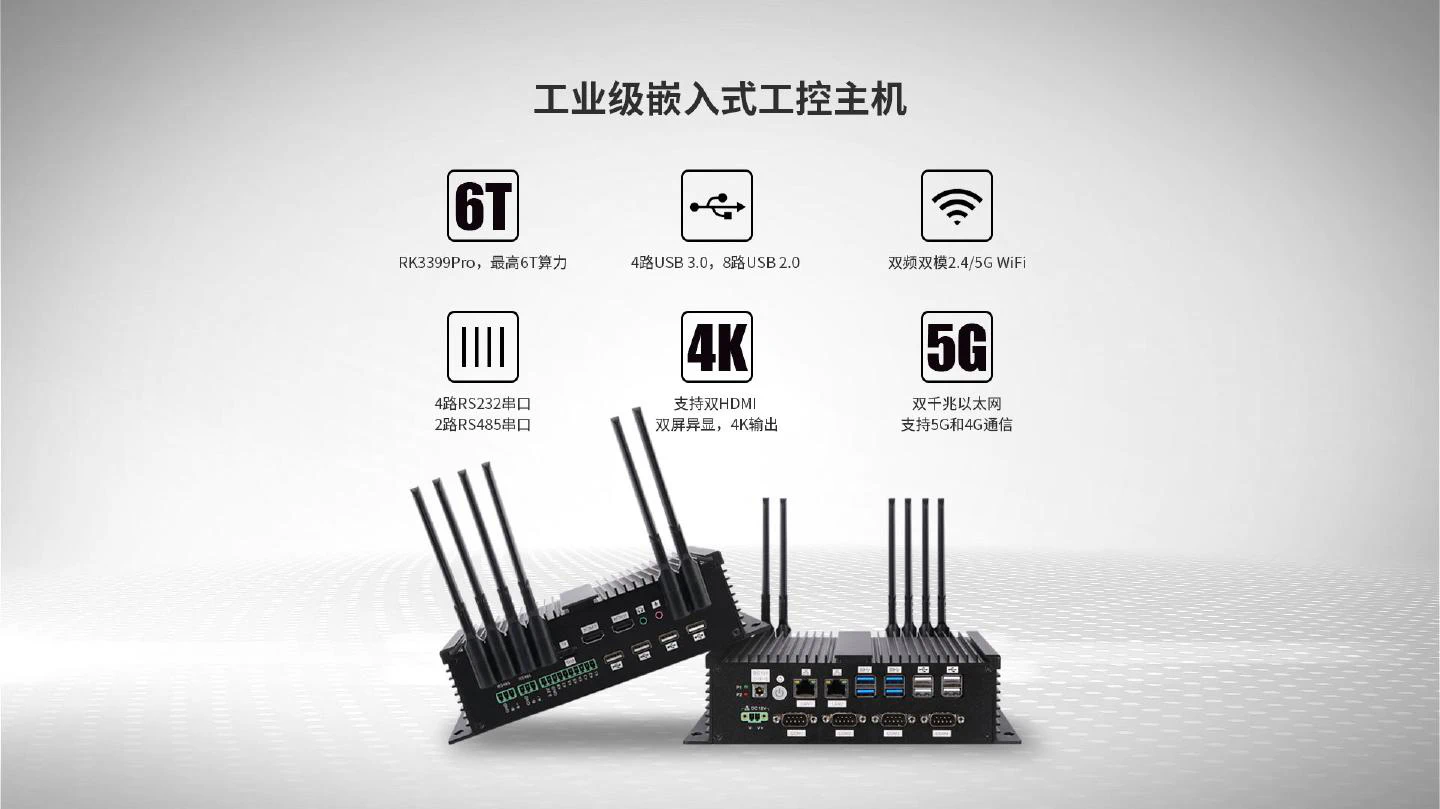

B500 adopts Rockchip RK3399Pro (dual-core Cortex-A72 + quad-core Cortex-A53) CPU with Android 9.0 system, with a maximum frequency of 1.8GHz, providing powerful general computing performance. It features Mali-T860MP4 GPU, supporting 1080P and 4K display. Interface-wise, it integrates dual Gigabit Ethernet, dual HDMI, WiFi, Bluetooth, RS232 serial port, RS485 serial port, GPIO interface, 4G and 5G. This product integrates a neural network processor NPU with computing power up to 3.0 Tops, compatible with various AI frameworks, which can be flexibly applied to various intelligent products.
Processor
RK3399Pro
Memory
2GB DDR
Storage
16GB Flash
OS Support
Android 9.0
/
Ubuntu 18.04
Network
2× 10/100/1000Mbps adaptive
Video Output
HDMI HDMI1 is 1.4, HDMI2 is 2.0
Product Downloads

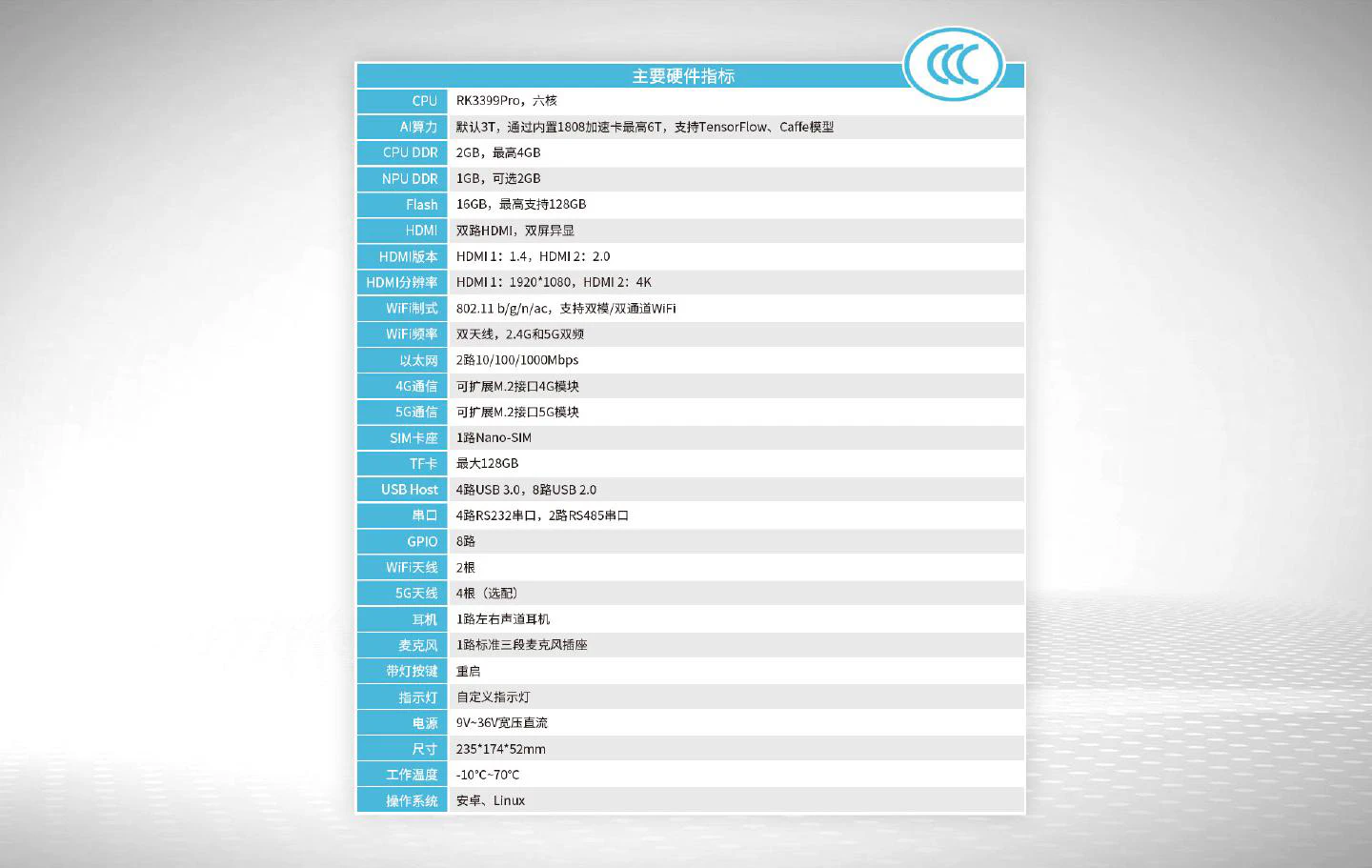

Technical Specifications
| Processor | RK3399Pro，Dual-core Cortex-A72 + quad-core Cortex-A53，FrequencyUp to 1.8GHz |
| GPU | Mali-T860MP4，High-performance GPU |
| NPU | Default 3T, up to 6T through built-in 1808 acceleration card, supports TensorFlow, Caffe models |
| Memory | Standard 2GB DDR，Max 4GB |
| Storage | Standard 16GB Flash，Max 128GB |

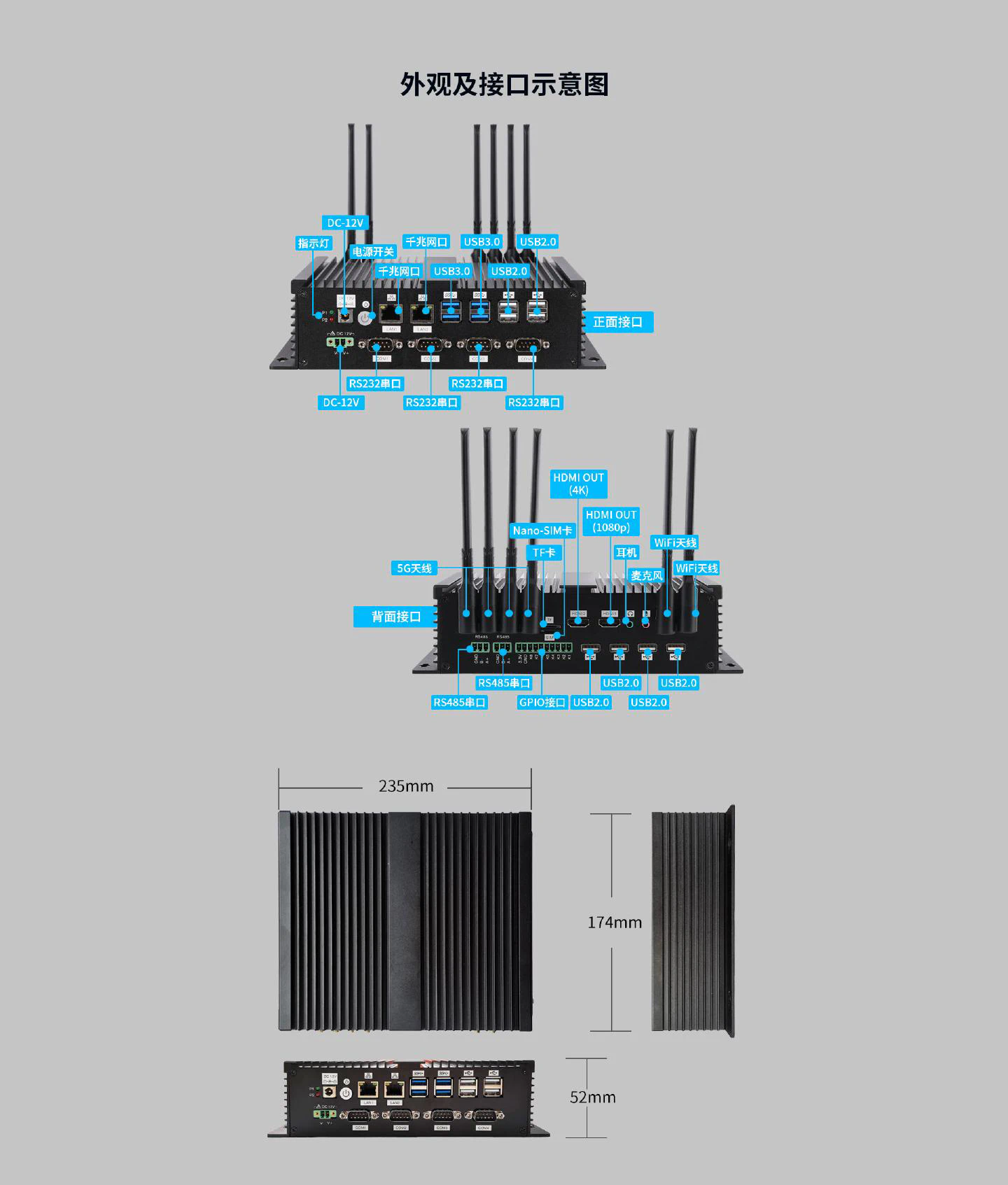

| Dimensions | 235*174*52mmmm |
| Weight | g |
| Appearance | Color: ，Material: |
| Power Consumption | Typical ，Max |
