SST-3399

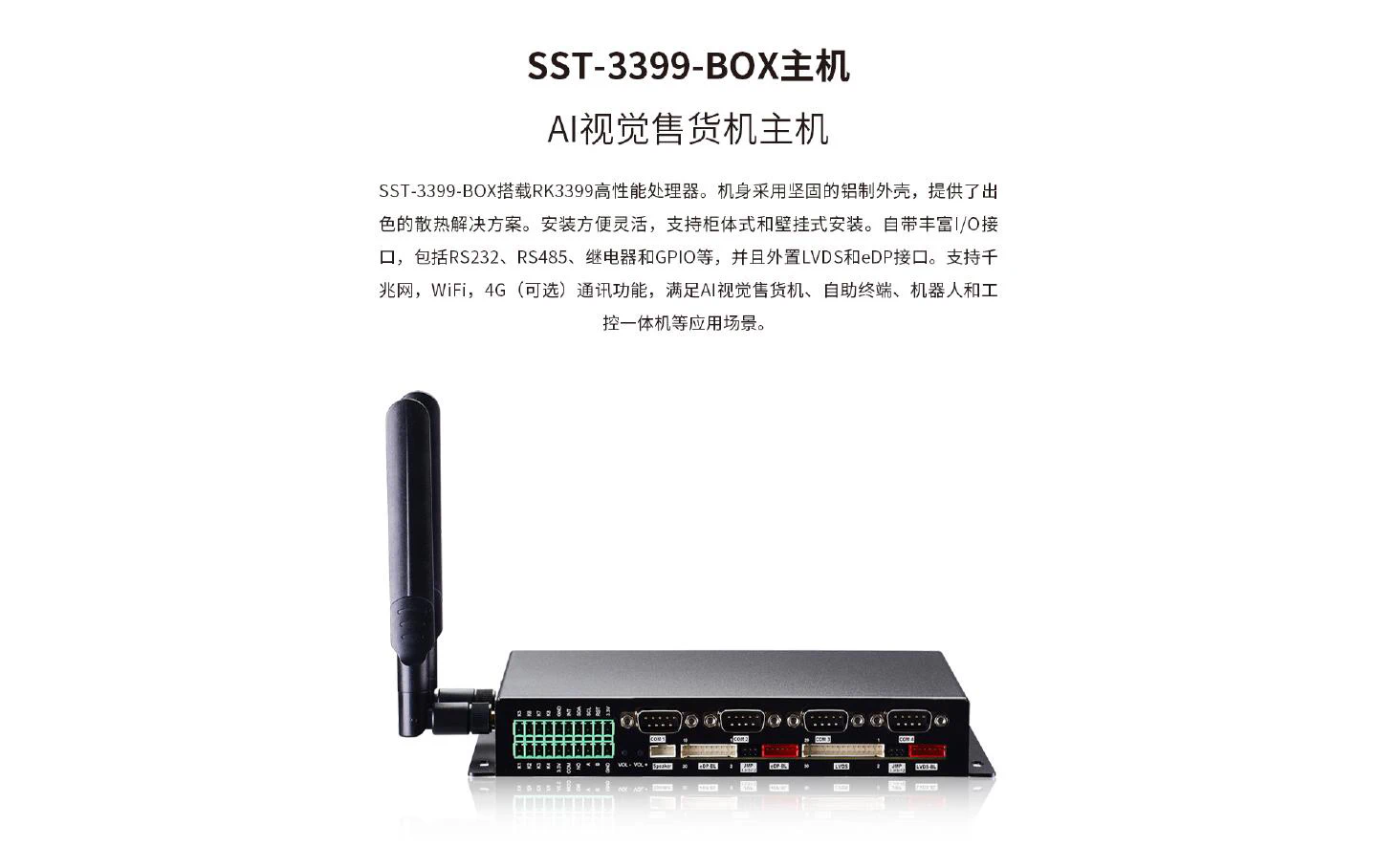

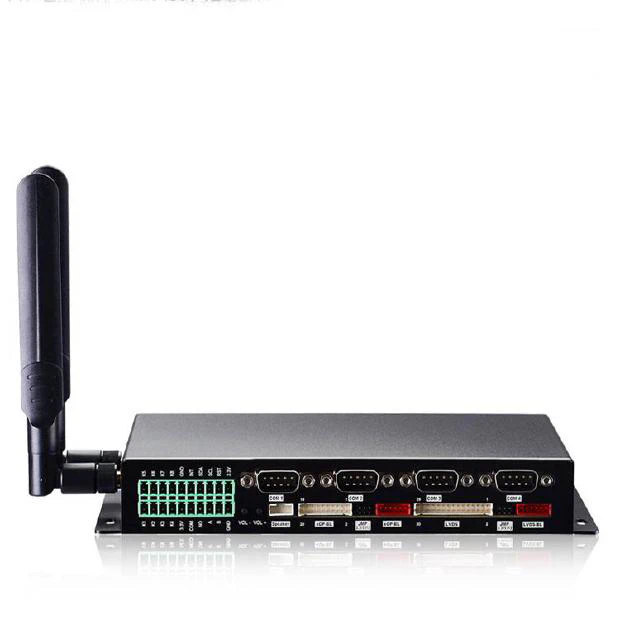

Name: SST-3399 - High-Performance Multi-Industry Host
Brand: 奥宇智能科技

Rockchip RK3399

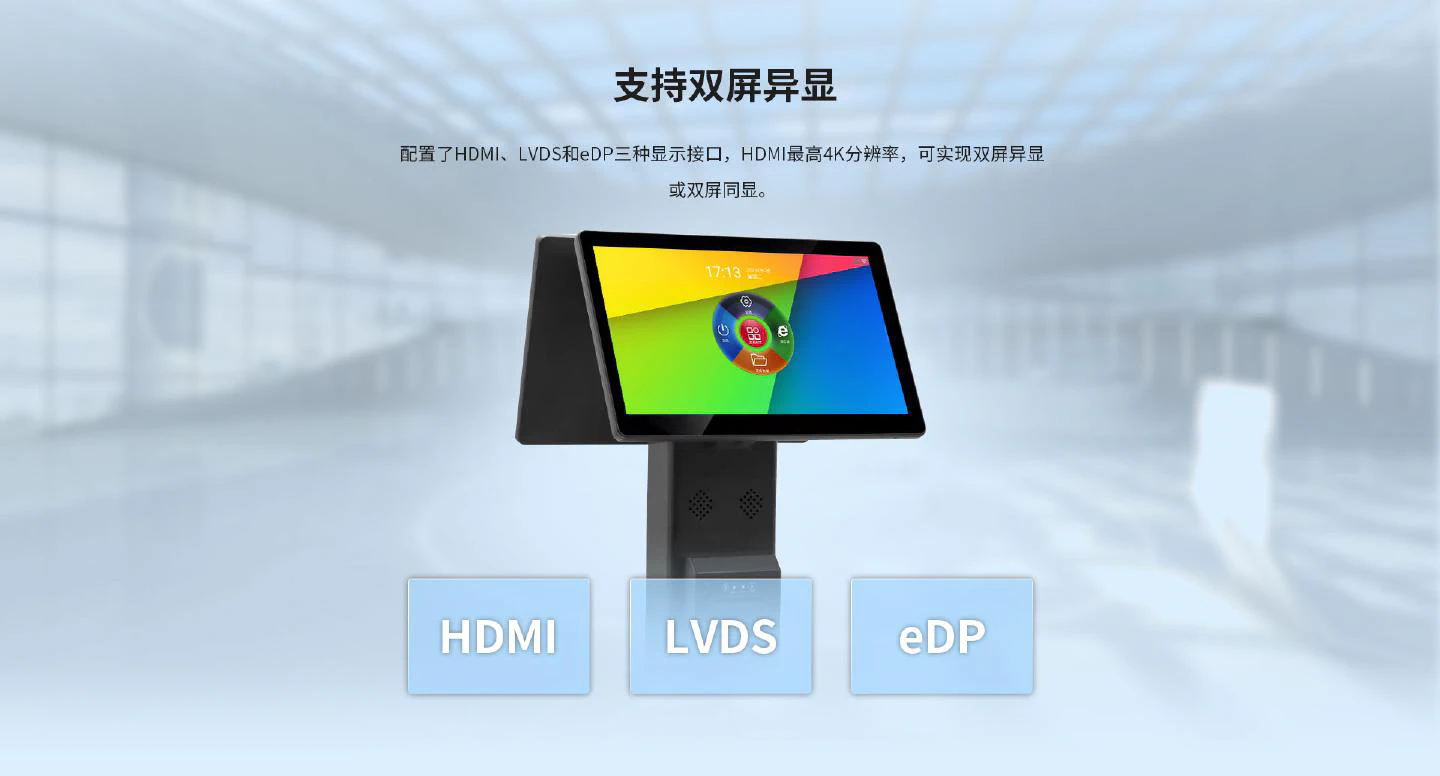

SST-3399 adopts Rockchip RK3399 (dual-core A72 + quad-core A53) six-core processor with a maximum frequency of 1.8GHz, offering exceptional general computing performance. It features Mali-T860 GPU, supporting 4K decoding. It has rich peripheral interfaces, configured with dual Gigabit Ethernet, HDMI/eDP/LVDS and other interfaces, supporting dual-screen clone/extended display.

Processor RK3399

Memory 2GB LPDDR4

Storage 16GB

OS Support Android 7.1 / Ubuntu 18.04

Network 2× 10/100/1000M adaptive

Video Output HDMI HDMI 2.0

Request Quote View Specifications

Product Downloads

Specifications

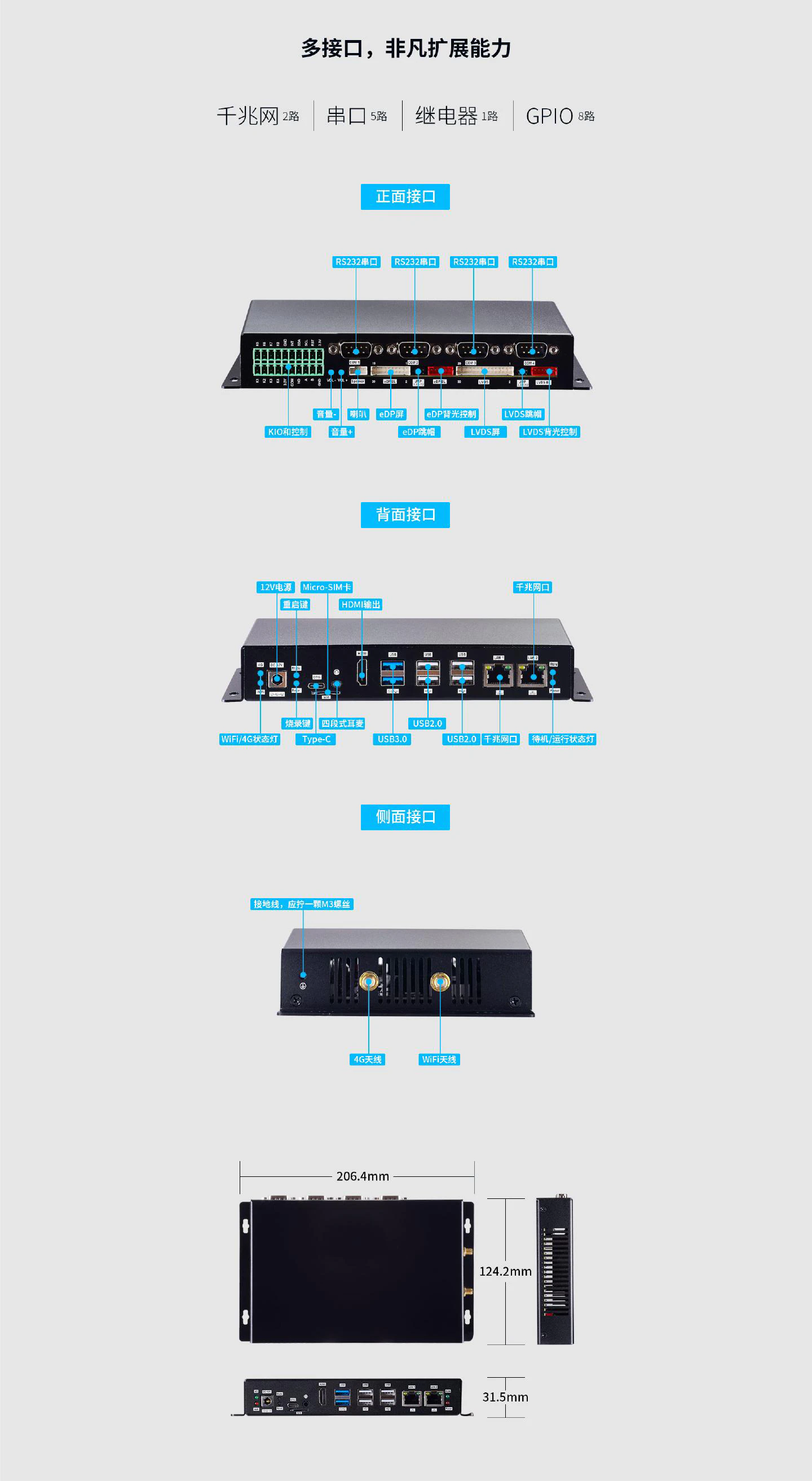

Mechanical Drawing

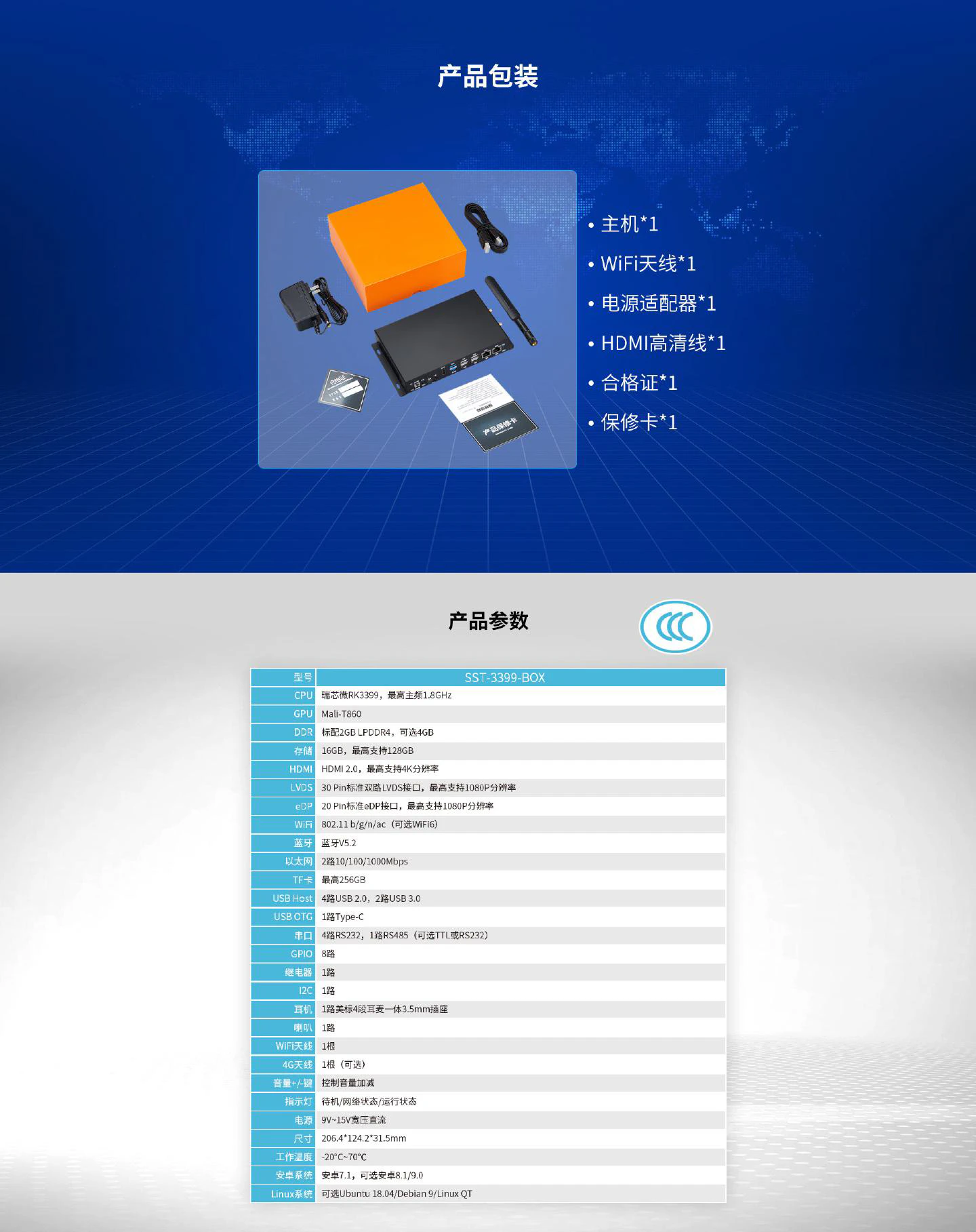

Technical Specifications

Processor	RK3399，Dual-core Cortex-A72 + quad-core Cortex-A53，FrequencyUp to 1.8GHz
GPU	Mali-T860，
NPU
Memory	Standard 2GB LPDDR4，Max 4GB
Storage	Standard 16GB ，Max 128GB
Dimensions	206.4124.231.5mmmm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI HDMI 2.0，4K
Network	2× 10/100/1000M adaptive Ethernet Interface

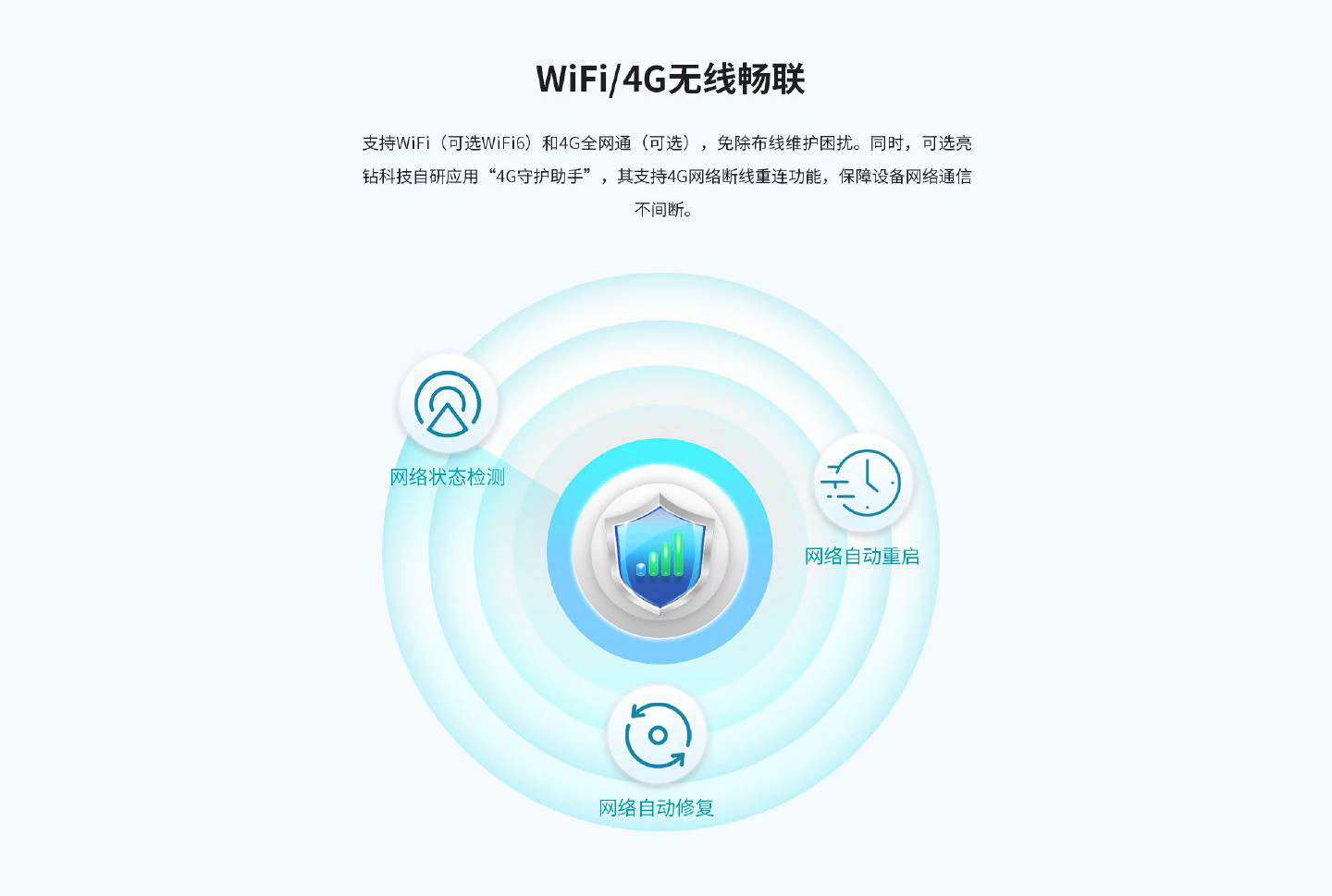

Wi-Fi	(2.4G single frequency (optional 2.4G/5G dual frequency))
Bluetooth	4.0
Cellular	4G (Optional)
USB	4× USB 2.0 ，2× USB 3.0 ，1× USB OTG ，1× USB Type-C

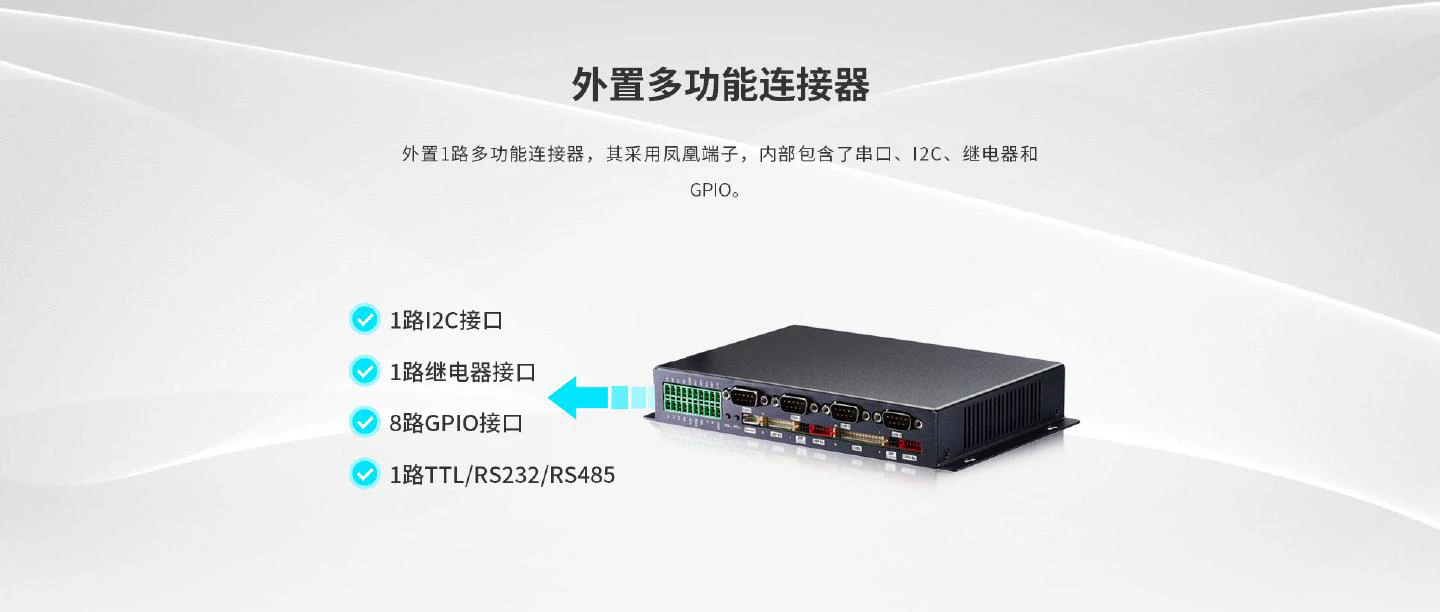

Serial Port	4× RS232
Power Input	9V~15V wide voltage DC
Audio	Output: 1 left and right speaker interface, 1 four-segment headset ，Input: 1 four-segment headset

Android	7.1, 8.1, 9.0
Linux	Ubuntu 18.04, Debian 9, Linux Buildroot
Special Features	RTC,
Power Management	Scheduled Power
System Upgrade	Firmware upgrade

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~90% (non-condensing)
Storage Humidity
