VNC-3568

Name: VNC-3568 - Multi-Industry AI Host
Brand: 奥宇智能科技

Rockchip RK3568

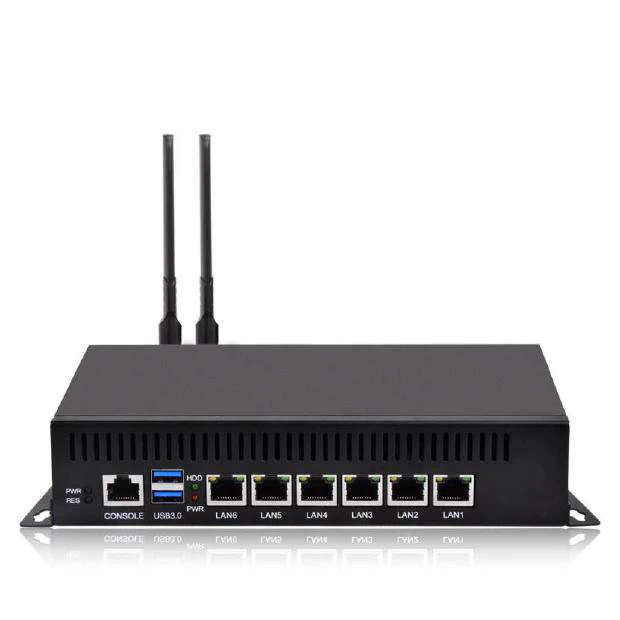

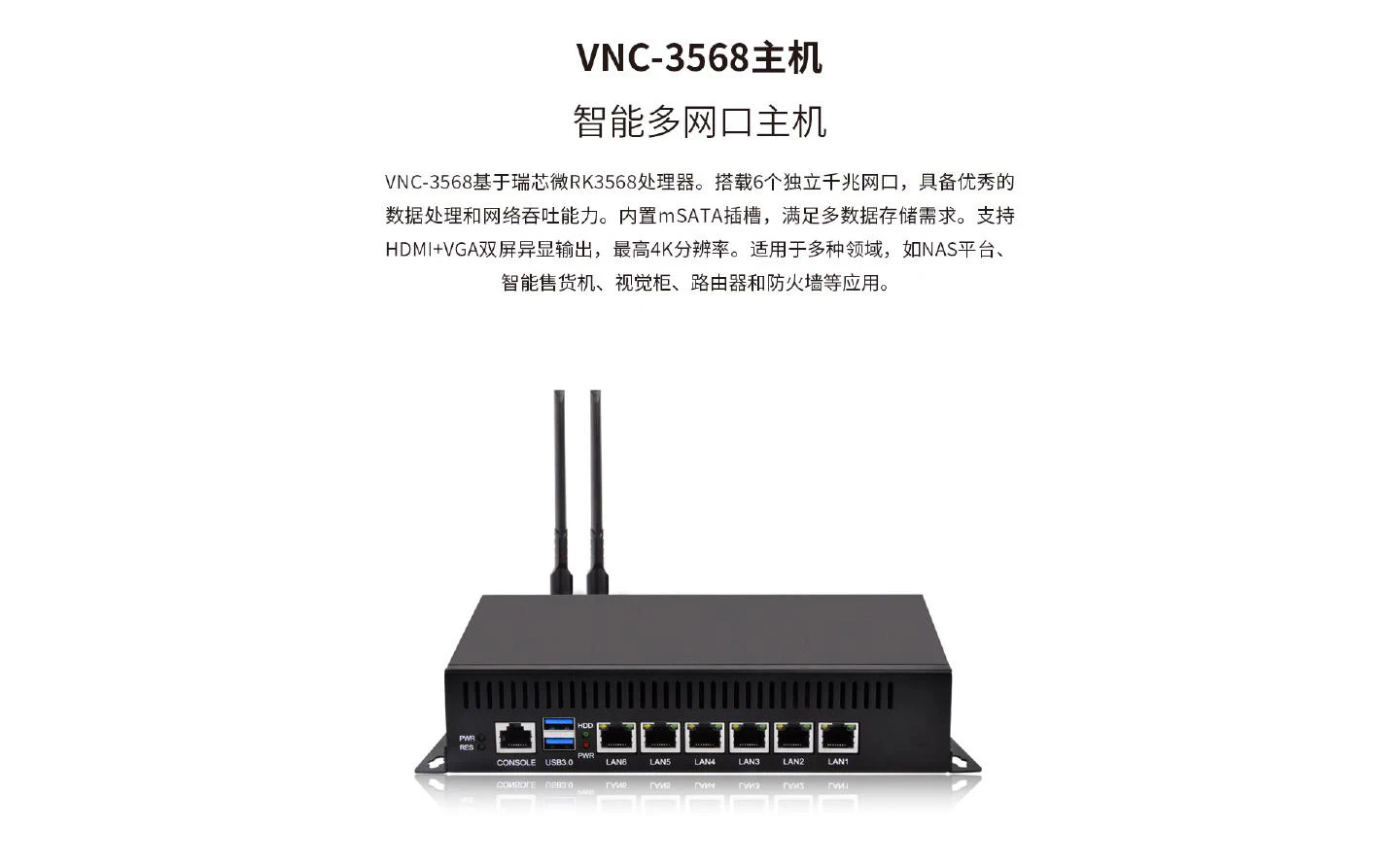

VNC-3568 adopts Rockchip RK3568 quad-core processor with a maximum frequency of 2.0GHz. It features a built-in independent NPU with computing power up to 1 Tops. Supports HDMI+VGA dual-screen display. This host is equipped with 6 independent Gigabit network ports, offering excellent data processing and network throughput capabilities.

Processor RK3568

Memory 2GB LPDDR4

Storage 16GB

OS Support Android 11.0 / Ubuntu 20.04

Network 6× 10/100/1000M adaptive

Video Output HDMI

Request Quote View Specifications

Product Downloads

Specifications

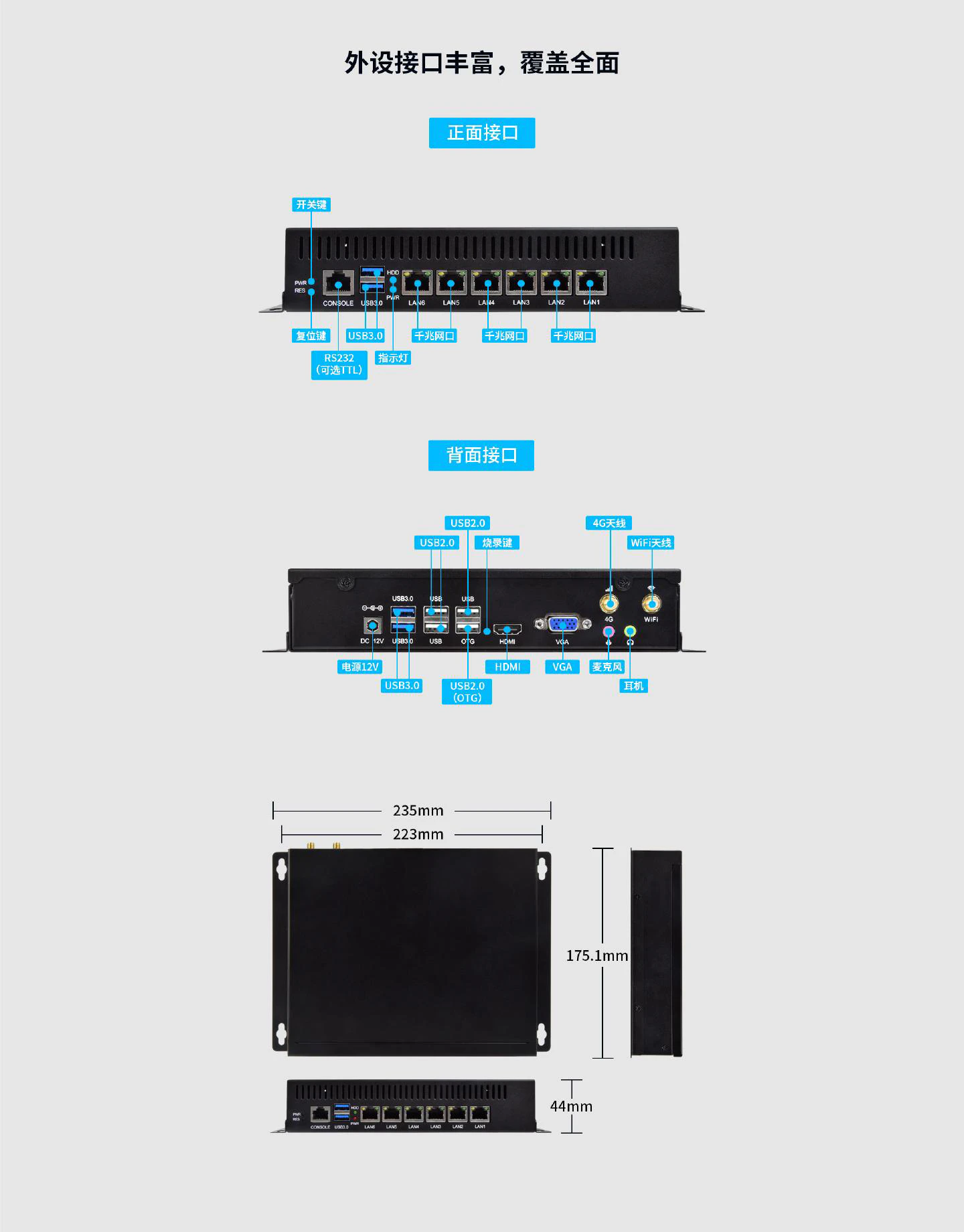

Mechanical Drawing #1

Mechanical Drawing #2

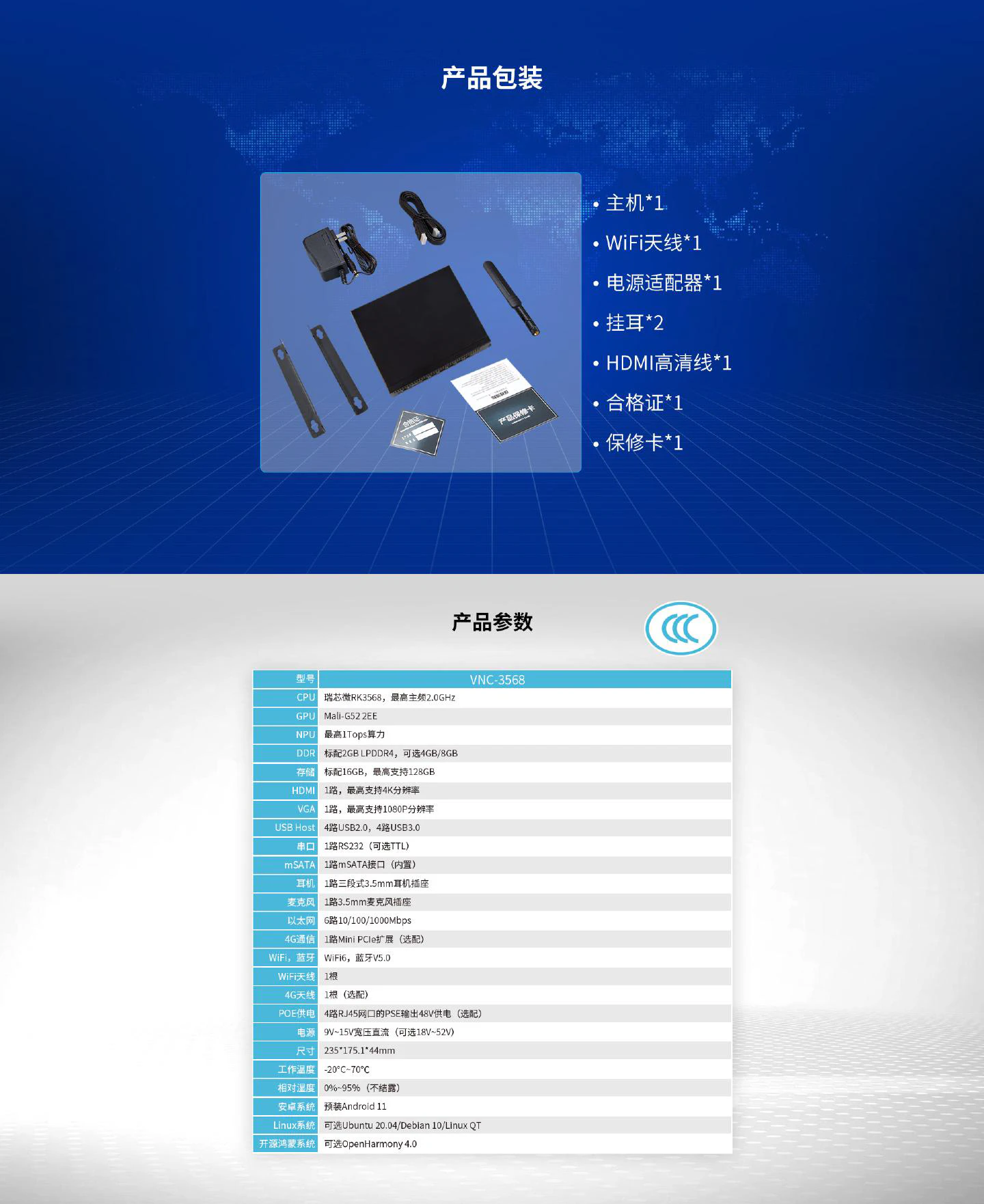

Technical Specifications

Processor	RK3568，Quad-core Cortex-A55，FrequencyUp to 2.0GHz
GPU	Mali-G522EE，
NPU	Up to 1 Tops computing power
Memory	Standard 2GB LPDDR4，Max 8GB

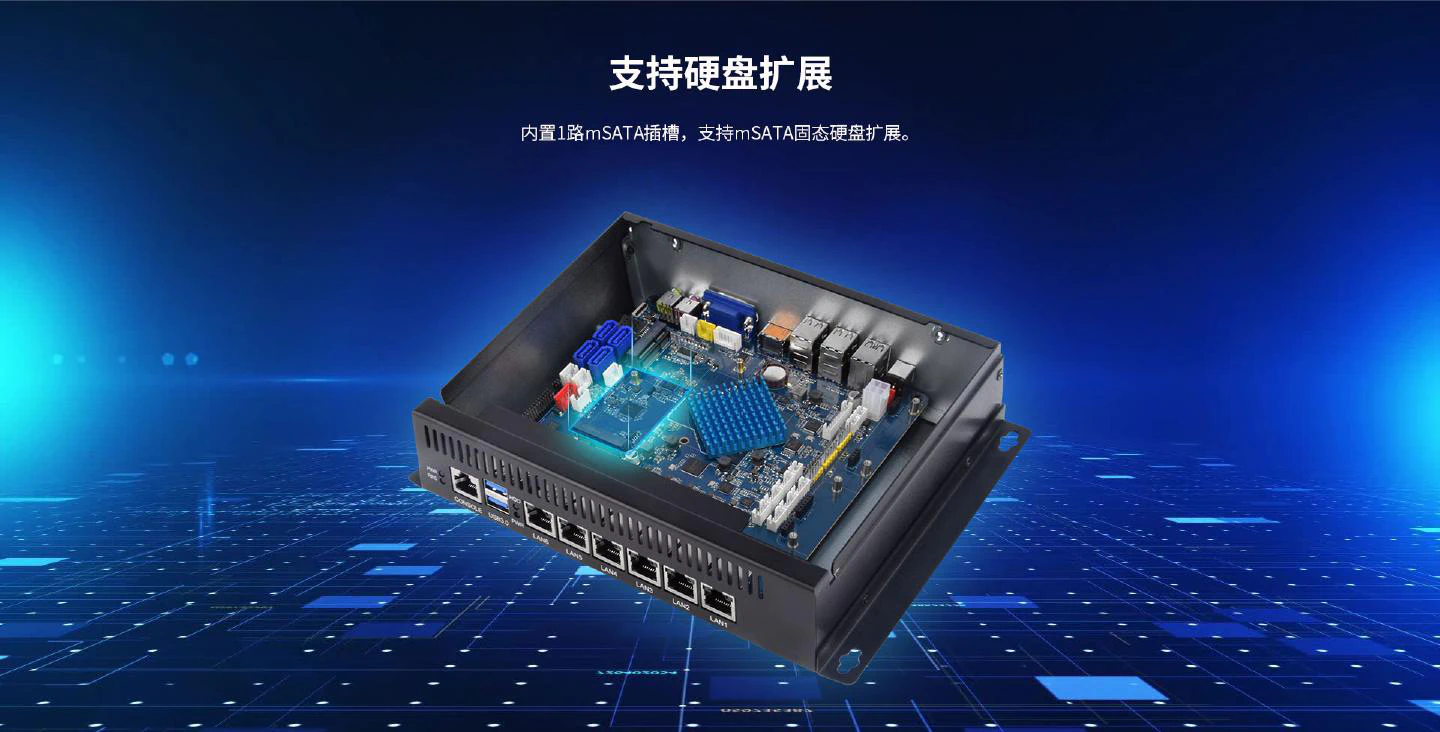

Storage	Standard 16GB ，Max 128GB
Dimensions	235175.144mmmm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI ，4K

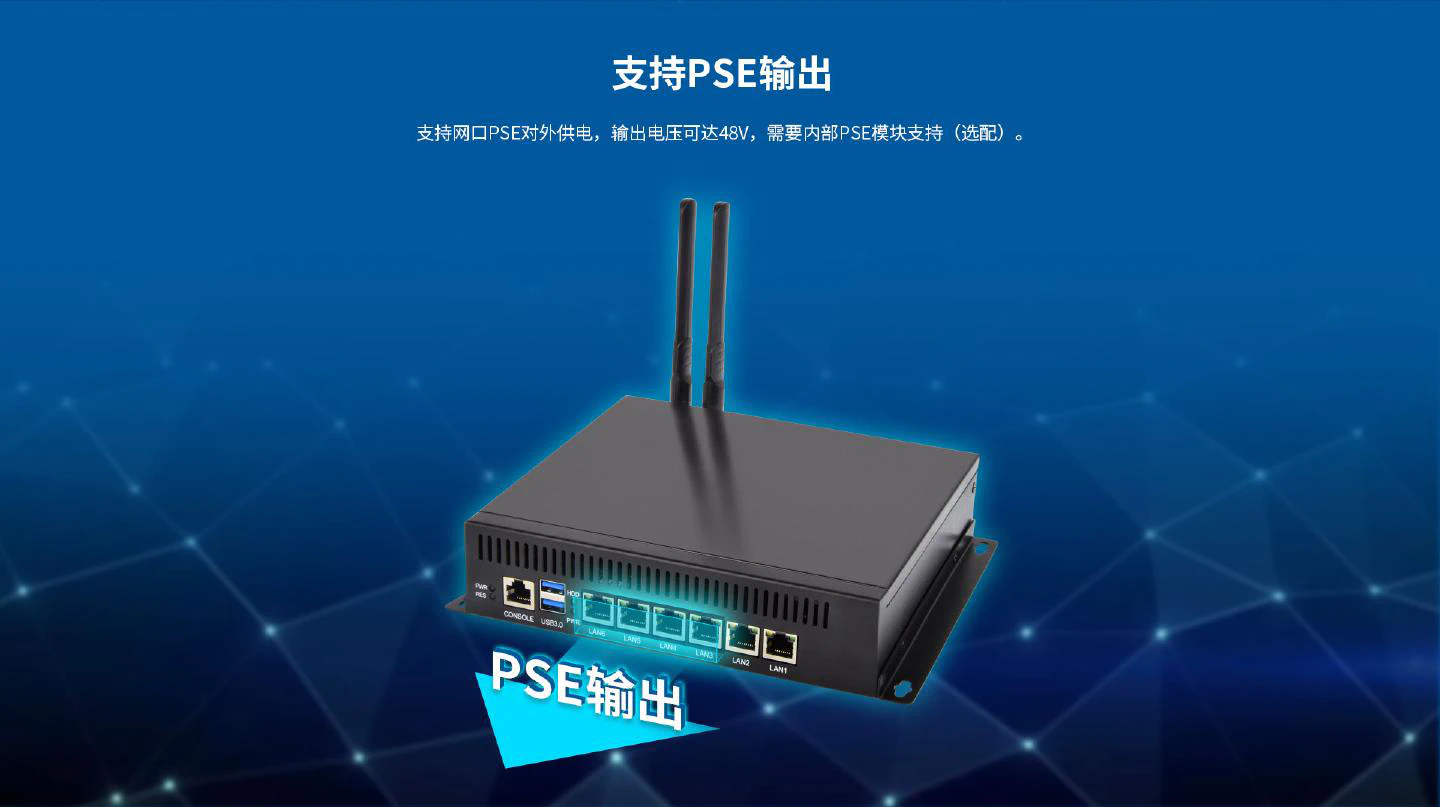

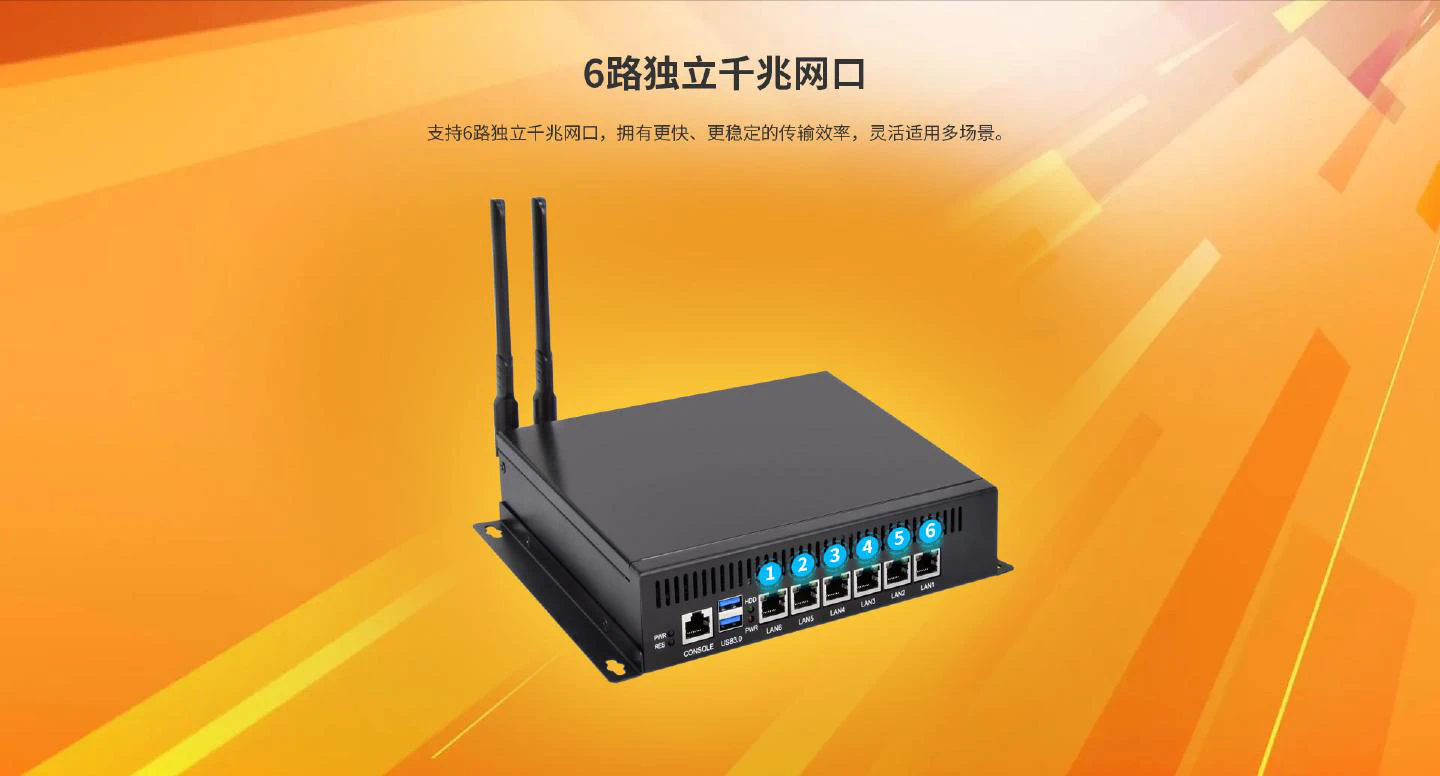

Network	6× 10/100/1000M adaptive Ethernet Interface

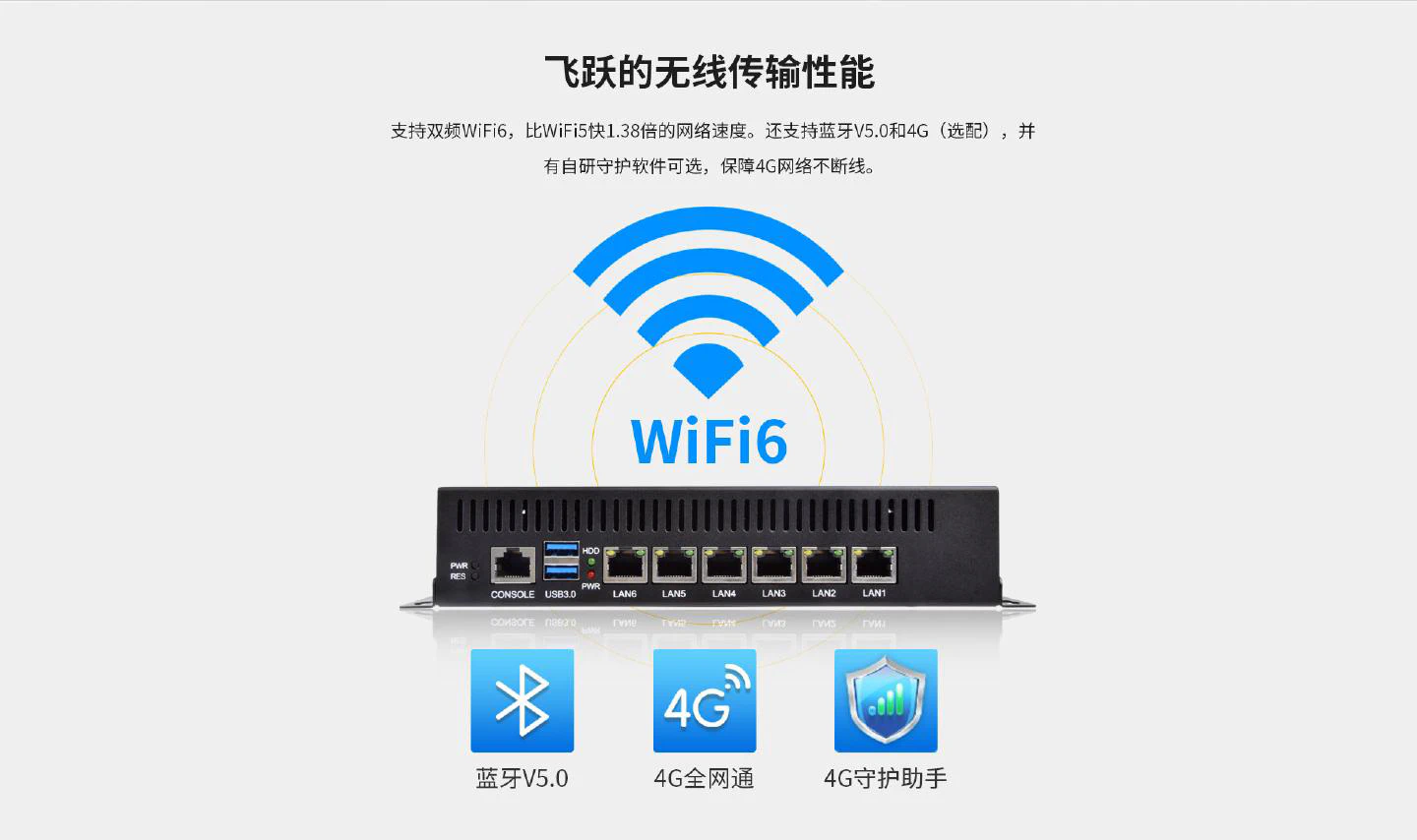

Wi-Fi	WiFi 6 (2.4G & 5G dual-band)
Bluetooth	5.0
Cellular	4G (All networks compatible (optional))
USB	4× USB 2.0 ，4× USB 3.0 ，1× USB OTG ，0× USB Type-C
Serial Port	1× RS232
Power Input	9V~15V wide voltage DC (optional 18V~52V)
Audio	Output: 1 channel, three-segment 3.5mm headphone jack ，Input: 1 channel, 3.5mm microphone jack

Android	11.0
Linux	Ubuntu 20.04, Debian 10, Linux QT
Special Features	RTC,
Power Management	Scheduled Power
System Upgrade	Local USB upgrade

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
