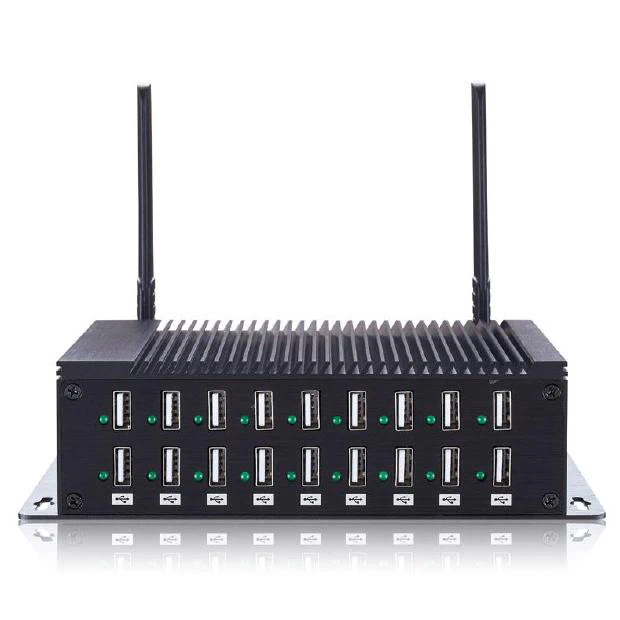

YEC-3288

Name: YEC-3288 - Multi-Industry Host
Brand: 奥宇智能科技

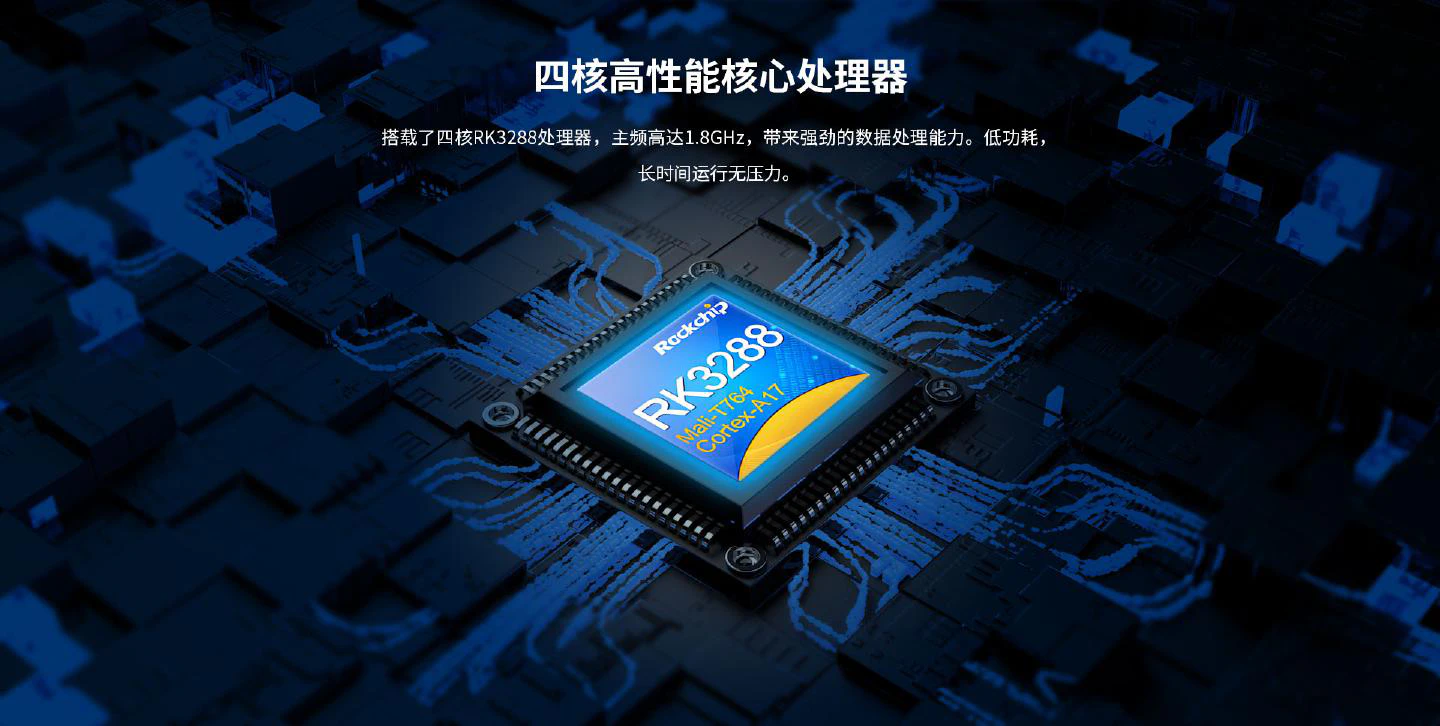

Rockchip RK3288

YEC-3288 adopts Rockchip RK3288 quad-core A17 CPU with a maximum frequency of 1.8GHz, integrated with Mali-T764 high-performance GPU, supporting up to 4K display. Interface-wise, it integrates multiple USB ports, Ethernet, HDMI, VGA, 4G, supporting multiple peripheral expansions, making it your best choice for industrial control projects.

Processor RK3288

Memory 2GB LPDDR3

Storage 16GB Flash

OS Support Android 7.1 / Ubuntu 18.04

Network 1× 10/100M adaptive

Video Output HDMI 2.0

Request Quote View Specifications

Product Downloads

Specifications

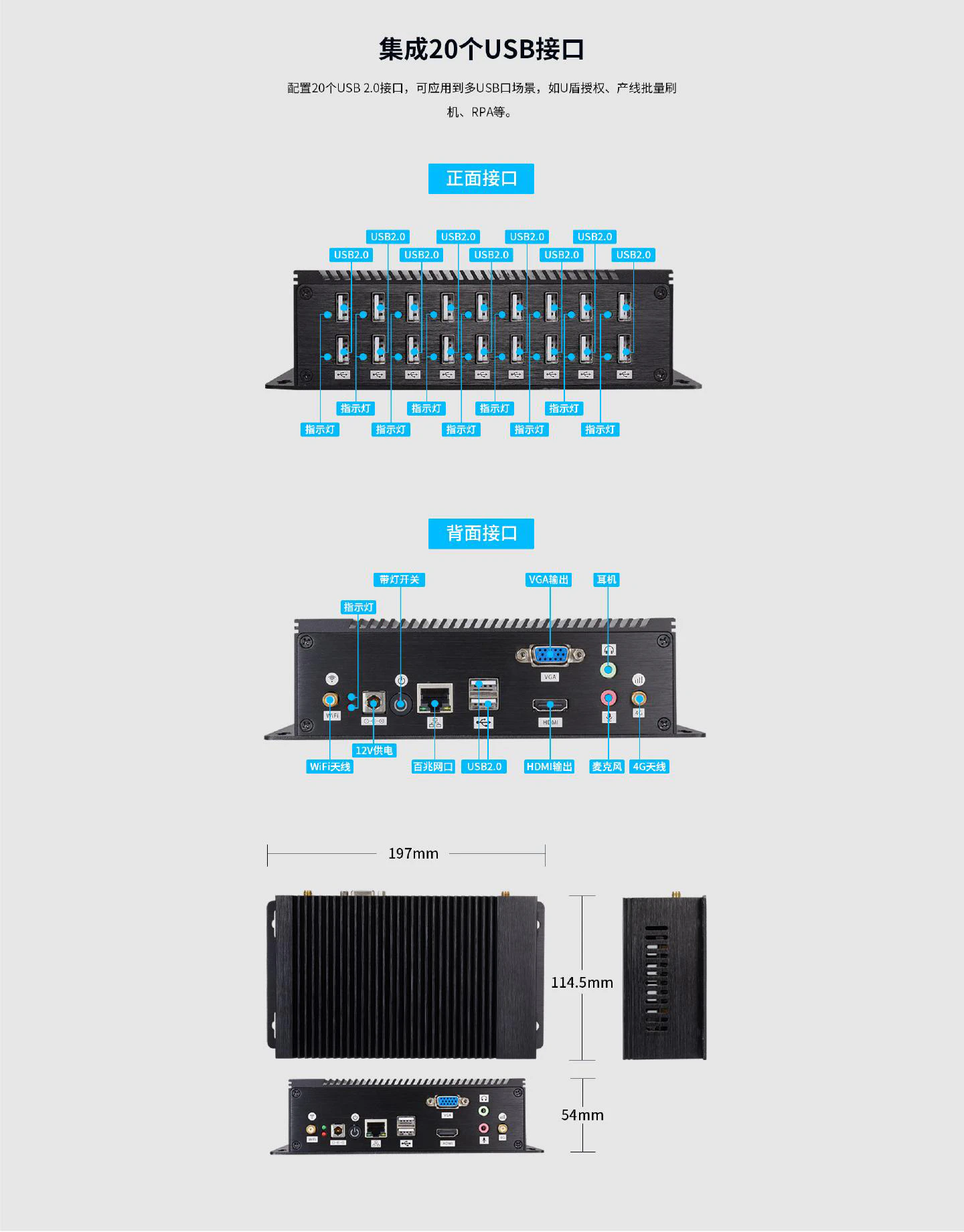

Mechanical Drawing

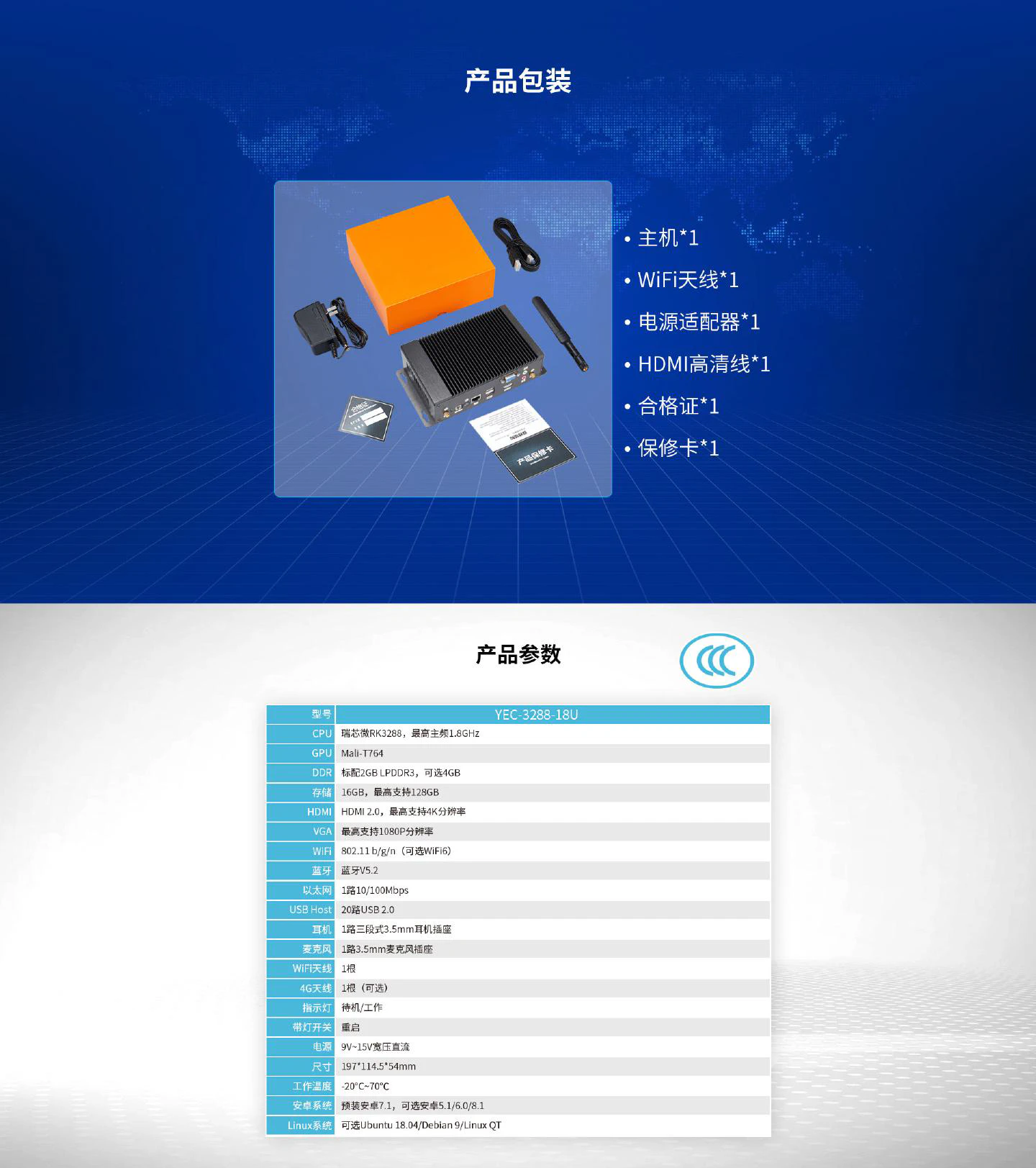

Technical Specifications

Processor	RK3288，Quad-core A17，FrequencyUp to 1.8GHz
GPU	Mali-T764，High-performance GPU
NPU
Memory	Standard 2GB LPDDR3，Max 4GB
Storage	Standard 16GB Flash，Max 128GB
Dimensions	197114.554mmmm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI 2.0，4K
Network	1× 10/100M adaptive Ethernet Interface
Wi-Fi	802.11b/g/n (2.4G single frequency (optional 2.4G/5G dual frequency))
Bluetooth	5.2
Cellular	4G (Built-in MiniPCIE interface, supports 4G internet (optional))
USB	20× USB 2.0 ，0× USB 3.0 ，0× USB OTG ，0× USB Type-C
Serial Port	0× RS232
Power Input	9V~15V wide voltage DC
Audio	Output: Supports headphone output ，Input: Supports microphone input

Android	7.1, 6.0, 5.1
Linux	Ubuntu 18.04, Debian 9, Buildroot+QT2018.02
Special Features	RTC,
Power Management	Scheduled Power
System Upgrade	Local USB upgrade

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
