HS-3399

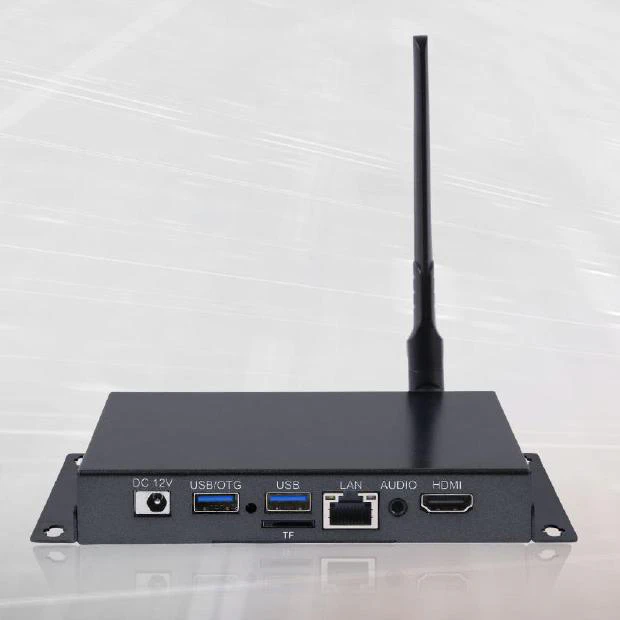

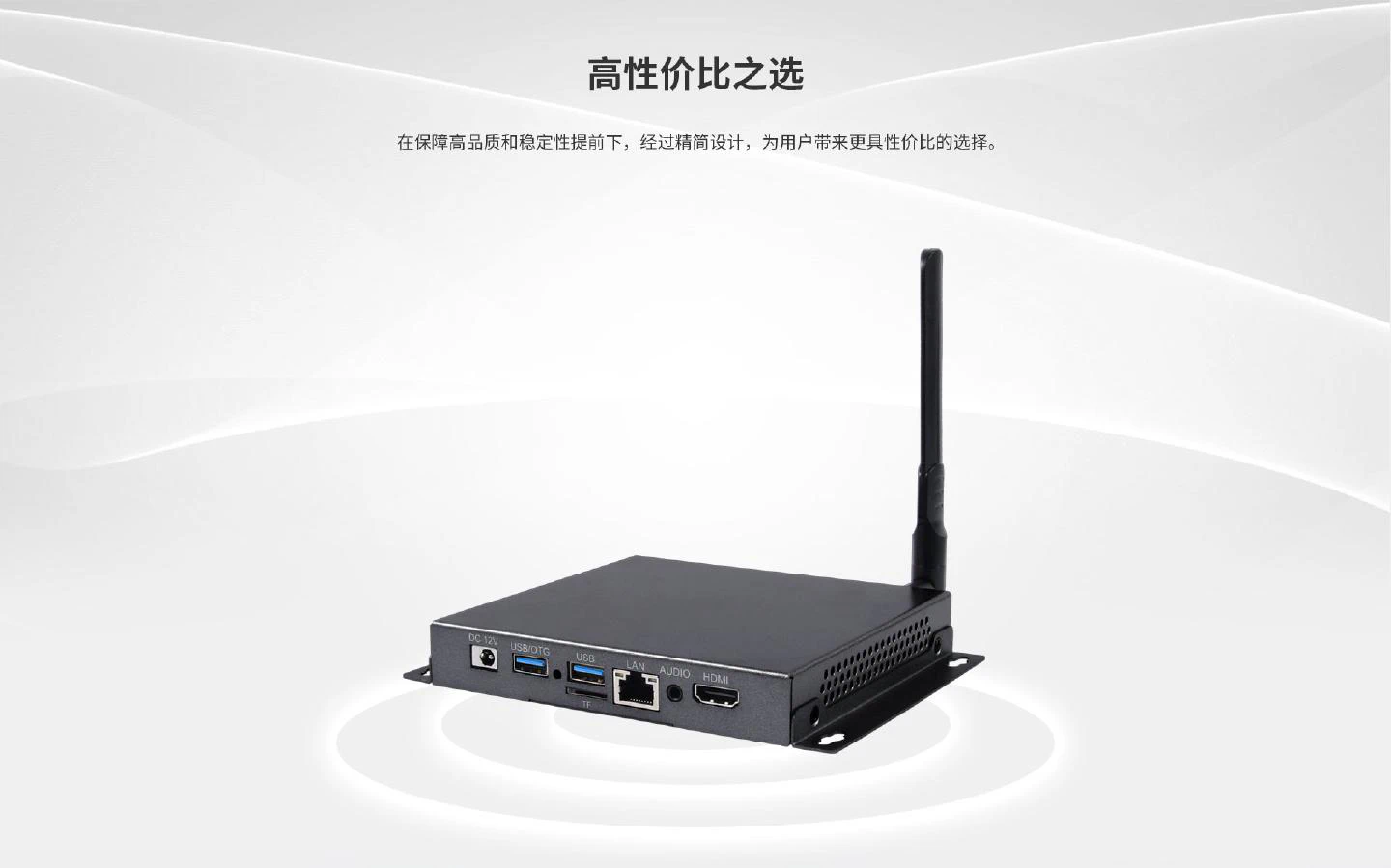

Name: HS-3399 - High-Performance Ultra-Thin Host
Brand: 奥宇智能科技

Rockchip RK3399

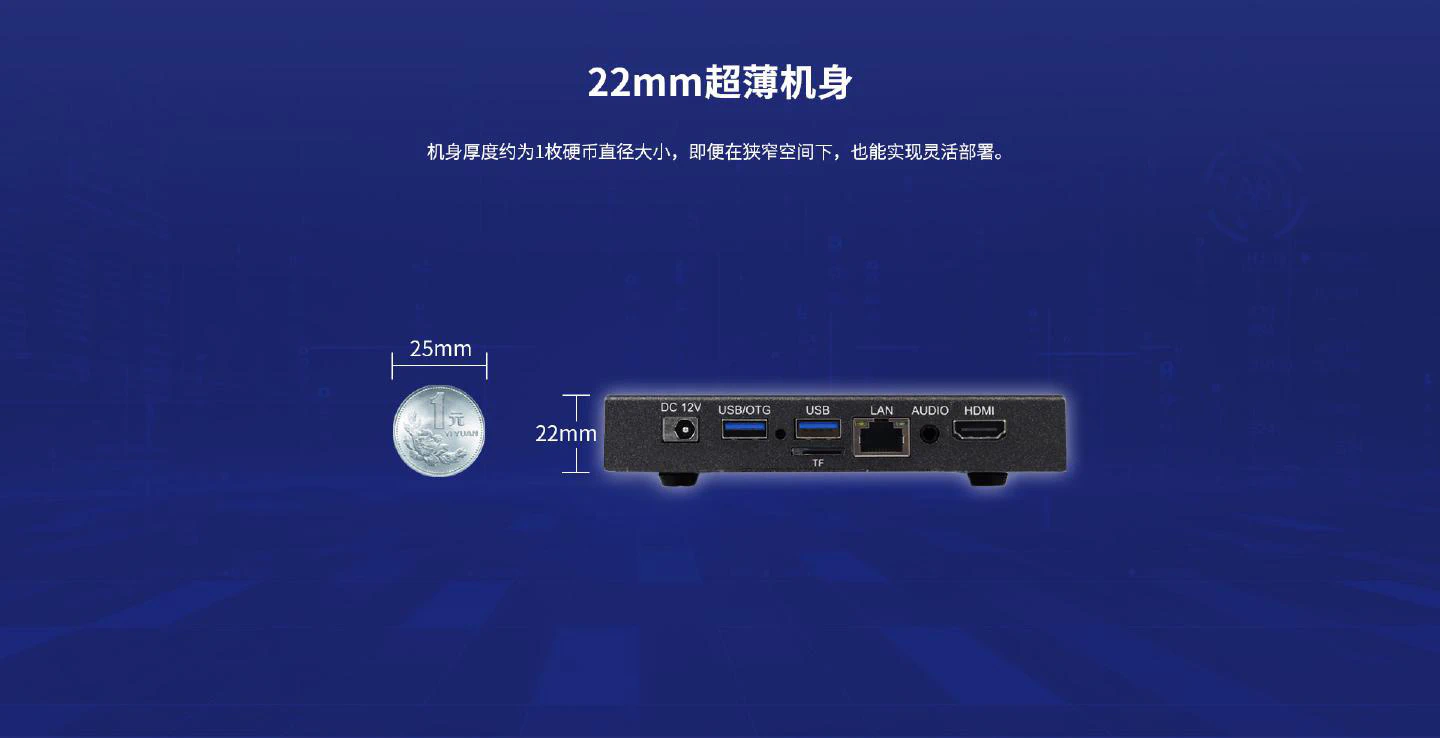

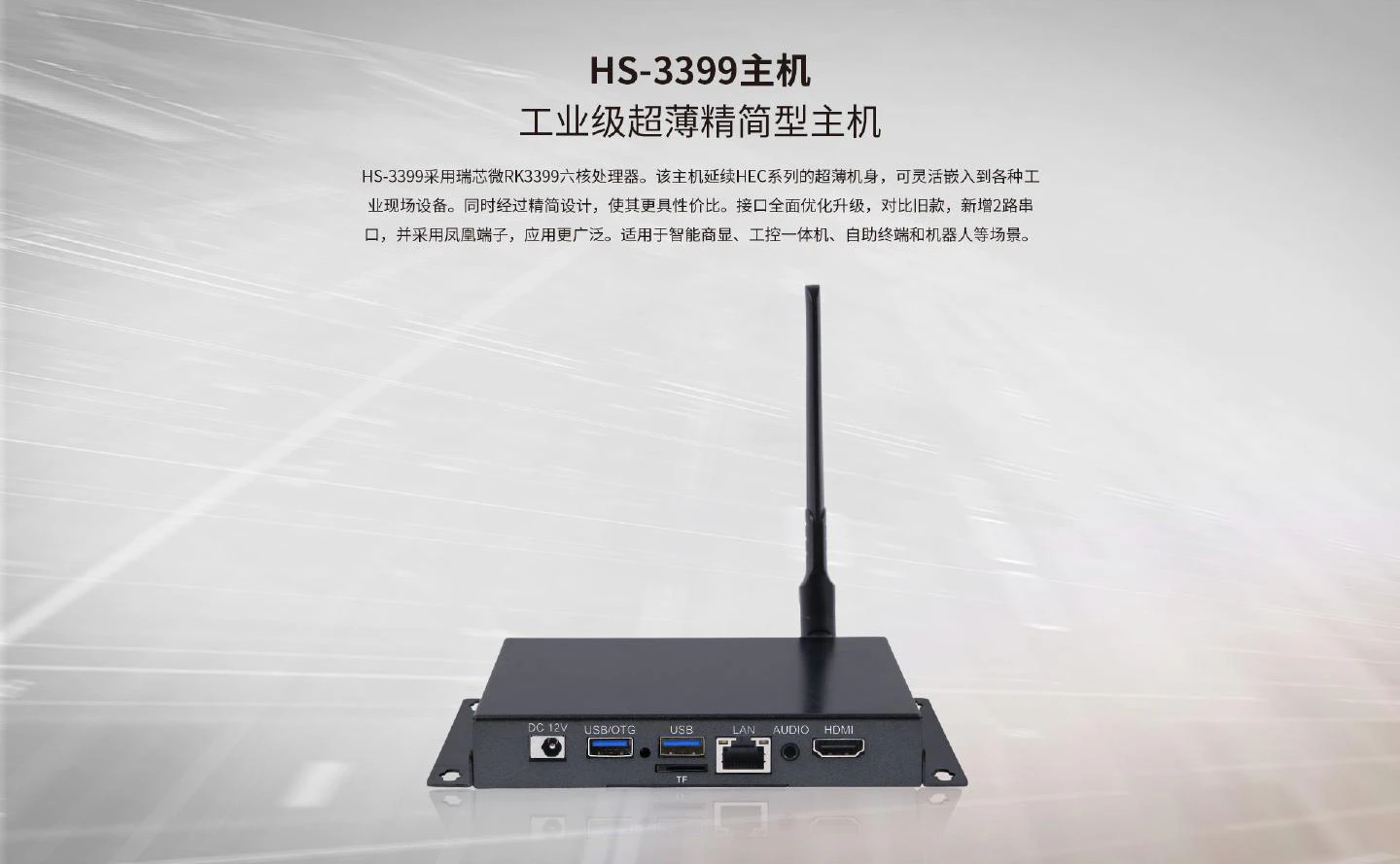

HS-3399 adopts Rockchip RK3399 (dual-core A72 + quad-core A53) six-core processor with a maximum frequency of 1.8GHz, offering exceptional general computing performance. The whole machine is ultra-thin and compact, capable of being flexibly embedded into various industrial field equipment.

Processor RK3399

Memory 2GB LPDDR4

Storage 16GB

OS Support Android 7.1 / Ubuntu 18.04

Network 1× 10/100/1000M adaptive

Video Output HDMI 2.0

Request Quote View Specifications

Product Downloads

Specifications

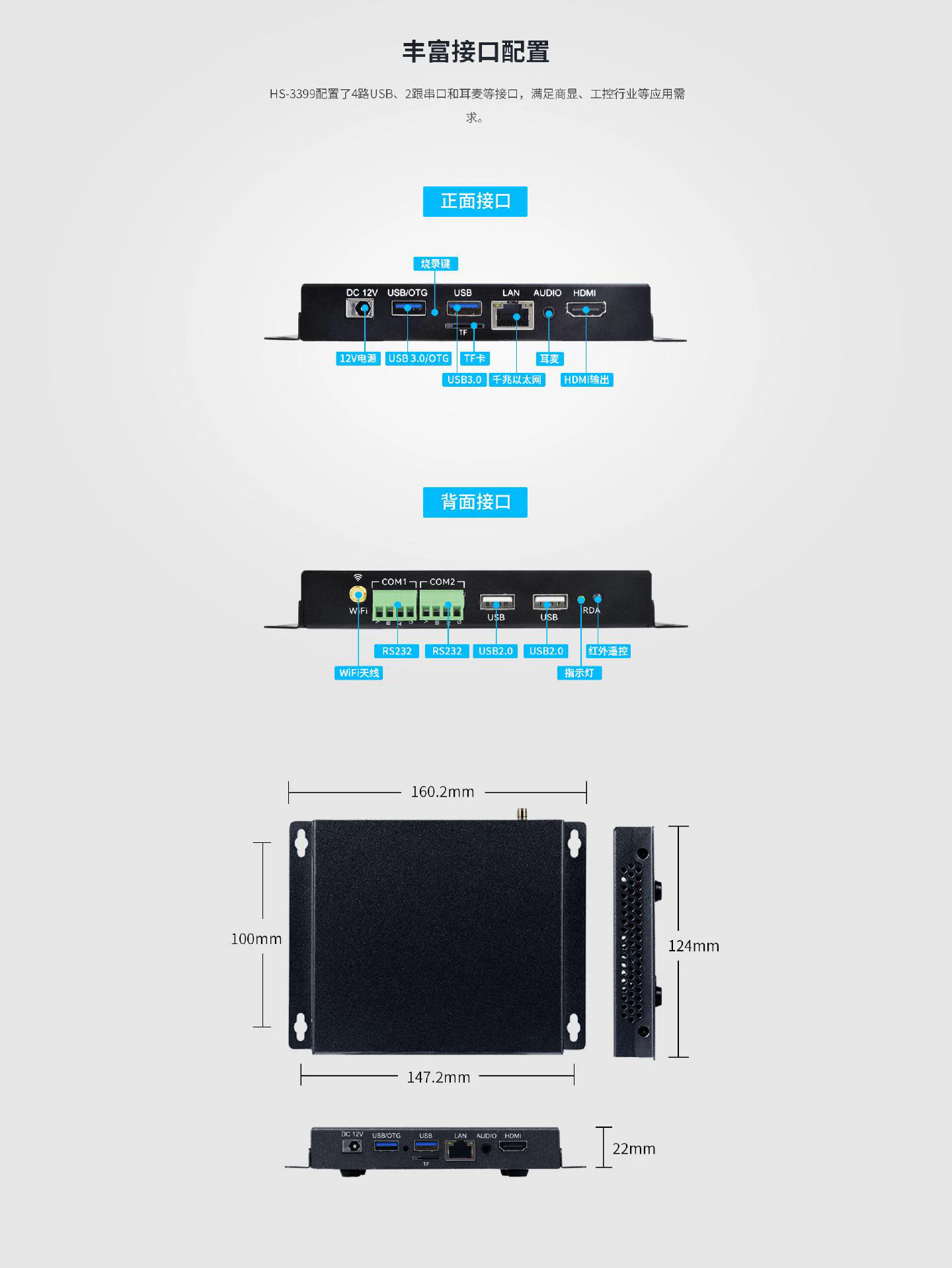

Case Drawing

Mechanical Drawing #2

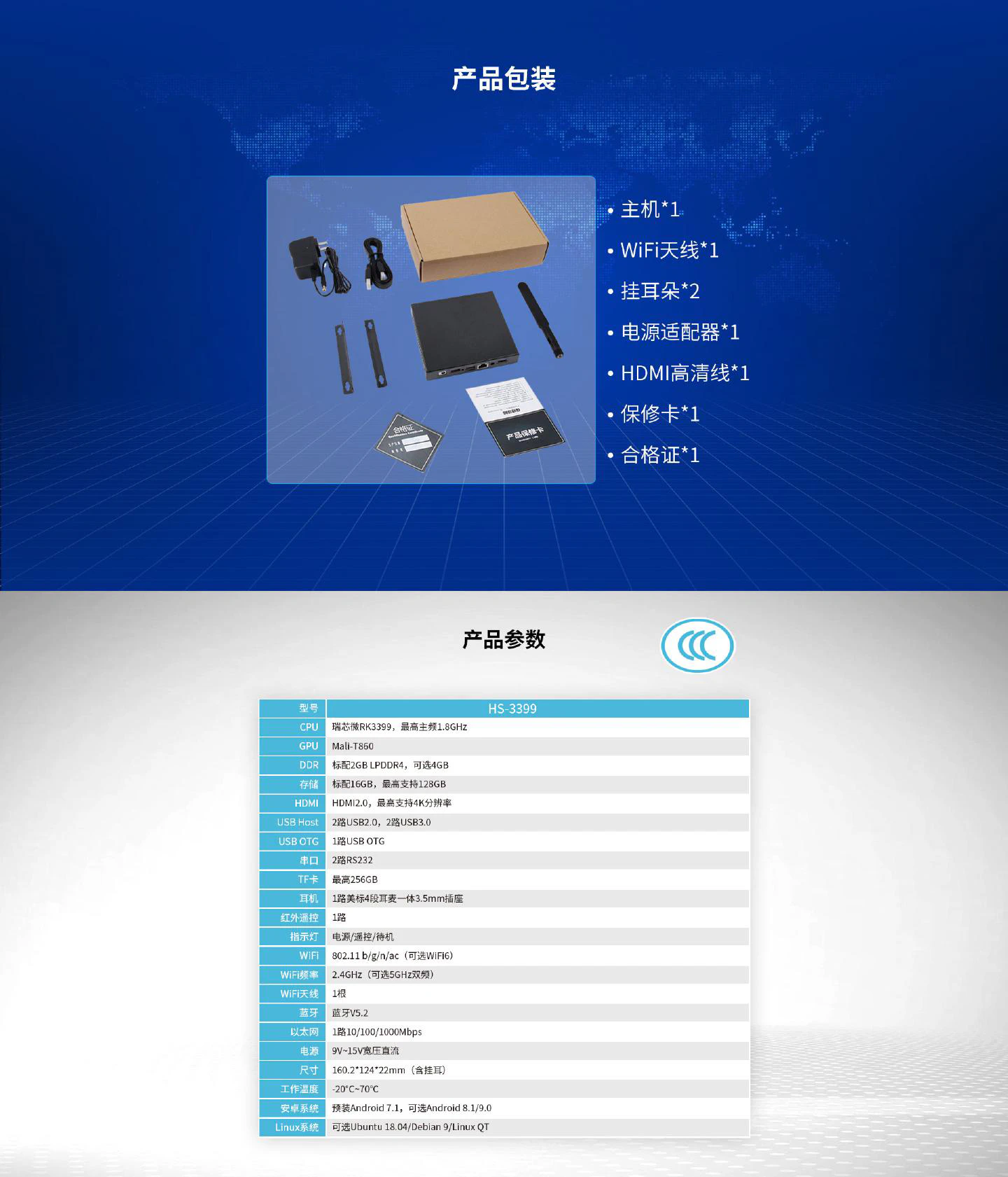

Technical Specifications

Processor	RK3399，Dual-core Cortex-A72 + quad-core Cortex-A53，FrequencyUp to 1.8GHz
GPU	Mali-T860，
NPU
Memory	Standard 2GB LPDDR4，Max 4GB
Storage	Standard 16GB ，Max 128GB
Dimensions	160.212422mm (including mounting ears)mm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI 2.0，4K
Network	1× 10/100/1000M adaptive Ethernet Interface
Wi-Fi
Bluetooth	5.2
Cellular
USB	2× USB 2.0 ，2× USB 3.0 ，1× USB OTG ，0× USB Type-C

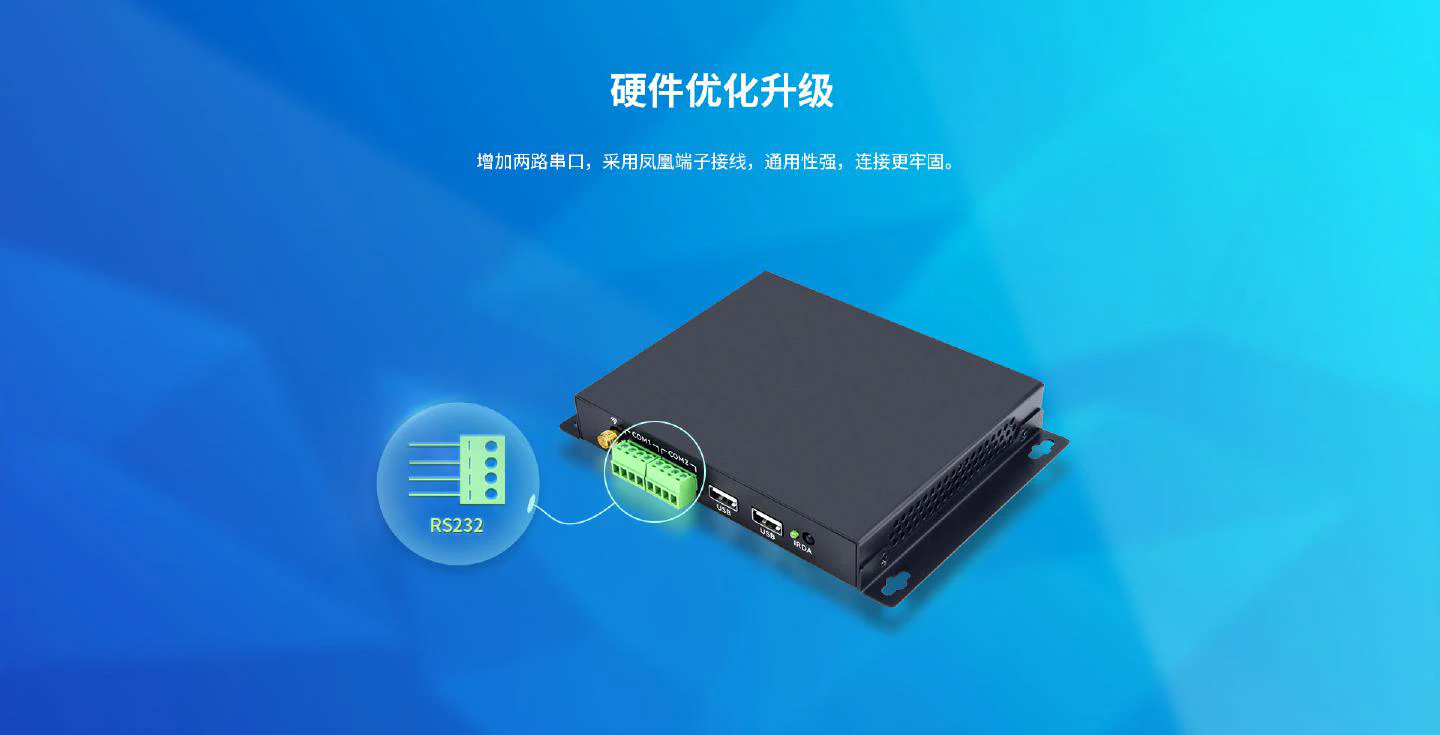

Serial Port	2× RS232
Power Input	9V-15V wide voltage DC
Audio	Output: 1 channel, four-segment 3.5mm headphone + microphone socket ，Input: 1 channel, four-segment 3.5mm headphone + microphone socket

Android	7.1, 8.1, 9.0
Linux	Ubuntu 18.04, Debian 9, Linux Buildroot
Special Features	RTC,
Power Management	Scheduled Power
System Upgrade	Local USB upgrade

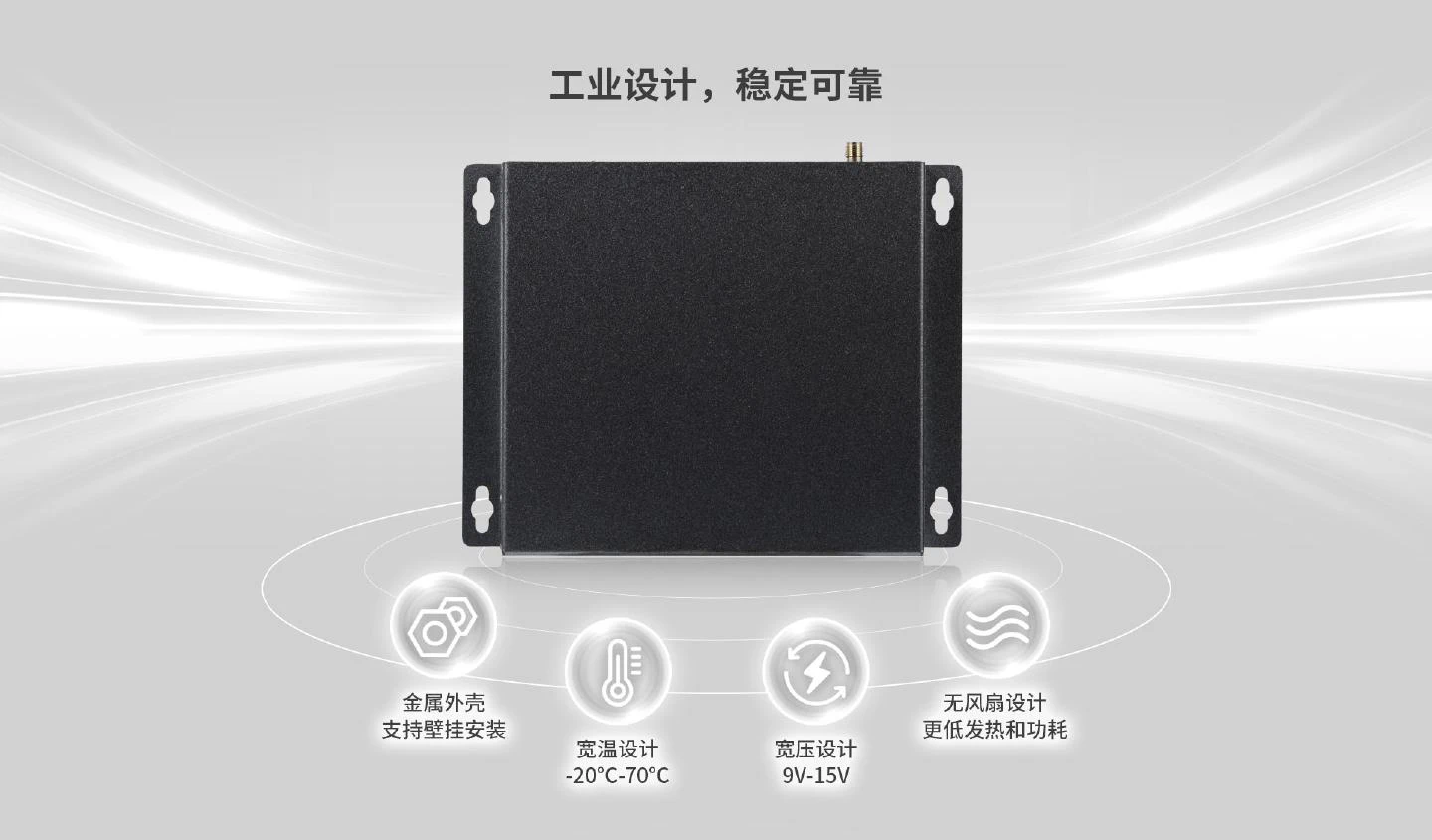

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
