HS-A40

Name: HS-A40 - Cost-Effective Ultra-Thin Host
Brand: 奥宇智能科技

Allwinner A40i

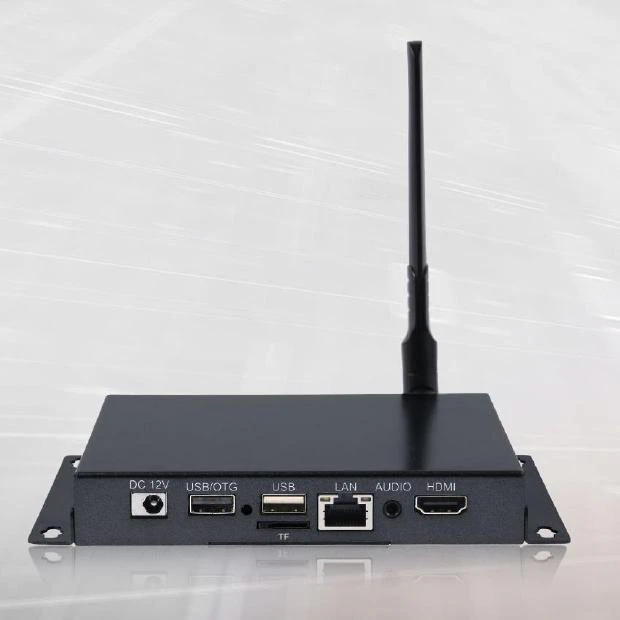

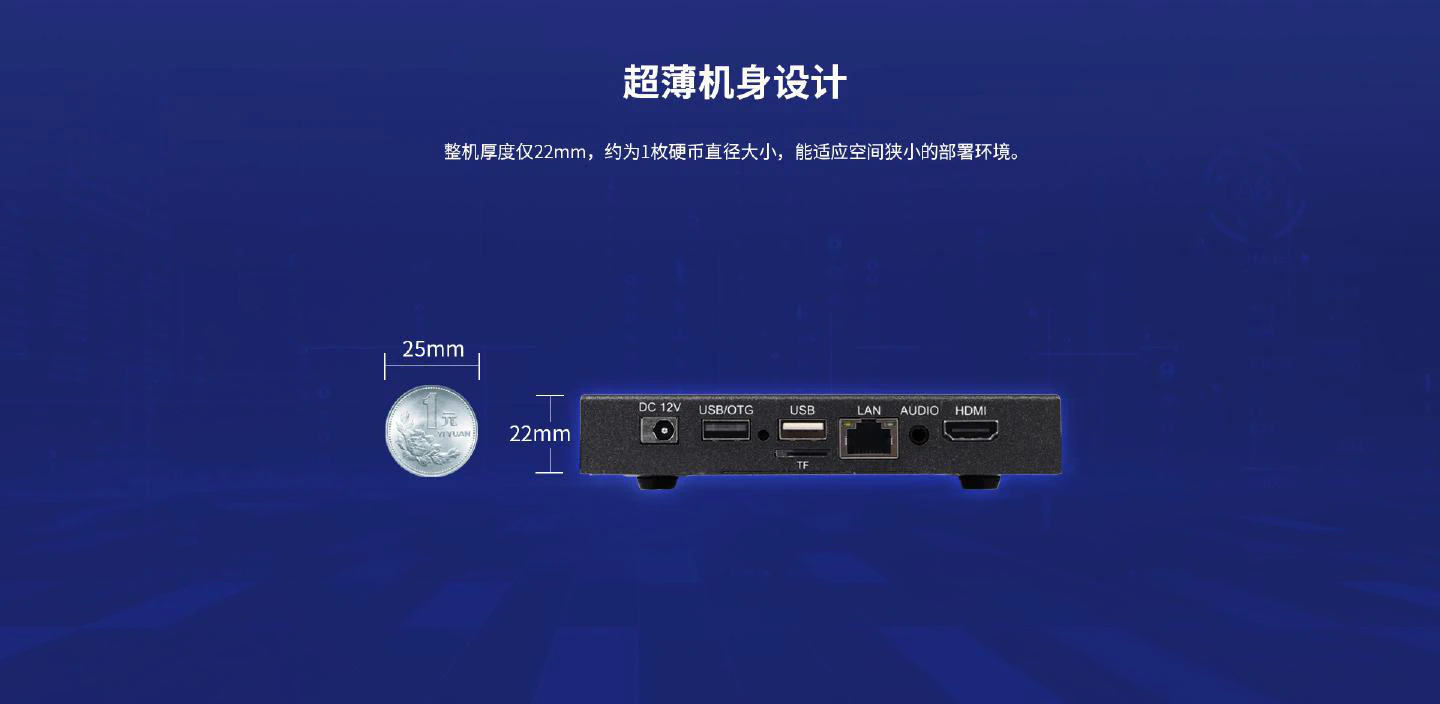

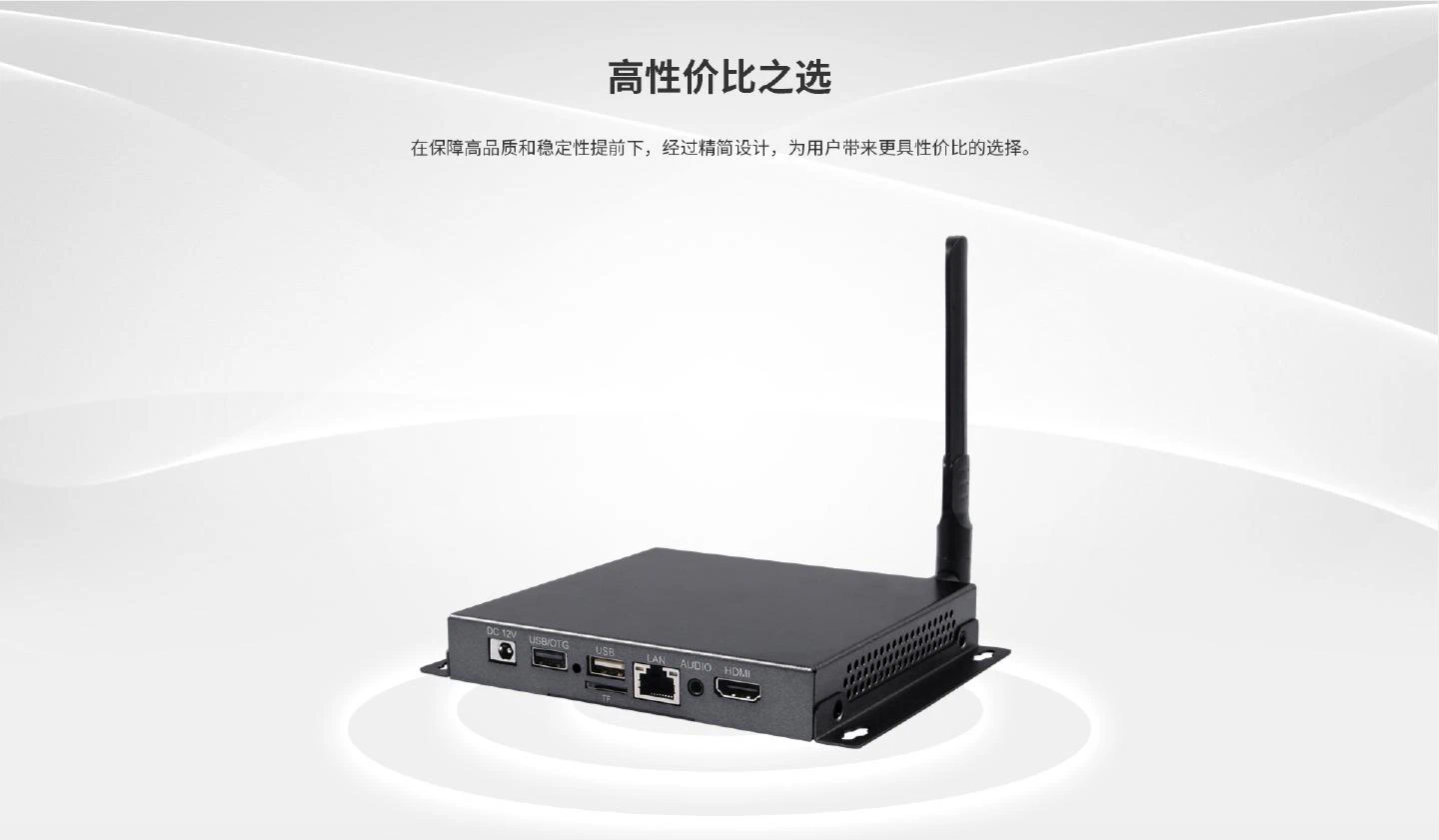

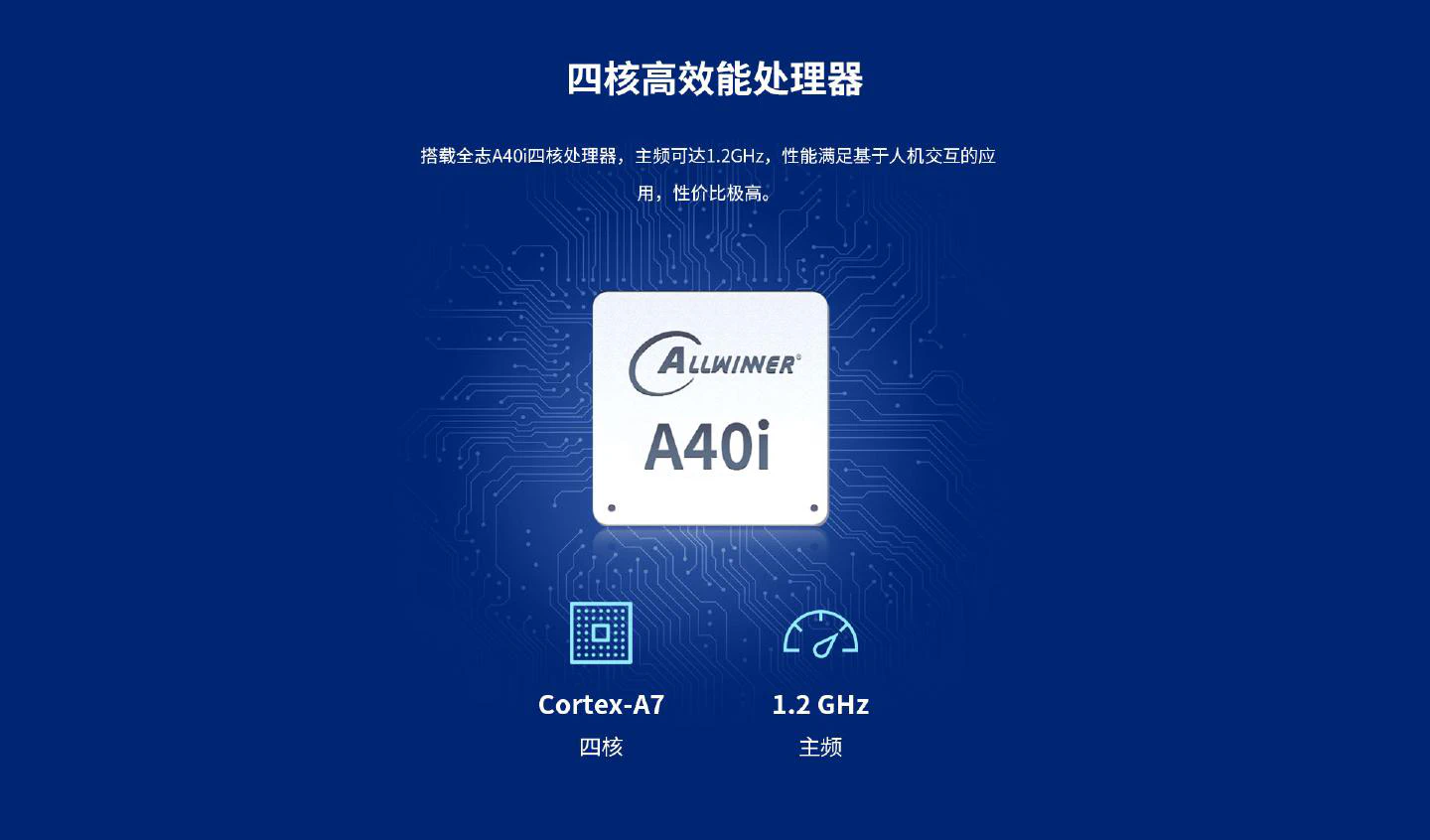

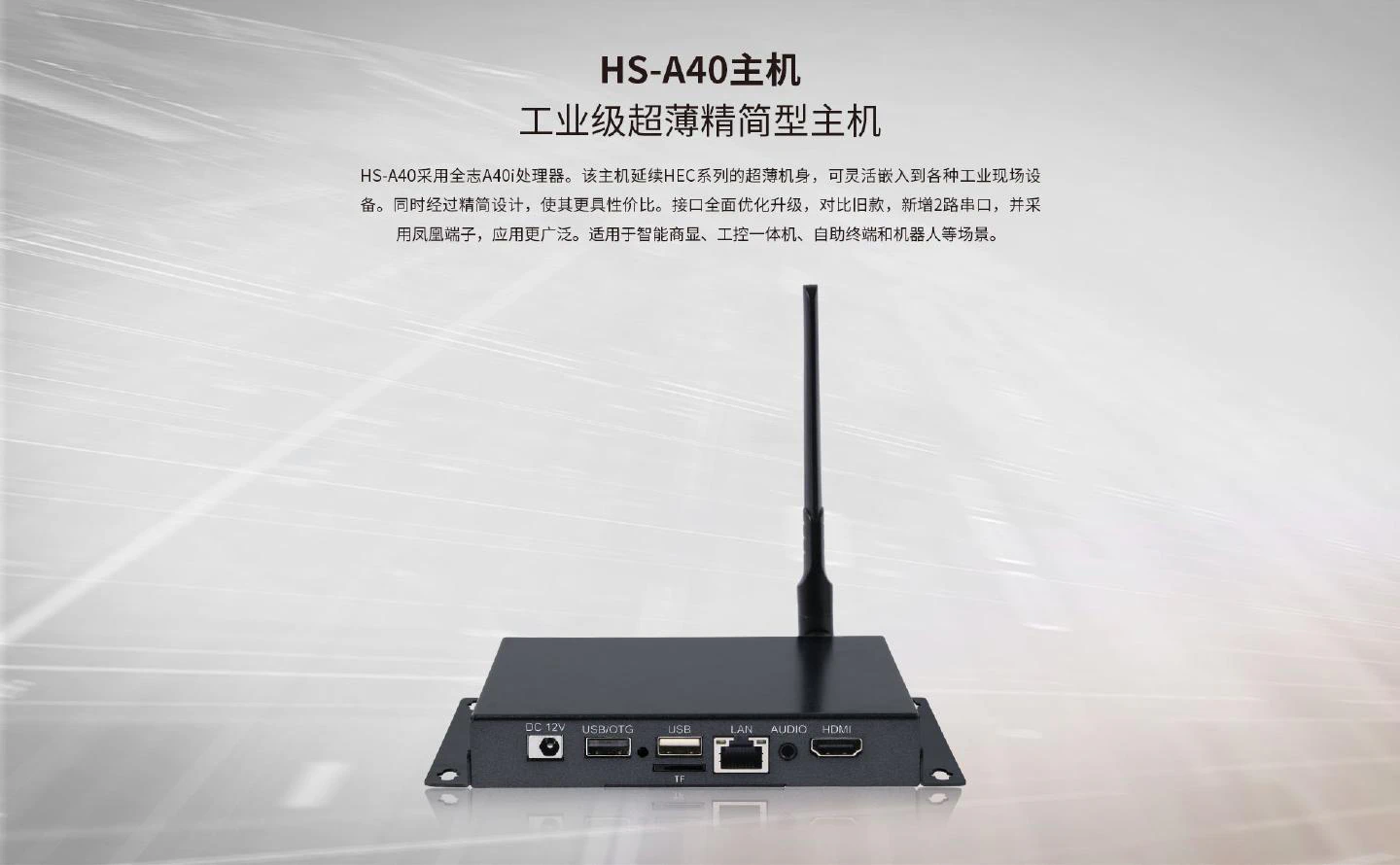

HS-A40 adopts Allwinner A40i quad-core Cortex-A7 CPU with Android 7.1 system, with a maximum frequency of 1.2GHz, offering high cost-performance ratio. The whole machine is ultra-thin and compact, can be flexibly embedded into various industrial field equipment.

Processor A40i

Memory 1GB

Storage 8GB

OS Support Android 7.1

Network 1× 10/100M adaptive

Video Output HDMI

Request Quote View Specifications

Product Downloads

Specifications

Case Drawing

Mechanical Drawing #2

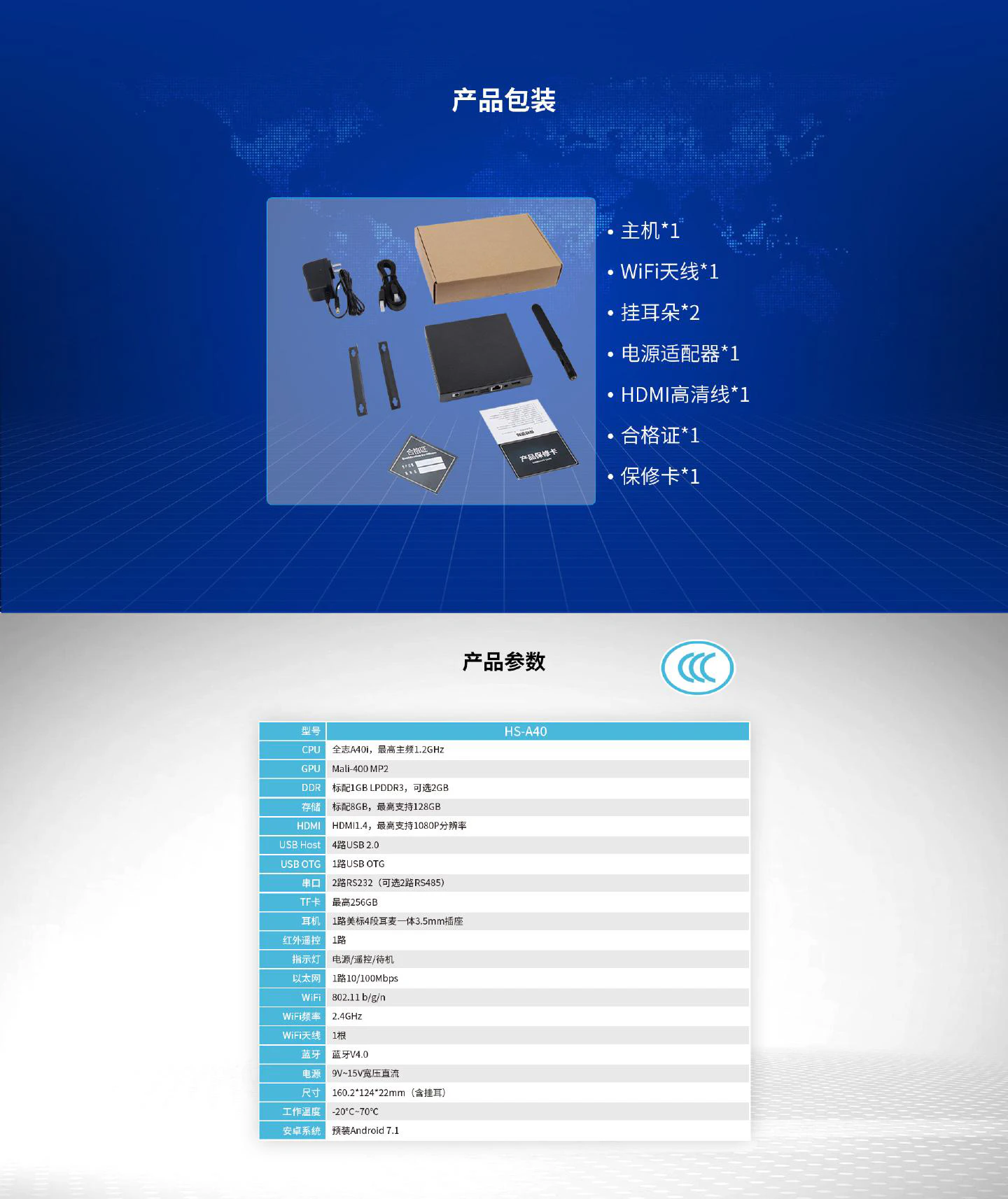

Technical Specifications

Processor	A40i，Quad-core Cortex-A7，FrequencyUp to 1.2GHz
GPU	Mali-400MP2，
NPU
Memory	Standard 1GB ，Max 2GB
Storage	Standard 8GB ，Max 128GB

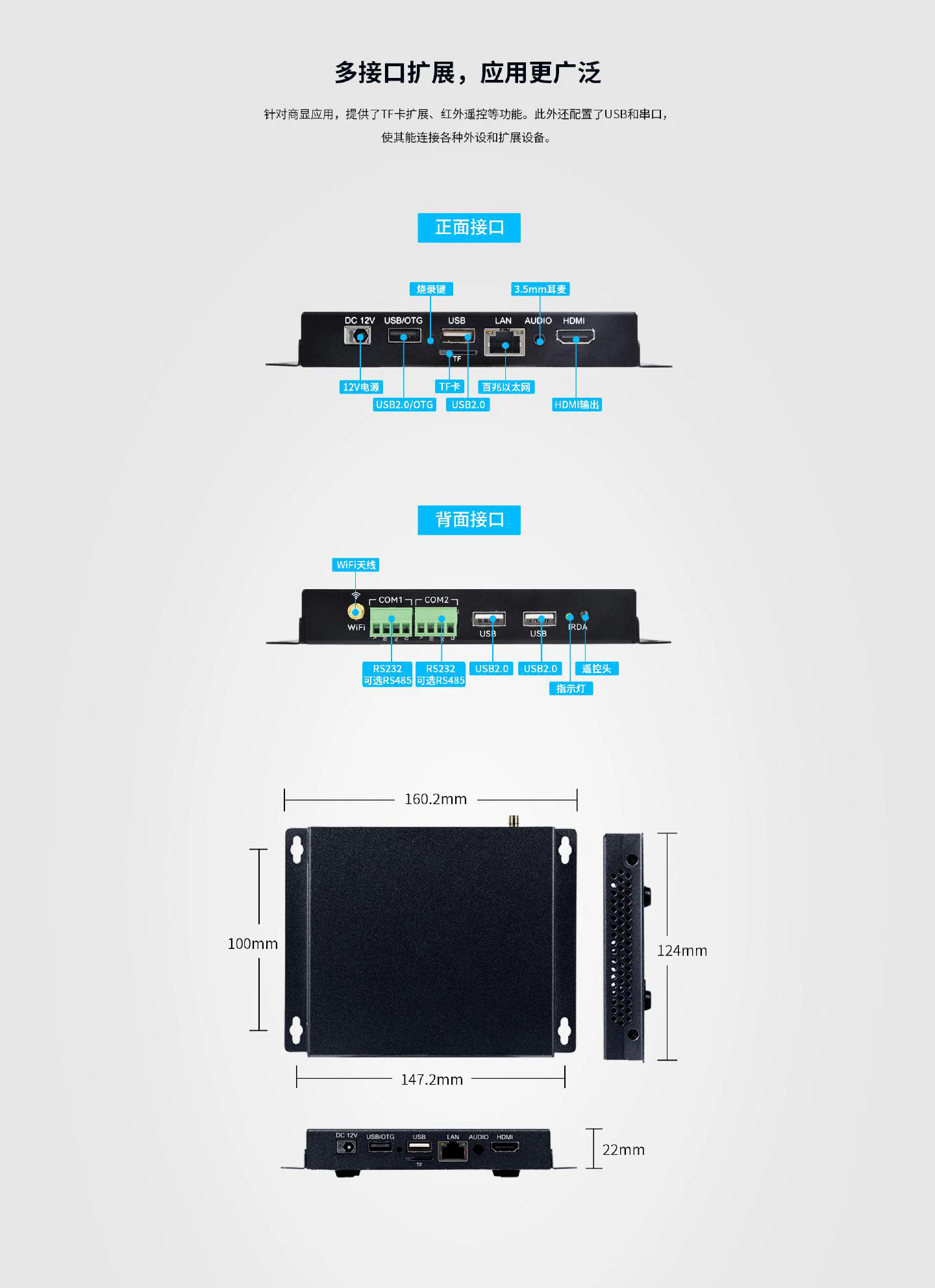

Dimensions	160.212422mm (including mounting ears)mm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI ，1080P
Network	1× 10/100M adaptive Ethernet Interface
Wi-Fi
Bluetooth	4.2
Cellular
USB	4× USB 2.0 ，0× USB 3.0 ，1× USB OTG ，0× USB Type-C

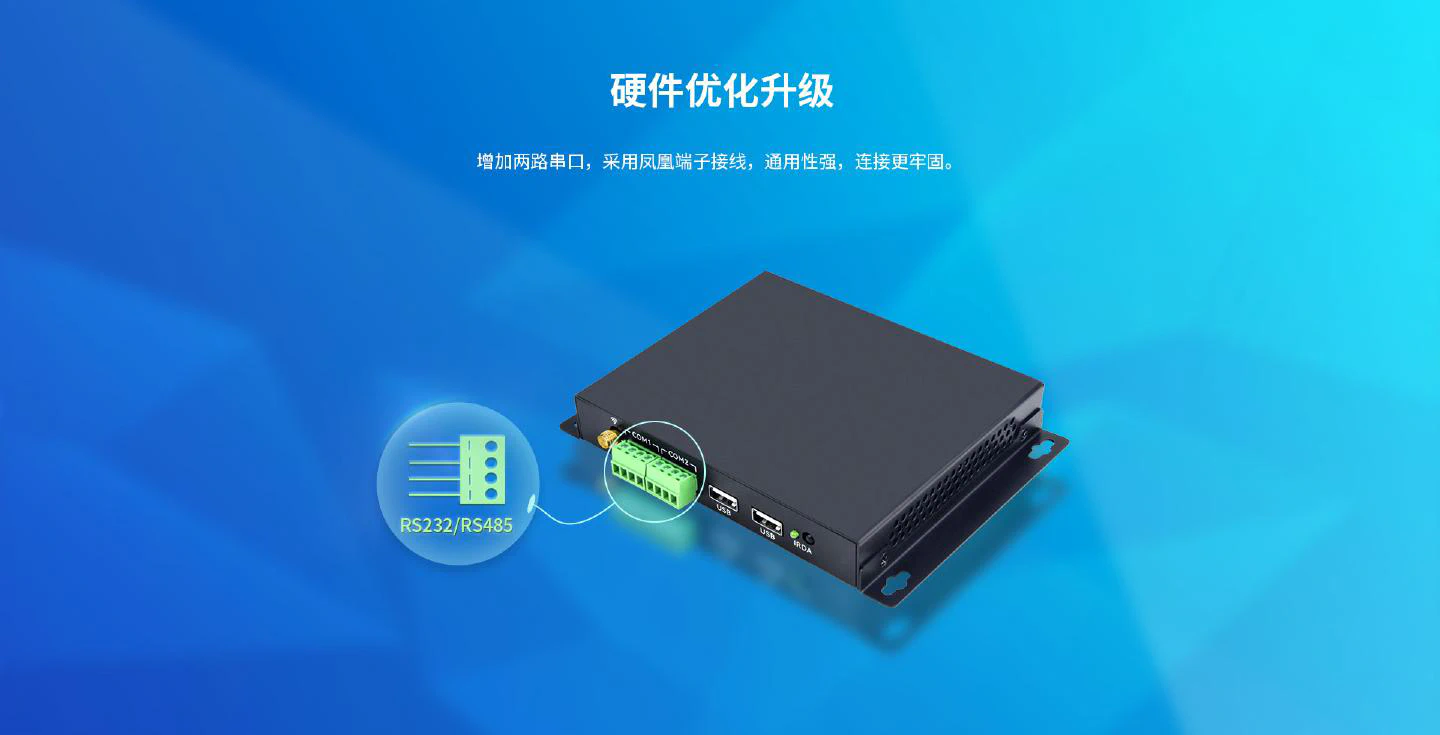

Serial Port	2× RS232
Power Input	9V-15V wide voltage DC
Audio	Output: 1 channel, four-segment 3.5mm headphone + microphone socket ，Input: 1 channel, four-segment 3.5mm headphone + microphone socket

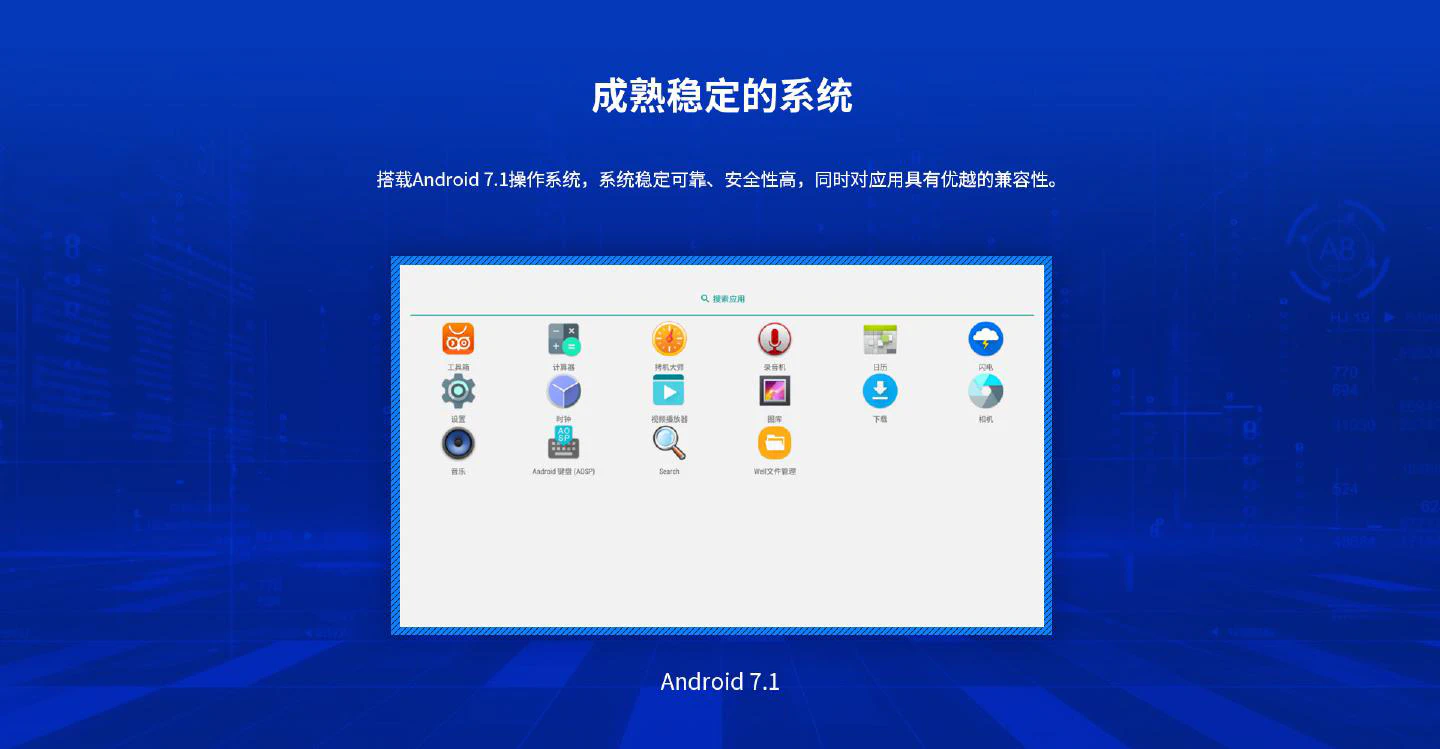

Android	7.1
Special Features	RTC,
Power Management	Scheduled Power
System Upgrade	Local USB upgrade

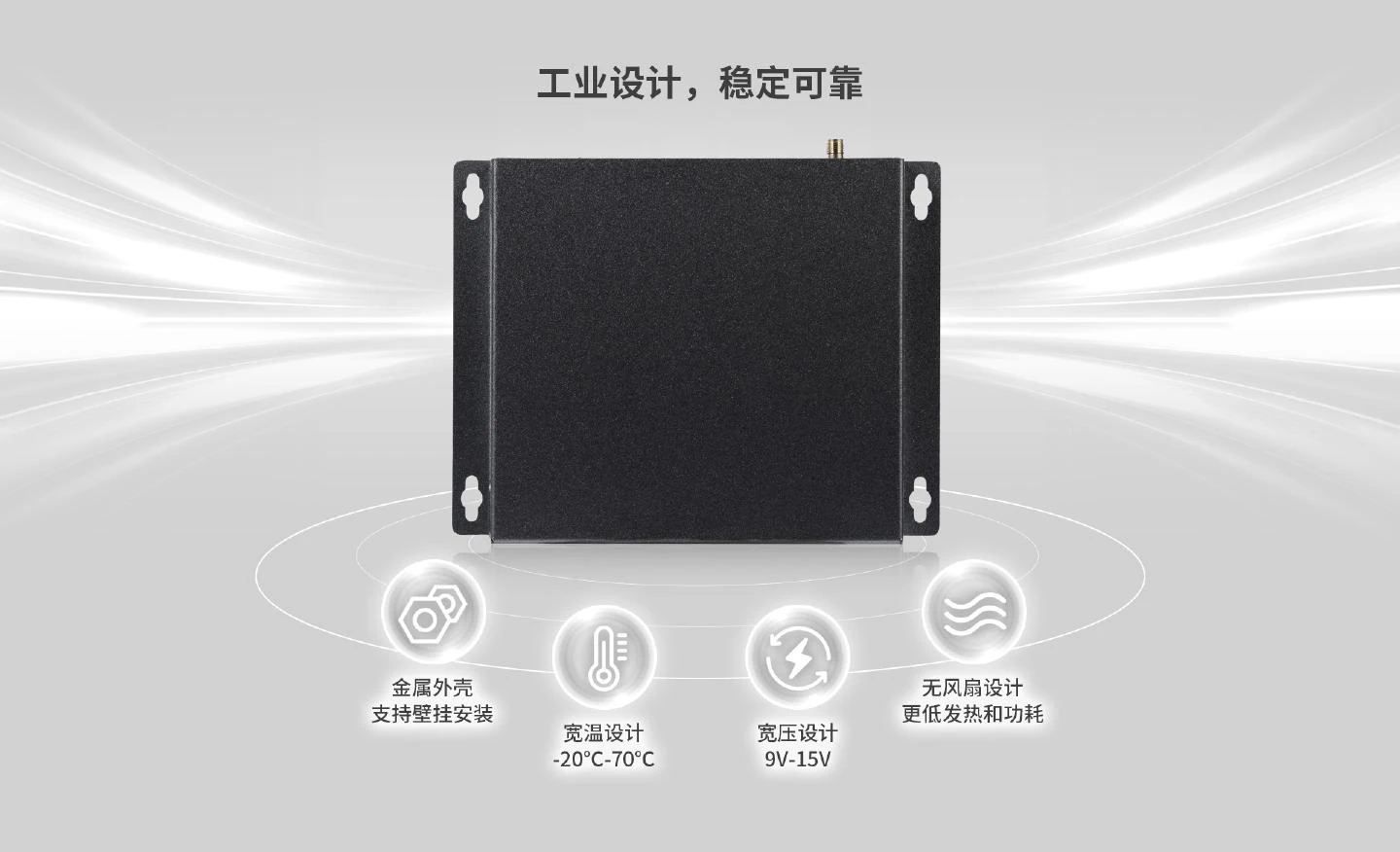

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
