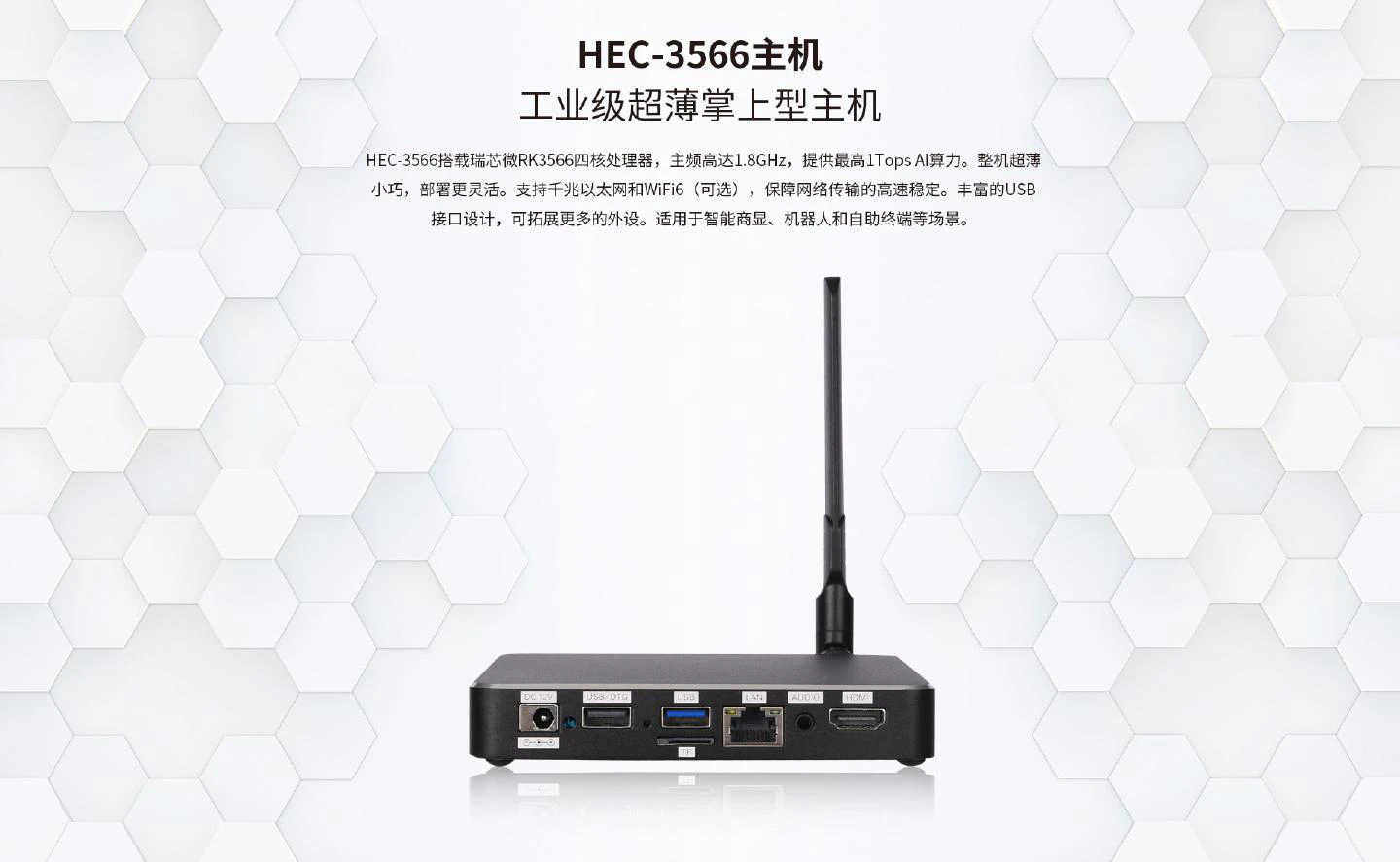

Ultra-Thin Handheld Host
HEC-3566
Rockchip RK3566
HEC-3566 adopts Rockchip RK3566, a quad-core Cortex-A55 processor with a maximum frequency of 1.8GHz, providing exceptional general computing performance. It features a built-in independent NPU with computing power up to 1 Tops, and supports 4K display. For connectivity, it is equipped with Gigabit Ethernet, USB 3.0, headset interface, and supports multiple peripheral expansions.
Processor
RK3566
Memory
2GB LPDDR4
Storage
8GB
OS Support
Android 11.0
/
Ubuntu 18.04

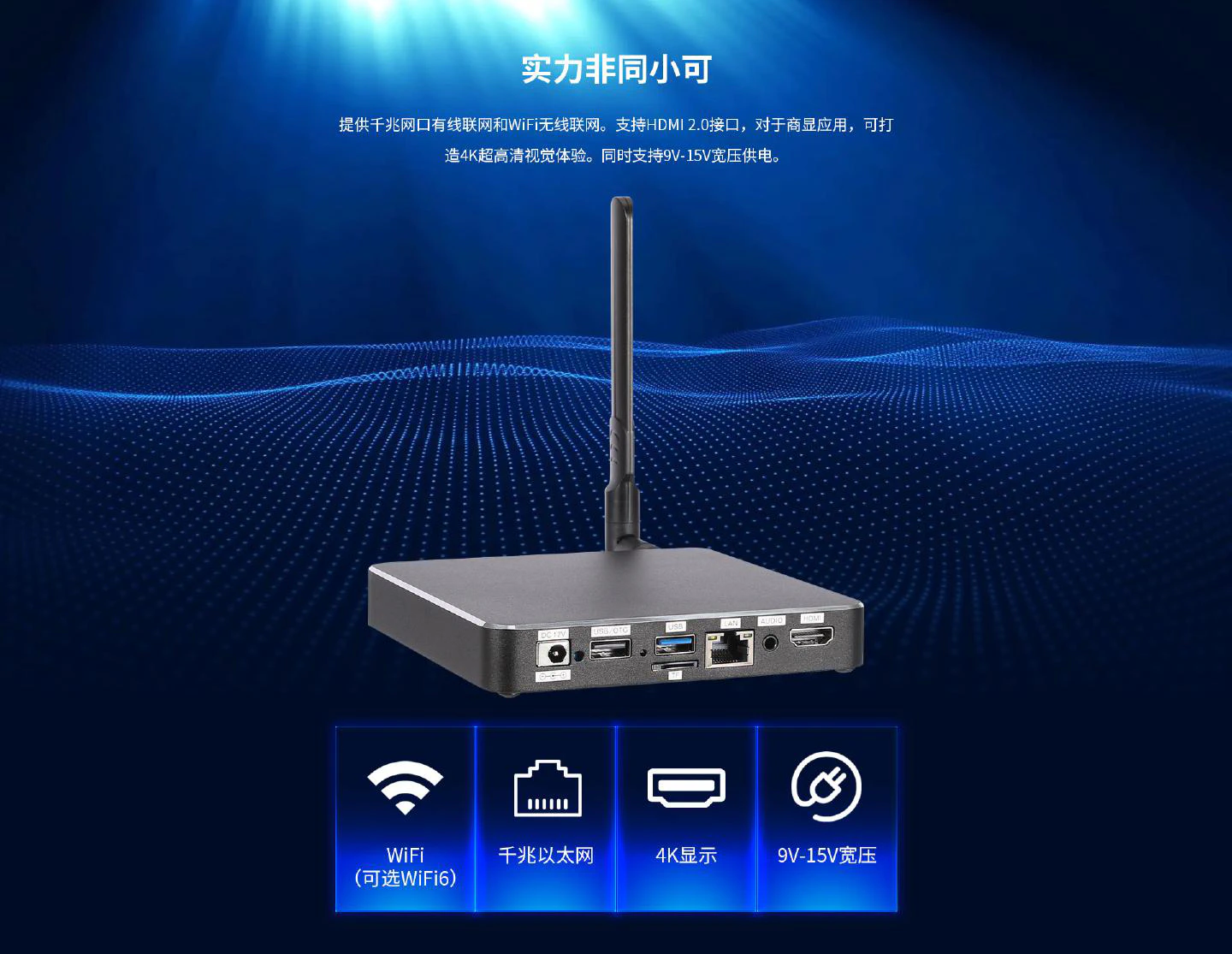

Network
1× 10/100/1000M auto-adaptive
Video Output
HDMI HDMI 2.0
Product Downloads

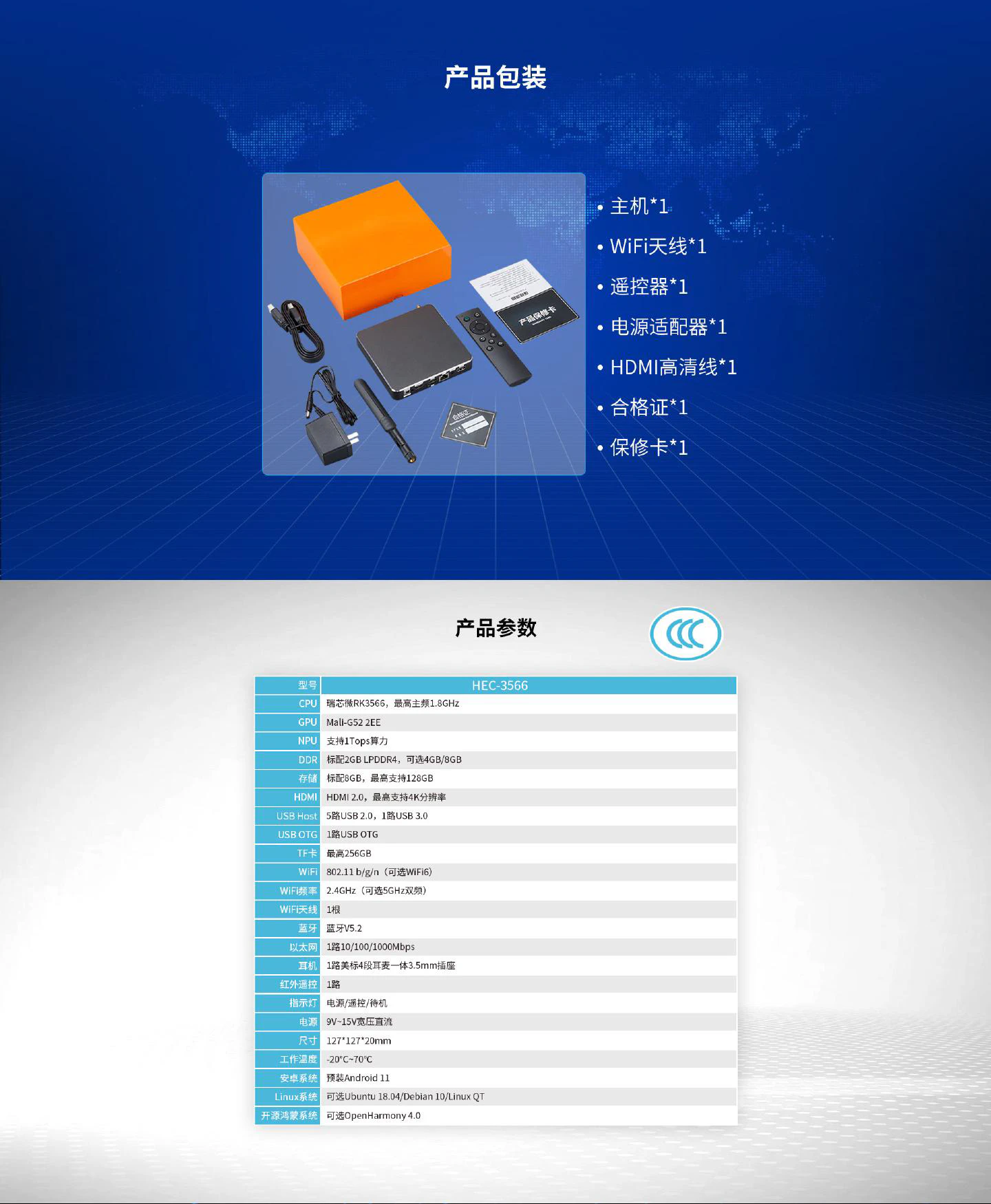

Technical Specifications
| Processor | RK3566，Quad-core Cortex-A55，FrequencyUp to 1.8GHz |
| GPU | Mali-G522EE，Supports 4K display |

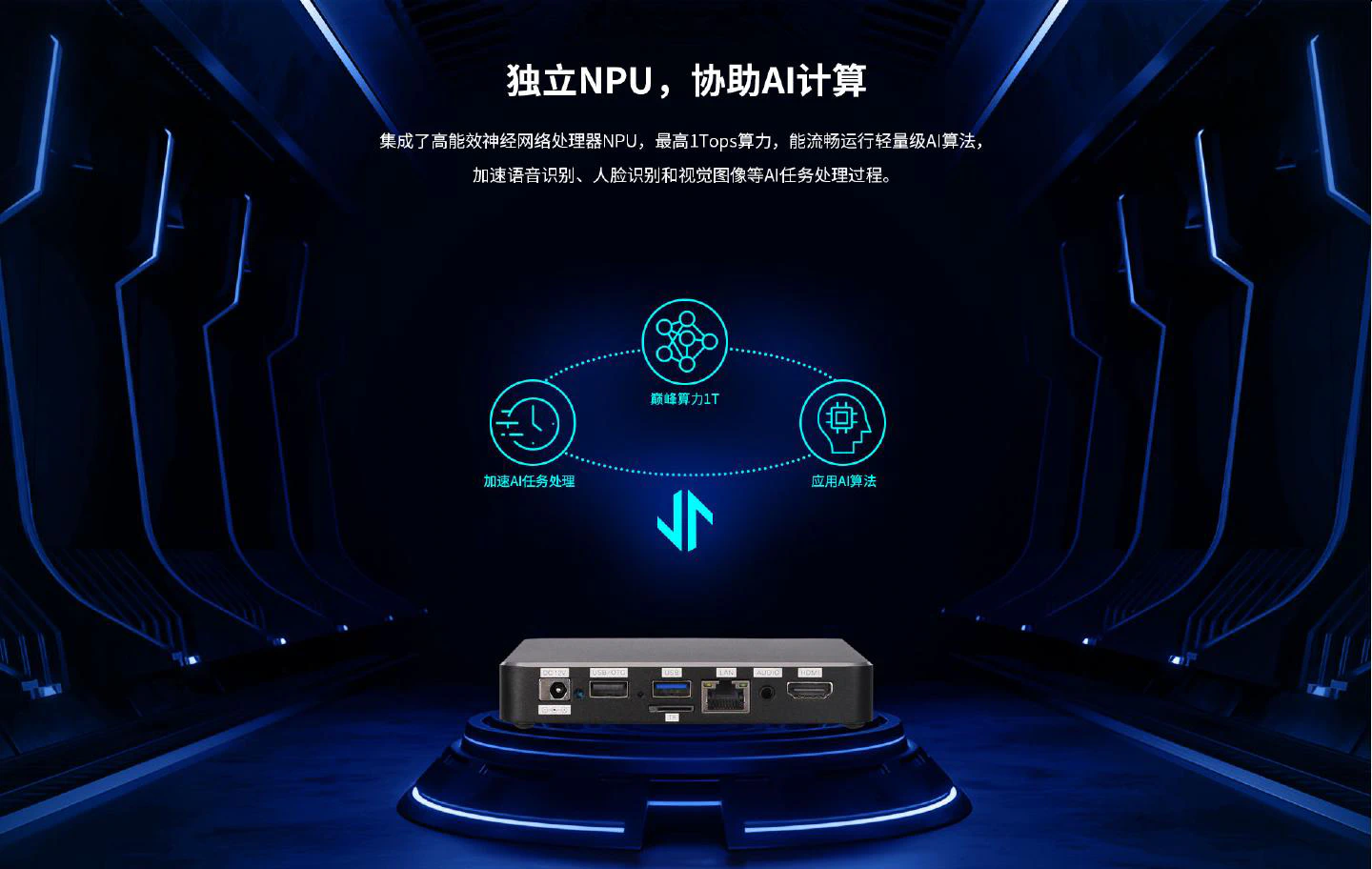

| NPU | Up to 1 Tops computing power |
| Memory | Standard 2GB LPDDR4，Max 8GB |
| Storage | Standard 8GB ，Max 128GB |

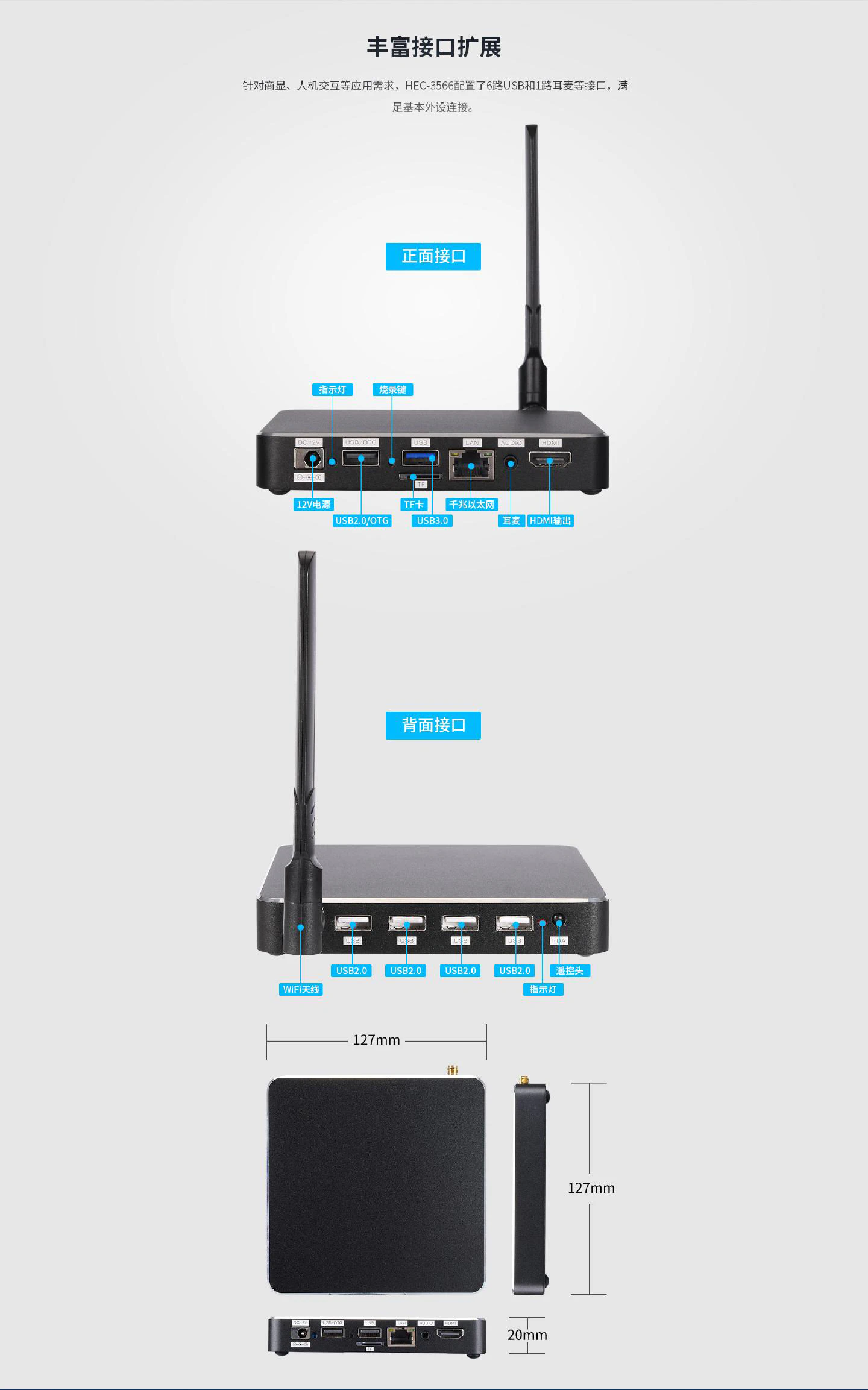

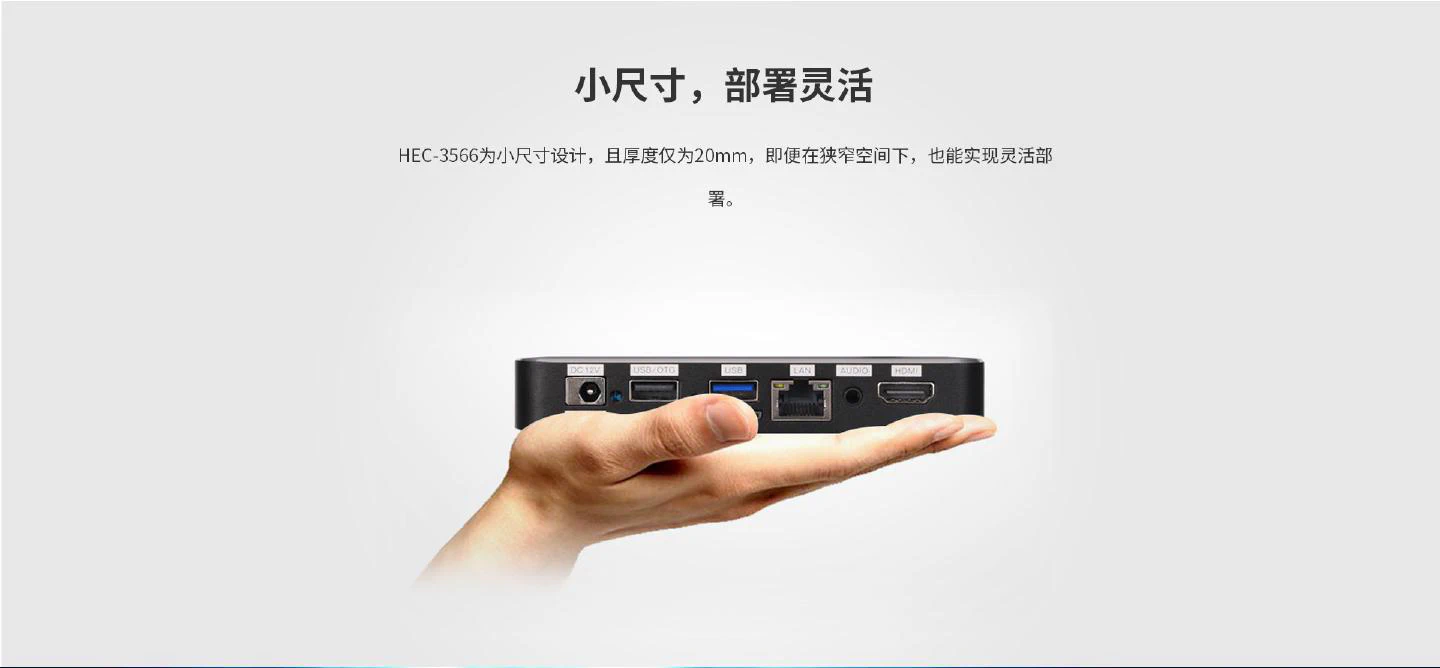

| Dimensions | 127*127*20mmmm |
| Weight | g |
| Appearance | Color: ，Material: |
| Power Consumption | Typical ，Max |
