HEC-A40

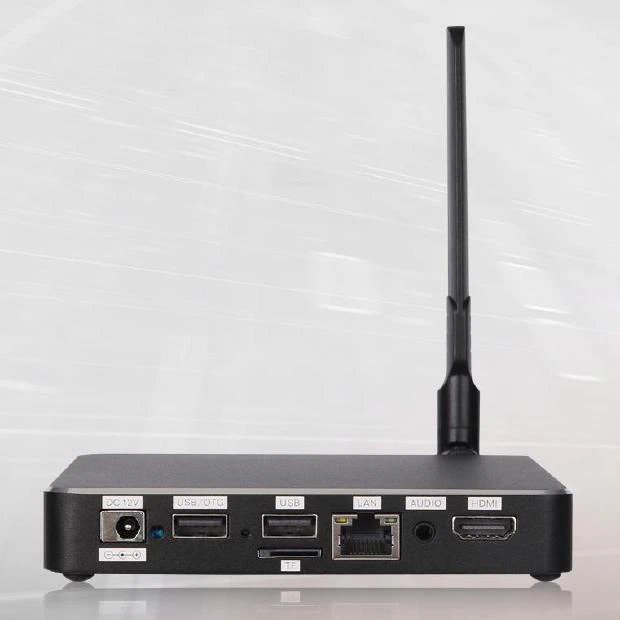

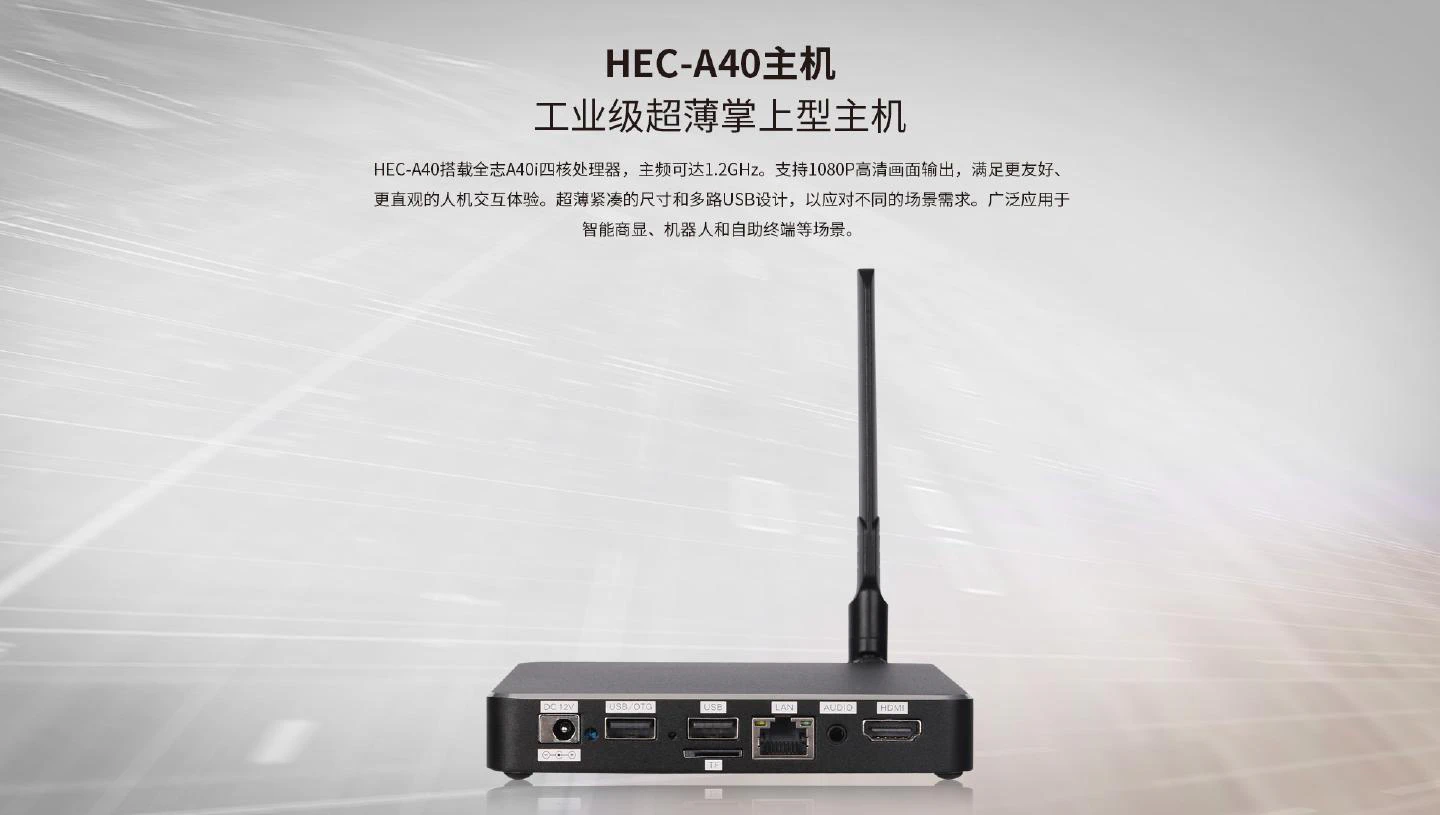

Name: HEC-A40 - Cost-Effective Handheld Host
Brand: 奥宇智能科技

Allwinner A40i

HEC-A40 adopts Allwinner A40i quad-core Cortex-A7 CPU, runs Android 7.1 system, with a maximum frequency of 1.2GHz, offering high cost-performance ratio. It features Mali-400MP2 GPU, supporting decoding of most current popular video and image formats, making it your best choice for advertising machines and smart terminals.

Processor Allwinner A40i

Memory 1GB

Storage 8GB

OS Support Android 7.1

Network 1× 10/100Mbps

Video Output HDMI

Request Quote View Specifications

Product Downloads

Specifications

Certificates

Case Drawing

Mechanical Drawing #2

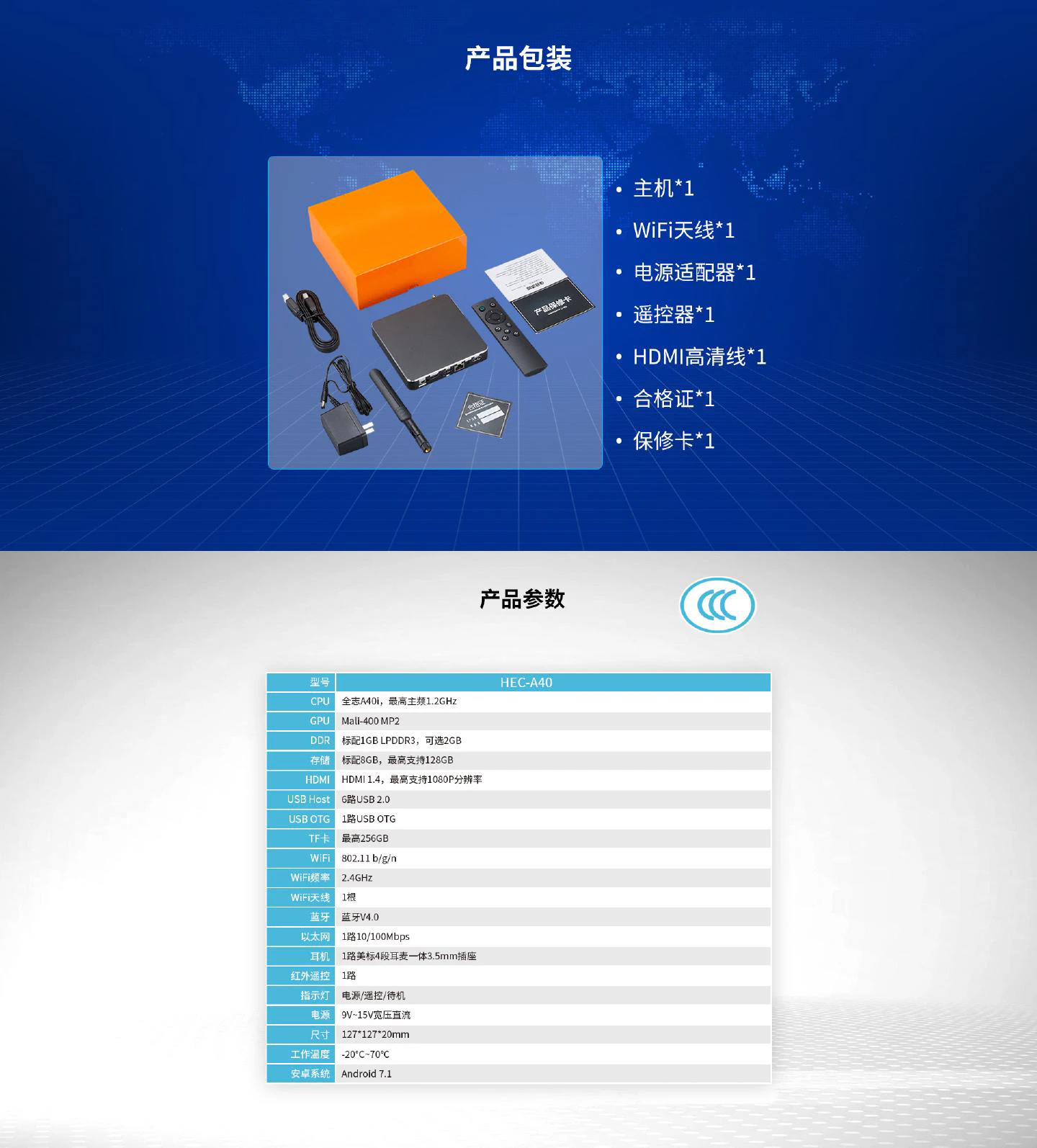

Technical Specifications

Processor	Allwinner A40i，Quad-core Cortex-A7，FrequencyUp to 1.2GHz
GPU	Mali-400MP2，High-performance GPU
NPU
Memory	Standard 1GB ，Max 2GB
Storage	Standard 8GB ，Max 128GB
Dimensions	12712720mmmm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

Display Output	1× HDMI ，1080P
Network	1× 10/100Mbps Ethernet Interface
Wi-Fi
Bluetooth	4.0
Cellular

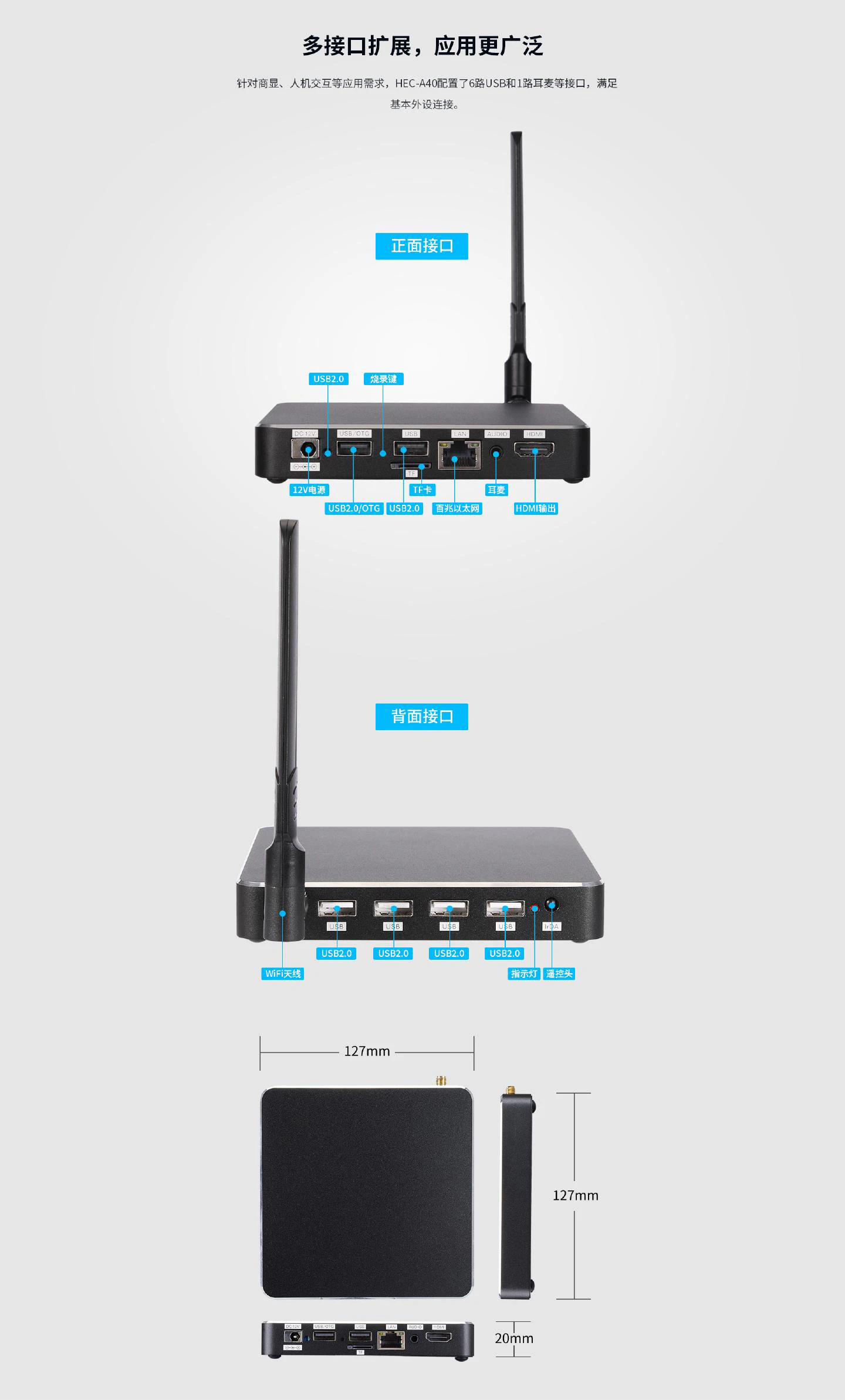

USB	6× USB 2.0 ，0× USB 3.0 ，1× USB OTG ，0× USB Type-C
Serial Port	0× RS232
Power Input	12V
Audio	Output: Supports one left and right channel headphone output

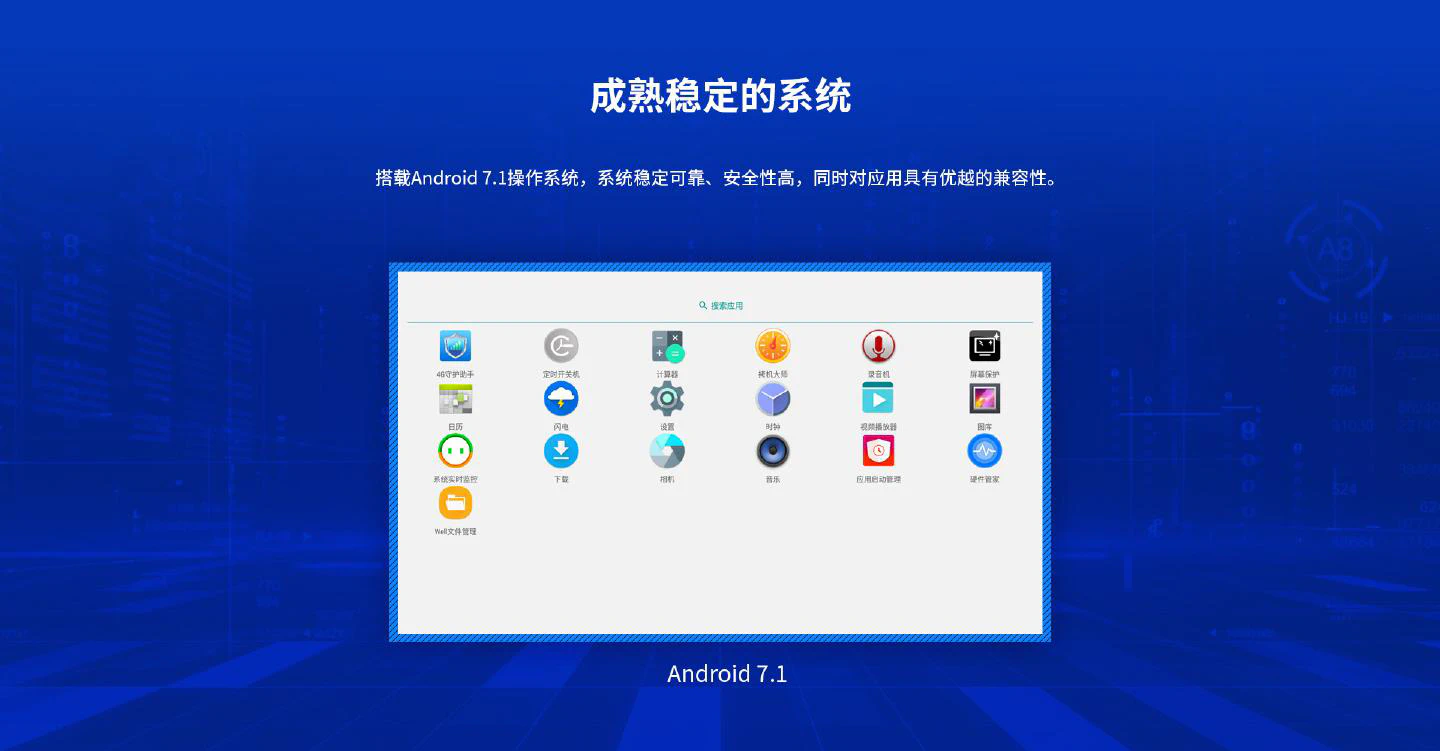

Android	7.1
Special Features	RTC,
Power Management	Scheduled Power
System Upgrade	Local USB upgrade

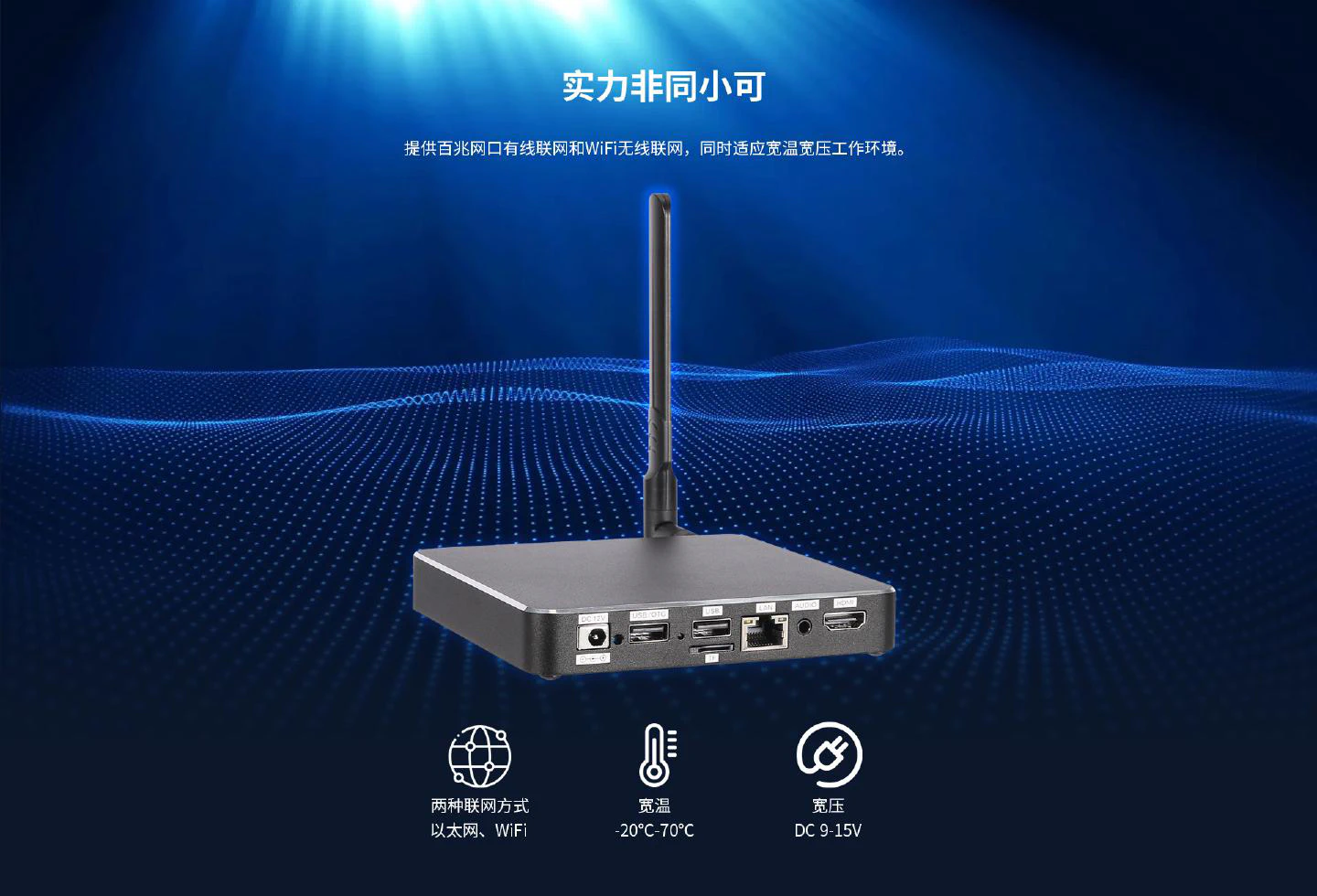

Operating Temperature	-20℃~+70℃
Storage Temperature	-40℃~+70℃
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
