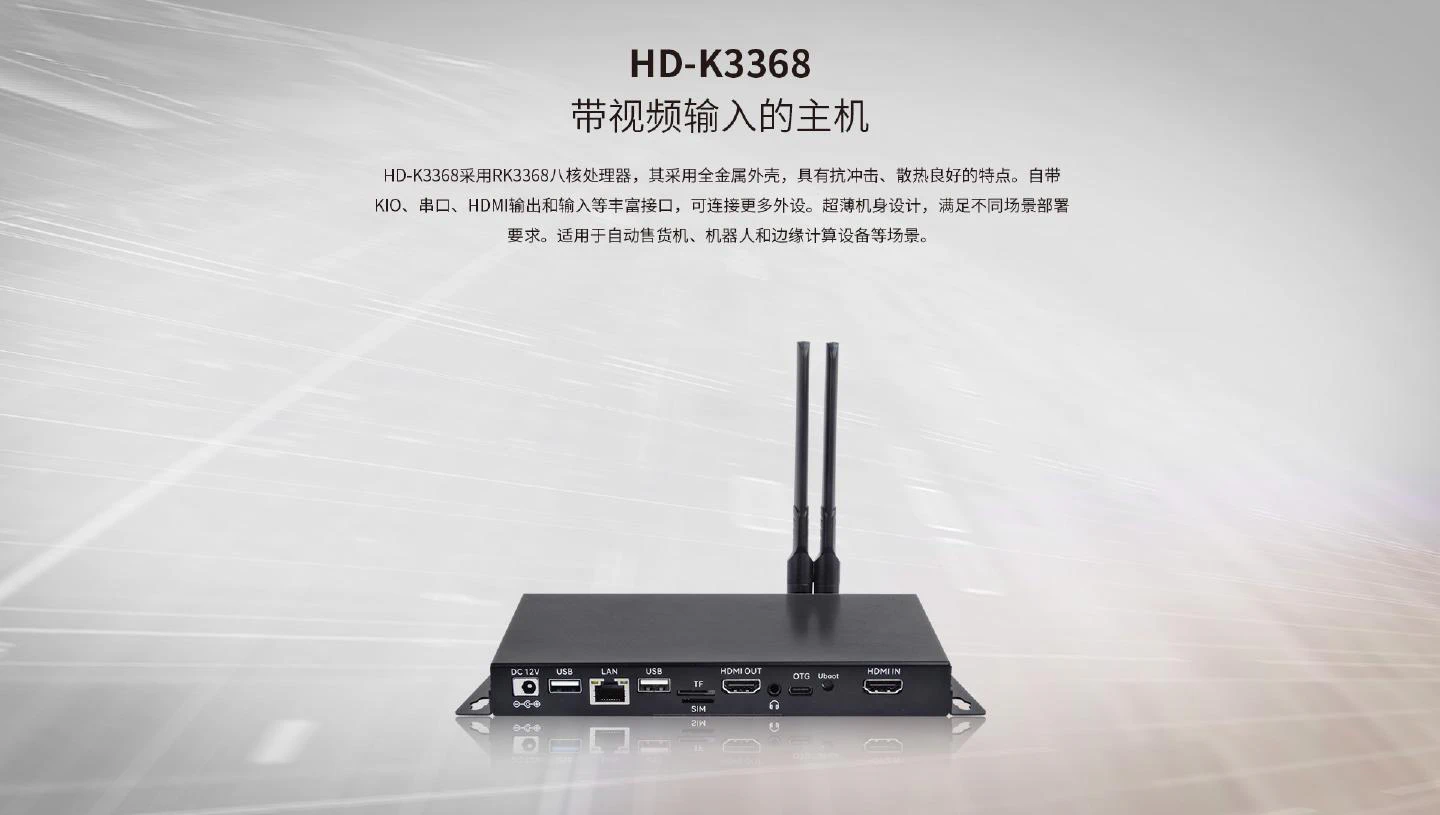

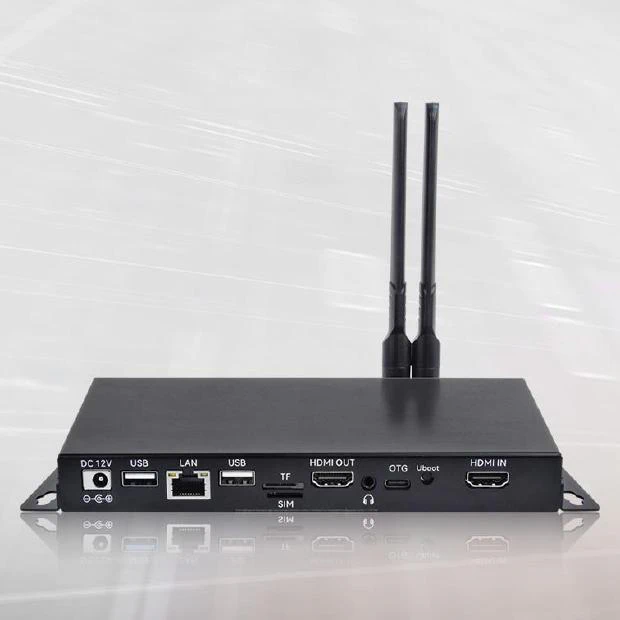

HD-K3368

Name: HD-K3368 - Advanced Video Input Host
Brand: 奥宇智能科技

Rockchip RK3368

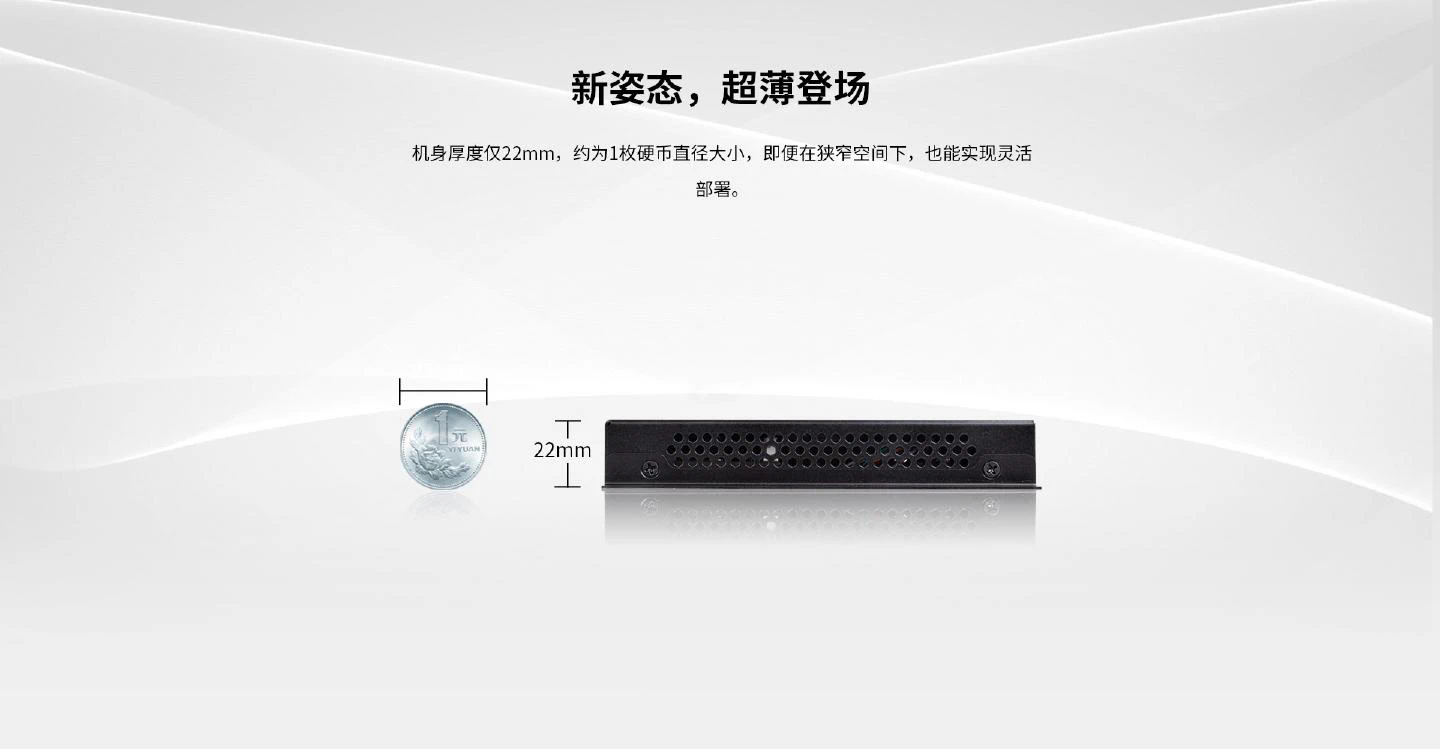

HD-K3368 is equipped with Rockchip RK3368 octa-core processor with a maximum frequency of 1.5GHz and pre-installed Android 5.1 system. It features rich expansion interfaces for flexible connection to various peripherals. The device has an ultra-thin design to meet the deployment needs of diverse scenarios.

Processor Rockchip RK3368

Memory 1GB

Storage 16GB

OS Support Android 5.1

Network 1× 10/100Mbps

Video Output HDMI

Request Quote View Specifications

Product Downloads

Specifications

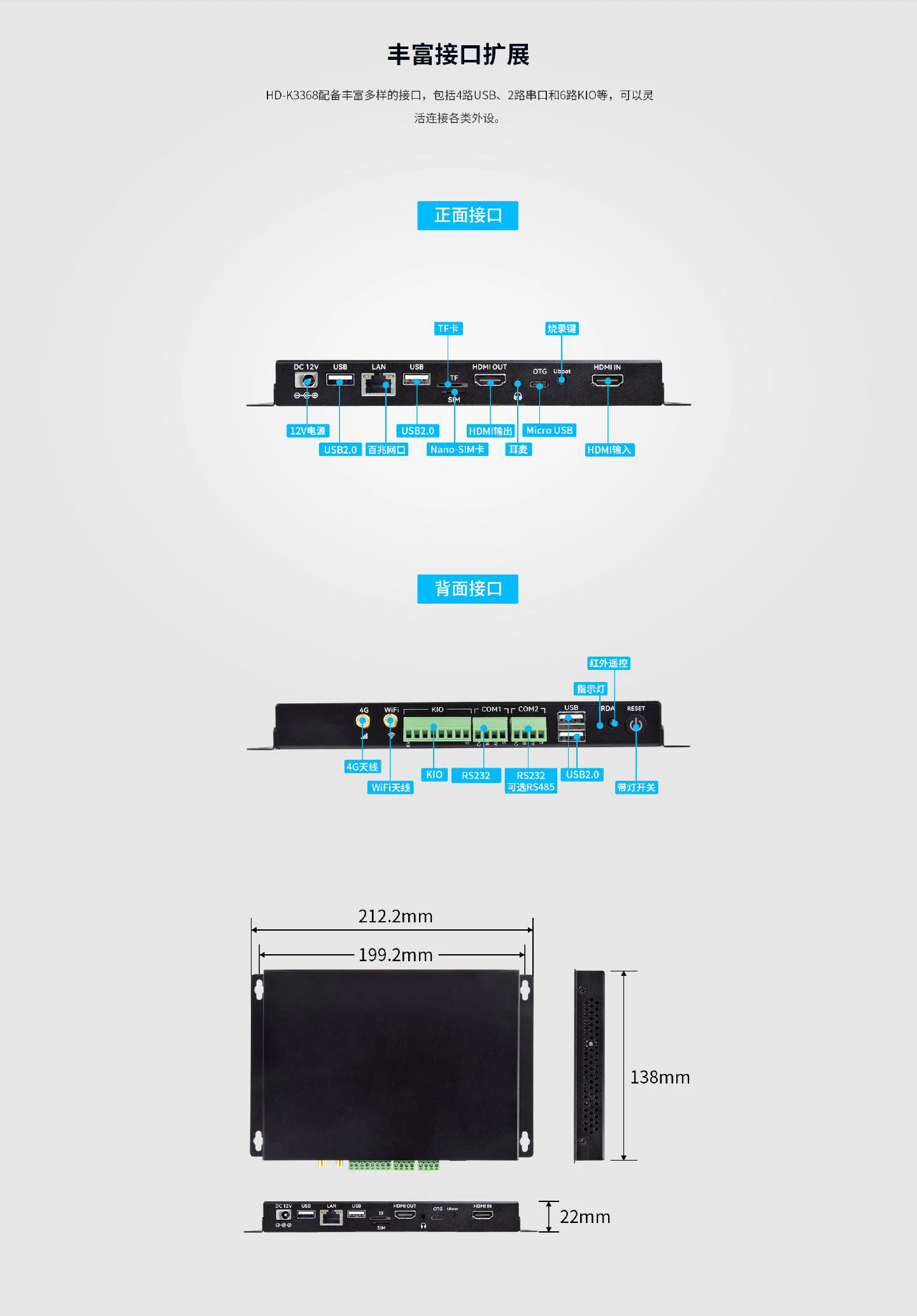

Mechanical Drawing #1

Mechanical Drawing #2

Mechanical Drawing #3

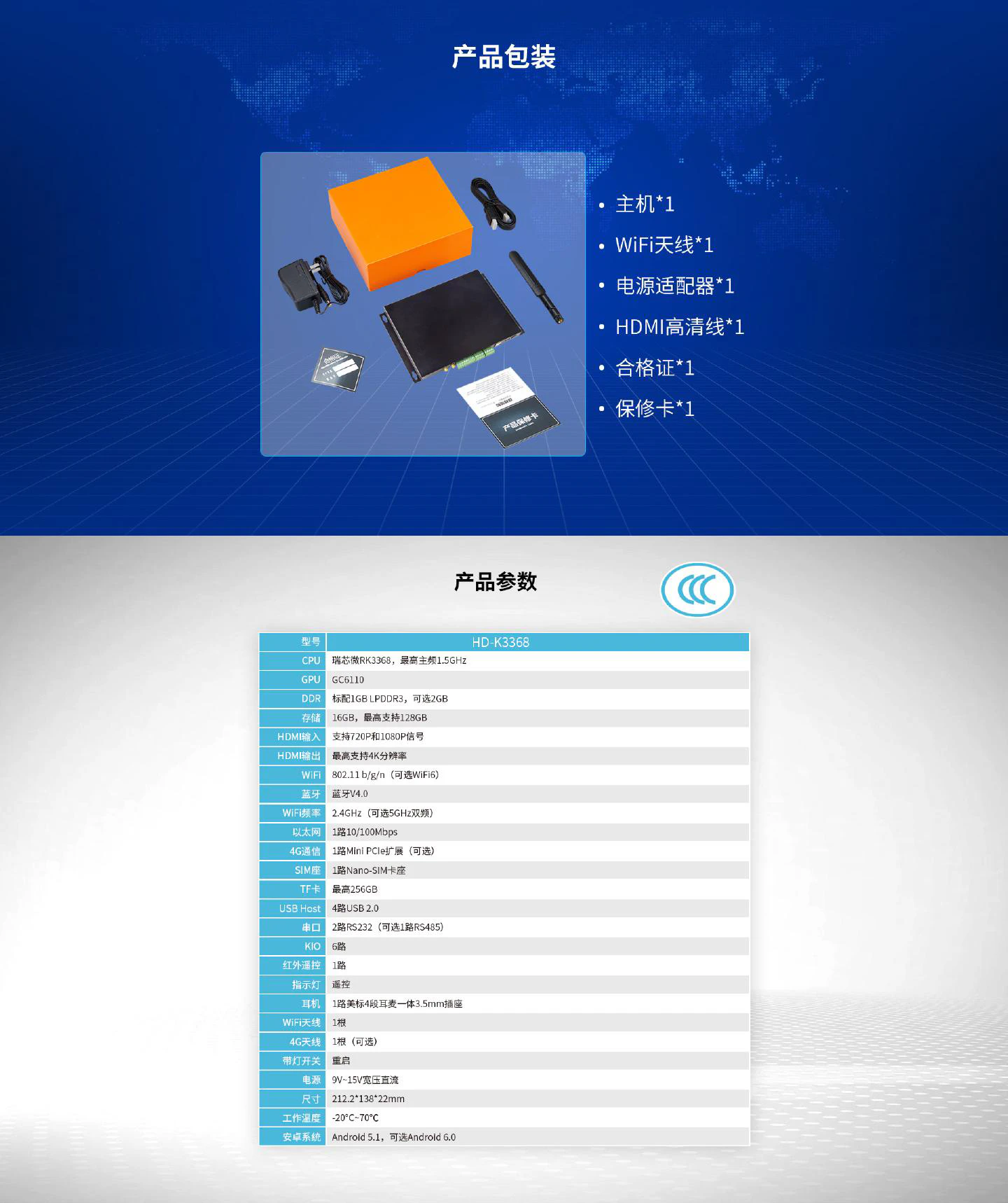

Technical Specifications

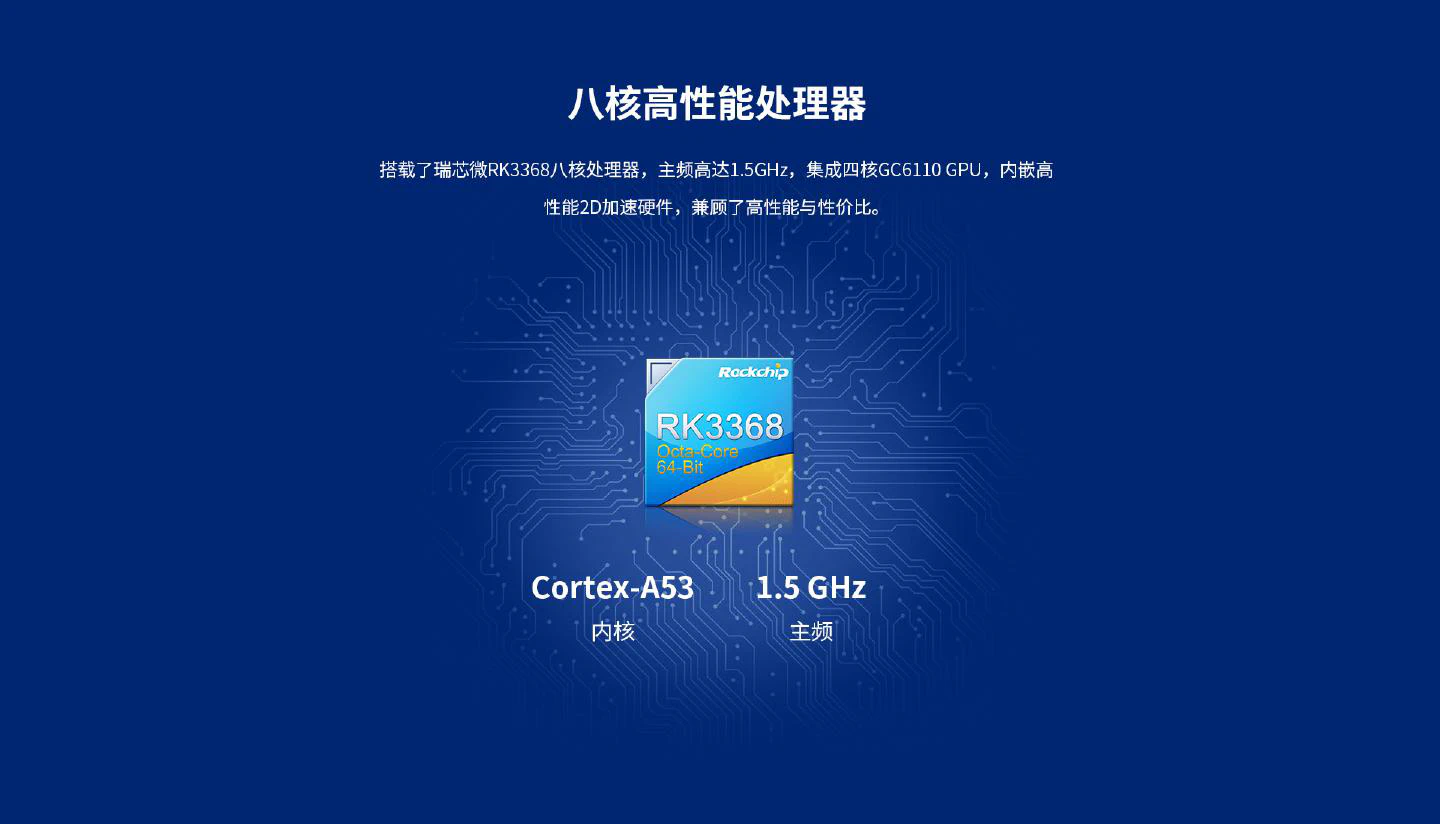

Processor	Rockchip RK3368，Octa-core Cortex-A53，FrequencyUp to 1.5GHz
GPU	PowerVR G6110，
NPU
Memory	Standard 1GB ，Max 4GB
Storage	Standard 16GB ，Max 128GB
Dimensions	212.213822mm (including mounting ears)mm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

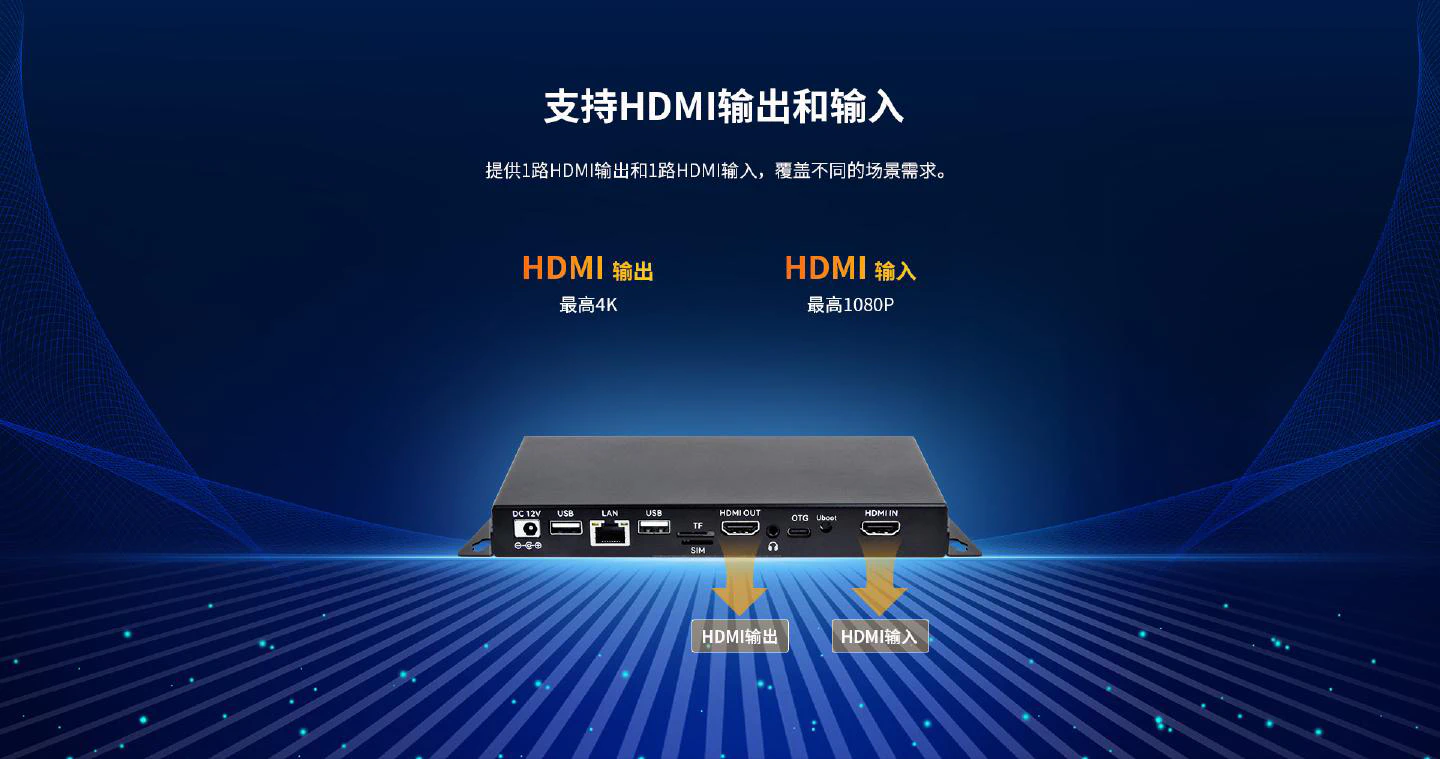

Display Output	1× HDMI ，
Network	1× 10/100Mbps Ethernet Interface
Wi-Fi	802.11b/g/n
Bluetooth	4.0
Cellular	4G (MiniPCIe interface, supporting various 4G modules from Digi, Quectel, etc. (optional))
USB	4× USB 2.0 ，0× USB 3.0 ，1× USB OTG ，0× USB Type-C

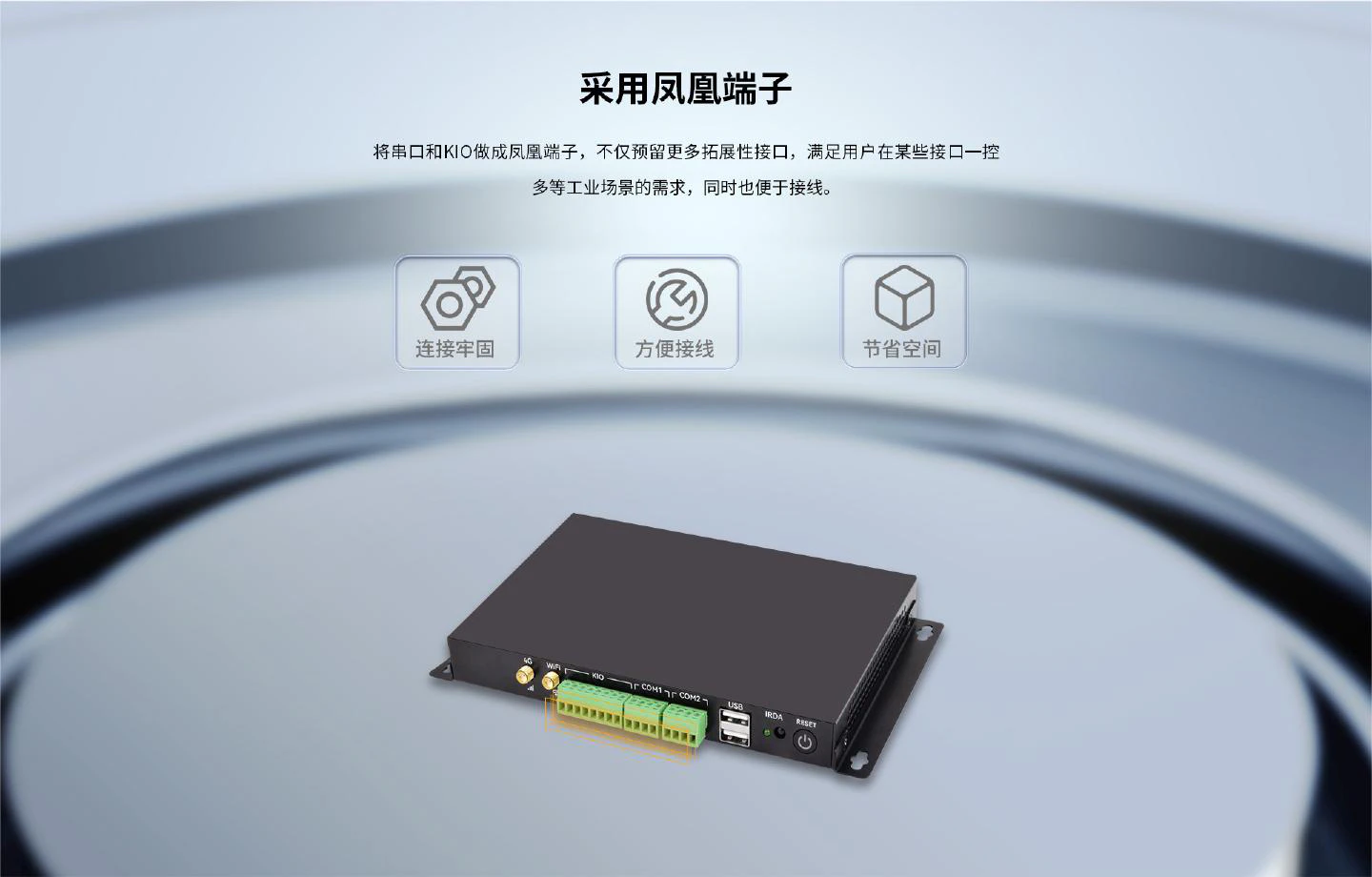

Serial Port	2× RS232
Power Input	9V~15V
Audio

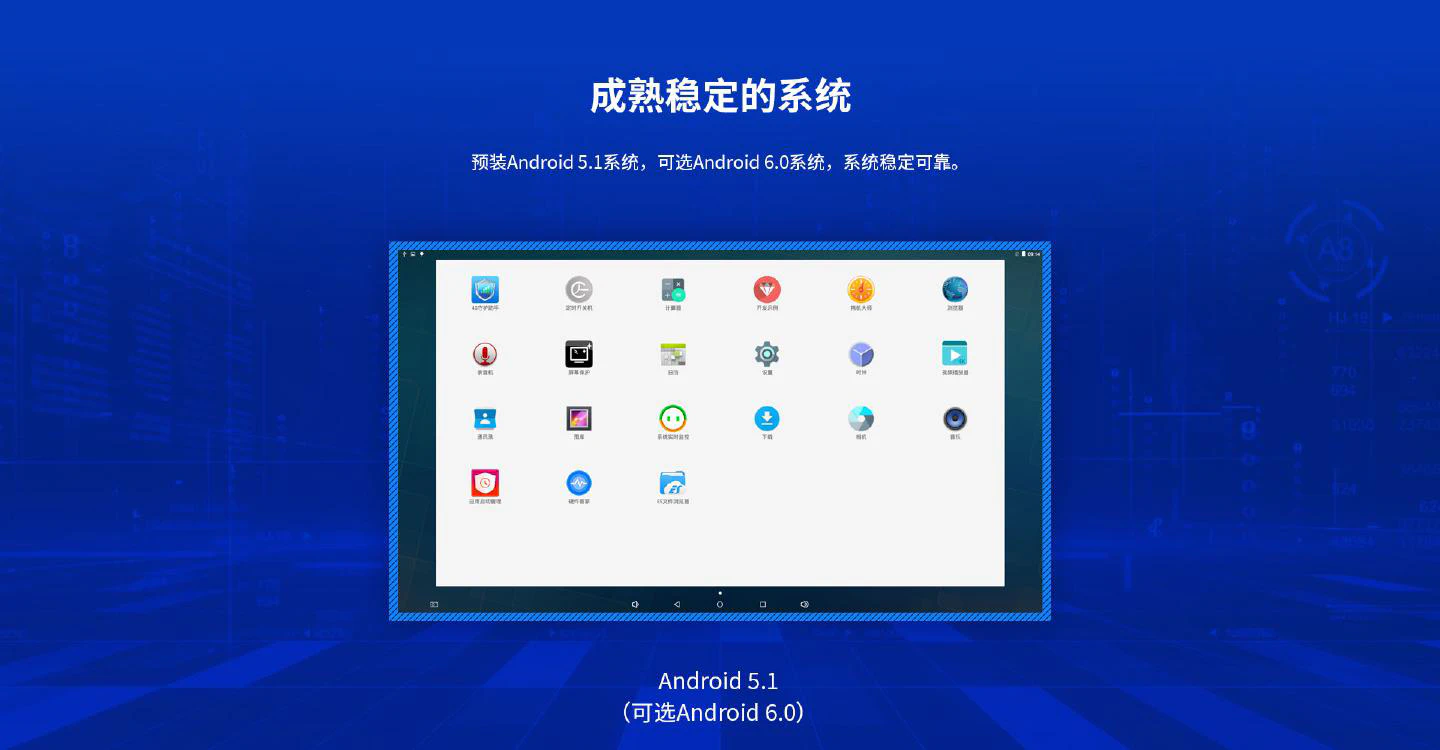

Android	5.1, 6.0
Special Features	RTC,
Power Management	Scheduled Power
System Upgrade	Local USB upgrade

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~95% (non-condensing)
Storage Humidity

Products

HD-K3368

Product Downloads

Technical Specifications

Related Products

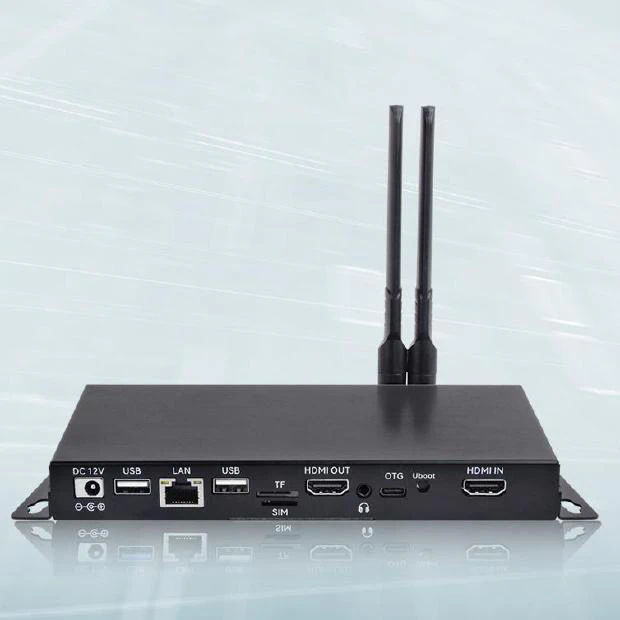

HD-K3288

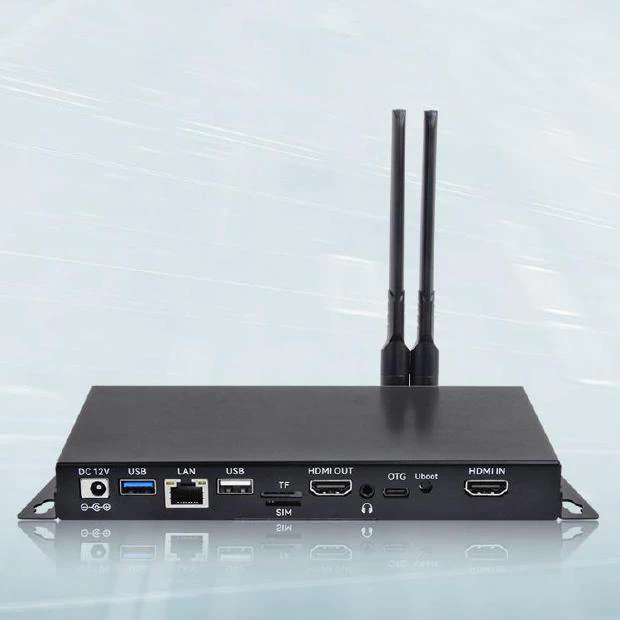

HD-K3399

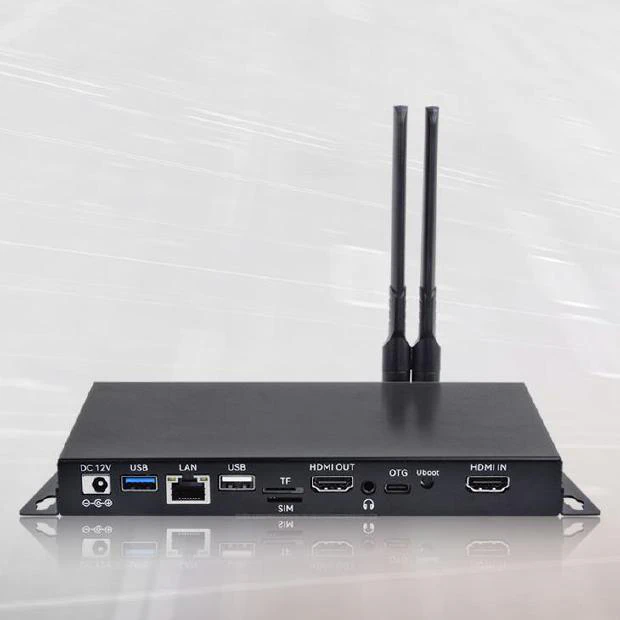

HD-K3566
