HD-K3399

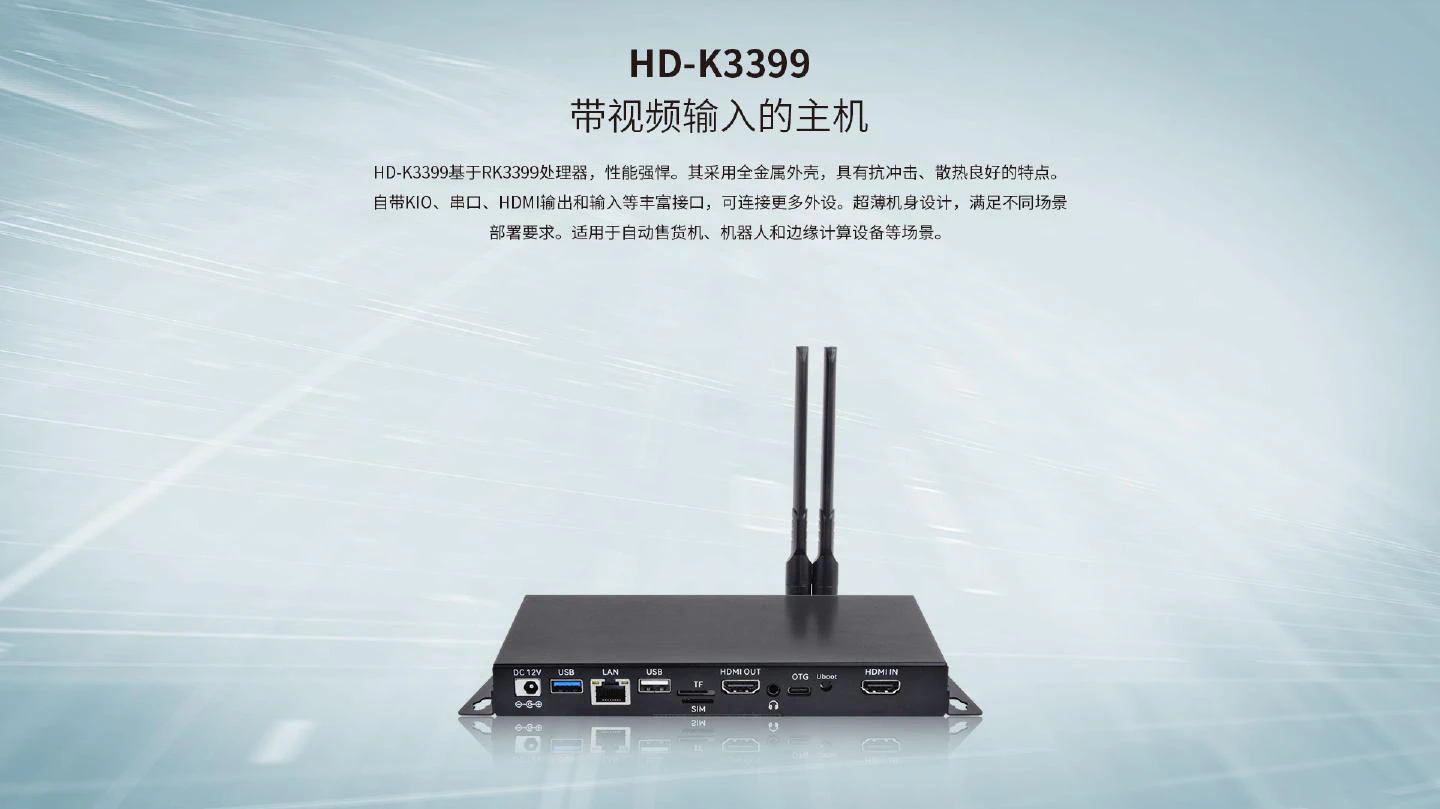

Name: HD-K3399 - High-Performance Video Input Host
Brand: 奥宇智能科技

Rockchip RK3399

HD-K3399 is equipped with Rockchip RK3399 six-core processor with a maximum frequency of 1.8GHz and pre-installed Android 7.1 system. It features rich expansion interfaces for flexible connection to various peripherals. The device has an ultra-thin design to meet the deployment needs of diverse scenarios.

Processor Rockchip RK3399

Memory 2GB

Storage 16GB

OS Support Android 7.1 / Ubuntu 18.04

Network 1× 10/100/1000Mbps

Video Output HDMI

Request Quote View Specifications

Product Downloads

Specifications

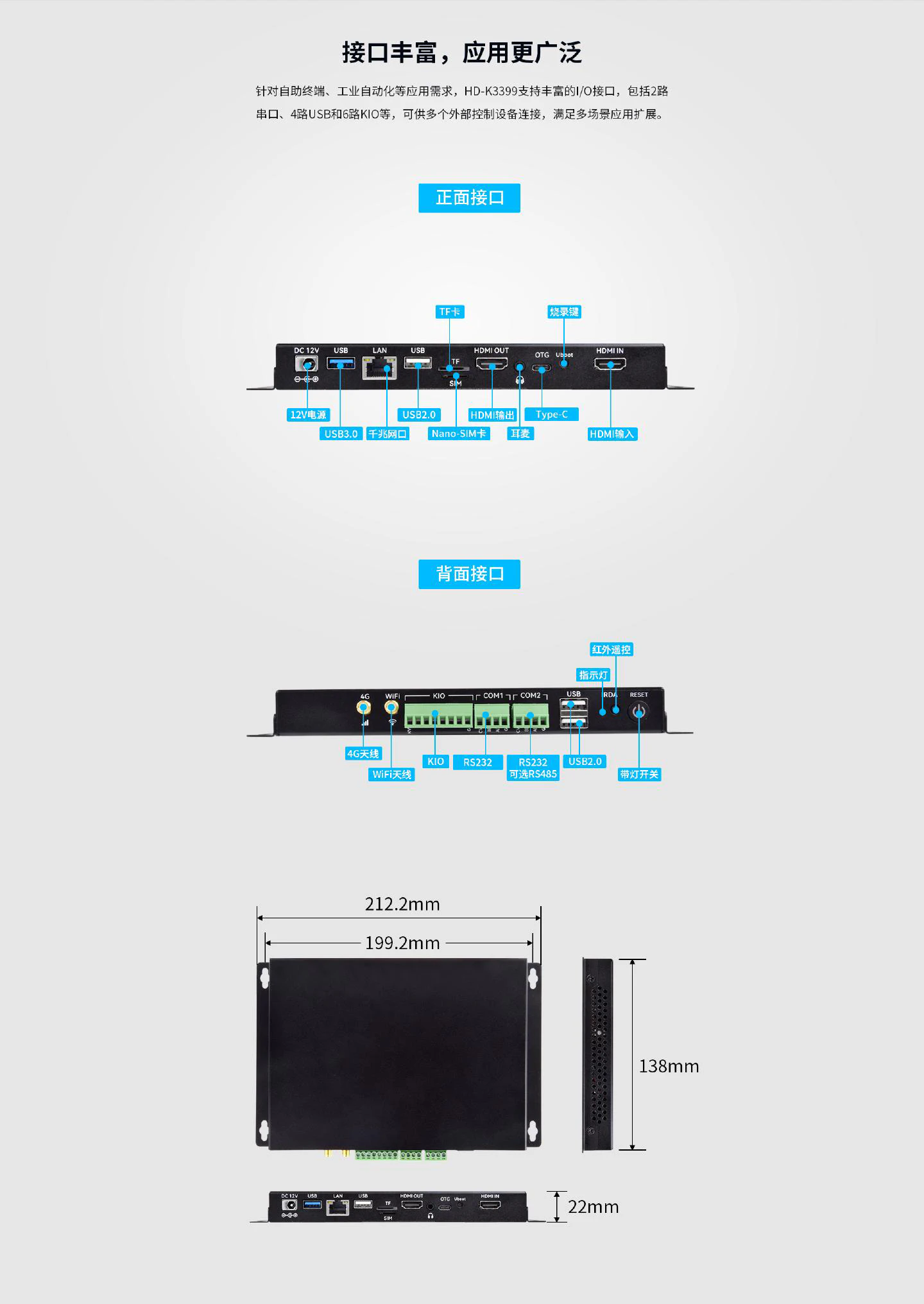

Mechanical Drawing #1

Mechanical Drawing #2

Mechanical Drawing #3

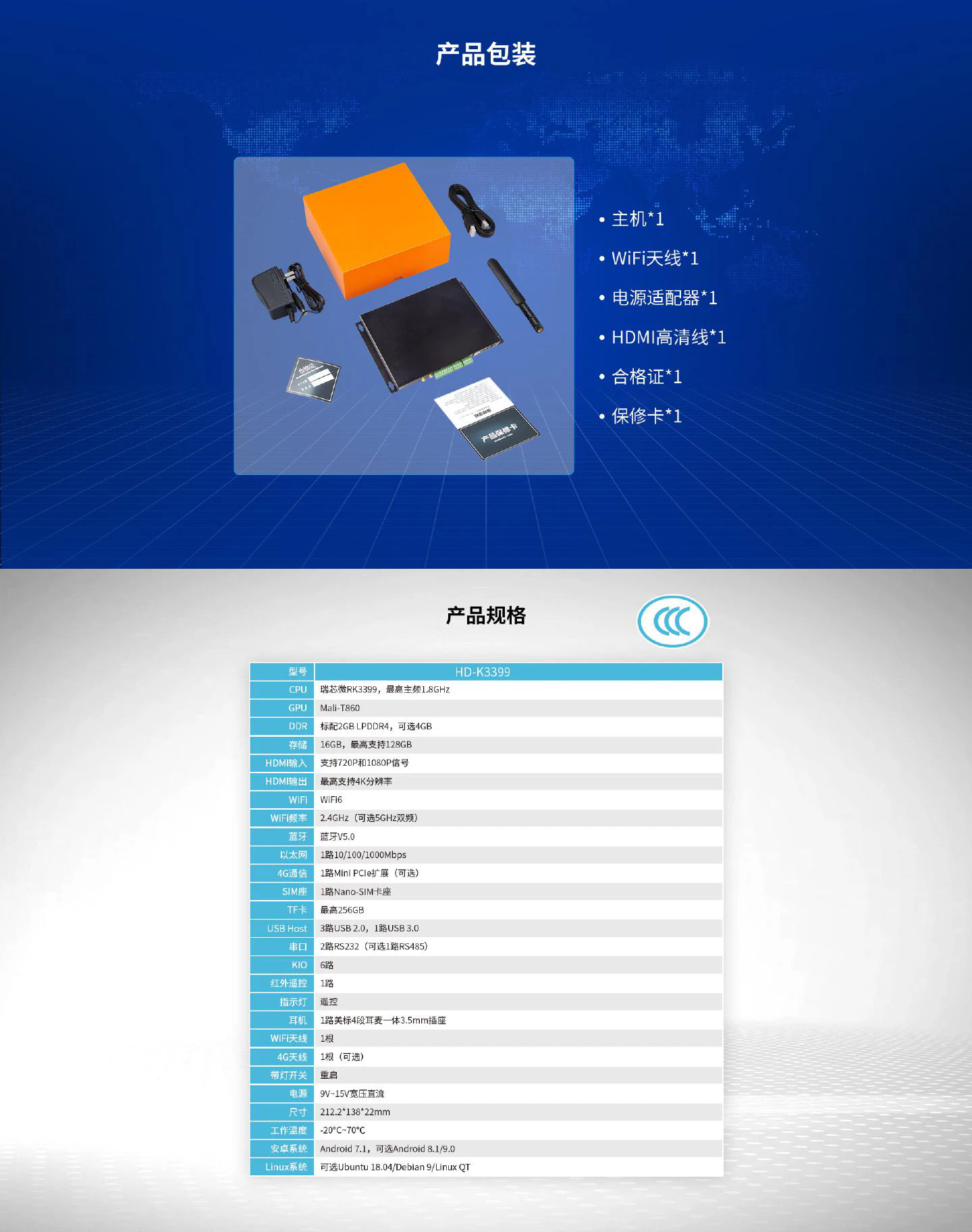

Technical Specifications

Processor	Rockchip RK3399，Dual-core Cortex-A72 + Quad-core Cortex-A53，FrequencyUp to 1.8GHz
GPU	Mali-T860，
NPU
Memory	Standard 2GB ，Max 4GB
Storage	Standard 16GB ，Max 128GB

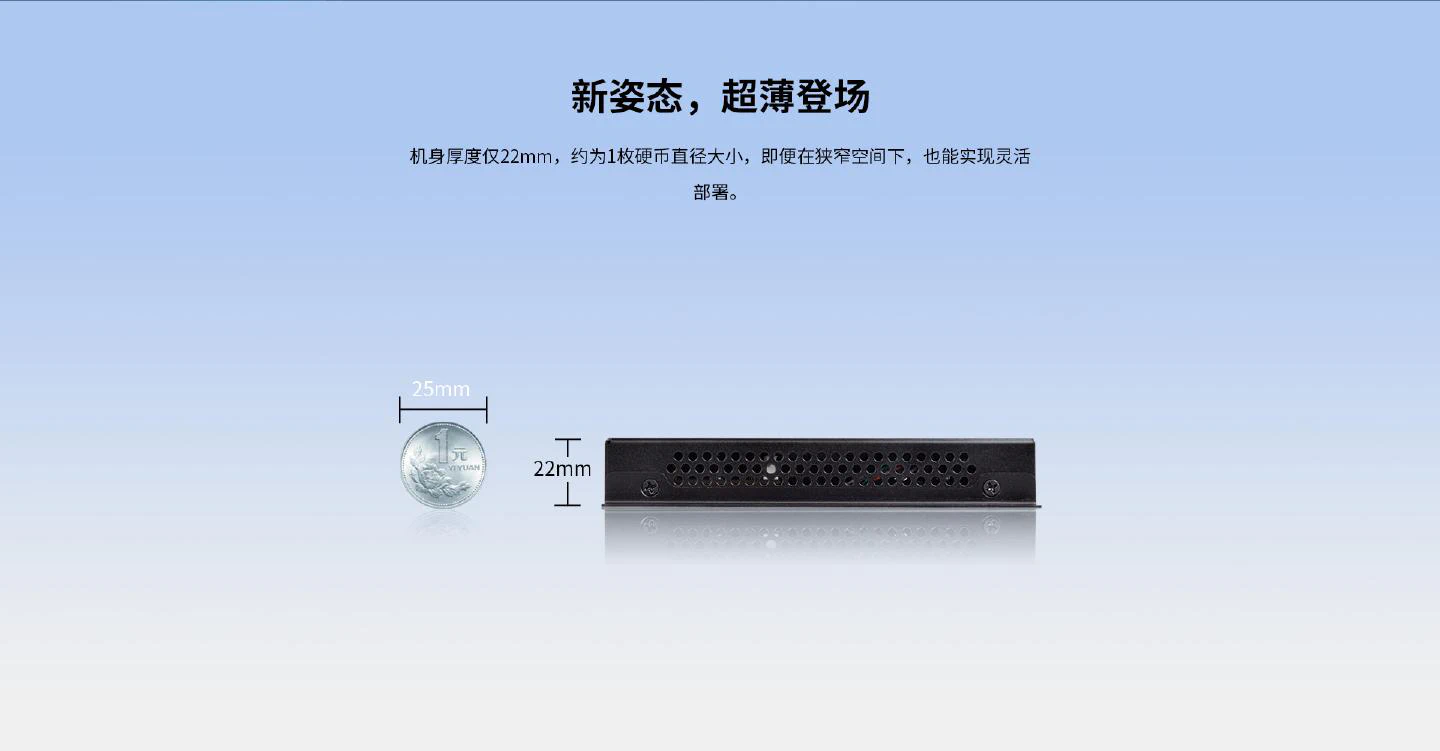

Dimensions	212.213822mm (including mounting ears)mm
Weight	g
Appearance	Color: ，Material:
Power Consumption	Typical ，Max

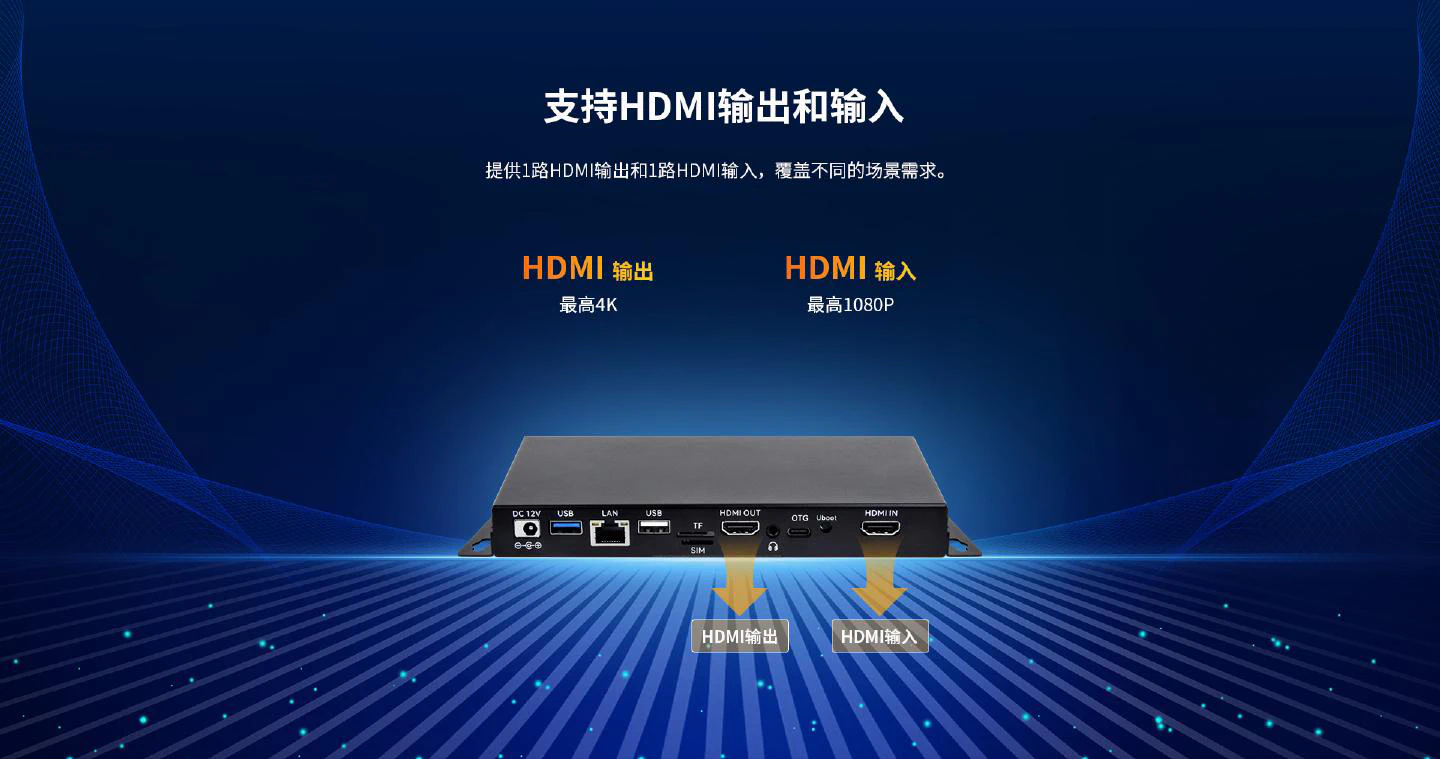

Display Output	1× HDMI ，
Network	1× 10/100/1000Mbps Ethernet Interface
Wi-Fi	802.11b/g/n/ac
Bluetooth	5.2
Cellular	4G (MiniPCIe interface, supporting various 4G modules from Digi, Quectel, etc. (optional))
USB	3× USB 2.0 ，1× USB 3.0 ，1× USB OTG ，1× USB Type-C

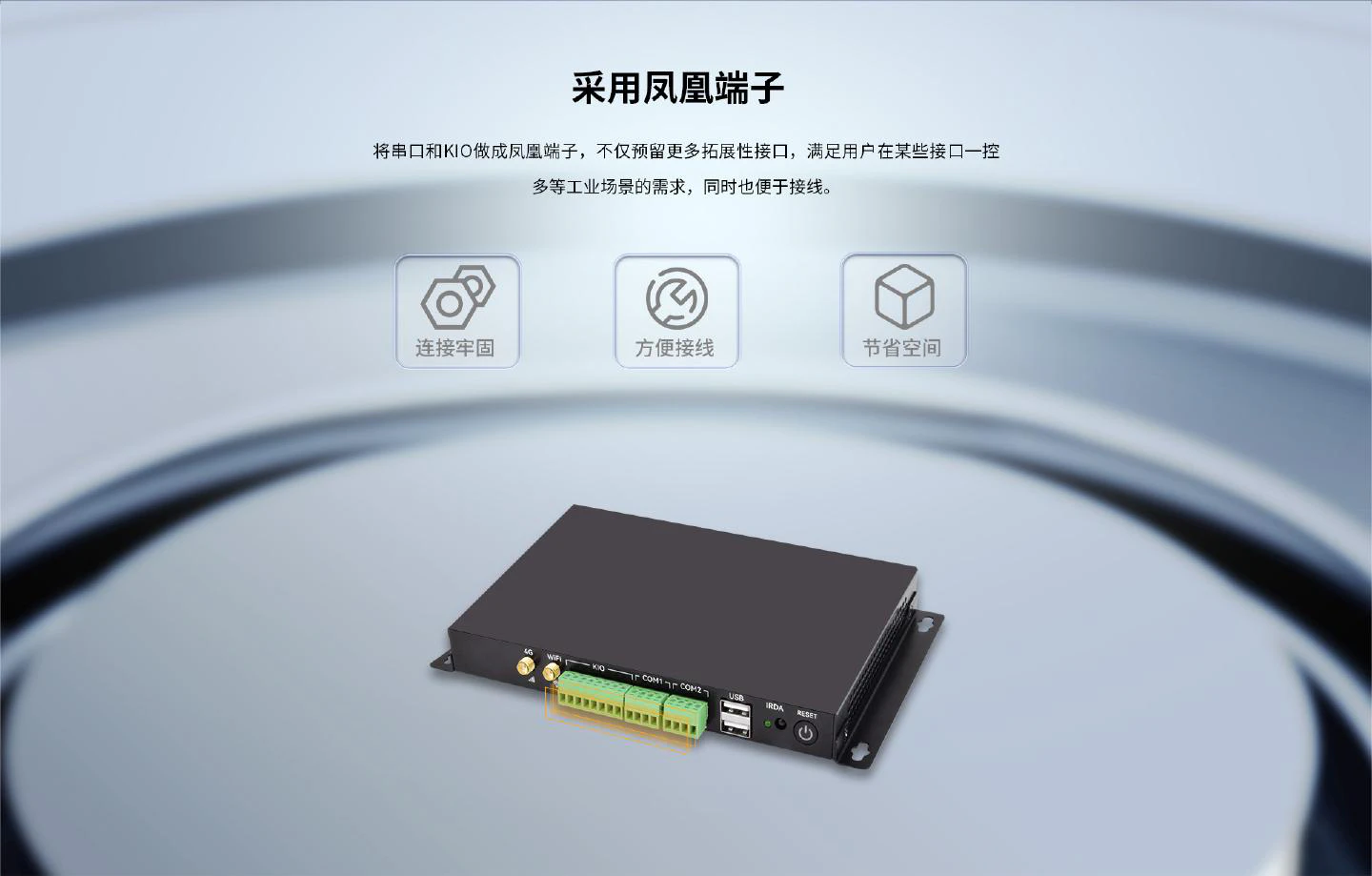

Serial Port	2× RS232
Power Input	9V~15V
Audio

Android	7.1, 8.1, 9.0
Linux	Ubuntu 18.04, Linux Buildroot, Debian 9
Special Features	RTC,
Power Management	Scheduled Power
System Upgrade	Local USB upgrade

Operating Temperature	-20℃~70℃
Storage Temperature
Operating Humidity	0%~95% (non-condensing)
Storage Humidity
