无壳 S 系列
S 4.3" 触摸屏电脑

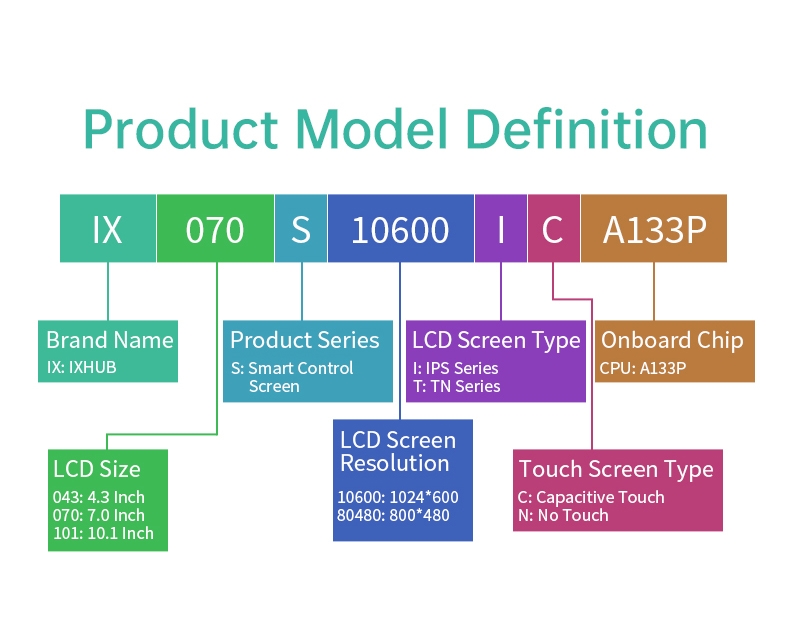

- 型号
- IXS043-A133P
- CPU
- Allwinner A133P, Quad Core A53, Up to 1.8GHz
- RAM / ROM
- 1GB+8GB / 2GB+16GB / 4GB+32GB
无壳嵌入式安装
General
| cpu | Allwinner A133P, Quad Core A53, Up to 1.8GHz |
| ram rom options | 1GB+8GB / 2GB+16GB / 4GB+32GB |
| touch | 5-point capacitive touch |
| audio | 1-way Single terminal MIC Input Header, 1-way 8Ω×6W Dual-channel Audio Amplifier Output |
| buttons | Reset, Background, Volume+, Volume-, Burning |

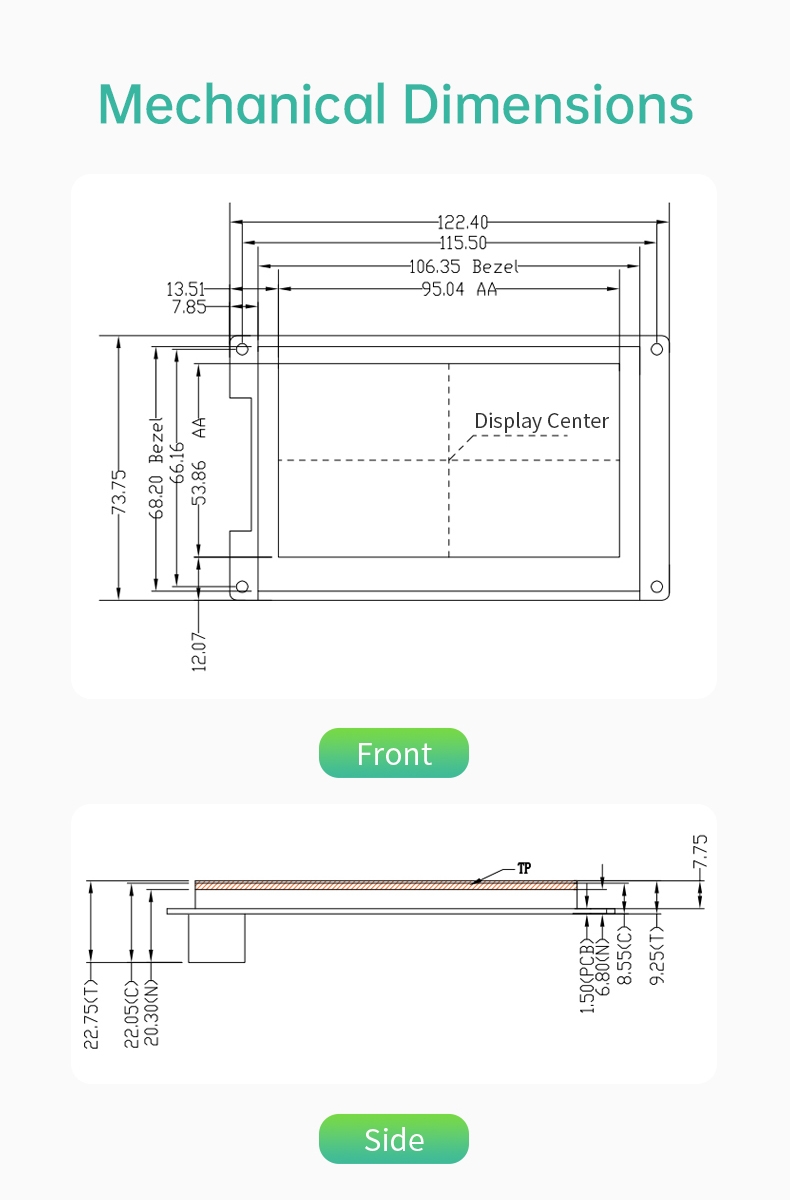

| dimensions mm | 122.4×73.75×22.75 |
| package size mm | 155×100×55 |
| humidity | 0%~95% (No condensing) |

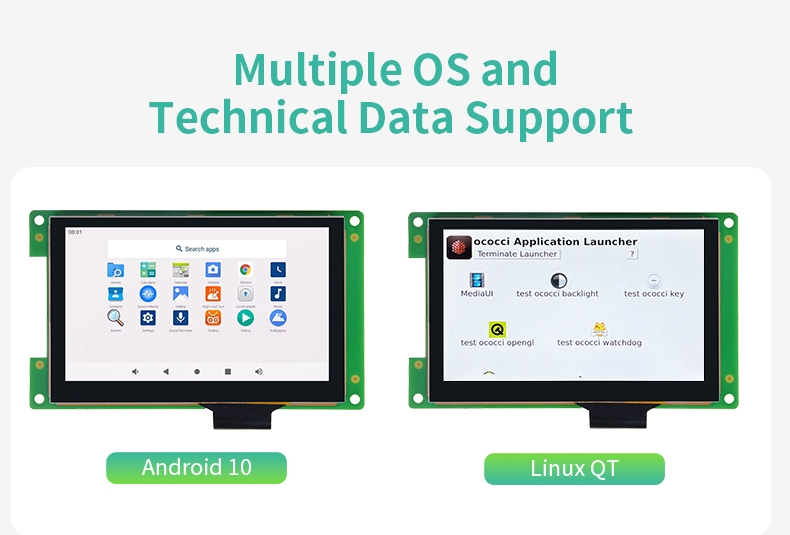

os

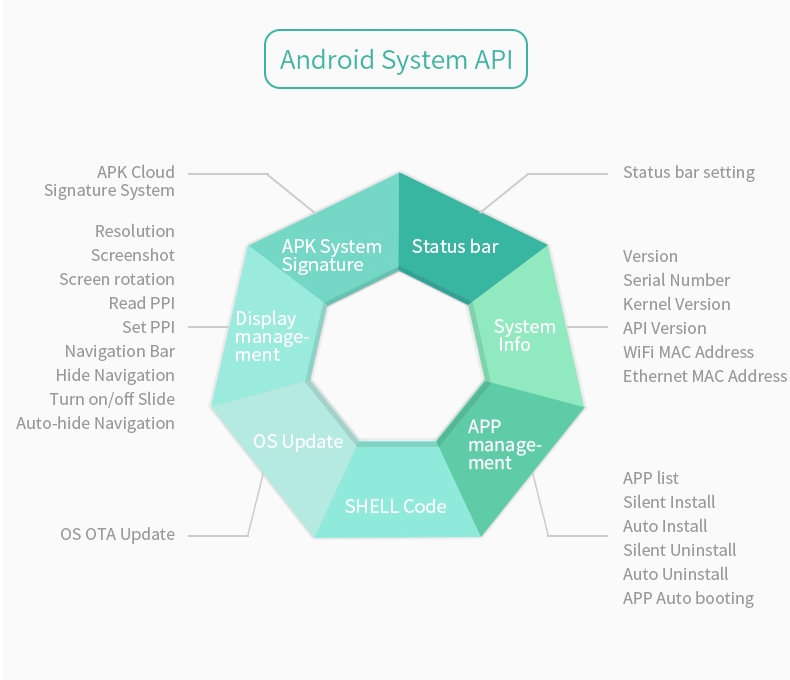

| android | Android 10 |
| linux | Ubuntu 18.04 / Linux QT |

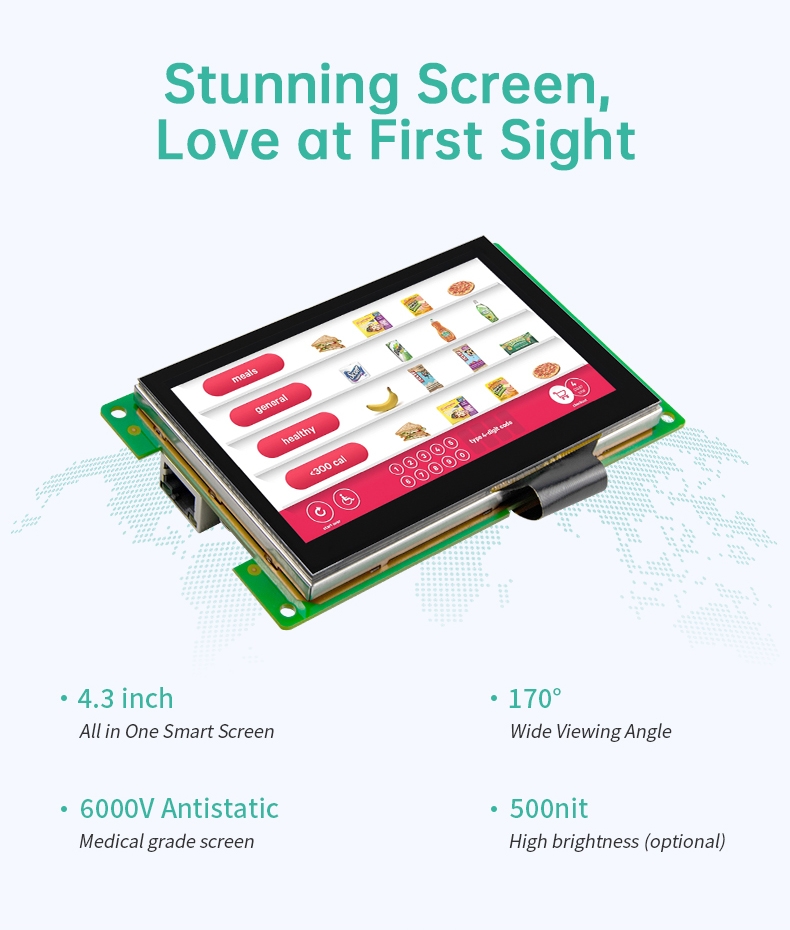

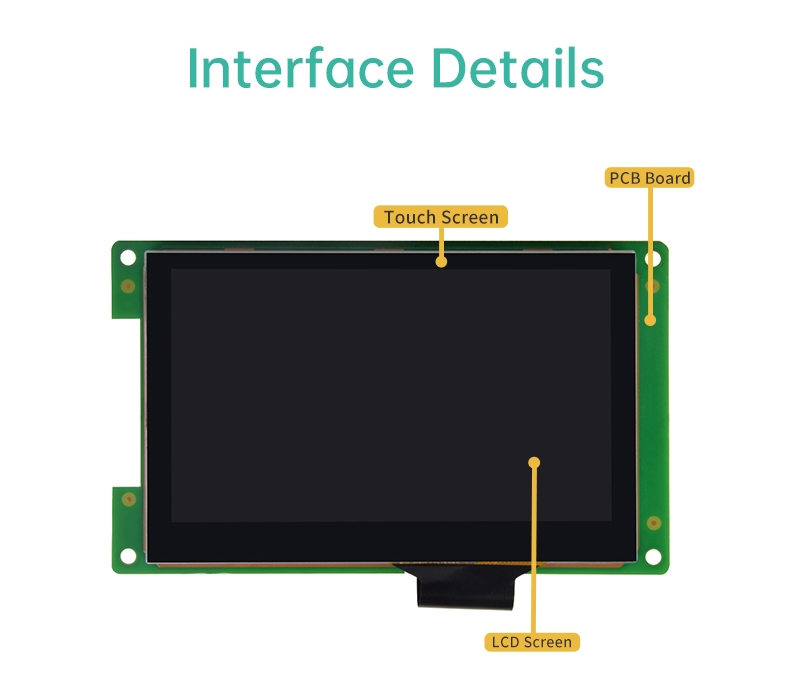

display
| resolution | 800×480 |
| brightness cd m2 | 300 |
| brightness optional cd m2 | 500 |
| view angle | Full view |
| lcd type | IPS |

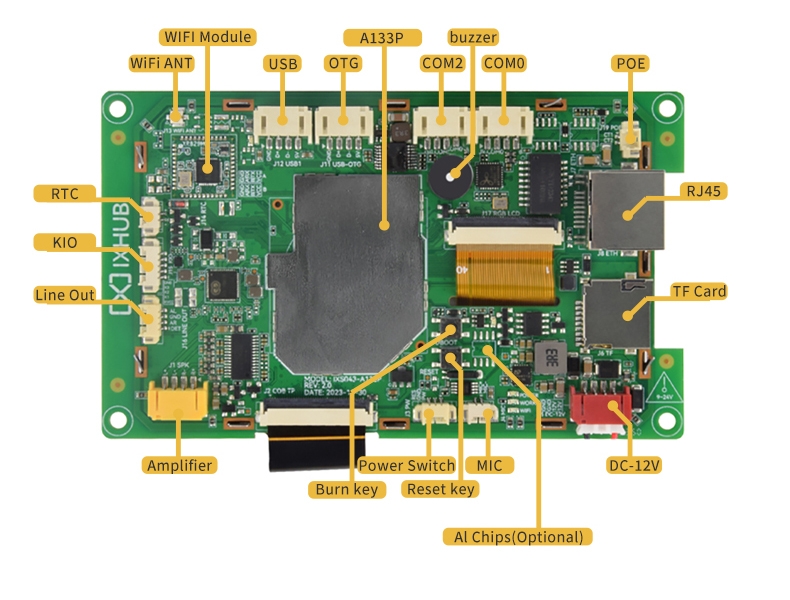

connectivity
| ethernet | 10/100M Adaptive Ethernet |
| wifi bt | Single Frequency 2.4GHz (Dual Frequency WiFi Optional), BT V4.2 |
| cellular | Optional 4G/5G Module, On-board Micro-SIM Slot |
| gps | Optional 4G Module with GPS |
| usb | 1×USB 2.0, 1×USB OTG |
| tf card | 1-way Self-elastic TF Card Socket, Supports Up to 256GB |
| serial port | 2-way TTL/RS232/RS485 |
| gpio | 3-way GPIO Signal |
| poe | 1×Dual Chips PoE PD Terminal |
power
| input | 12-24V DC |
| rated power w | <3 |
| typical voltage v | 12 |
| standby power w | 0.36 |
weight_kg
| product | 0.1356 |
| package | 0.2056 |

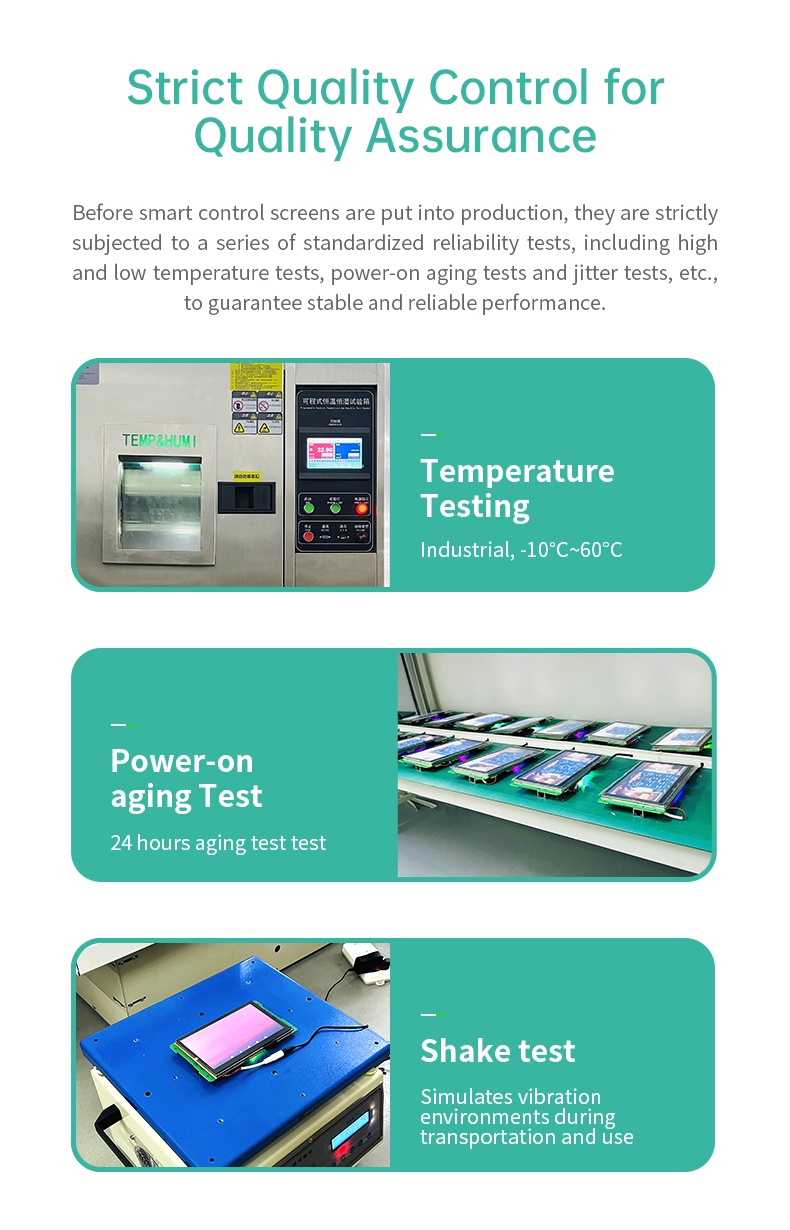

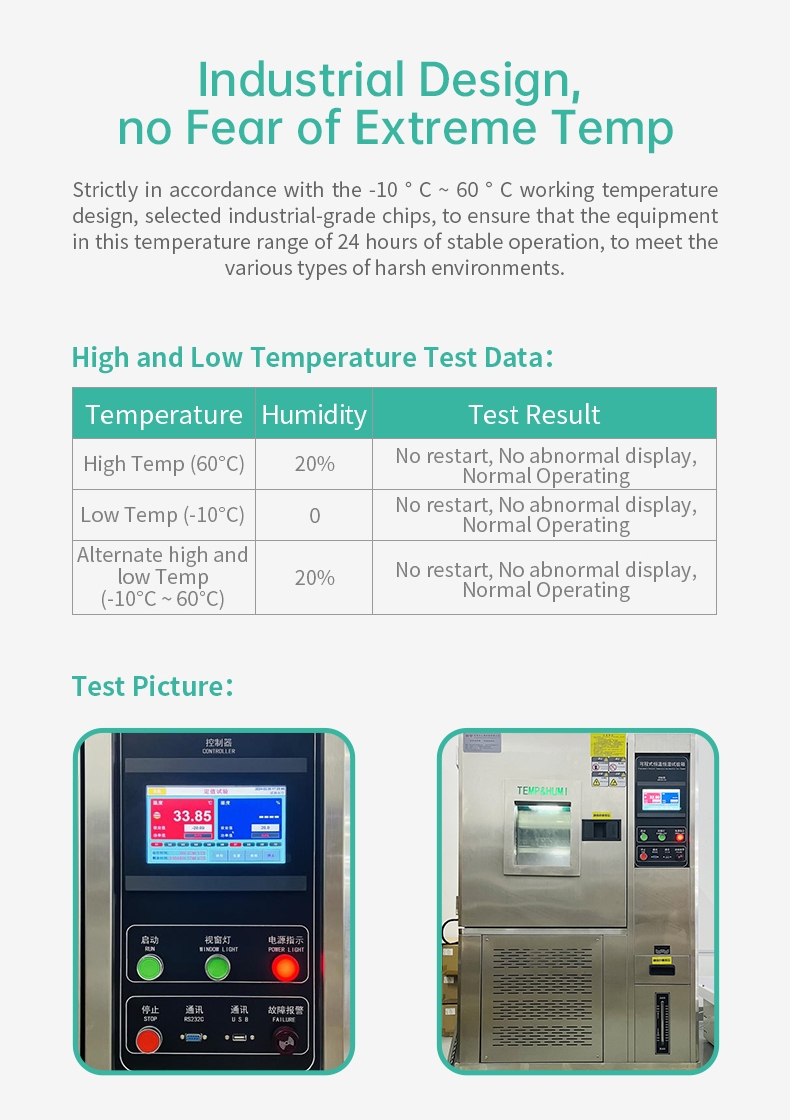

temperature
| working | -10°C~60°C |
| storage | -20°C~70°C |
