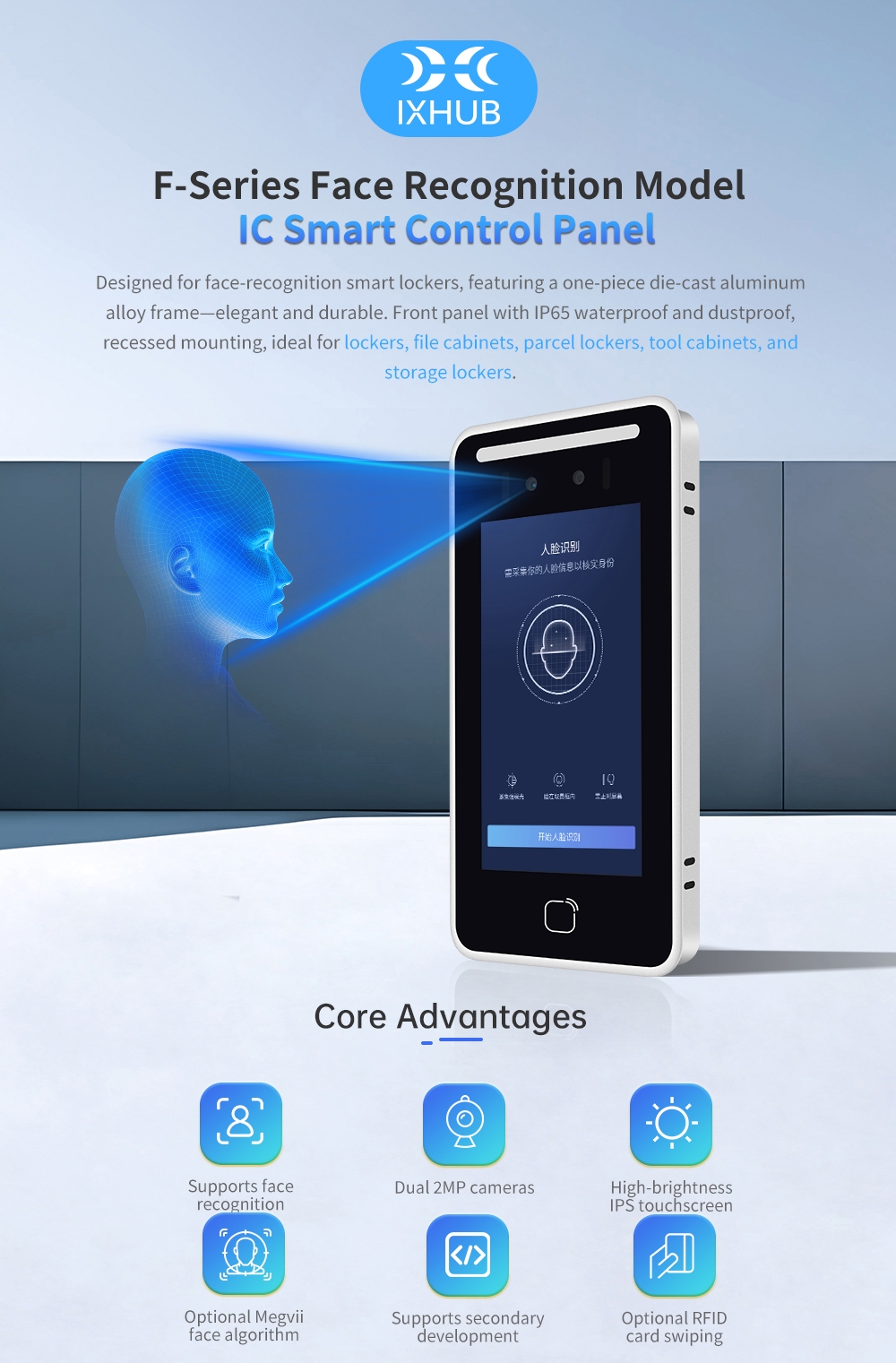

F-IC-7 7-inch HMI Panel

7 inches · F Series

Material
Die-cast aluminum alloy
Mounting methods
Exterior inset mounting

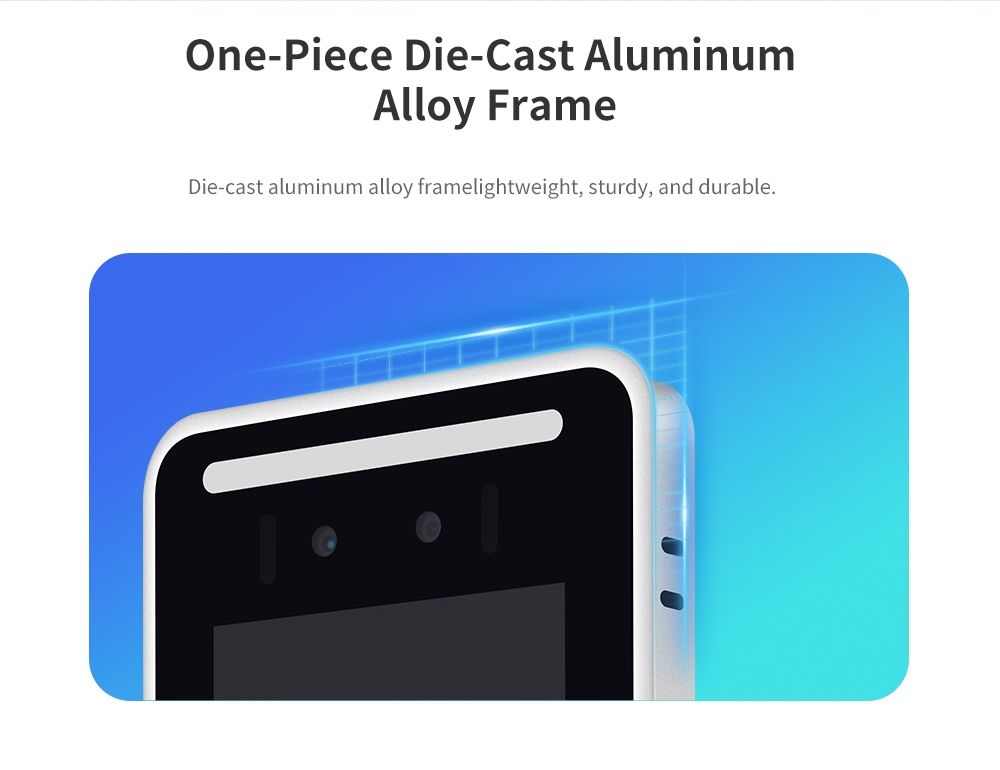

One-piece construction
One-piece die-cast aluminum alloy
Front panel protection

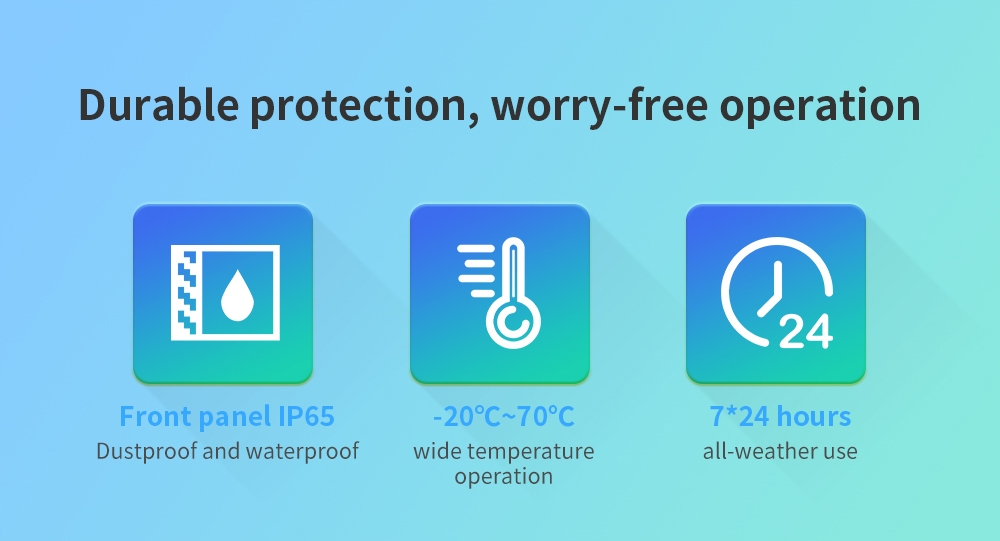

IP65
Request a quote

Overview

Material: Die-cast aluminum alloy. Mounting methods: Exterior inset mounting. Front panel protection: IP65. Face recognition: true

Specifications

AYFIC070-Fi3568

Structure

Structure — AYFIC070-Fi3568
MaterialDie-cast aluminum alloyNot specified
Mounting methodsExterior inset mountingNot specified
One-piece constructionOne-piece die-cast aluminum alloyNot specified

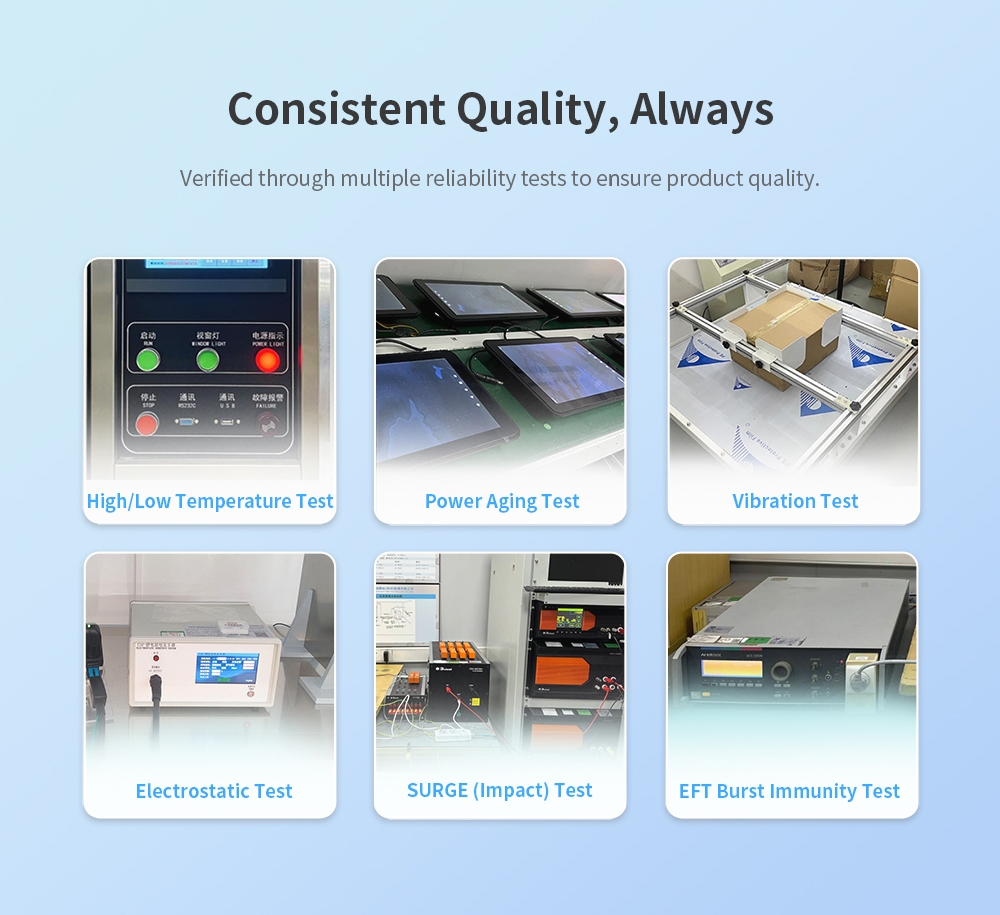

Protection

Protection — AYFIC070-Fi3568
Front panel protectionIP65Not specified
Operating temperature-20 – 70 ℃Not specified

Recognition

Recognition — AYFIC070-Fi3568
Face recognitiontrueNot specified

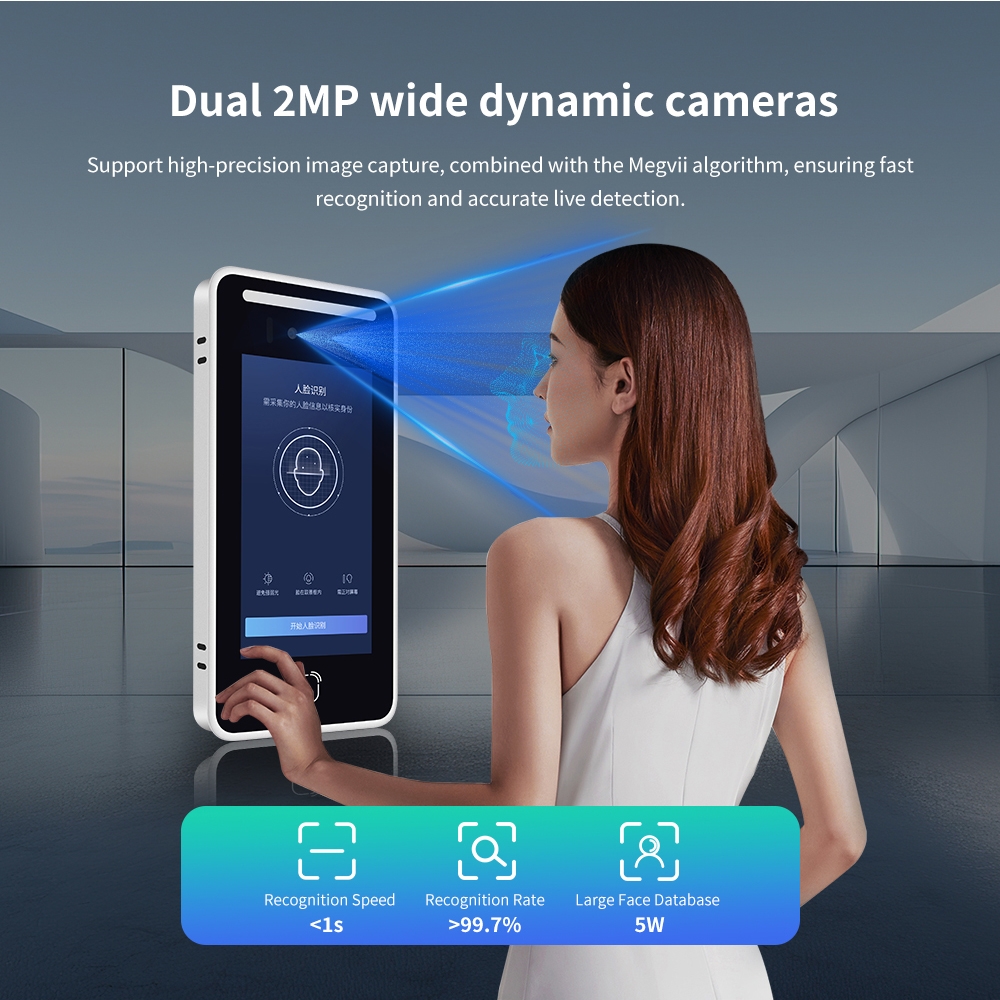

Cameratype: Dual-camera; pixels_each_original_label: 200WNot specified
Face algorithmMegvii face algorithmOptional
RFID optionalRFIDOptional
Cameratype: Dual-camera wide dynamic range; pixels_each: 2000000Not specified
Liveness detectionLiveness detectionDepends on algorithm configuration

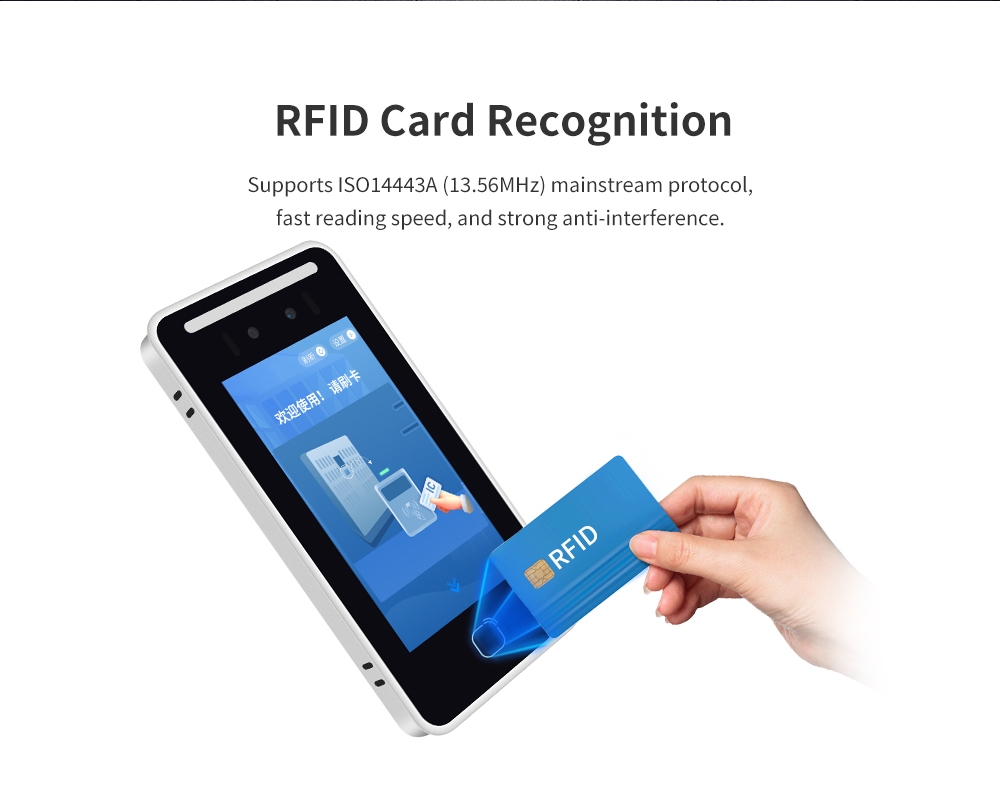

RFID protocolISO14443ARFID optional
RFID frequency13.56 MHzRFID optional

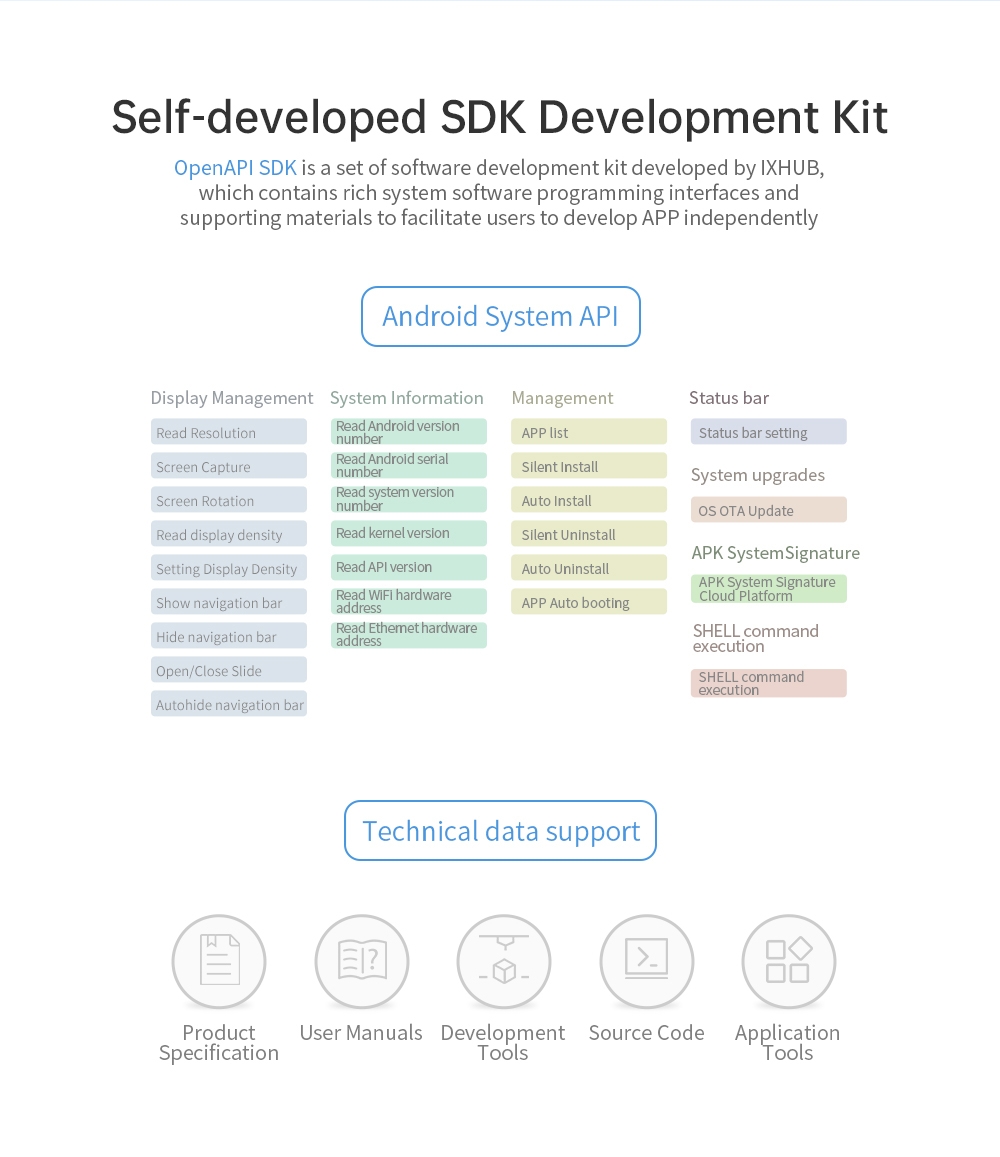

Development

Development — AYFIC070-Fi3568
Application developmenttrueNot specified

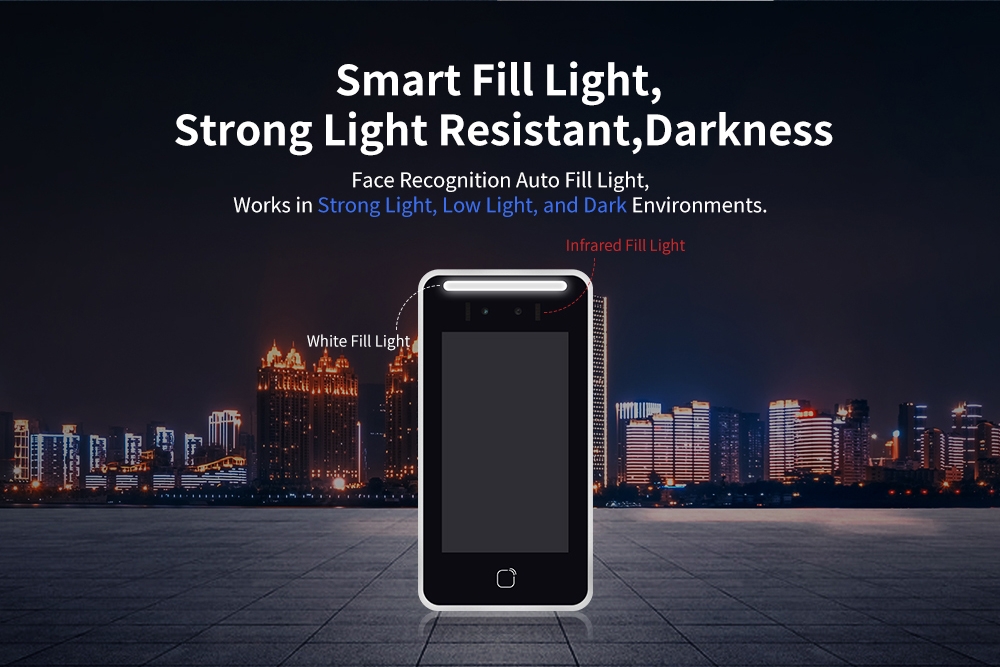

Fill lighting

Fill lighting — AYFIC070-Fi3568
Automatic fill lighttrueNot specified
White fill lightWhite fill lightNot specified
Infrared fill lightInfrared fill lightNot specified

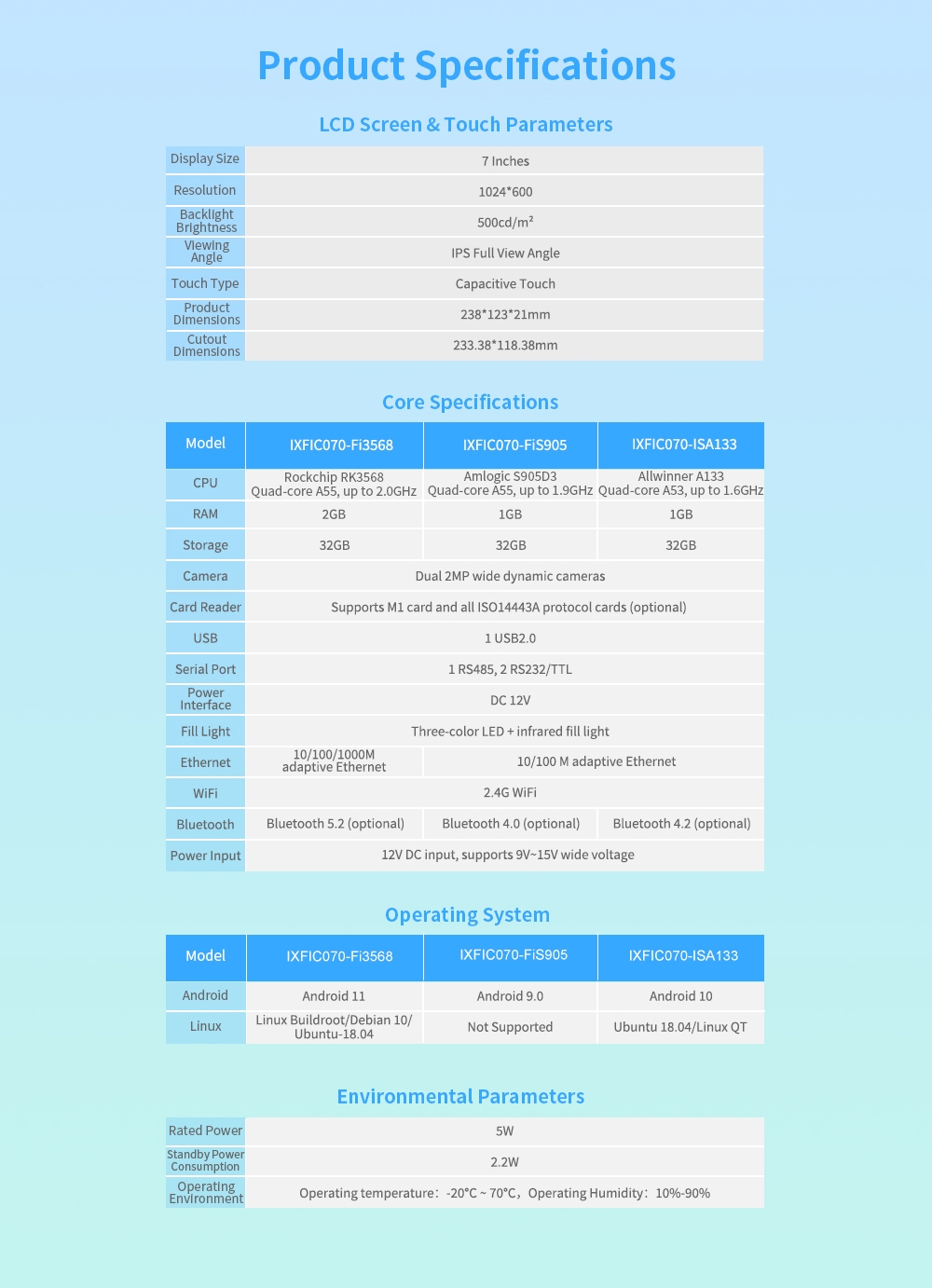

Display

Display — AYFIC070-Fi3568

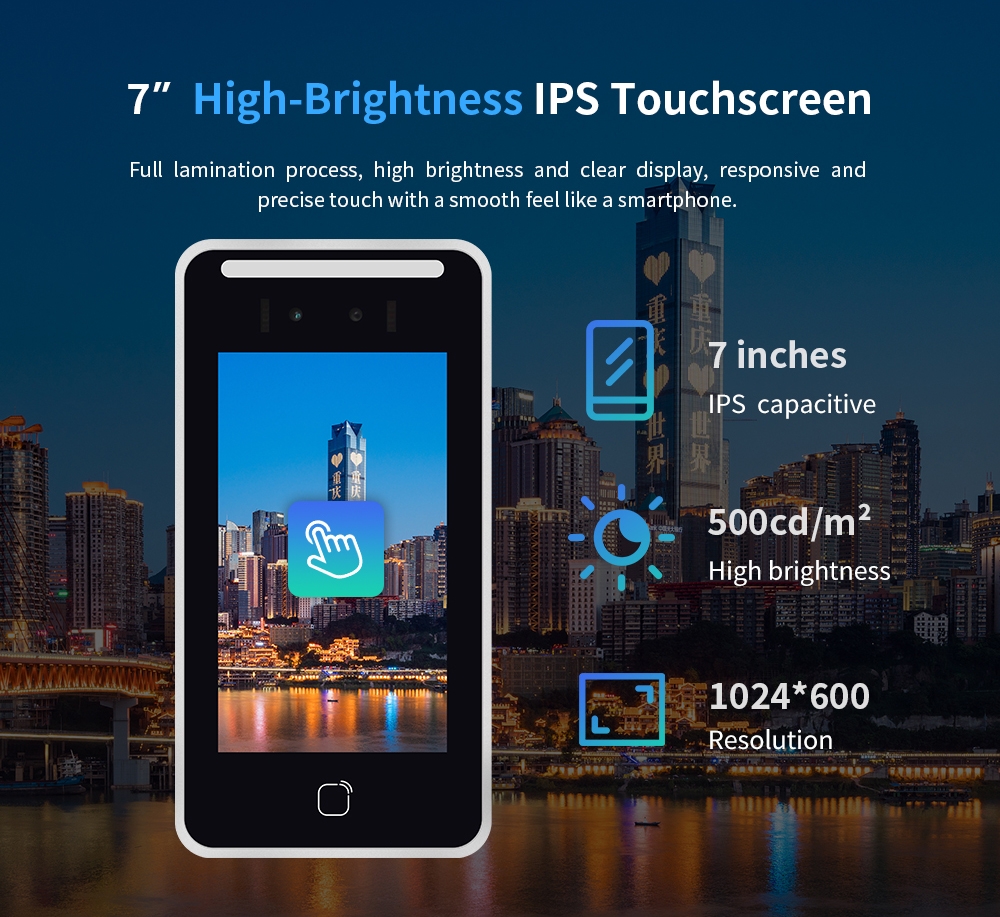

Display size7 inchesNot specified
PanelIPSNot specified
Backlight brightness500 cd/m²Not specified
Resolution1024 × 600 pxNot specified
Full bondingtrueNot specified

Selection

Selection — AYFIC070-Fi3568

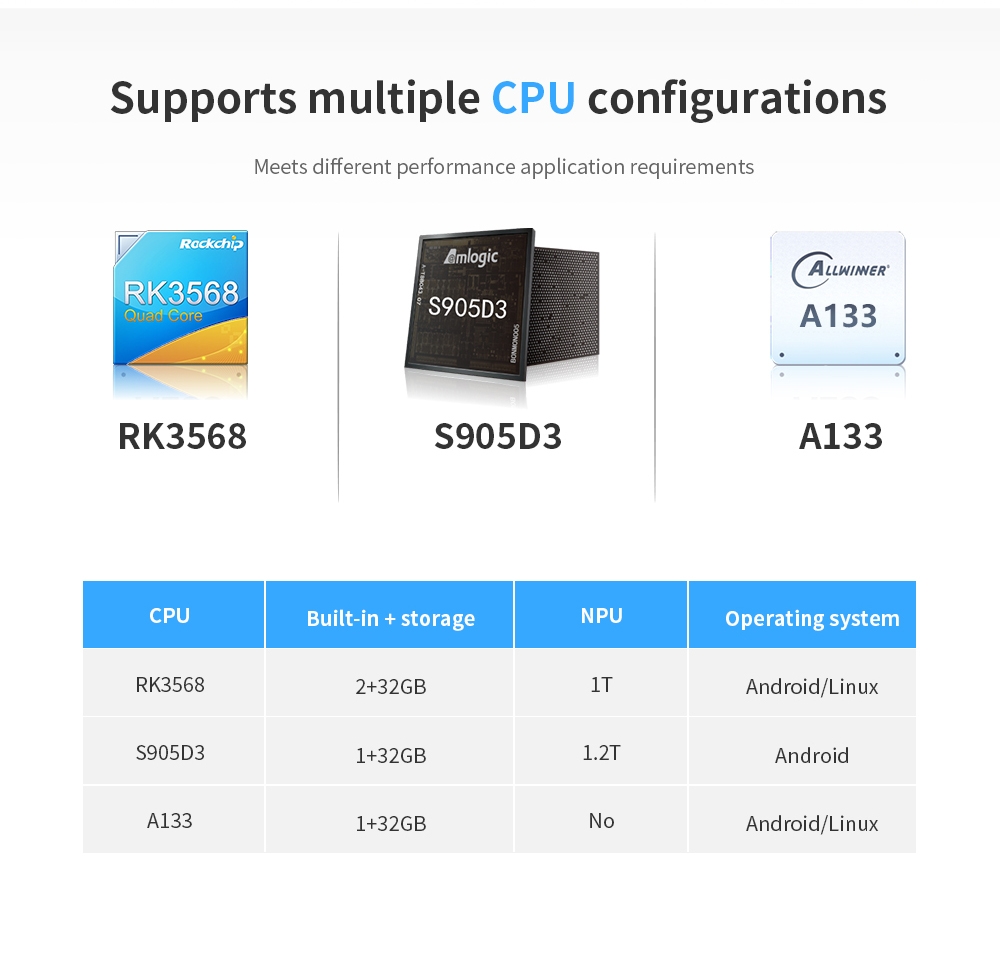

CPURK3568Not specified
RAM and storage2 / 32 GBNot specified
NPU1 T (source unit)Not specified
SystemAndroid / LinuxNot specified

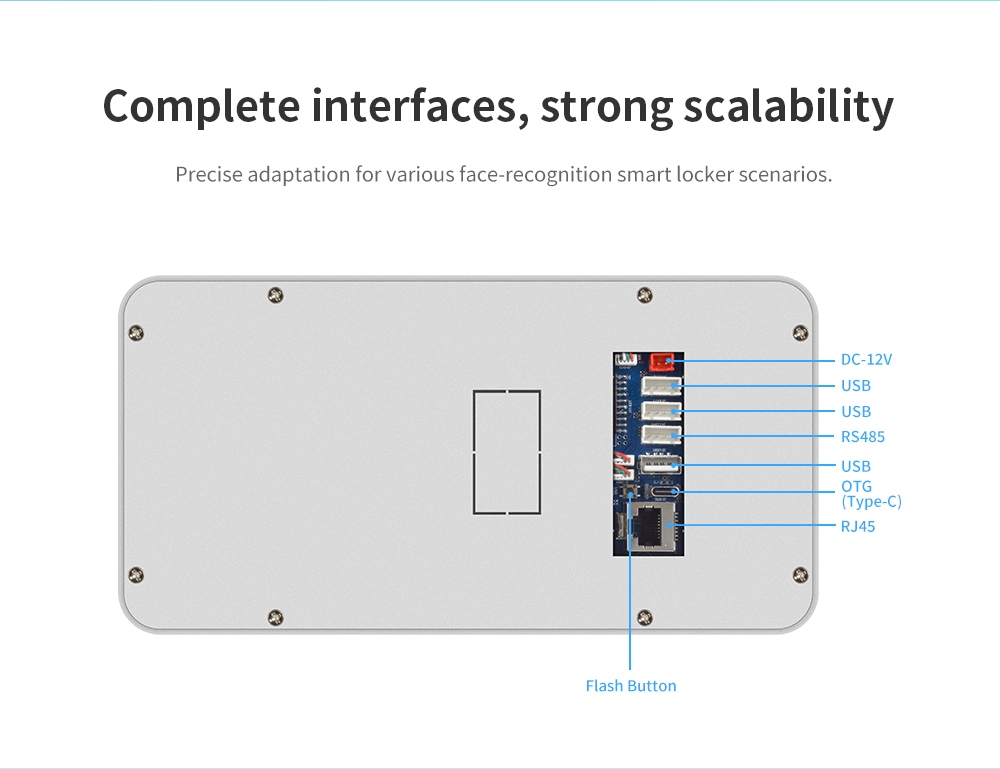

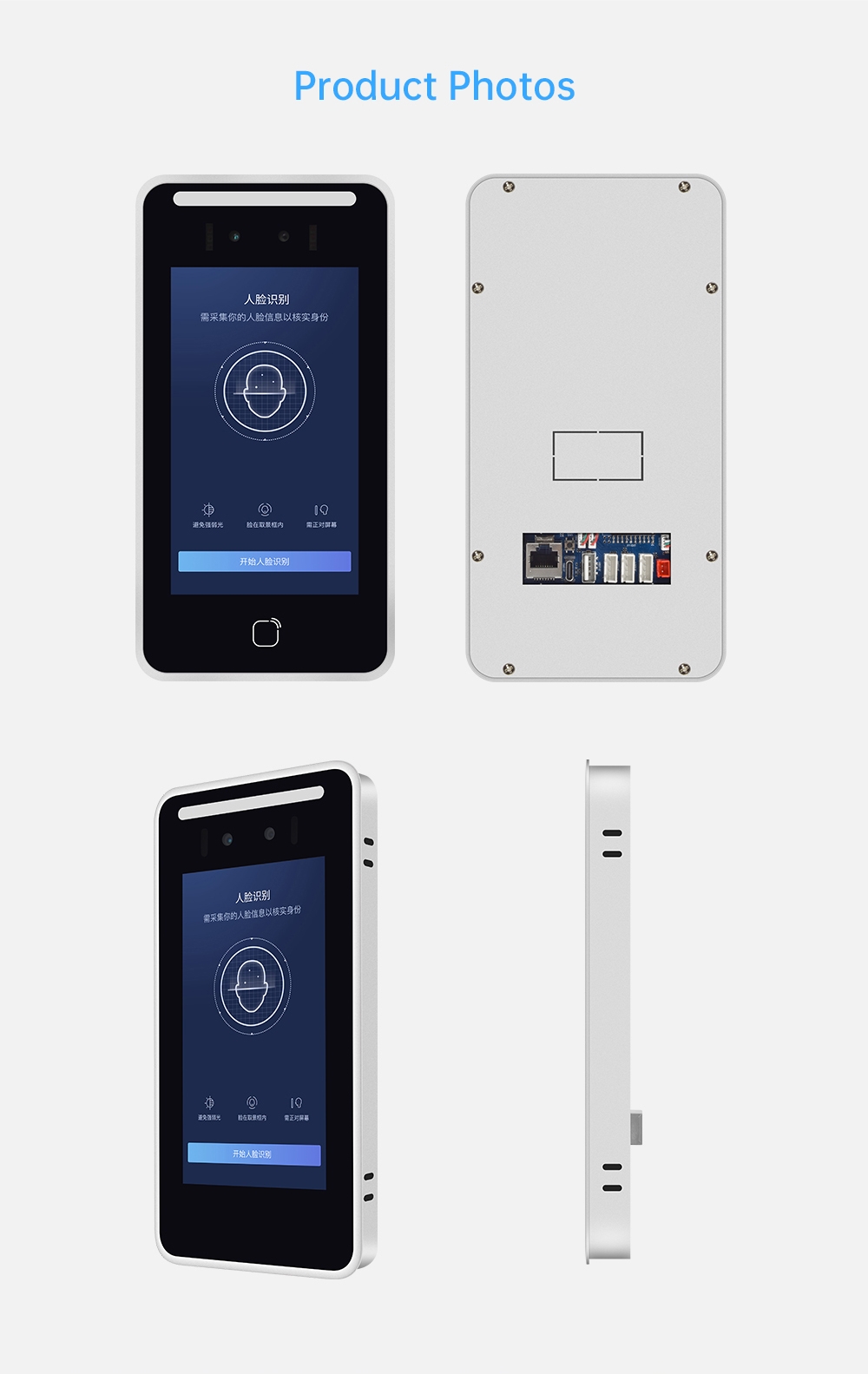

Interfaces

Interfaces — AYFIC070-Fi3568
Power connector12 VNot specified
RS485 interface annotationRS485Not specified
OTG interface annotationType-CNot specified
Ethernet interface annotationRJ45Not specified
Maintenance buttonsProgramming buttonNot specified

Display and structure

Display and structure — AYFIC070-Fi3568
Display size7 inchesNot specified
Resolution1024 × 600 pxNot specified
Backlight brightness500 cd/m²Not specified
Viewing angleIPS wide viewing anglesNot specified
Touch typeCapacitiveNot specified
Overall dimensions238 × 123 × 21 mmNot specified
Panel cutout dimensions233.38 × 118.38 mmNot specified

Core configuration

Core configuration — AYFIC070-Fi3568
CPUcores: 4; architecture: A55; frequency: 2 GHzNot specified
RAM2 GBStandard
Storage32 GBStandard
Ethernet10 / 100 / 1000 MbpsNot specified
Bluetooth5.2Optional
Android systemAndroid 11Not specified
Linux systemsLinux Buildroot/Debian 10/Ubuntu 18.04Not specified

Interfaces and environment

Interfaces and environment — AYFIC070-Fi3568
Cameratype: Dual-camera wide dynamic range; pixels_each: 2000000Not specified
Card readerM1 / ISO14443AOptional
Serial portsRS485: 1; RS232/TTL: 2 channelsNot specified
Power connector12 VNot specified
Fill lightThree-color LED / Infrared fill lightNot specified
WiFi2.4 GHzNot specified
Power inputnominal: 12; range: 9 / 15 VNot specified
Rated power5 WNot specified
Standby power2.2 WNot specified
Operating temperature-20 – 70 ℃Not specified
Operating humidity10 – 90 %Not specified

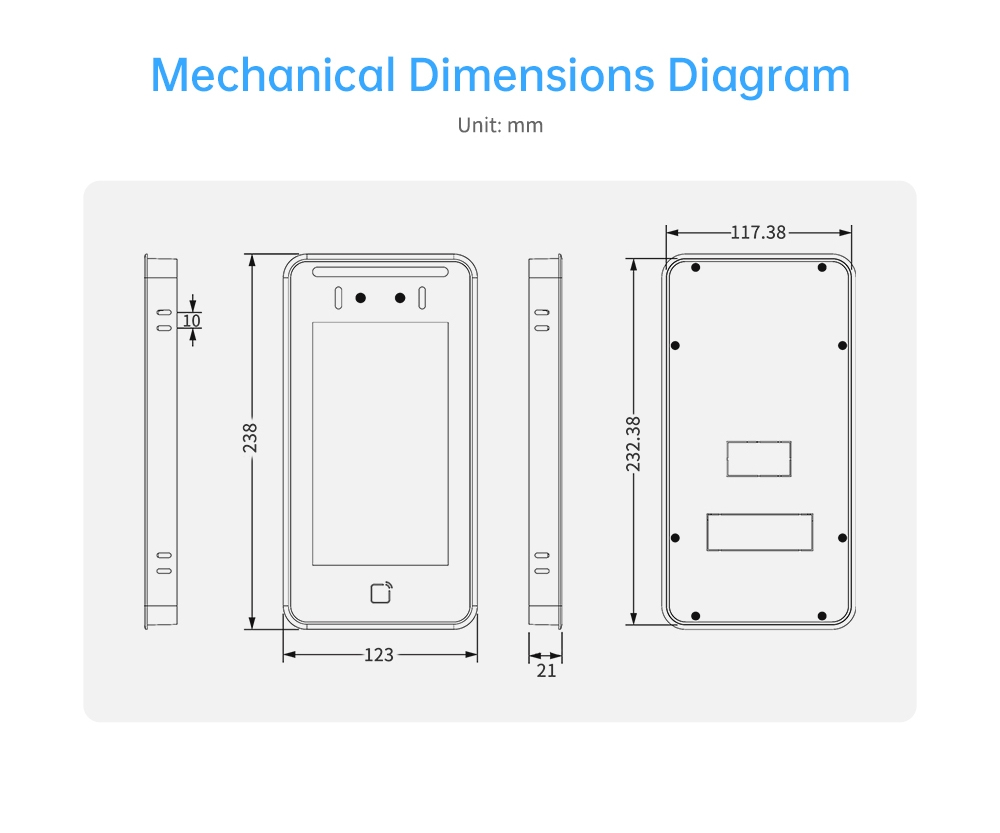

Mechanical dimensions

Mechanical dimensions — AYFIC070-Fi3568
Front height238 mmNot specified
Front width123 mmNot specified
Overall thickness21 mmNot specified
Side-hole spacing annotation10 mmNot specified
Rear enclosure height232.38 mmNot specified
Rear enclosure width117.38 mmNot specified

System

System — AYFIC070-Fi3568

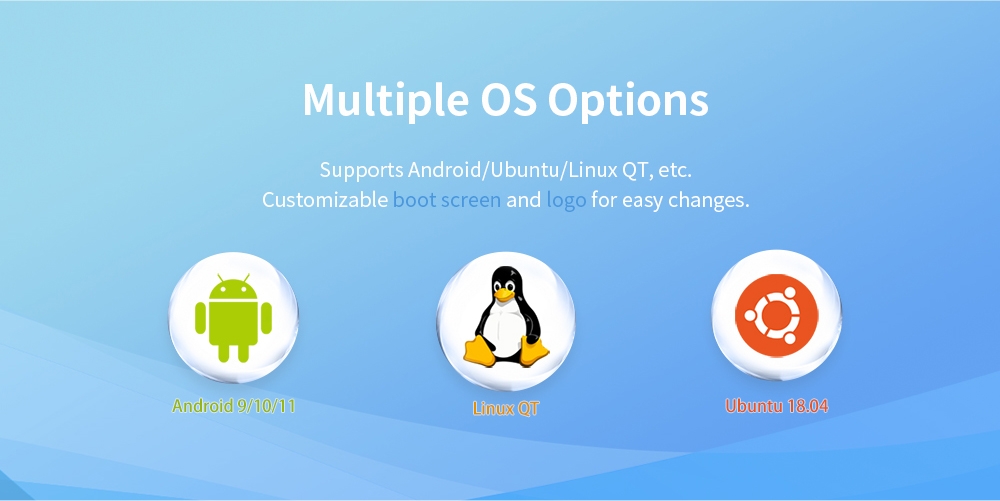

OS version summaryAndroid 9 / Android 10 / Android 11 / Linux QT / Ubuntu 18.04Depends on processor configuration
Boot screenUser configurableNot specified

Installation

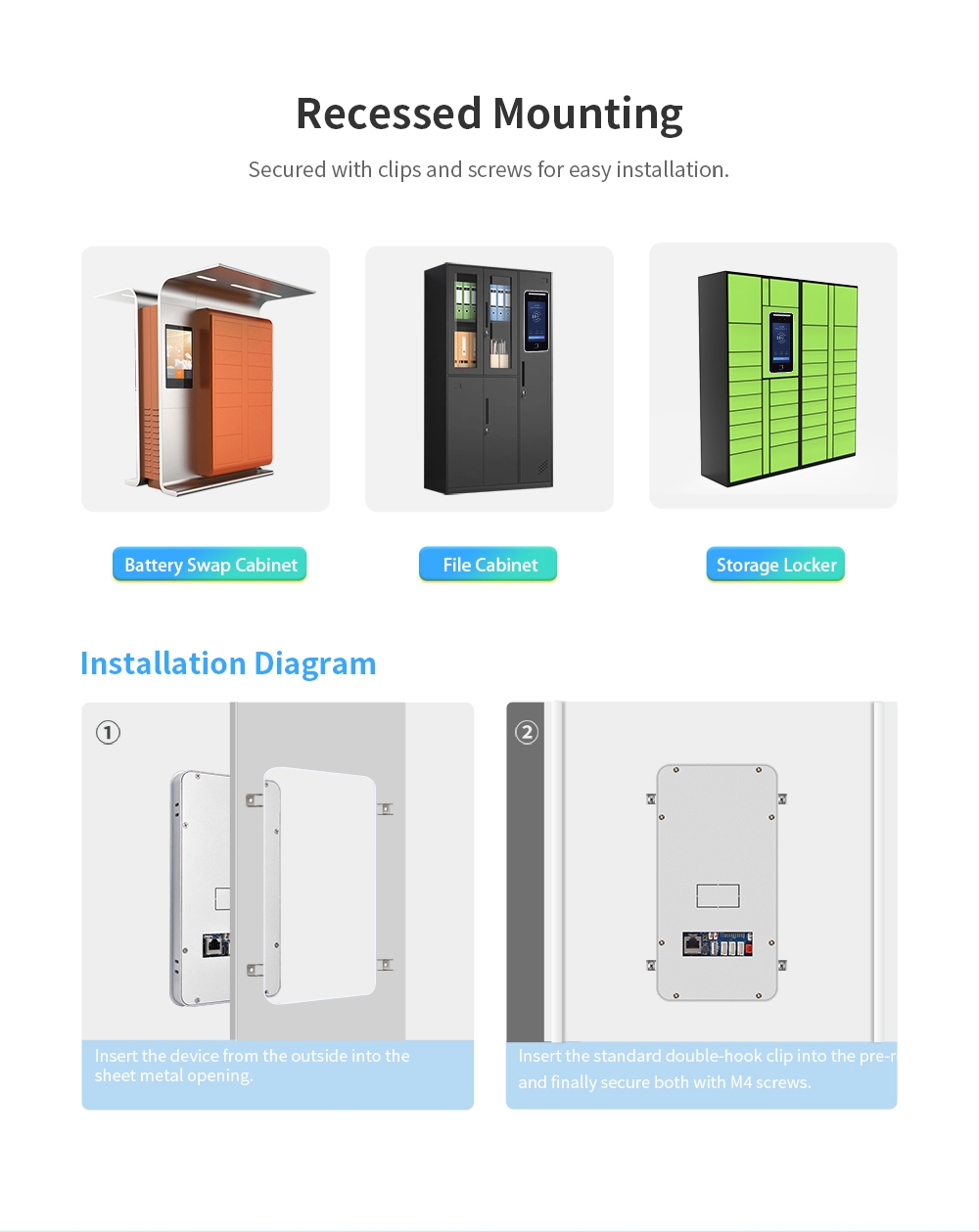

Installation — AYFIC070-Fi3568

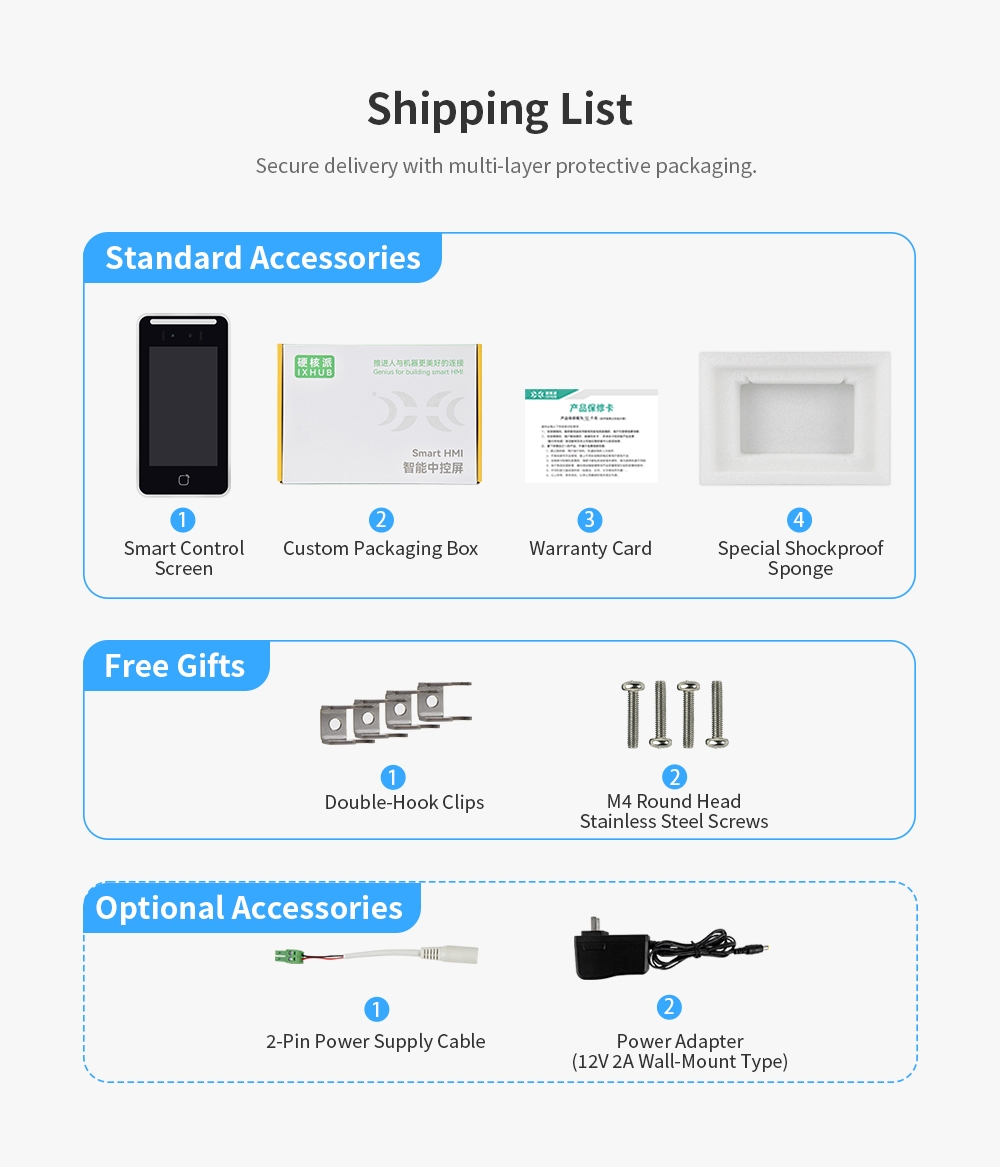

Fixing structureClips / ScrewsNot specified
Mounting clipsDouble-hook clipStandard
Fixing screwsM4Not specified
